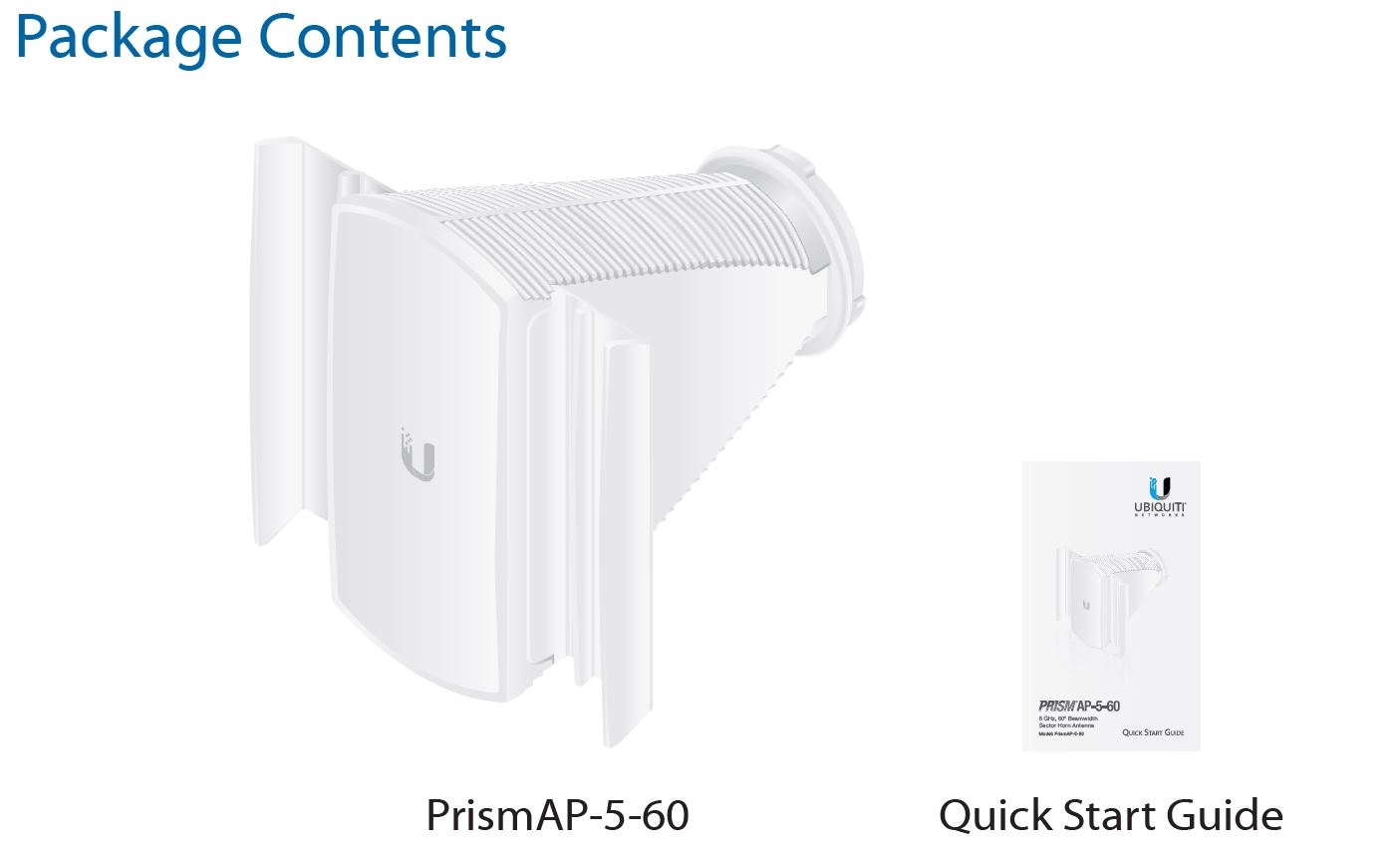

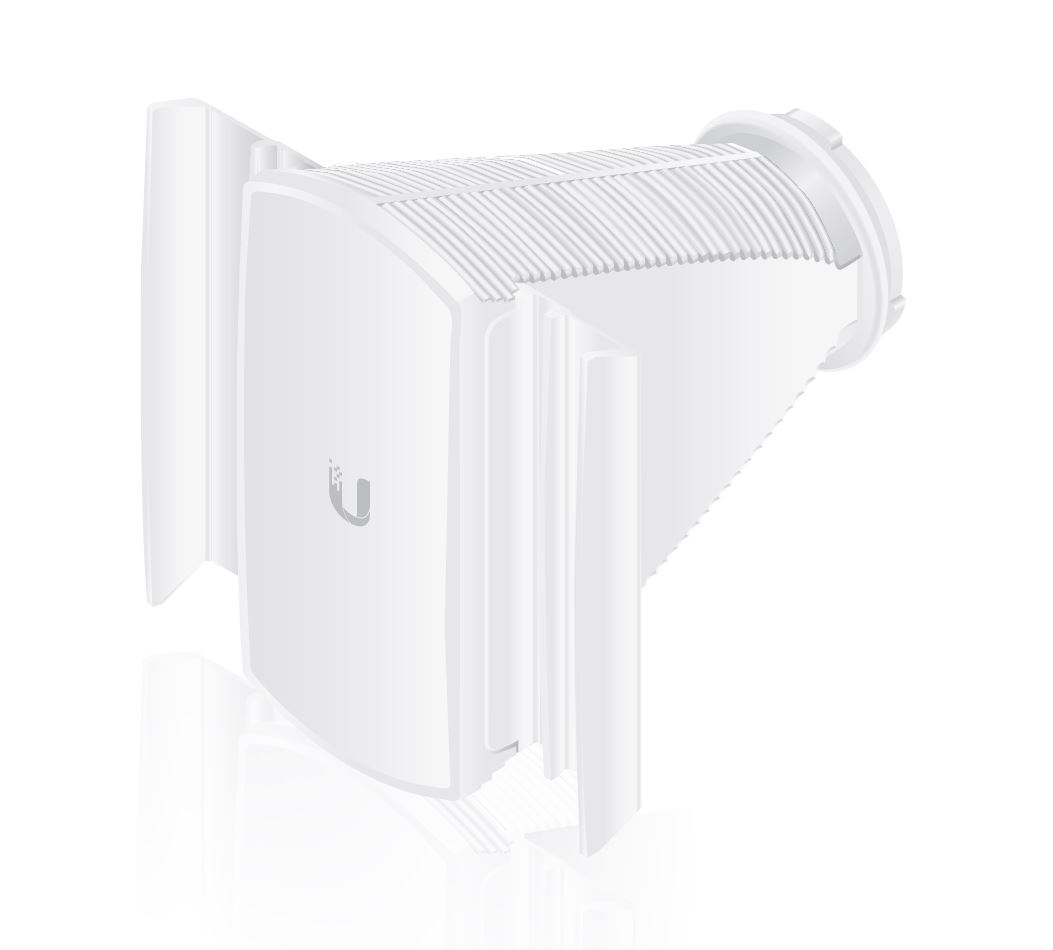

UBIQUITI airMAX® ac Beamwidth Sector Isolation Antenna Horn (PrismAP-5-60)

Kodas: PrismAP-5-60
ID: #1344

Isolation Antenna Horn for UBIQUITI PrismStation and IsoStation, 5Ghz, 16 dBi, beam width 60 degrees, Dual-Linear Polarization

66.70€ su PVM

Kaina be PVM: 55.12€


Produkto savybės:

Modular Design

With flexible sectorization for optional antenna beamwidths, the PrismAP antennas are interchangeable and improve beam‑shaping for specific deployment and environment needs. The PrismStation 5AC and soStations use horn antenna sectors designed for increased co‑location performance without sacrificing gain.


Symmetrical horn antennas (30 degrees and 45 degrees versions, models PrismAP-5-30 and PrismAP‑5‑45, respectively) offer breakthrough scalability options for wireless systems. Unique beam performance and great co- location characteristics allow for a higher density of sectors than traditional sector technology.

Enhanced Co-Location

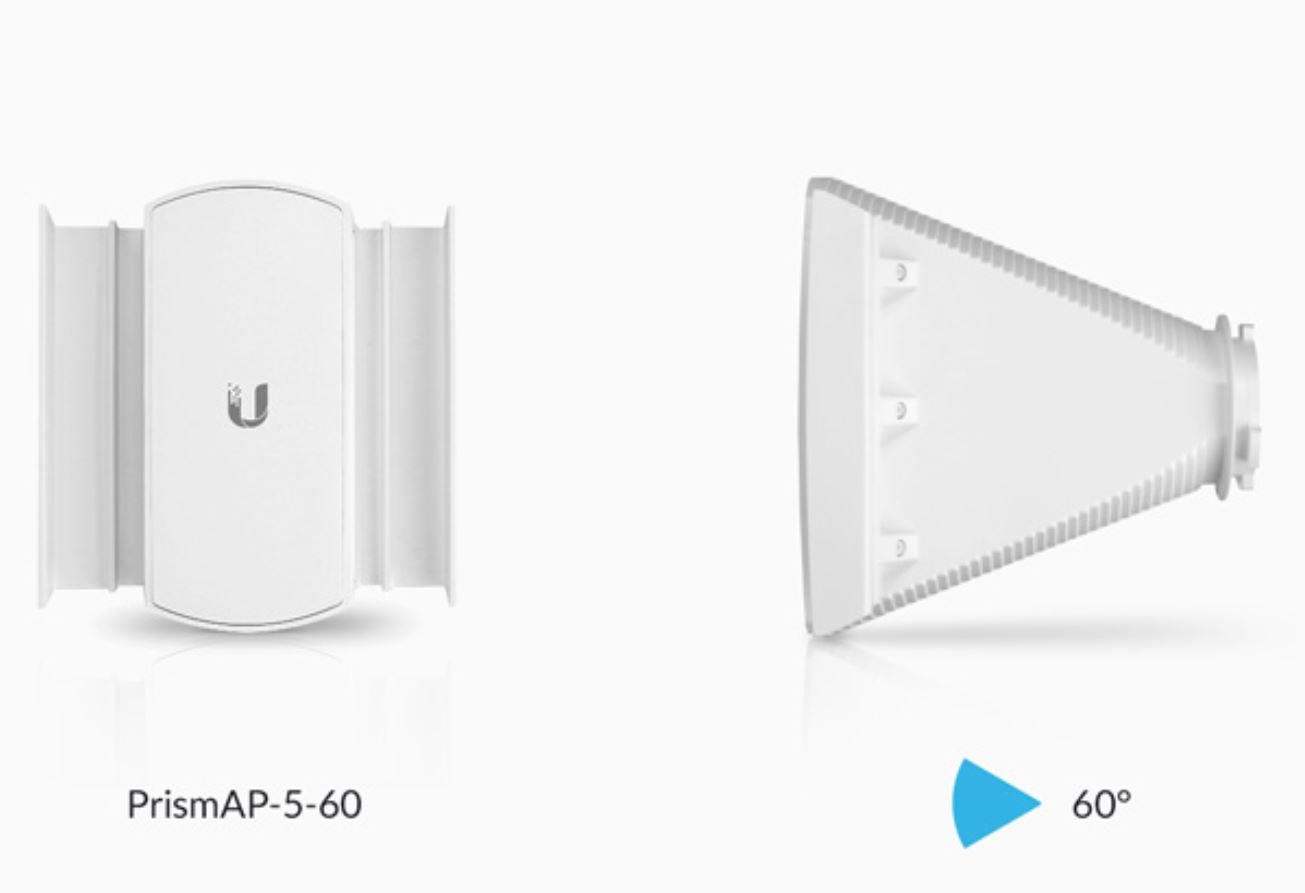

Asymmetrical horn antennas (60 degrees and 90 degrees versions, models PrismAP-5-60 and PrismAP-5-90, respectively) have naturally attenuated side lobes and extremely low back radiation. They offer best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.

Produkto specifikacijos:

Dimensions 161.6 x 173.3 x 170.9 mm (6.4 x 6.82 x 6.73")
Weight 720g (25.39 oz)
Supported Frequency Range 5.15 - 5.85 GHz
Gain: 16 dBi
HPOL Beamwidth: 60°
VPOL Beamwidth: 60°
Elevation Beamwidth: 30°
Maximum VSWR: 2:1
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 50 N @ 200 km/h (11.2 lbf @ 125 mph)
Polarization: Dual-Linear
Cross-Pol Isolation: 17 dB

The PrismAP is compatible with the following models:
• IsoStation™ IS-M5
• IsoStation IS-5AC
• PrismStation™ PS-5AC

IsoStation and/or PrismStation IS NOT INCLUDED !!!
