UBIQUITI AP-5AC-90-HD Airprism sector antenna
Ubiquiti AP-5AC-90-HD Airprism 3x30deg sector antenna for Rocket 5AC-Prism, 22dbi, 802.11AC, MiMo 2x2
Produkto savybės:Ubiquiti Networks introduces an innovative sector antenna for your Point-to-MultiPoint (PtMP) applications, the airPrism® 5 GHz 3x30° HD Sector Antenna.
The airPrism antenna features significant advances in noise isolation and beam performance to complement the Rocket®5ac Prism™ radios (not included) for co-location deployments.
Three Rocket5ac Prism radios mounted on a single airPrism antenna maximizes throughput in an efficient tower footprint, minimizing installation and tower costs.
Highly resistant to noise interference, the airPrism antenna provides superior beam performance in high-density areas for high-capacity, multipoint networks.
The airPrism antenna and Rocket5ac Prism radios have been designed to seamlessly work together. Every airPrism antenna has three built-in Rocket radio mounts, so installation requires no special tools.
Snap the three Rocket5ac Prism radios securely into place and mount the antenna for your PtMP link.

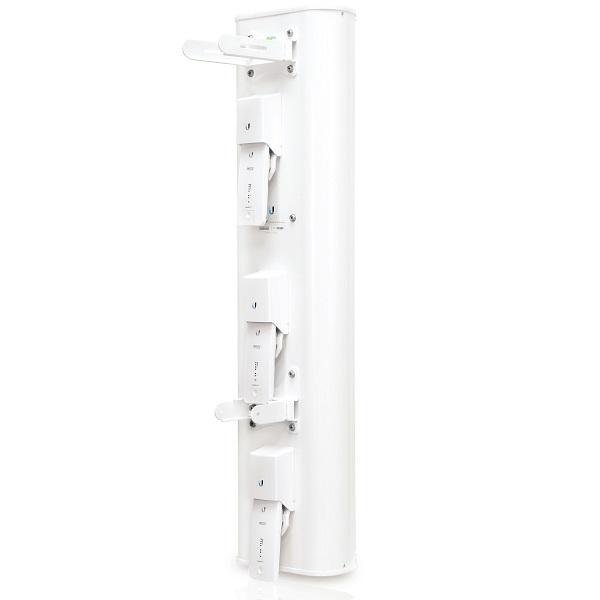

The three Rocket5ac Prism radios are installed at the top, middle, and bottom of the airPrism antenna. Each radio independently transmits and receives within its corresponding 30° beamwidth.
Produkto specifikacijos:Dimensions*: 322.6 x 201.5 x 1300 mm (12.7 x 7.93 x 51.18")
Weight**: 13.1 kg (28.9 lb)
Frequency Range 5.15 - 5.85 GHz
Gain: 22 dBi
HPOL Beamwidth: 3 x 30° (6 dB)
VPOL Beamwidth: 3 x 30° (6 dB)
Electrical Beamwidth: 8°
Electrical Downtilt: 2°
Max. VSWR: 1.75:1
Cross-Polarization: Isolation 30 dB Min.
Interfaces: (6) RP-SMA Connectors (Weatherproof )
Compatible Radio: Rocket5ac Prism, model R5AC-PRISM
Wind Loading: 534 N @ 200 km/h (120 lbf @ 125 mph)
Wind Survivability: 200 km/h (125 mph)
Mounting: Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
ETSI Specification: EN 302 326 DN2
Certifications: CE, FCC, IC
* Dimensions exclude pole mount and Rocket5ac Prism (Rocket5ac Prism sold separately)
** Weight includes pole mount and excludes Rocket5ac Prism (Rocket5ac Prism sold separately)
