UBIQUITI Device Bridge (UDB)

Produkto savybės:

Effortless Wireless Bridging
The Ubiquiti Device Bridge (UDB) is a wireless PoE adapter designed to streamline network expansion and device connectivity. With its UniFi Wi-Fi Auto-Link technology, the UDB makes wireless bridging simple and intuitive, allowing users to quickly set up reliable, high-speed connections. This device is ideal for UniFi Protect PoE cameras, Talk phones, and various IoT devices, enabling seamless integration without complicated configurations. Whether used in homes or business networks, the UDB delivers the reliability and speed required for modern network setups. Ideal for applications that require stable connectivity and ease of deployment, this device provides a streamlined solution for connecting remote or difficult-to-reach devices.

High-Speed Connectivity
Operating on the 5 GHz band, the UDB provides impressive data transfer speeds, with a maximum throughput of up to 867 Mbps. The device utilizes 2x2 MIMO technology and supports the 802.11a/n/ac Wi-Fi standards, ensuring a fast and stable wireless connection. The internal 5 dBi antenna and external 4 dBi omni antenna work together to maintain a strong, reliable signal over greater distances. This high-speed connectivity makes the UDB an excellent choice for bandwidth-intensive applications, from video surveillance to VoIP communication, ensuring that connected devices perform at their best.

Powerful Performance
Built with Ubiquiti’s commitment to quality, the UDB combines a compact form factor with powerful performance features. Its internal and external antennas ensure broad coverage and stable connectivity, while the durable design is built to handle continuous use in demanding environments. Equipped with a Gigabit Ethernet LAN port, the Ubiquiti Device Bridge supports up to 15W of Passive PoE, allowing it to power compatible devices directly through its PoE output. The UDB also offers flexible power options, supporting 100-240 VAC input voltages, making it adaptable to various power environments. This versatility enhances its compatibility with a wide range of devices, making it a versatile tool for network expansion and device integration.

Produkto specifikacijos:

Dimensions: 130 x 55 x 34 mm (5.1 x 2.2 x 1.3")
WiFi Standard: WiFi 5
Spatial Streams: 2
Mounting Locations: Wall, table

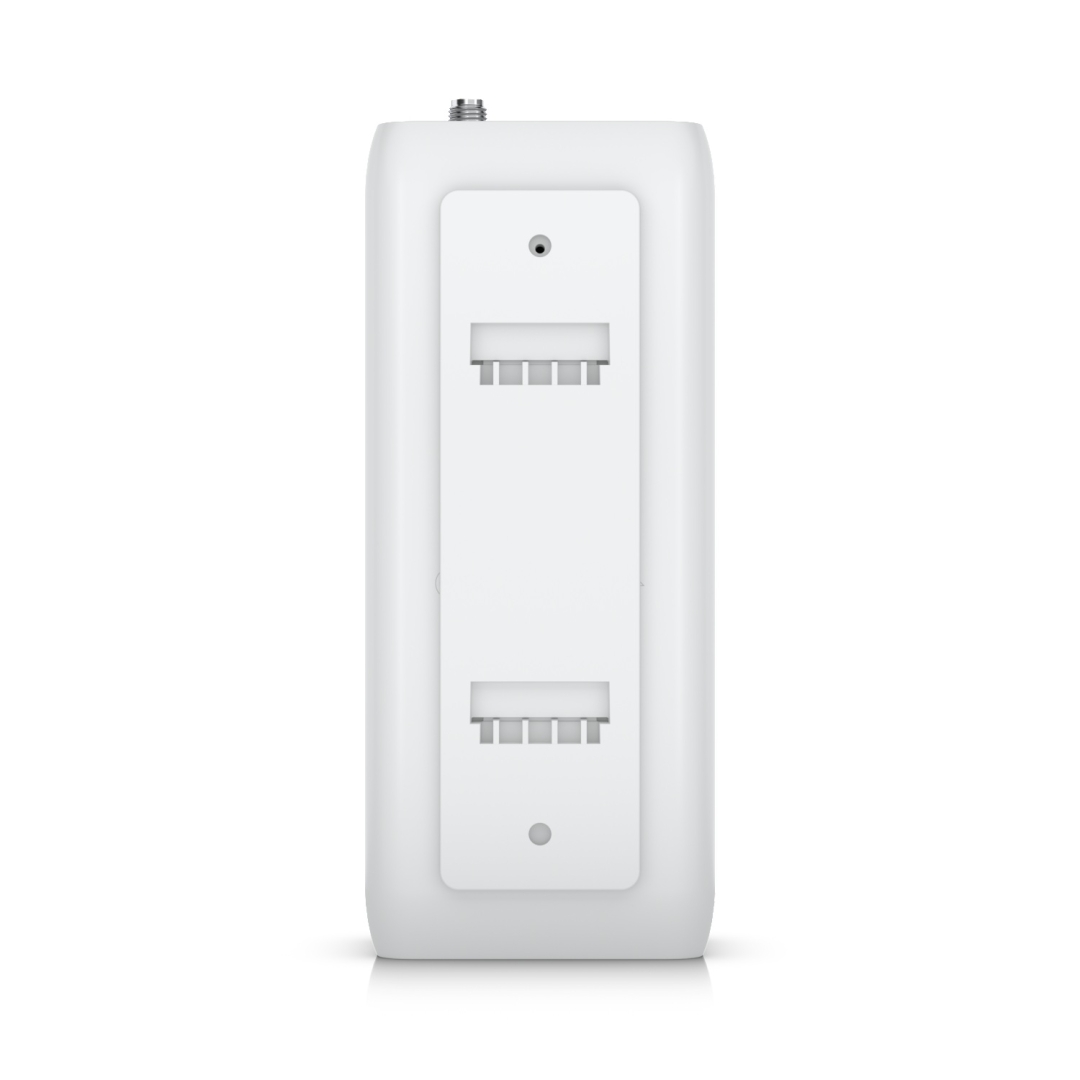

Mounting: Wall (Included)
Power Method: 100—240V AC, 0.45A Max., 50/60 Hz

Performance

MIMO:
    5 GHz: 2 x 2
Max. Data Rate:
    5 GHz: 866.7 Mbps (BW80)
Antenna Gain:
    5 GHz: Internal: 5 dBi External omni: 4 dBi, 360° x 30°
Max. TX Power:
    5 GHz: 21 dBm
Supported Data Rates:
    802.11ac (WiFi 5): 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
    802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
    802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Security: WPA2 AES

Hardware

Max. Power Consumption: 25W (AC input) 10W (Excluding PoE output)
Supported Voltage Range: 100—240V AC

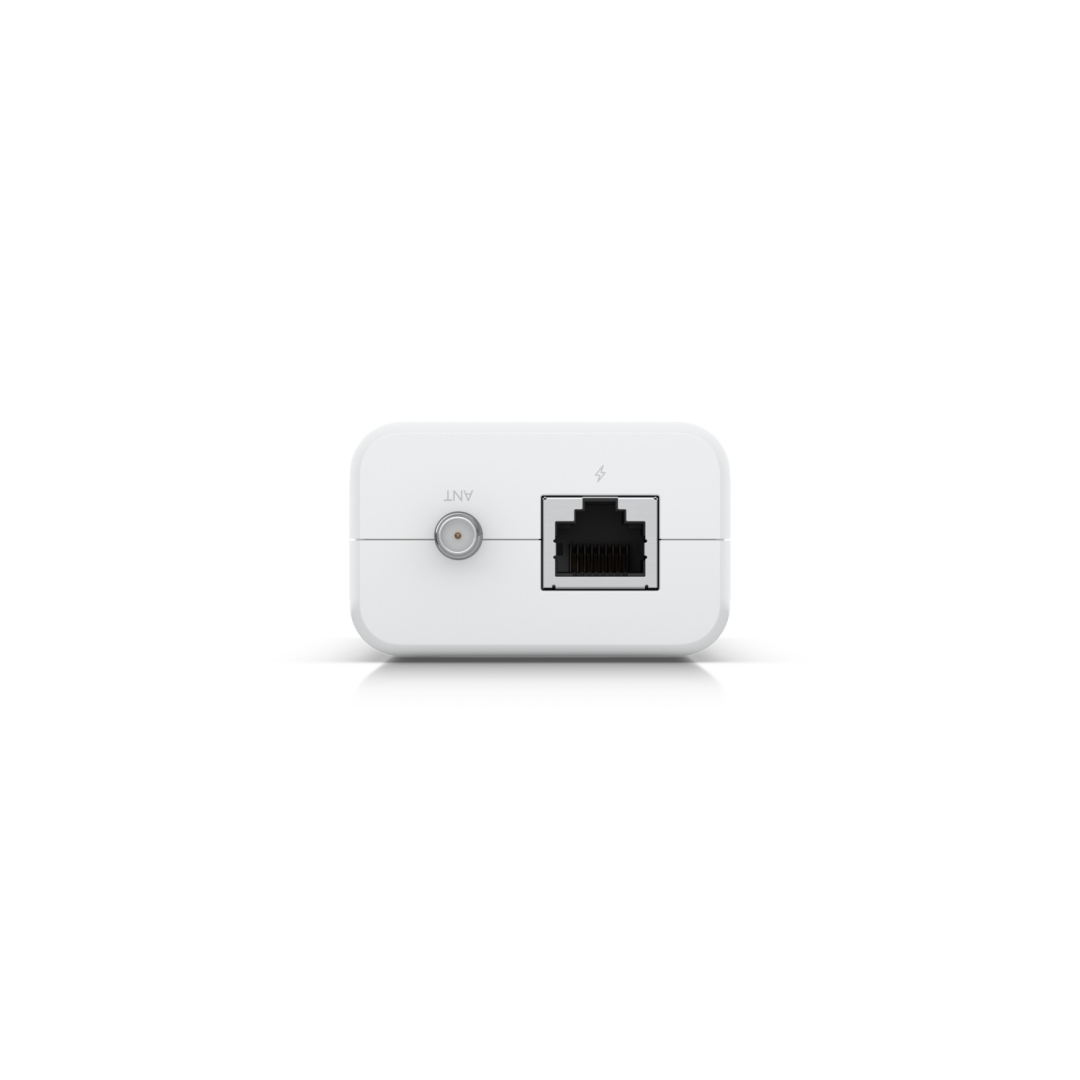

Networking Interface: (1) GbE RJ45 port
Antennas:
    (1) Internal antenna
    (1) RP-SMA connector for external omni-antenna
Management: WiFi
Channel Bandwidth: 20/40/80 (MHz)
Weight: 200 g (7.1 oz)
Enclosure Material: Polycarbonate
Mount Material: Polycarbonate
Button: (1) Factory-reset
LEDs:
    System: (4) Blue: signal (1) White/blue: indicator
NDAA Compliant: Yes
Certifications: CE, FCC, IC
Operating Frequency:
    US/CA:
        U-NII-1 5150 - 5250 MHz
        U-NII-2A 5250 - 5350 MHz
        U-NII-2C 5470 - 5725 MHz
        U-NII-3 5725 - 5850 MHz
        Worldwide: 5150 - 5875 MHz
Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing
