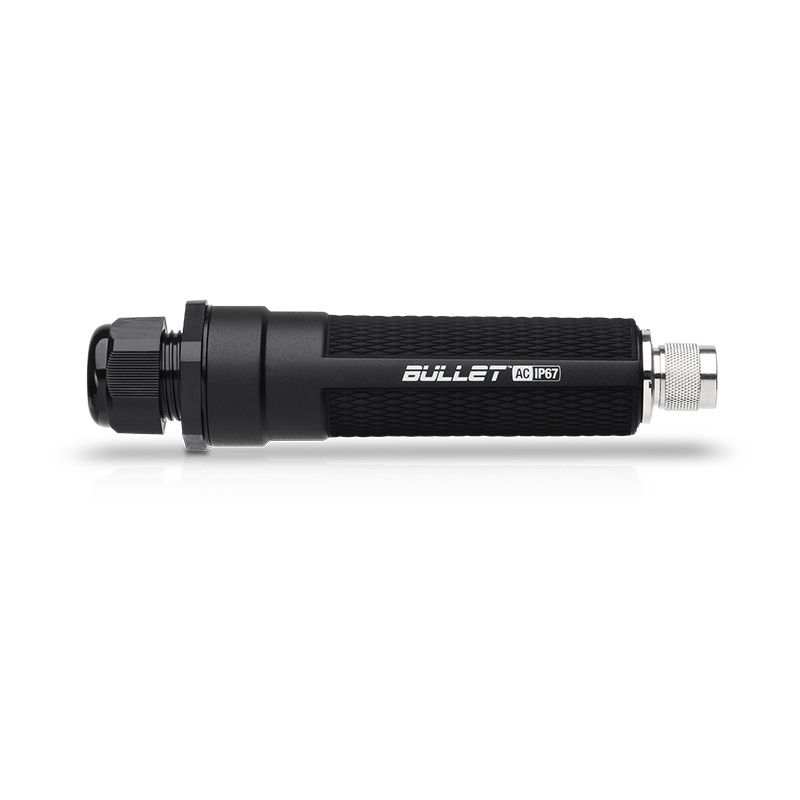

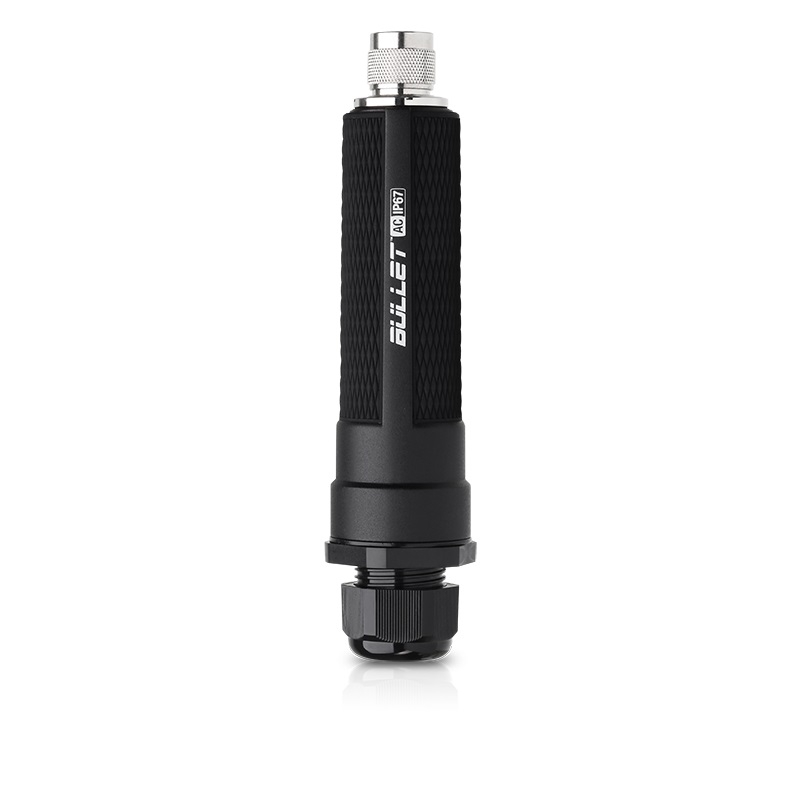

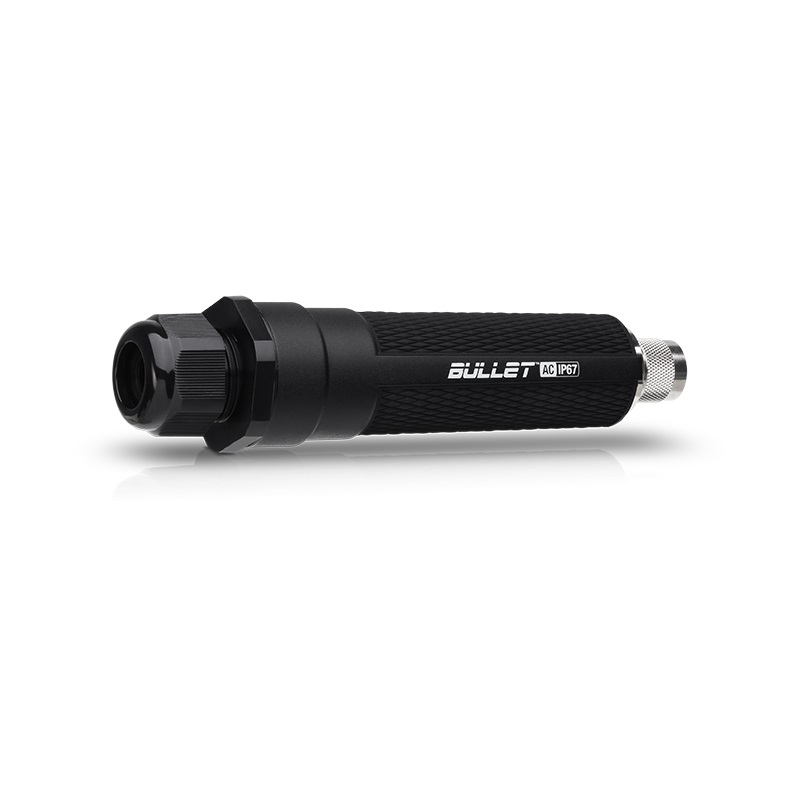

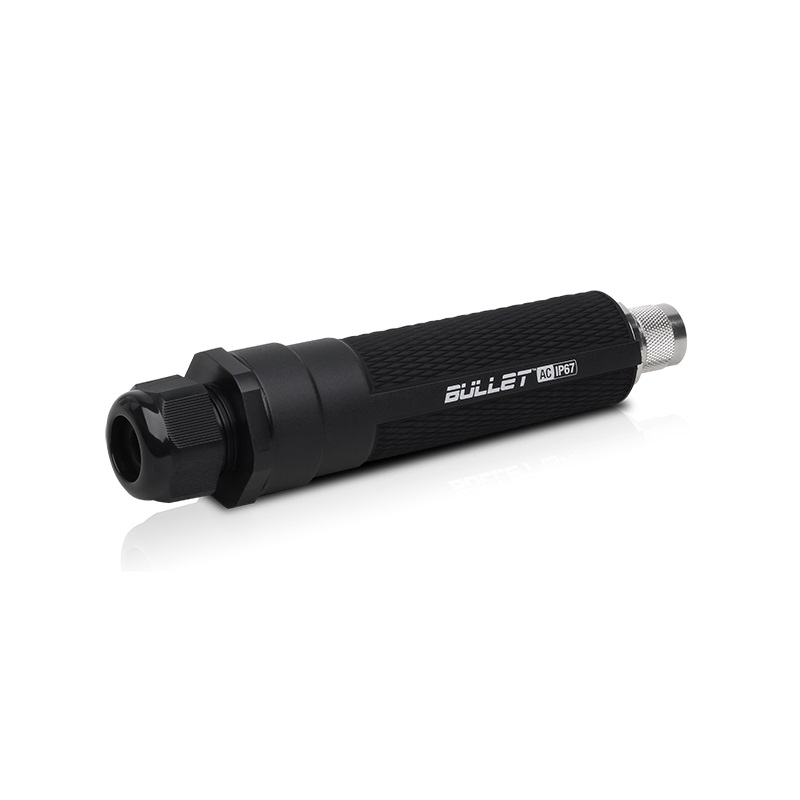

UBIQUITI Dual-Band airMAX® ac IC67 Radio with Dedicated Wi-Fi Management (BulletAC-IP67)
Covers both 2.4 and 5 GHz bands, covering a wide range of frequency bands that work well for both short and long-distance links, 1x Gigabit Ethernet Port, N-Type Connector, Output Power: 21 dBm, Throughput: 2.4 GHz - up to 160+ Mbps, 5 GHz - up to 300+ Mbps
Ubiquiti Networks designed airMAX ac radios for high performance and ease of installation. You have the freedom to deploy the Bullet™AC anywhere in the world, as it allows for a high degree of flexibility in configuring channel bandwidths (subject to local country regulations).
The Bullet AC eliminates the need to use RF cables and requires no special antenna or tools to install. There are no radio card / host board issues, no RF cable quality concerns, no
mechanical stability concerns, and no enclosure mounting requirements. With the Bullet AC, operators can just plug in and go.
Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX ac protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
This time slot method eliminates hidden node collisions and maximizes airtime efficiency, so airMAX ac technology provides performance improvements in latency, noise immunity, scalability, and throughput compared to other outdoor systems in its class.
Intelligent QoS Priority assigned to voice/video for seamless streaming.
Scalability High capacity and scalability.
Long Distance Capable of high‑speed, carrier-class links.
The next-generation airMAX ac technology boosts the advantages of our proprietary TDMA protocol. Ubiquiti’s airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in
airMAX ac technology.
airMAX ac supports high data rates, which require dense modulation: 256QAM – a significant increase from 64QAM, which is used in airMAX.
With their use of proprietary airMAX ac technology, airMAX ac products supports up to 500+ Mbps (maximum 80 MHz channel width) real TCP/IP throughput – up to triple the throughput of standard airMAX products.
The Bullet AC is a fully integrated radio that delivers up to 300+ Mbps Real TCP/IP throughput.
Dual-Band Frequency The Bullet AC covers both 2.4 and 5 GHz radio bands, covering a wide range of frequencies that work well for both short and long-distance links.
Output Power The B-DB-AC offers up to 22 dBm of output power, while the BulletAC-IP67 offers 21 dBm.

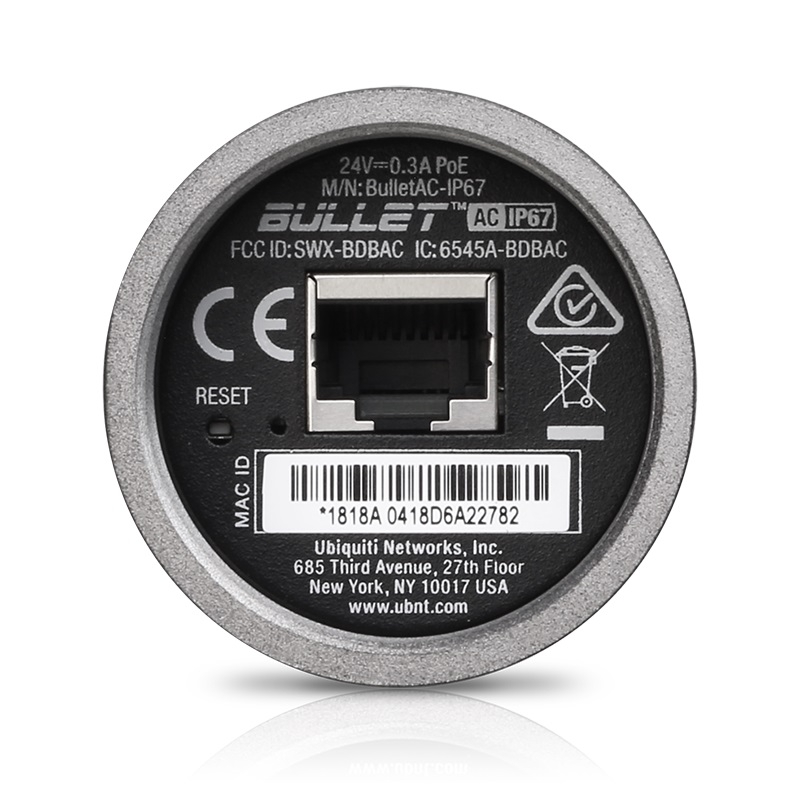

Passive Power over Ethernet (PoE) 24V Passive PoE functionality is included. Both power and data are carried over a single Ethernet cable to the Bullet AC. Use a PoE Adapter (not included) or an optional PoE switch.
Weatherproof Design The durable casing of the Bullet AC can withstand nature’s harshest outdoor elements. The BulletAC-IP67 features a robust IP67 weather-resistant body that protects against dust and water.
Plug and Play Integration No special tools or antennas are required to install the Bullet AC. Simply plug in and go.
Dimensions: 190 x 46 mm (7.72 x 1.81")
Weight: 213 g (7.51 oz)
Enclosure: Aluminum and Rubber
Processor: MIPS 74KC
Memory: DDR2 64MB
Networking Interface: (1) 10/100/1000 Ethernet Port

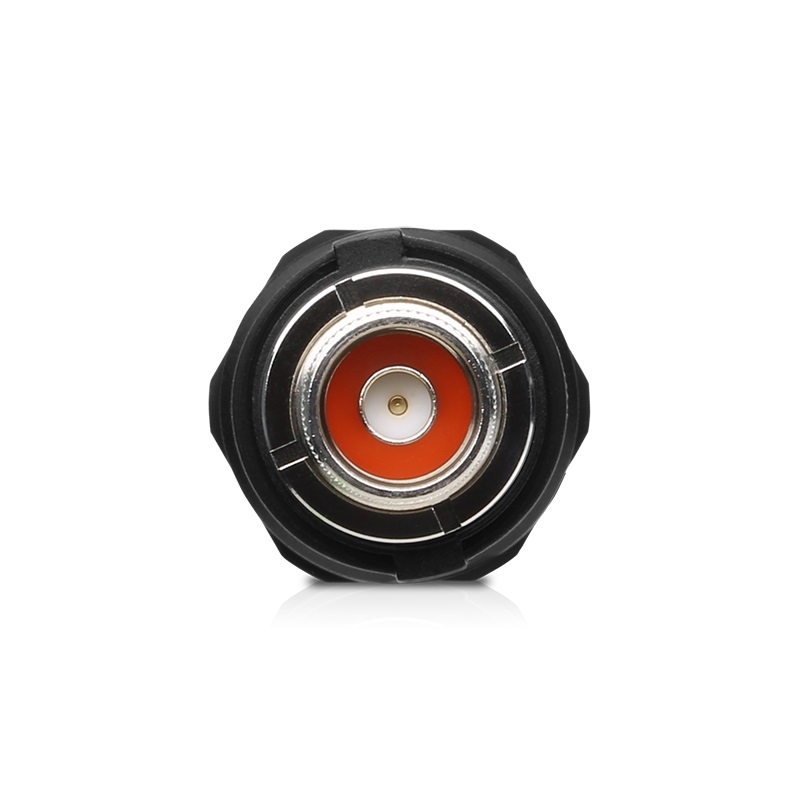

Antenna Connector: N-Type Connector
2.4 GHz - 160+ Mbps
5 GHz - 300+ Mbps
Max. Power Consumption: 7W
Max. TX Power: 21 dBm
Power Supply: 24V, 0.3A Gigabit PoE Adapter (not included)
Power Method: 24V Passive PoE (Pairs 4, 5+; 7,8 Return)
Shock and Vibration: ETSI300-019-1.4
ESD/EMP Protection: ±24kV Contact / Air
Operating Temperature: -40 to 70° C (-40 to 158° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC
