UBIQUITI ES-16-XG 10G Aggregation Switch
UBIQUITI EdgeSwitch ES-16-XG 10G 16-Port Managed Aggregation Switch, 12x 1/10 Gbps SFP+ ports, 4x 1/10 Gbps LAN ports, 160 Gbps throughput
Produkto savybės:Technology for the Masses
Build and expand your network with Ubiquiti Networks® EdgeSwitch™ XG, part of the EdgeMAX® line of products. The EdgeSwitch XG is a fully managed, 10G fiber switch that enhances network capacity and provides high-bandwidth services to growing networks.
The EdgeSwitch XG offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
The EdgeSwitch XG offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
For its total, non-blocking throughput, the EdgeSwitch XG supports up to 160 Gbps
10G High-Capacity Links
The EdgeSwitch XG offers maximum performance and low latency as an aggregation switch.

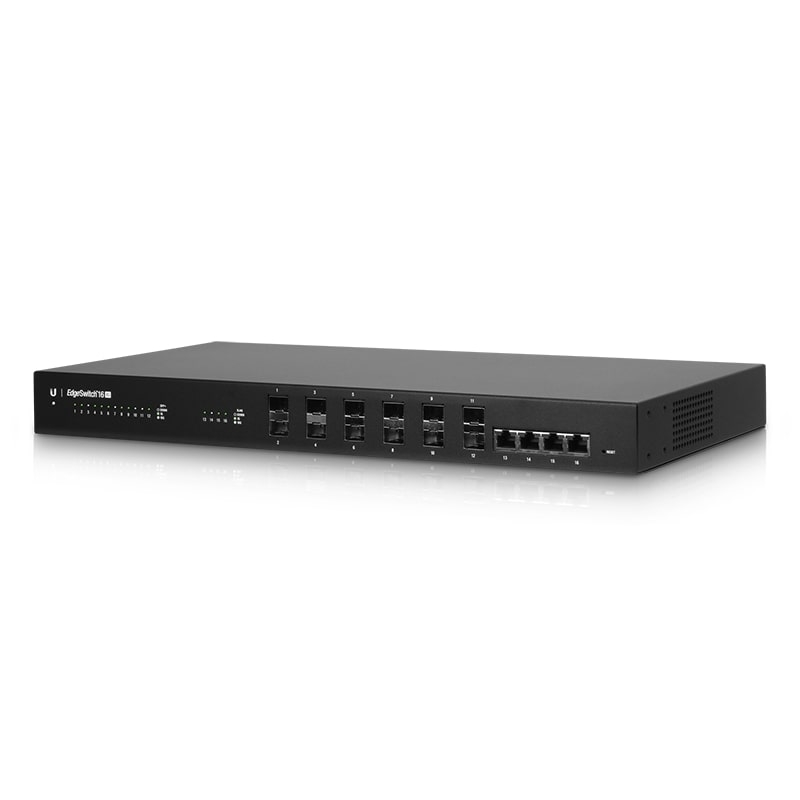

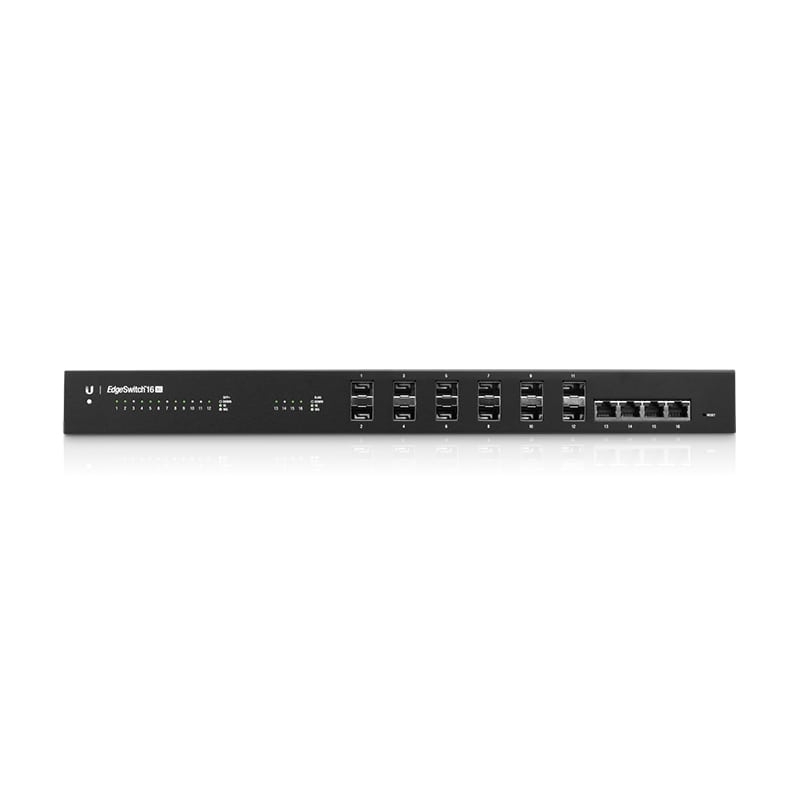

For fiber connectivity, it features 12 SFP+ ports. For copper connectivity, the EdgeSwitch XG offers four RJ45 ports that support 10GBASE-T, the standard for 10 Gbps connections using Cat6 (or higher) cabling and RJ45 connectors.
Comprehensive User Interface
Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface.
For advanced users, an industry-standard command-line interface (CLI) is available through the serial console port, telnet, and SSH.
The EdgeSwitch XG uses a sophisticated operating system that provides basic switching features and a variety of advanced features including:
• VLAN, Private VLAN, Voice VLAN
• Link Aggregation
• DHCP Snooping, IGMP Snooping
• TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
• DiffServ, CoS
• Static Routing, Policy-Based Routing
• DHCP Server Functionality
Produkto specifikacijos:Dimensions: 443 x 221 x 43 mm (17.44 x 8.70 x 1.69")

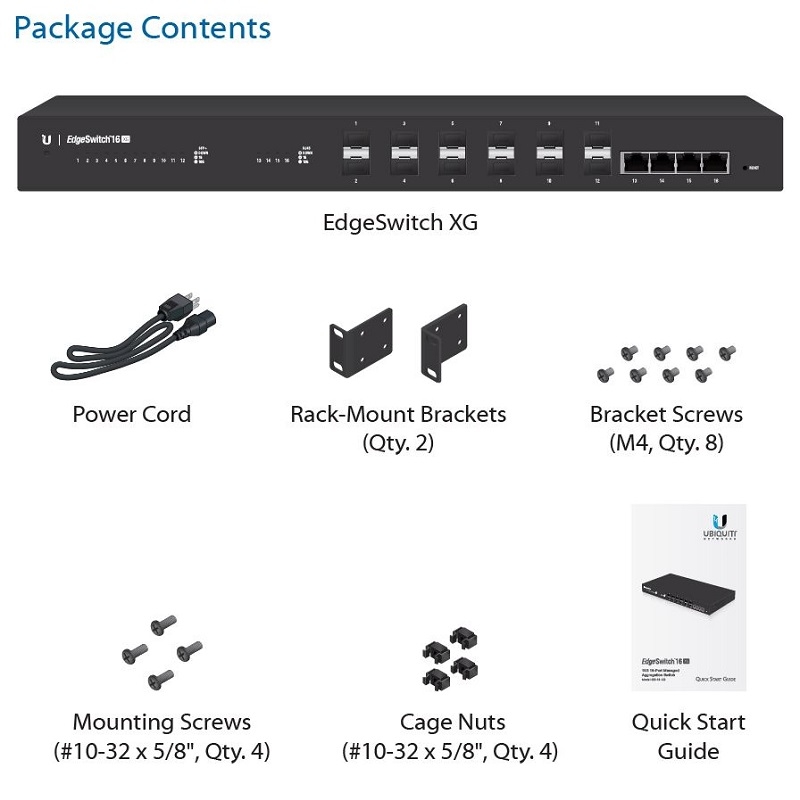

Weight Rack-Mount Brackets Included: 2.71 kg (5.97 lb)
Weight Rack-Mount Brackets Excluded: 2.62 kg (5.78 lb)
Enclosure Characteristics: SGCC Steel
Total Non-Blocking Throughput: 160 Gbps
Switching Capacity: 320 Gbps
Forwarding Rate: 238.10 Mpps
Max. DC Power Consumption: 36W (Excludes SFP/SFP+ Modules)
Power Method AC: 100-240VAC/50-60 Hz, Universal Input
Power Method DC: DC 56W, 25 to 16V, with 2.5 mm, DC Power Inline Connector
Supported Voltage Range: 100 to 240VAC 25 to 16VDC
Power Supply: AC/DC, Internal, 56W DC
LEDs Per Data Port: Speed/Link/Activity
(12) 1/10 Gbps SFP+ Ethernet Ports
(4) 1/10 Gbps RJ45 Ethernet Ports

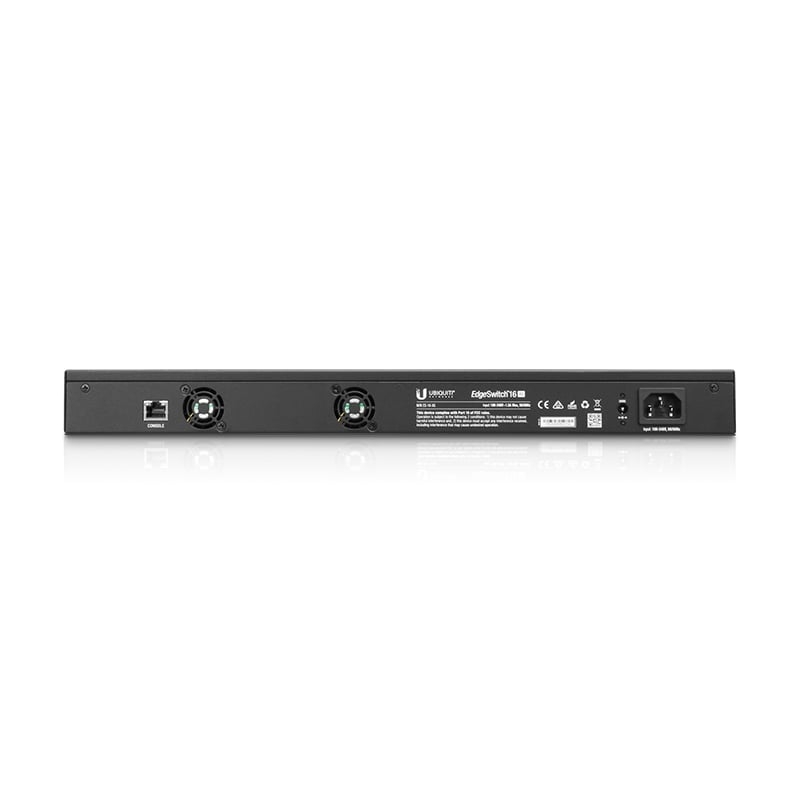

Management Interface: (1) RJ45 Serial Port, Ethernet In/Out Band
Certifications: CE, FCC, IC
Rack Mount: Yes, 1U High
ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature: -5 to 40° C (23 to 104° F)
Operating Humidity: 5 to 95% Noncondensing
Shock and Vibration: ETSI300-019-1.4 Standard
Please see all Edgemax software specifications in Datasheet below.
