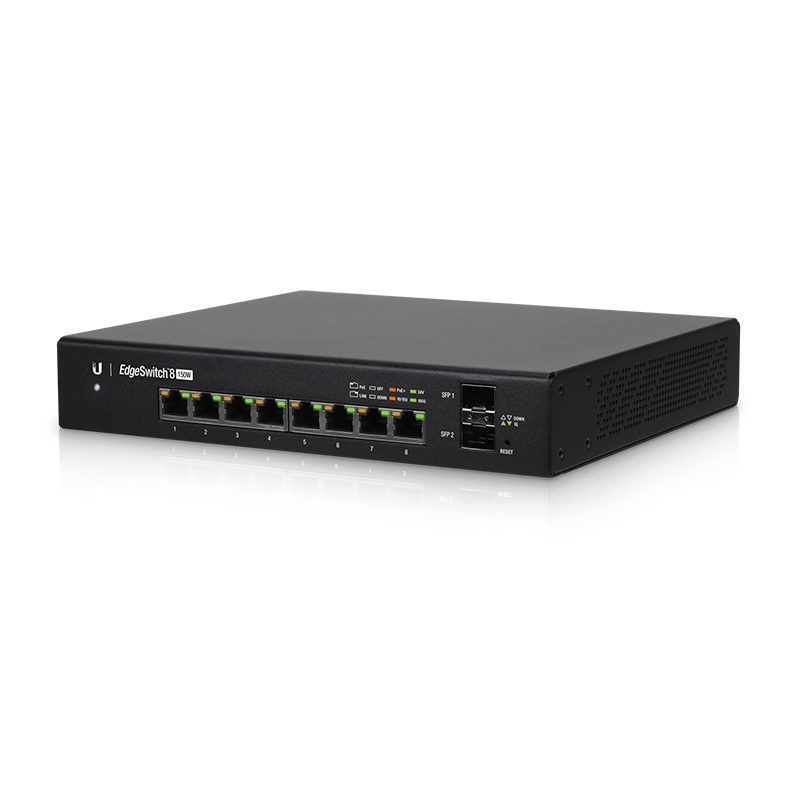

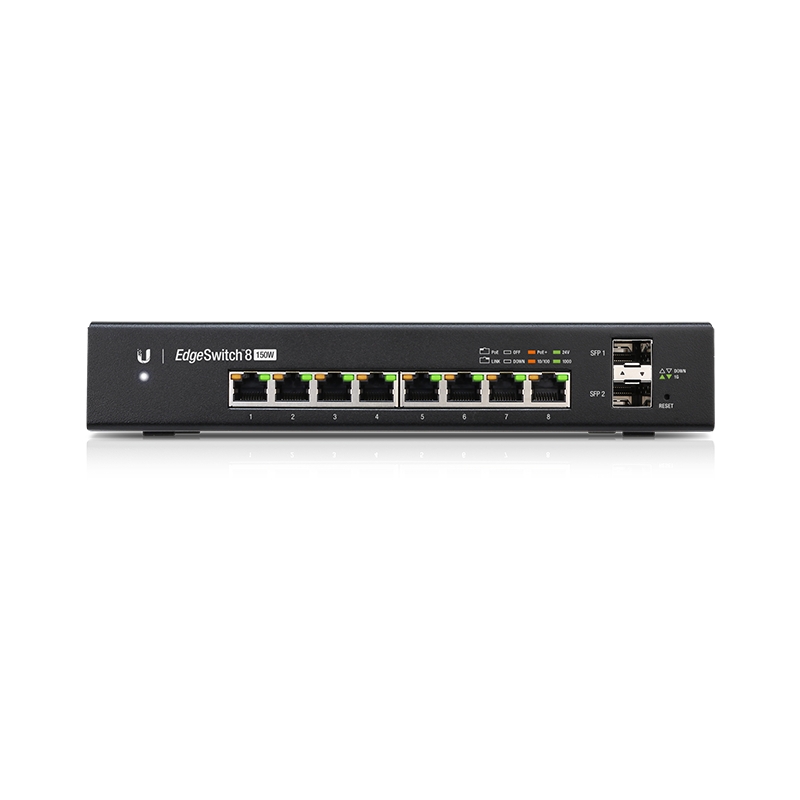

UBIQUITI Edgeswitch ES-8-150W

Kodas: ES-8-150W
ID: #1079

UBIQUITI Edgeswitch ES-8-150W, Managed PoE+ Gigabit Switch, 2x 1GBIT SFP, 8x Gbit LAN, 10 Gbps throughput

215.04€ su PVM

Kaina be PVM: 177.72€

Kiekis:


Produkto savybės:

The EdgeSwitch ES-8-150W is a fully managed, high performance PoE+ Gigabit switch with two SFP ports, and 10 Gbps total, non-blocking line rate. In addition to the internal 150W AC/DC PSU, the ES-8-150W features a DC input for optional stand-alone DC powering or redundant power backup. Power and connect your PoE devices with the flexibility of both auto-sensing IEEE 802.3af/at or configurable 24V Passive PoE.

Produkto specifikacijos:

EdgeSwitch 8 150W
Dimensions 204 x 43 x 235 mm (8.03 x 1.69 x 9.25")
Weight 1.72 kg (3.79 lb, Without Mount Brackets)
1.8 kg (3.96 lb, With Mount Brackets)
Total Non-Blocking Throughput 10 Gbps
Switching Capacity 20 Gbps
Forwarding Rate 14.88 Mpps
Max. Power Consumption 150W (Includes PoE Output)
20W (Excludes PoE Output)
Power Method AC: 100-240VAC/50-60 Hz, AC/DC Integrated PSU, Universal Input

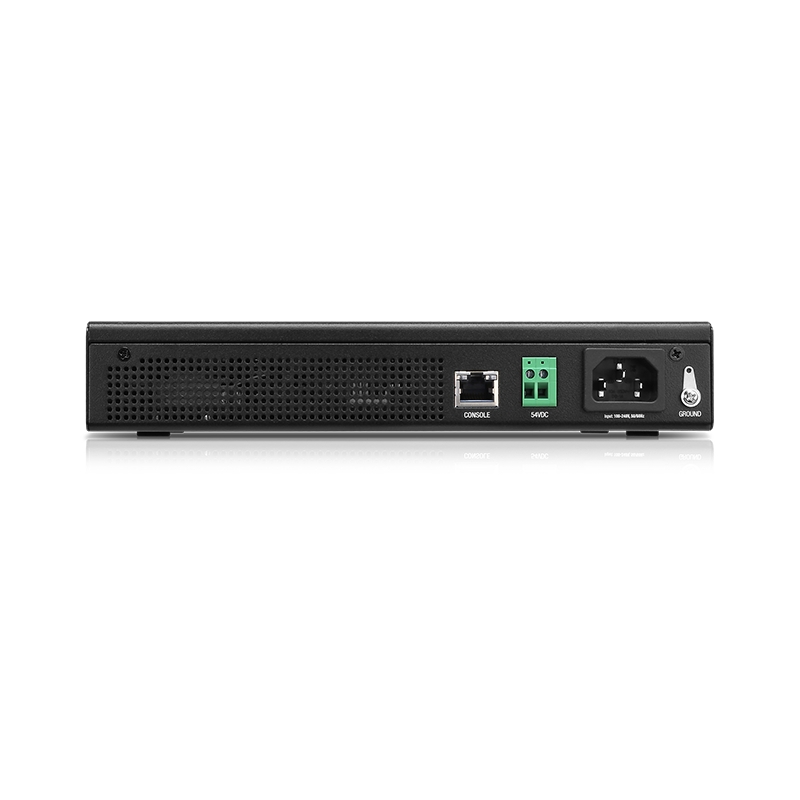

DC: 42 to 56VDC External, (Self-Correcting Polarity Protection) Terminal Block Input
Power Supply AC/DC, Internal, 150W DC
LEDs Per Port RJ45 Data Ports: PoE, Speed/Link/Activity
SFP Data Ports: Speed/Link/Activity
Networking Interfaces (8) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
Management Interface (1) RJ45 Serial Port, Ethernet In/Out Band
Certifications CE, FCC, IC
Wallmount Yes
ESD/EMP Protection Air: ±24 kV
Contact: ±24 kV
Operating Temperature Internal AC/DC @ 150W: -25 to 45° C (-13 to 113° F)
Internal AC/DC @ 100W: -25 to 55° C (-13 to 131° F)
External DC: -25 to 60° C (-13 to 140° F)
Operating Humidity 5 to 95% Noncondensing
Shock and Vibration ETSI300-019-1.4 Standard
PoE Per Port
PoE Interfaces POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
24VDC Passive PoE (Pins 4, 5+; 7, 8-)
Max. PoE+ Wattage per Port by PSE 34.2W
Voltage Range 802.3at Mode 50–57V
Max. Passive PoE Wattage per Port 17W
24V Passive PoE Voltage Range 20-27V
