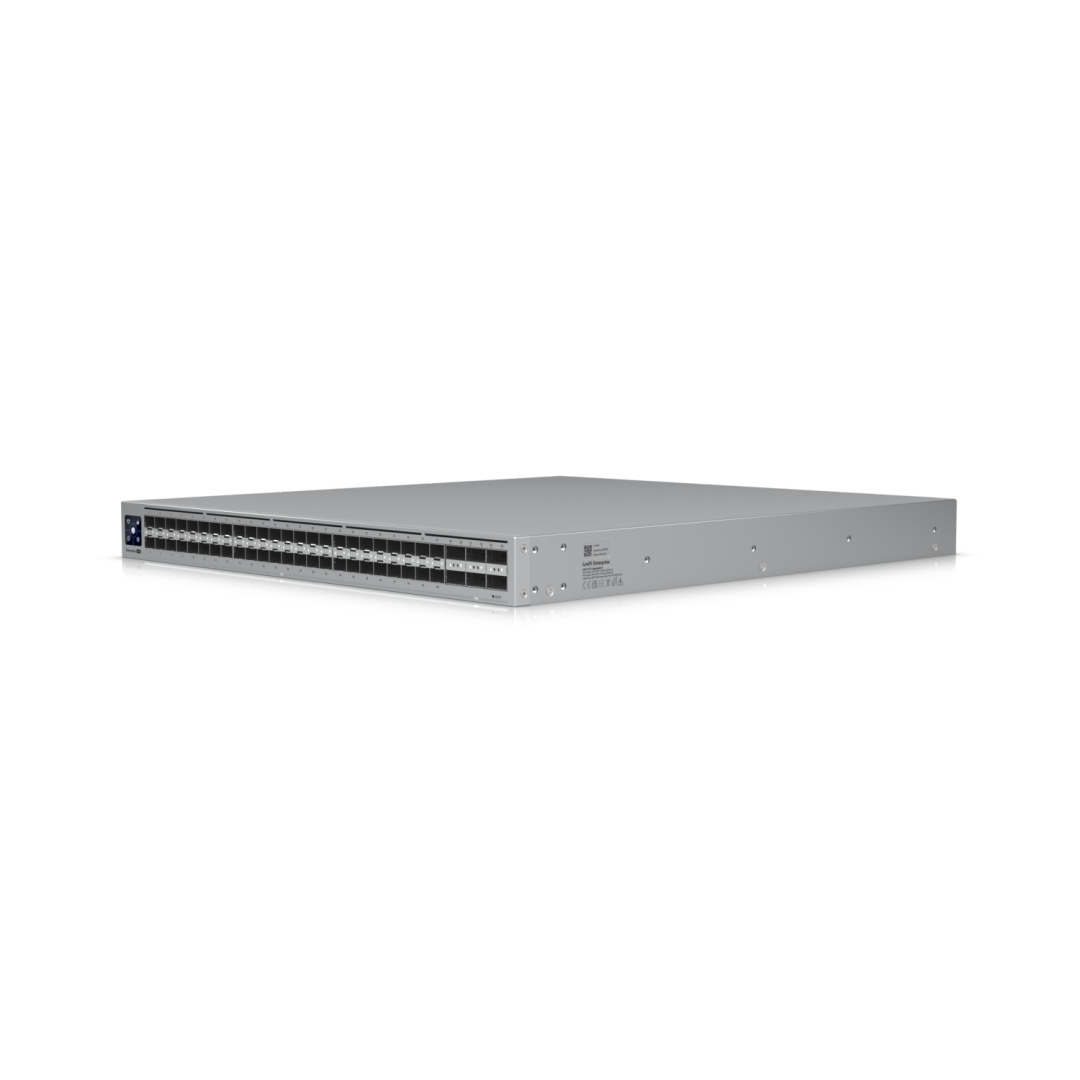

UBIQUITI Enterprise Campus Aggregation Switch (ECS-Aggregation)

Produkto savybės:

1.8 Tbps high-density 100G/25G Layer 3 Etherlighting™ aggregation switch with MC-LAG support for high availability system design

Produkto specifikacijos:

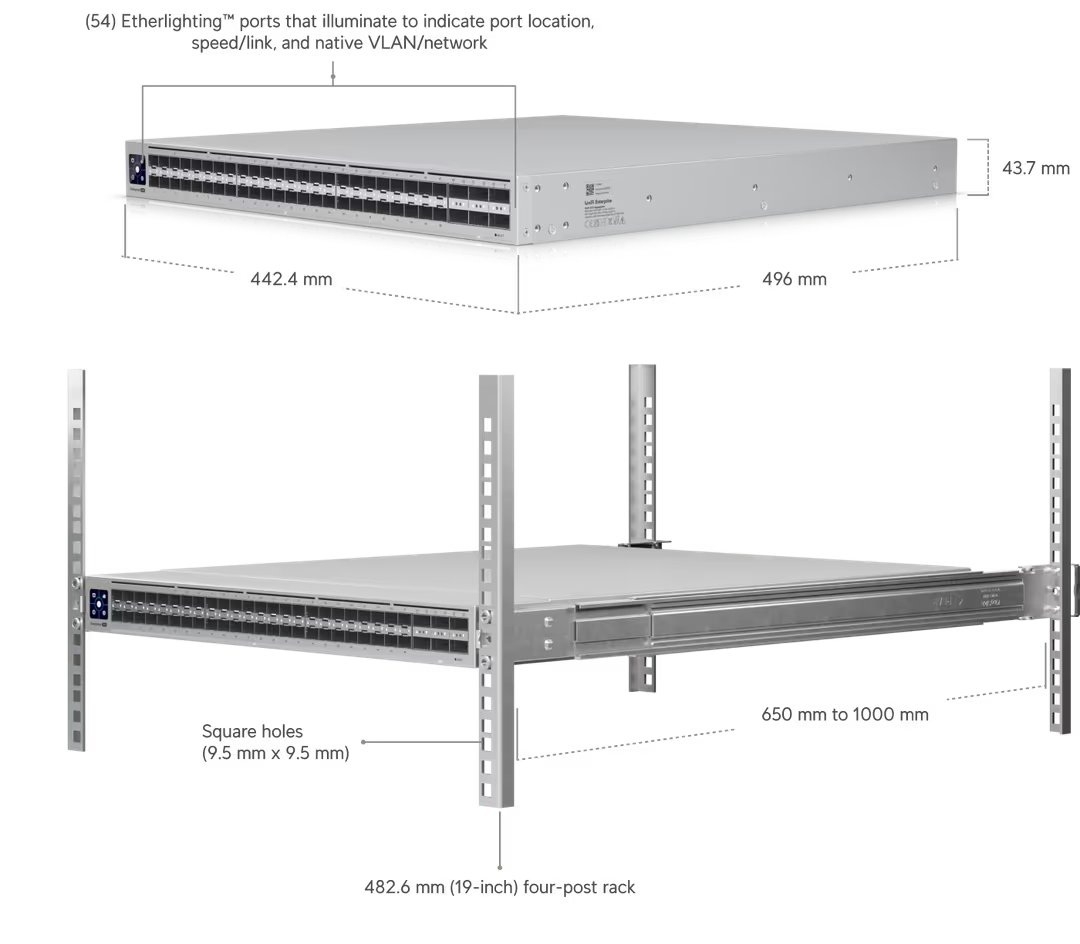

Dimensions: 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5")

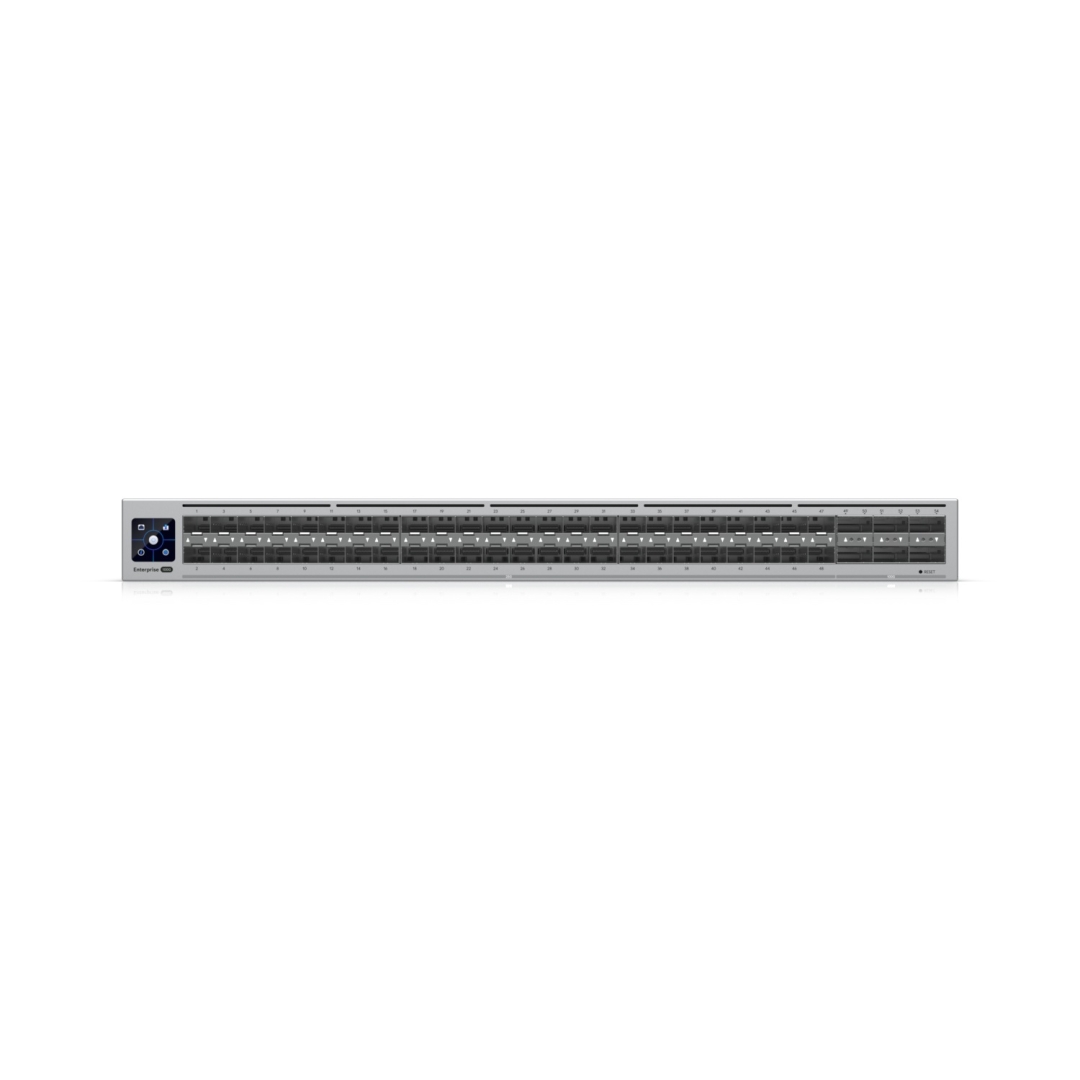

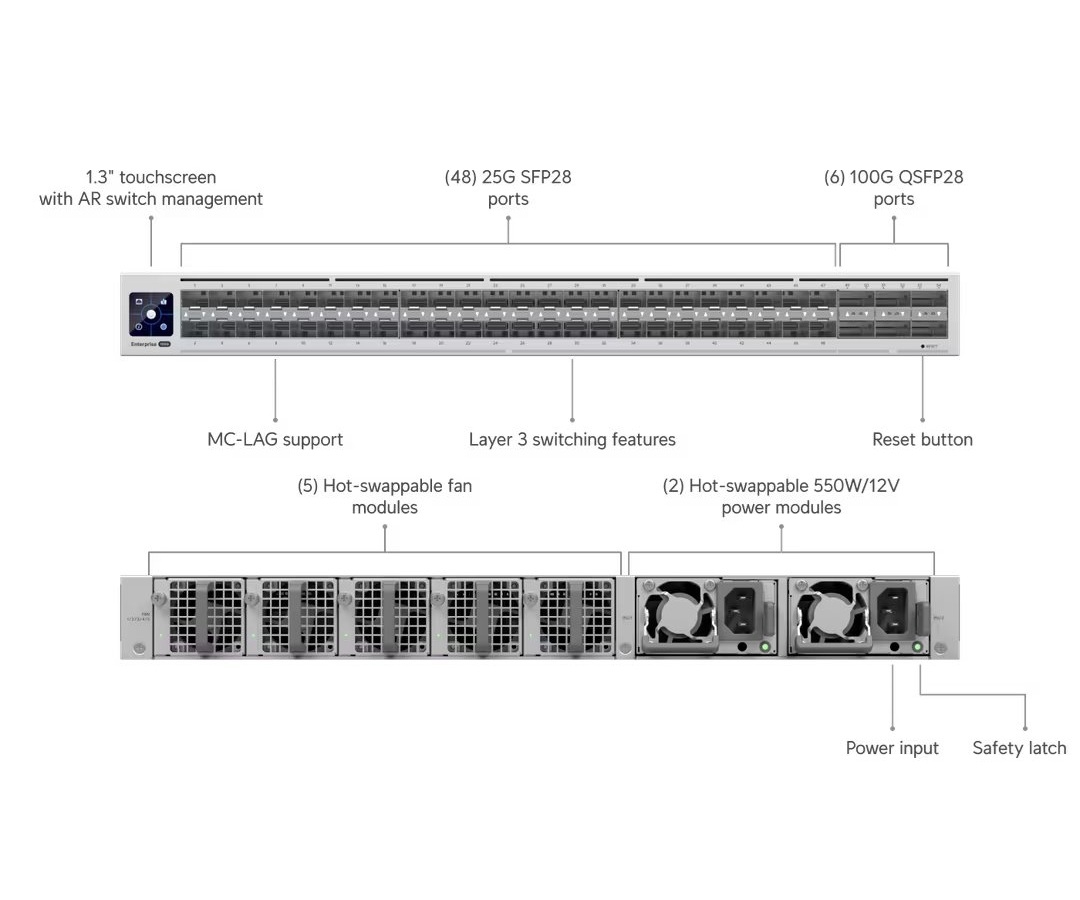

Port Layout:
    25G SFP28: 48
    100G QSFP28: 6
Redundancy:
    Multi-Chassis Link Aggregation (MC-LAG)

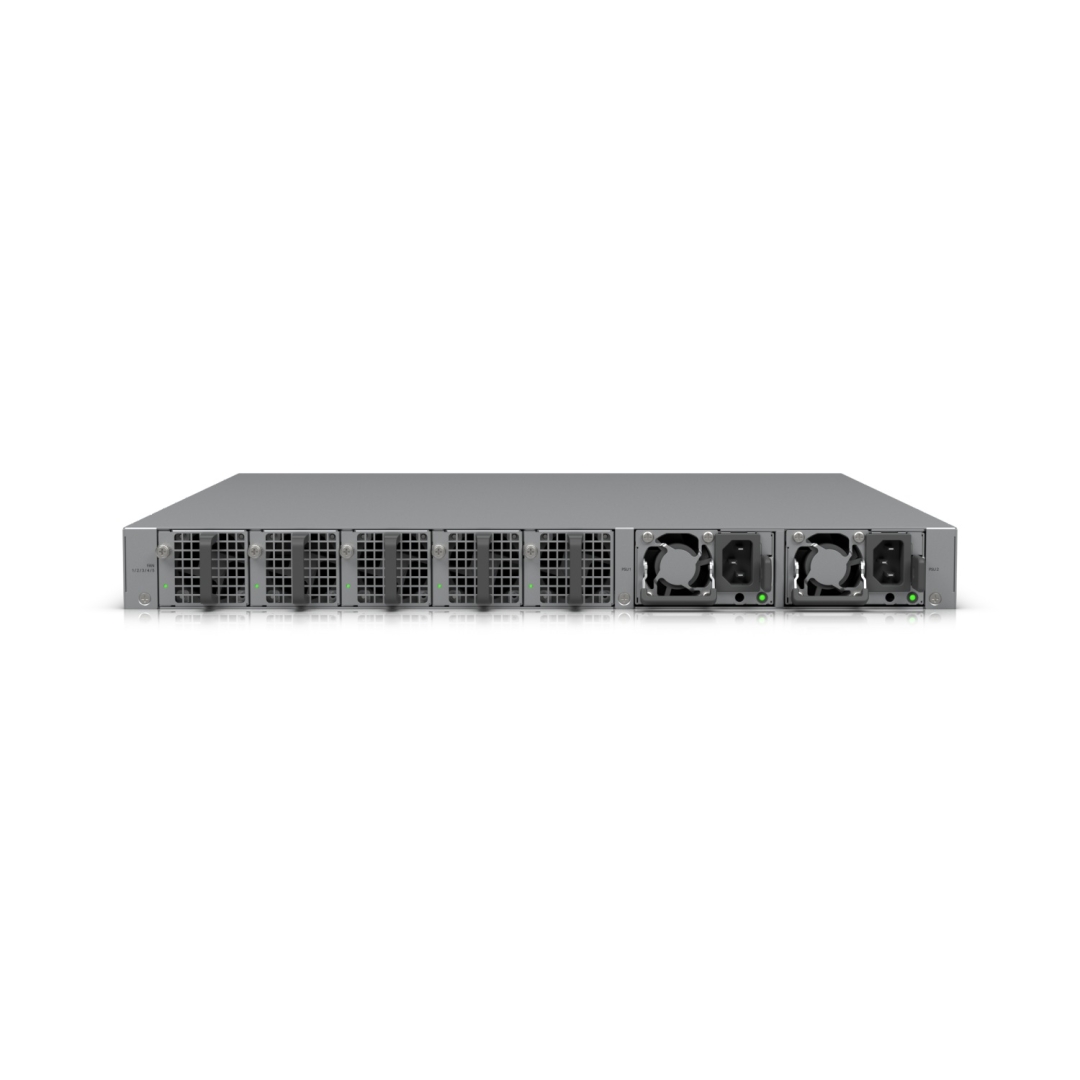

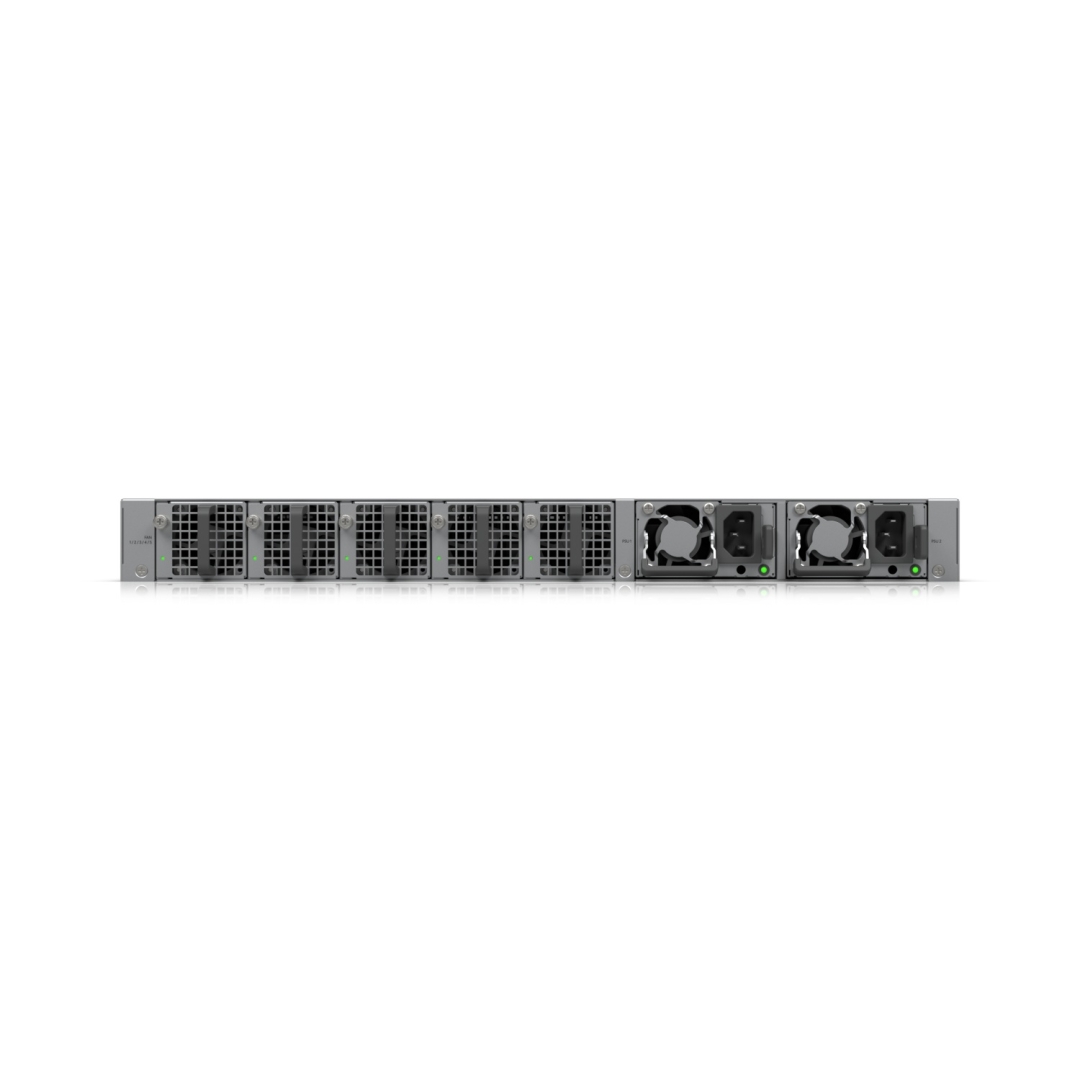

    (2) Hot-Swappable PSUs
    (5) Hot-Swappable Fans
Layer 3: Yes
Form Factor: Rack mount (1U, Full-Depth). Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support
Etherlighting™: Yes

Performance

Switching Capacity: 3.6 Tbps
Total Non-Blocking Throughput: 1.8 Tbps
Forwarding Rate: 2.4 Bpps
Supported VLANs: 1,000
MAC Address Table Size: 256,000
L3 Table Size:
    ARP Entries: 512,000
    IPv4 Routes: 512,000
Packet Buffer Size: 24 MB

Layer 3 Features

DHCP Server (Local Networks): Yes
DHCP Relay: Yes
Inter-VLAN Routing (Local Networks): Yes
Static Routing (Local Networks): Yes
Layer 2 Features

LACP Port Aggregation: Yes
MC-LAG: Yes
STP & RSTP: Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
IGMP Snooping: Yes
MAC-Based ACLs & Device Isolation: Yes
DHCP Snooping & Guarding: Yes
Egress Rate Limit: Yes
Flow Control: Yes
IP-Based ACLs & Network Isolation: Yes
MAC-Based Port Restriction: Yes
Port Isolation: Yes
Port Mirroring: Yes
Jumbo Frames: Yes
LLDP-MED: Yes
Voice VLAN: Yes
Loop Protection: Yes

Hardware

Max. Power Consumption: 340W
Power Method: (2) Universal input, 100—240V AC, 50/60 Hz
Power Input Method: (2) AC input, Hot-swappable power modules
Power Supply: (2) Hot-swappable AC/DC 550W power modules
Supported Voltage Range: 100—240V AC
Management:
    Ethernet
    AR
Heat Dissipation (Excluding PoE Output): 1160.08 BTU/hr
Weight:
    Without mounting brackets: 9.9 kg (21.8 lb)
    With mounting brackets: 10kg (22.04 lb)
Enclosure Material: SGCC steel
Mount Material: SGCC steel

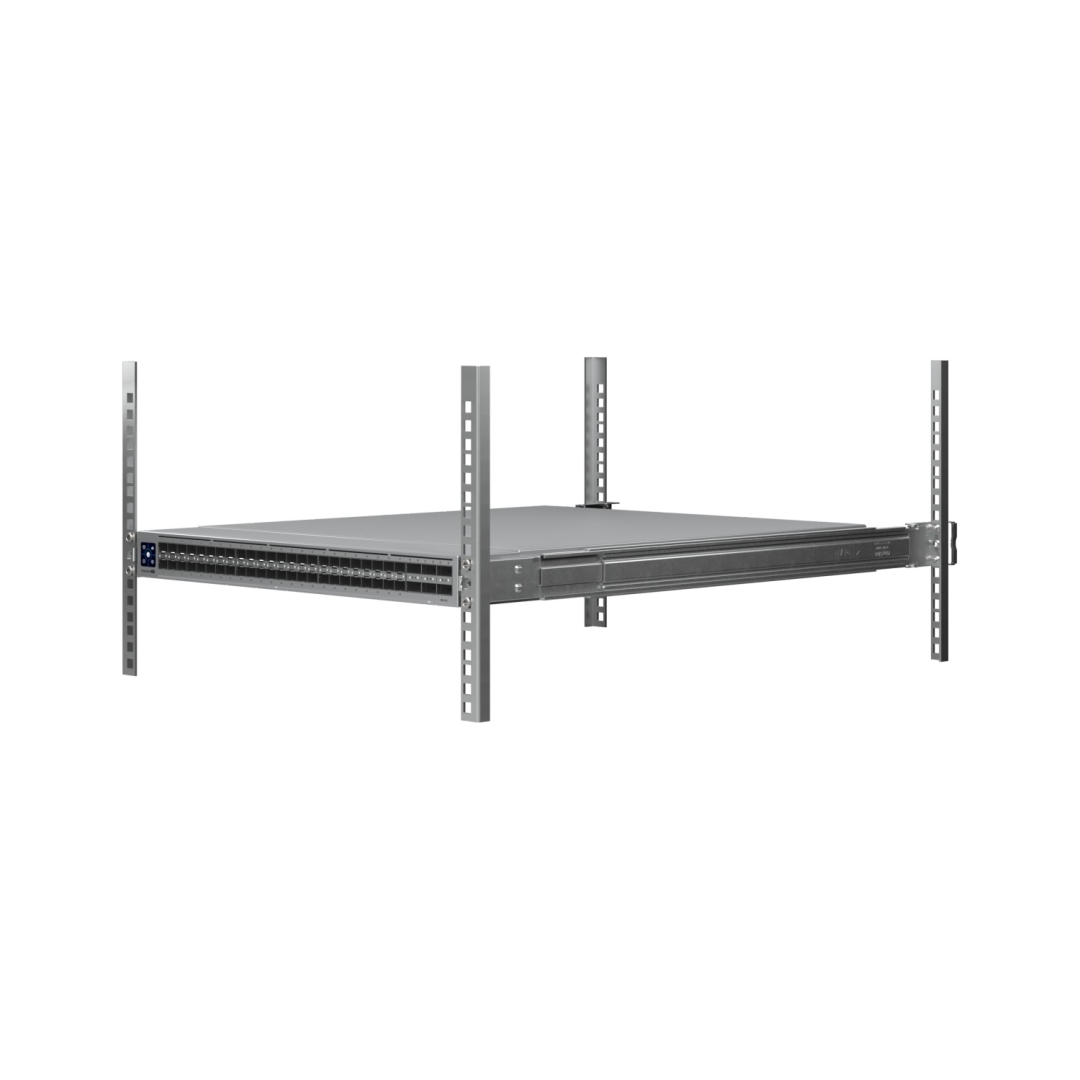

Supported Rack Depth:
    482.6 mm (19") four-post racks
    Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
LCM Display: 1.3" touchscreen
ESD/EMP Protection: Air: ± 12kV, contact: ± 8kV
Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
Ambient Operating Humidity: 10 to 95% noncondensing
Etherlighting™
    SFP+: Yes
    SFP28: Yes
    QSFP28: Yes
NDAA Compliant: Yes
Certifications: CE, FCC, IC, Anatel

Software

Application Requirements:
    UniFi Network: Version 8.5.6 and later
