UBIQUITI G3 Starter Kit (UA-G3-SK)

Produkto savybės:

All-in-One Access Control

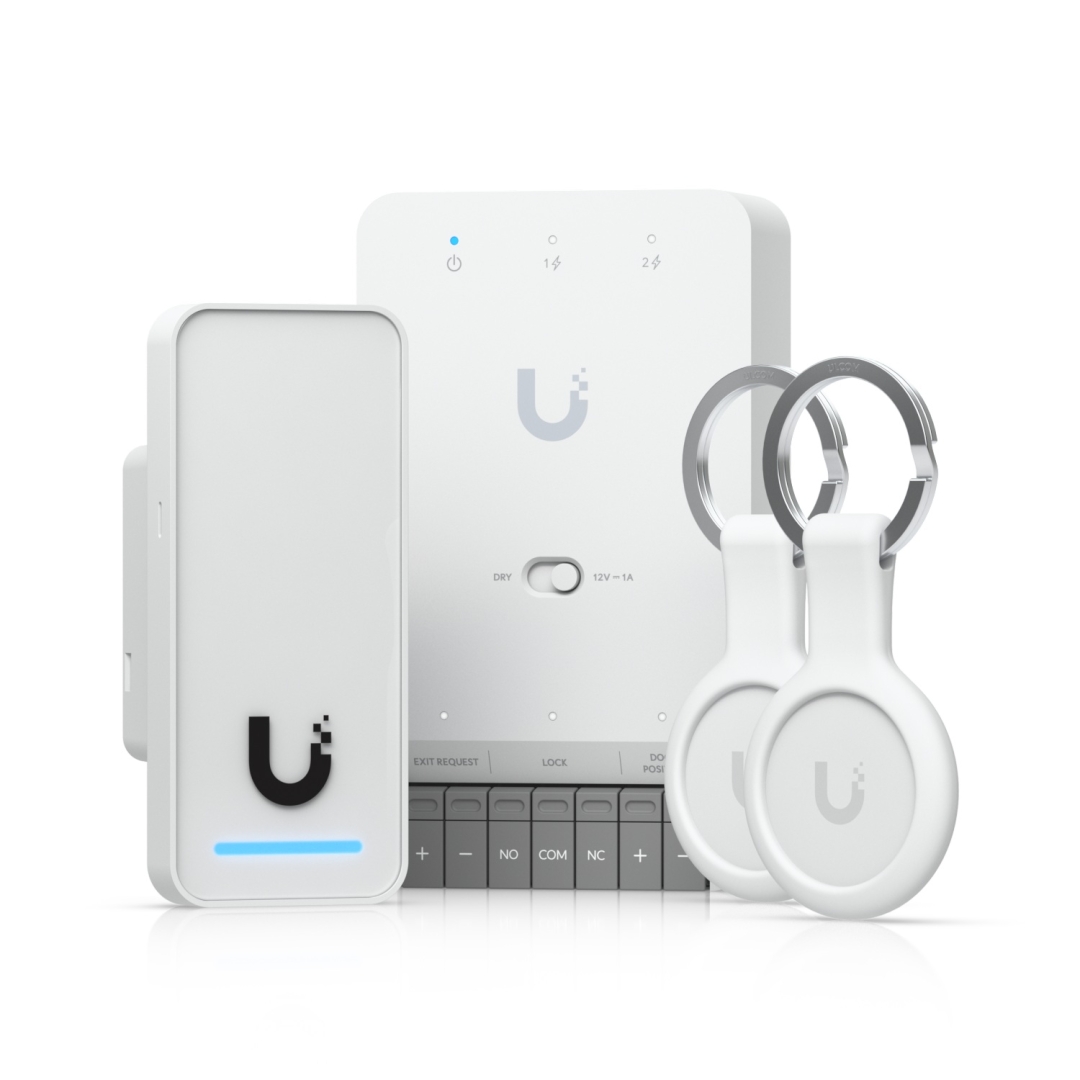

The Ubiquiti UniFi G3 Starter Kit (UA-G3-SK) is a complete access control system for managing a single door. It includes a UA-Hub-Door-Mini, a UA-G3 Reader, and two pocket keyfobs for secure, seamless authentication. Supporting NFC, Apple Touch Pass, and BLE 4.1, it enables flexible access methods. Powered by PoE, the system simplifies installation by eliminating the need for separate power supplies, reducing cable clutter. The UA-G3-SK seamlessly integrates with UniFi Access, offering centralized management through an intuitive interface. Designed for businesses, offices, and residential properties, the UA-G3-SK provides reliable, modern security with an easy-to-use interface and real-time access monitoring.
The UA-Hub-Door-Mini acts as the system’s control center, featuring three Gigabit RJ45 ports and supporting PoE++ (50V DC, 1A) for simplified installation. It delivers up to 31W of PoE output, ensuring reliable power for connected devices. Its polycarbonate and metal enclosure ensures durability. Also included are two NFC pocket keyfobs, offering users a simple, tap-to-unlock alternative to smartphones and keycards. This combination enhances security and convenience, making it ideal for multi-user environments.

Effortless Integration
The UA-G3-SK fully integrates with UniFi Access, enabling easy user management, real-time access monitoring, and credential configuration. Admins can assign NFC keyfobs, mobile credentials, or Apple Touch Pass for seamless authentication. The system offers robust encryption to protect access data and ensures smooth operation with PoE-powered components. With quick installation and multiple mounting options, the kit is ideal for offices, coworking spaces, and rental properties, delivering modern, flexible, and secure access control with minimal setup.
The UA-G3 Reader provides secure access through NFC, BLE, and Apple Touch Pass. It is PoE-powered with a maximum consumption of 5W, ensuring efficient operation. Built with a polycarbonate and glass enclosure, an aluminum alloy mount, and IP55 weatherproofing, it withstands outdoor conditions. The compact design supports wall and gangbox mounting (included), with optional angle and junction box mounts available. Its modern design blends seamlessly into any environment while providing secure, high-performance access control.

Produkto specifikacijos:

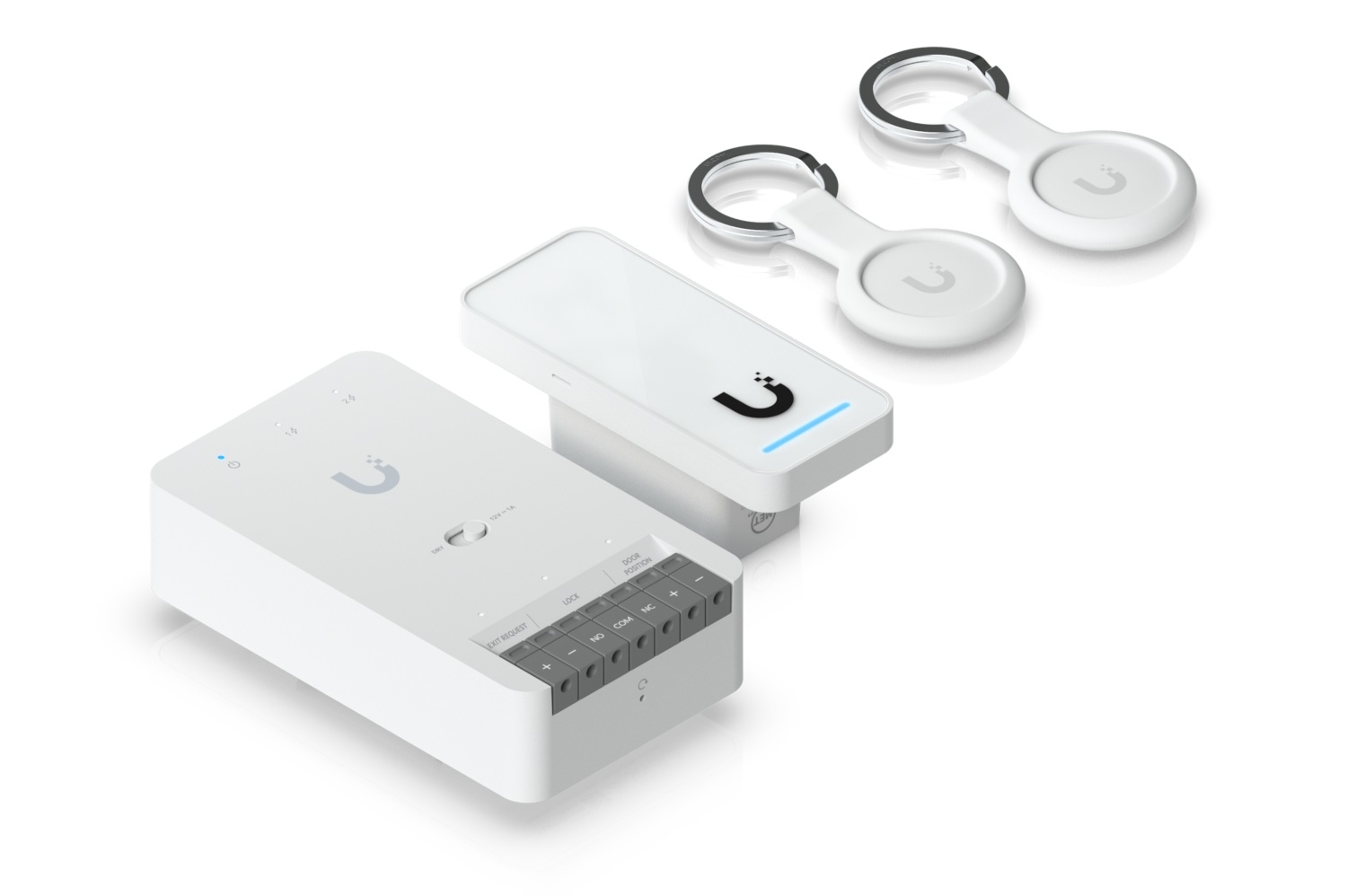

In the Box:
    Door Hub Mini x1
    (1) G3 Reader x1
    Pocket Keyfobs x2

Touch Pass: 10 free 1-year Touch Passes included Learn More

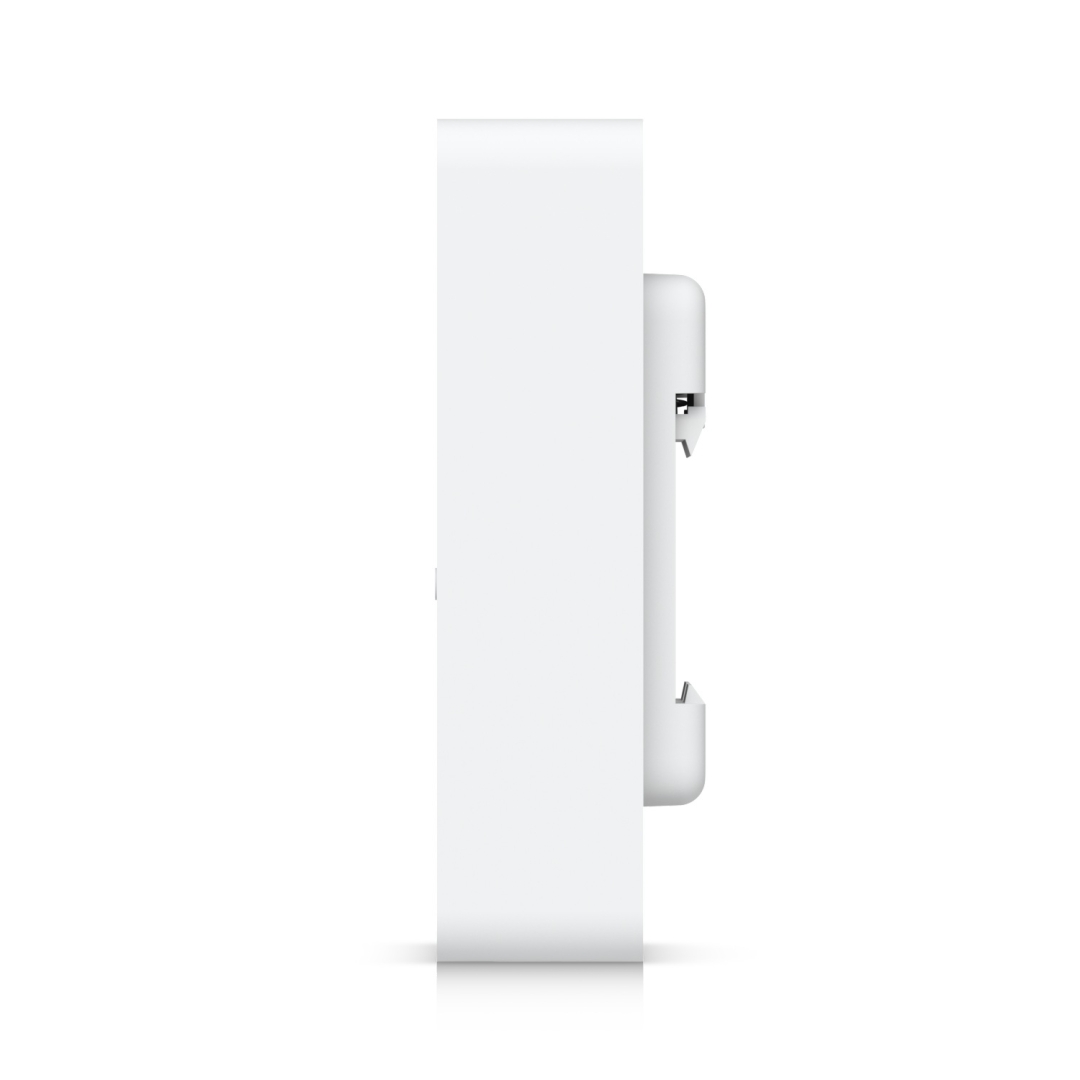

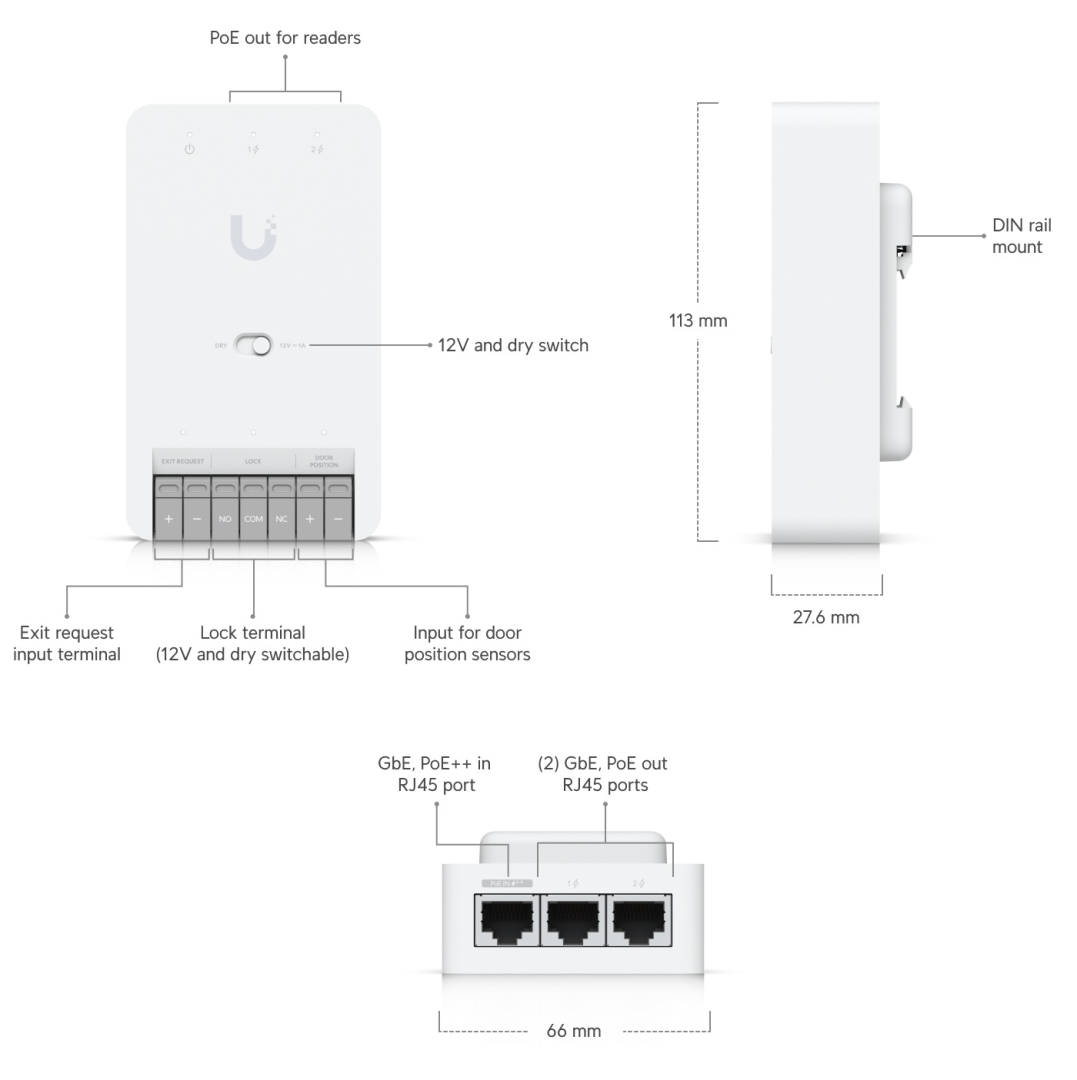

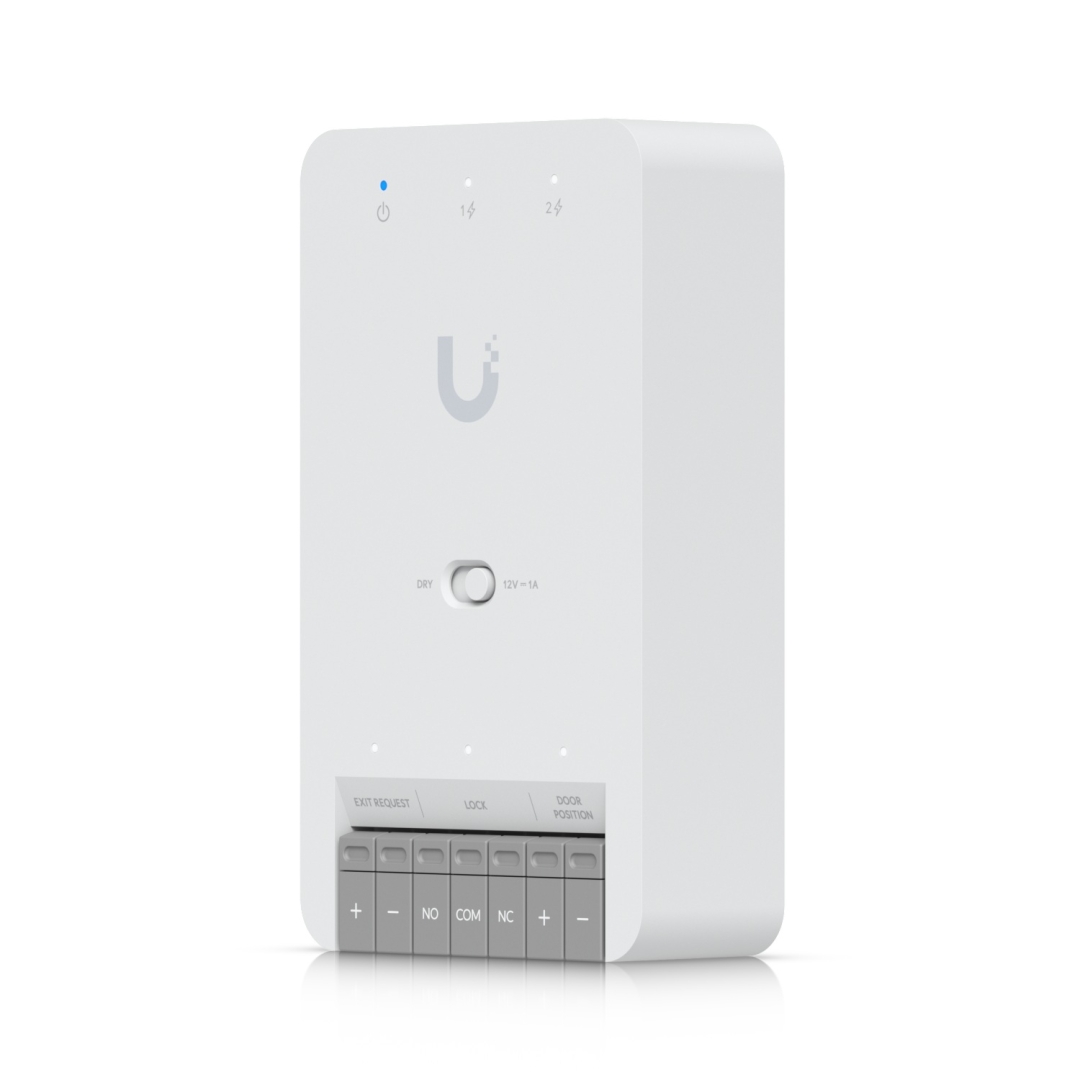

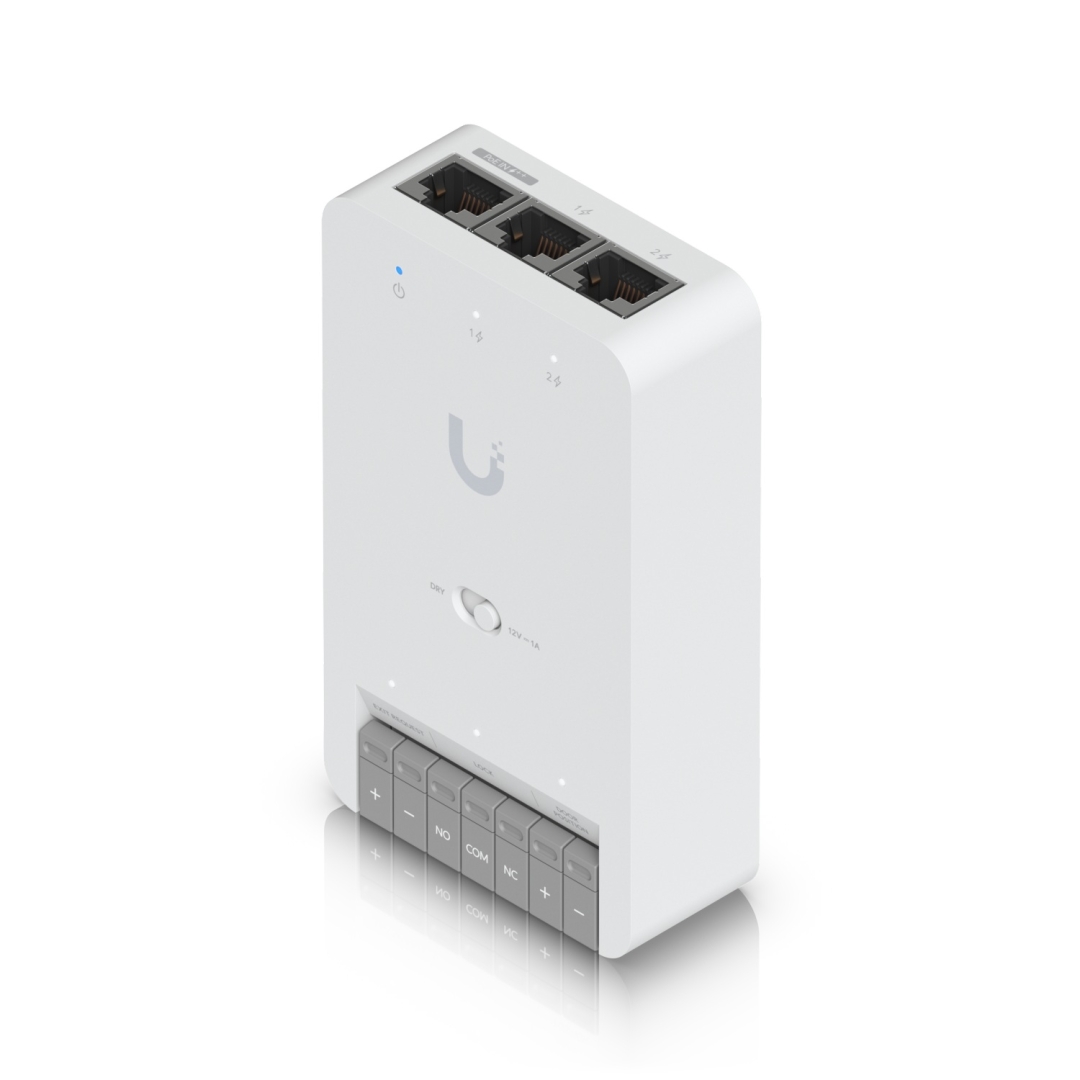

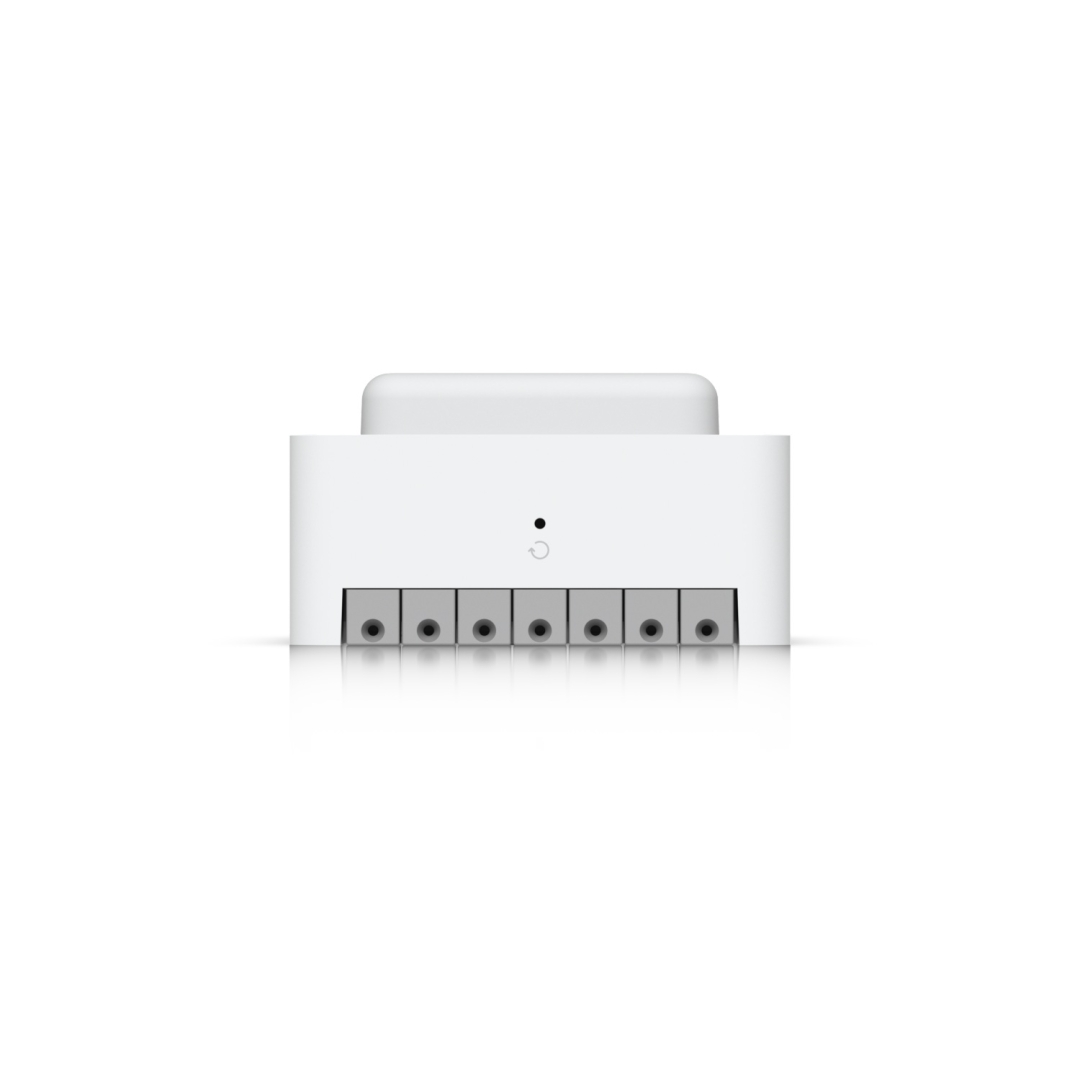

Door Hub Mini

Dimensions: 113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1")
Supported Doors: 1

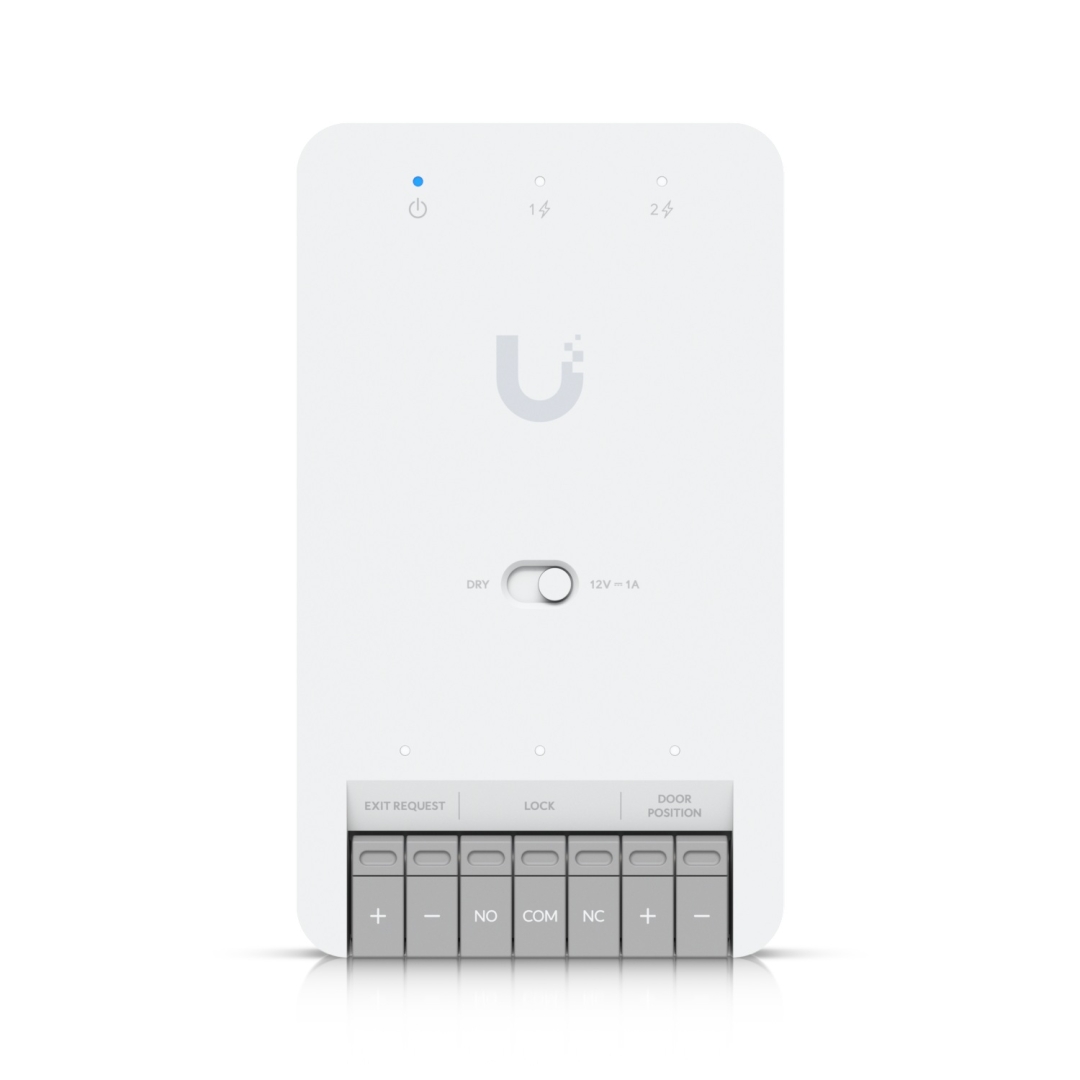

Input Terminals:
    (1) Door Exit Request
    (1) Door Position
Power Method:
    PoE++
    UL 294 Power-limited Class 2 PSU
    UL 60950-1/62368-1 LPS/PS2 PSU
NDAA Compliant: Yes
UL 294 Level:
    Destructive attack: Level I
    Line security: Level I
    Endurance: Level I
    Standby power: Level I
Weight: 190 g (6.7 oz)
Enclosure Material: Polycarbonate, metal

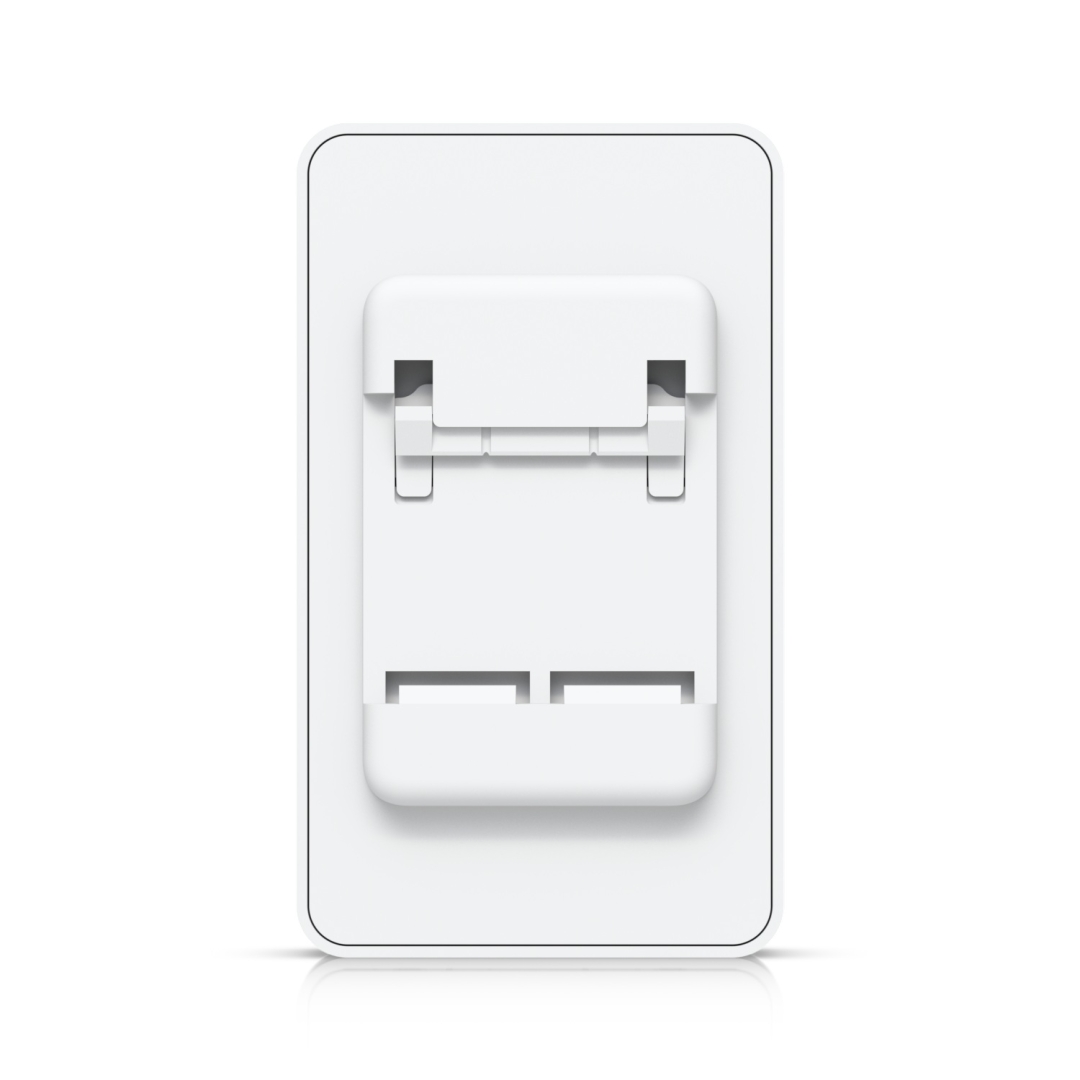

Mounting: DIN-rail (Included)
Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
Ambient Operating Humidity: 5 to 90% noncondensing

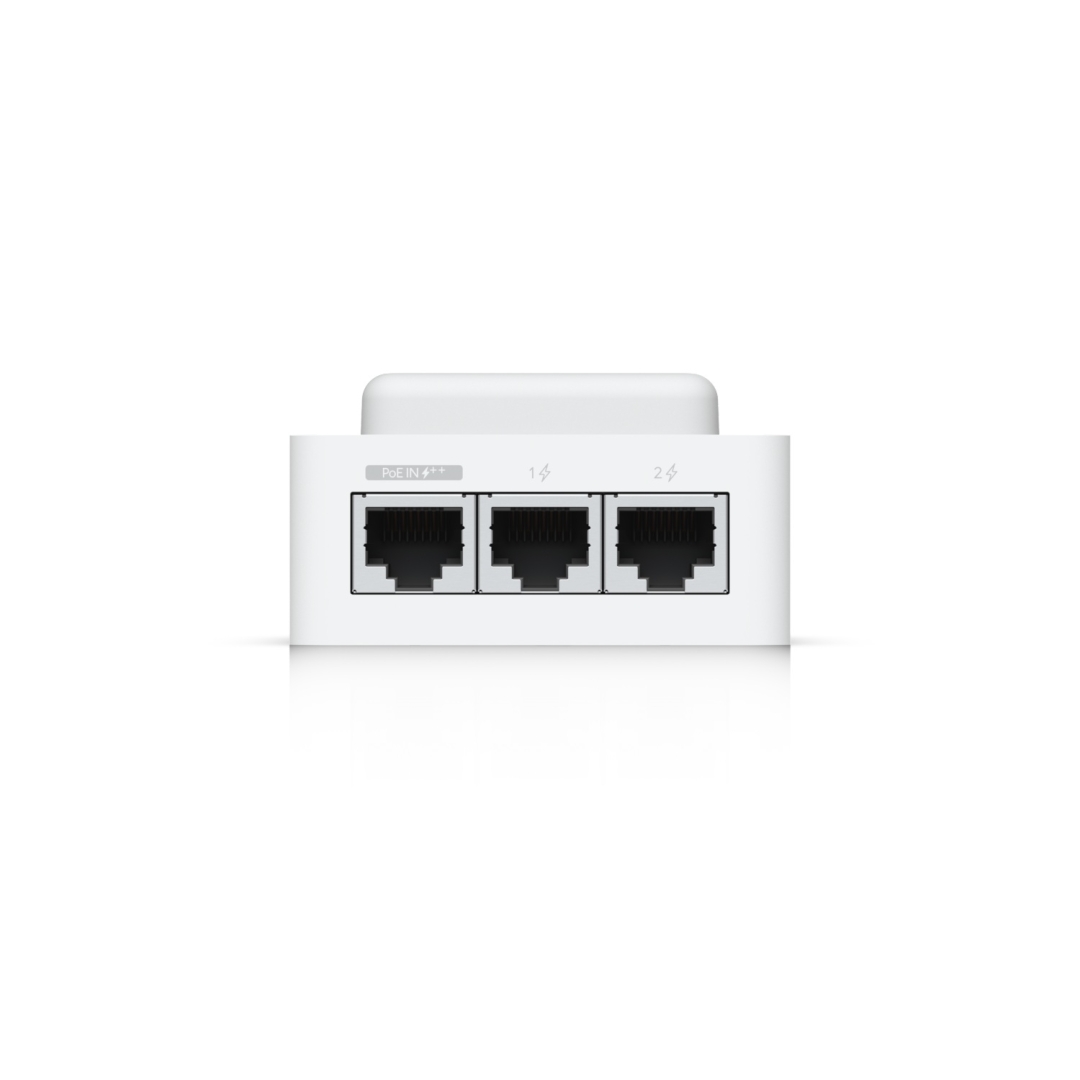

Networking Interface: (3) GbE RJ45 ports
PoE Interface:
    (1) PoE++ input, 50V DC, 1A
    (2) PoE outputs, total 31W
Max. Power Consumption:
    19W (Without PoE output)
    50W (With PoE output)
Digital Input: Request to exit, door position sensor
Dry Output Relay: 30V DC, 1A
Wet Output Relay: 12V DC, 1A
LEDs: B/W Learn More
Buttons:
    (1) Factory-reset
    (1) Dry/Wet switch
Recommend Max. Cable Length:
    UA-Lock-Electric (400mA):
        24 AWG length: 25 m (82 ft)
        22 AWG length: 42 m (138 ft)
        20 AWG length: 66 m (217 ft)
        18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
    UA-Lock-Magnetic-540kg (500mA):
        24 AWG length: 12 m (29 ft)
        22 AWG length: 20 m (66 ft)
        20 AWG length: 30 m (98 ft)
        18 UACC-Cable-DoorLockRelay length: 46 m (262 ft)
    UA-Lock-Magnetic-270kg (800mA):
        24 AWG length: 12 m (29 ft)
        22 AWG length: 20 m (98 ft)
        20 AWG length: 30 m (167 ft)
        18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
Other locks (1A):
        24 AWG length: 9 m (30 ft)
        22 AWG length: 15 m (49 ft)
        20 AWG length: 24 m (79 ft)
        18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
PoE Cabling Requirements: Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade: Grade assignment: I
Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Software Information: The software version can be checked at https://unifi.ui.com

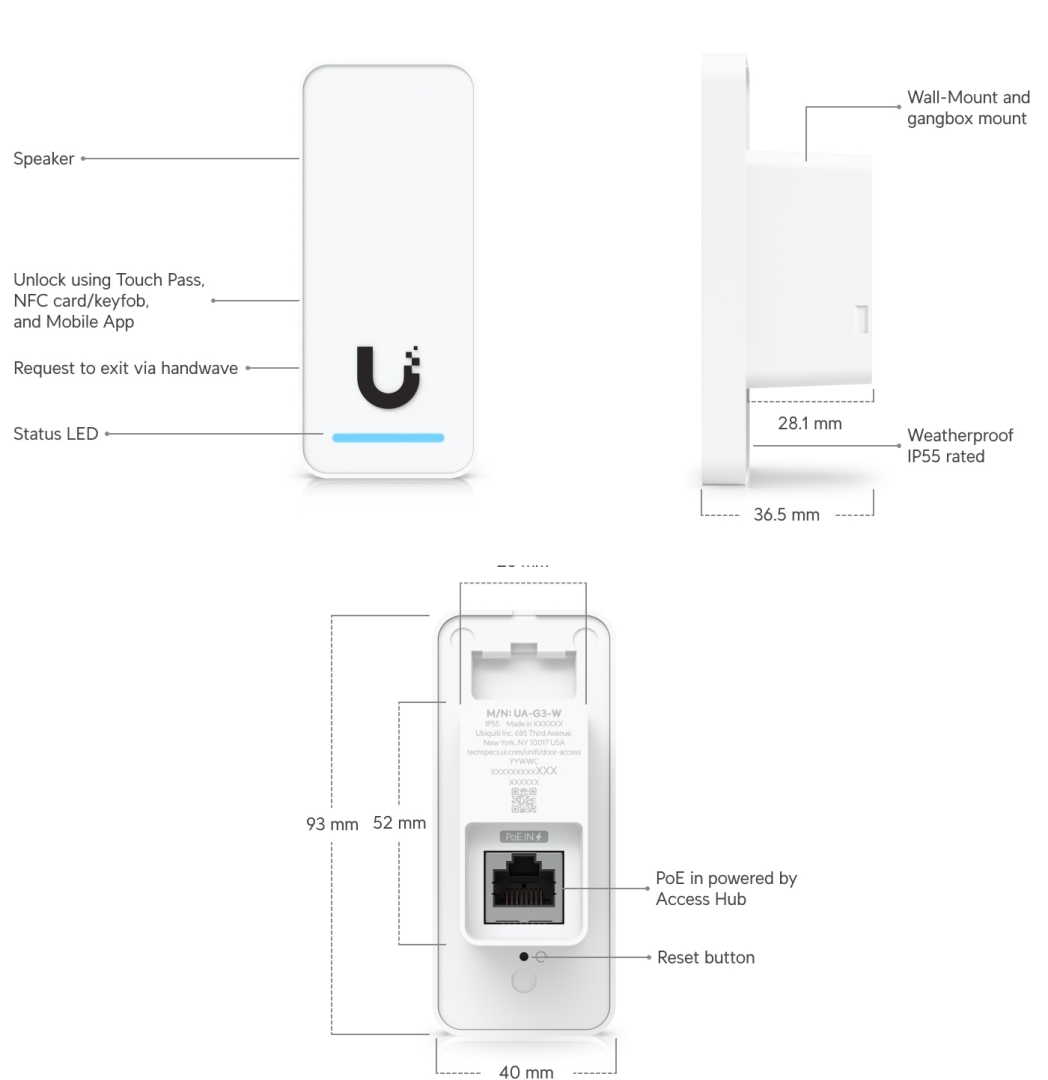

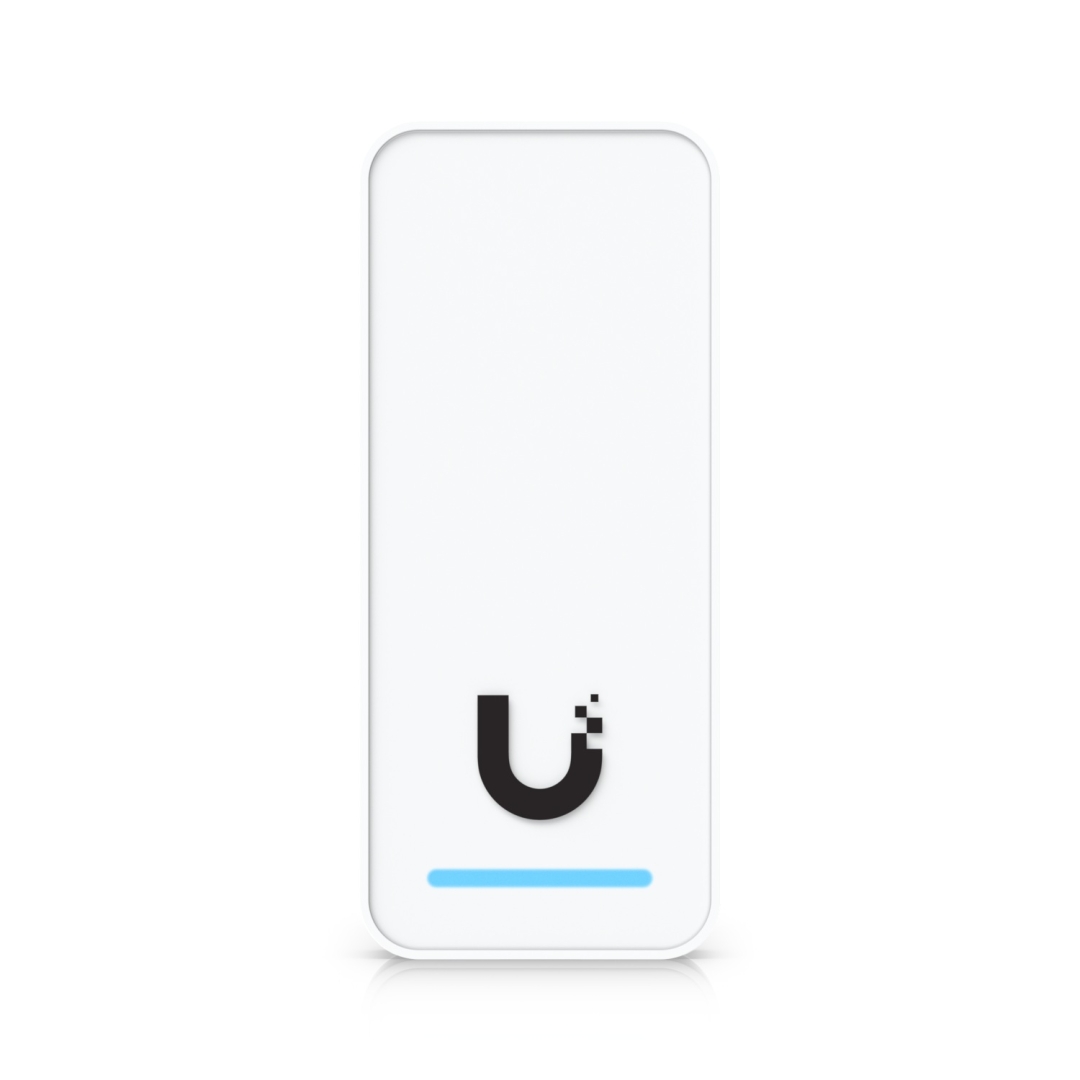

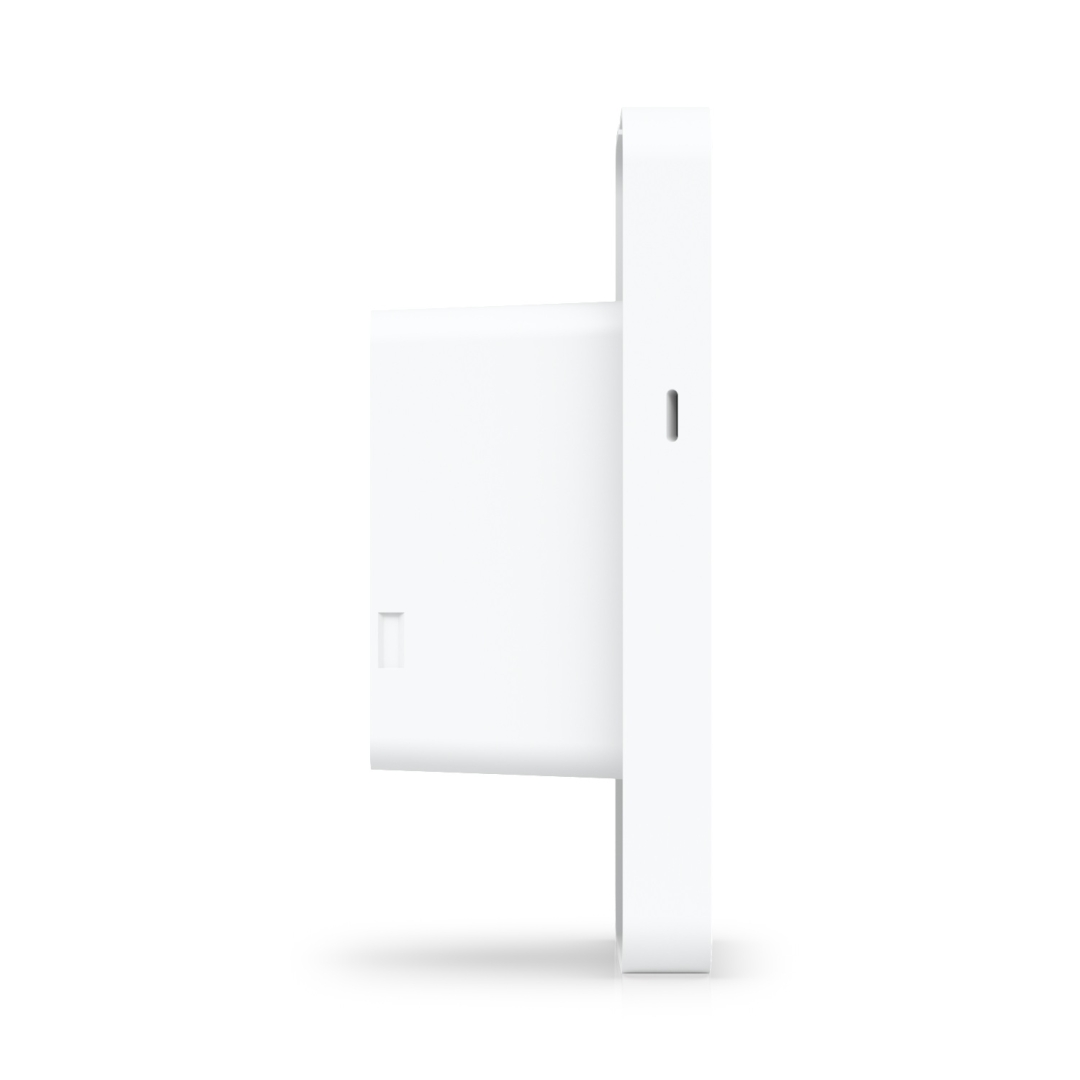

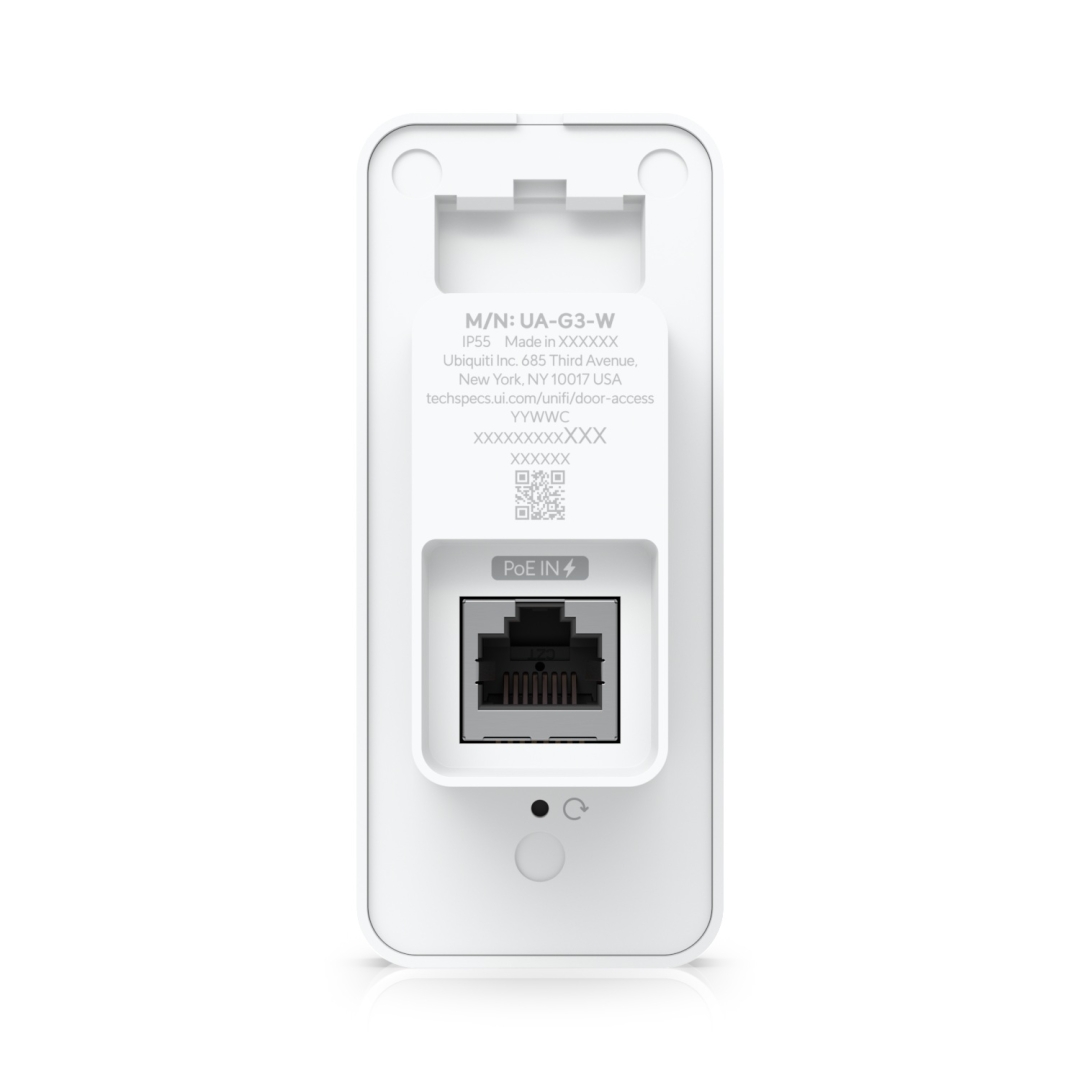

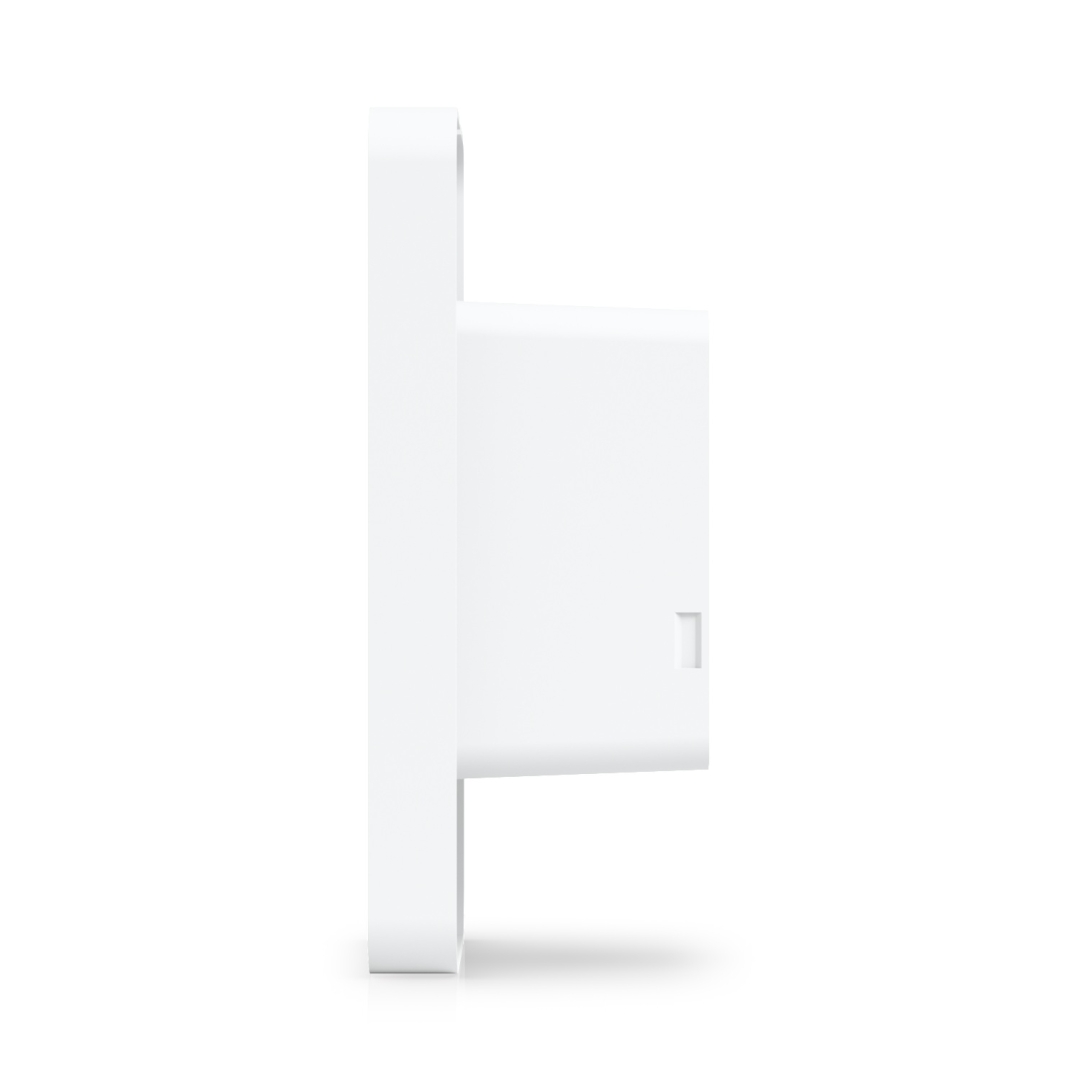

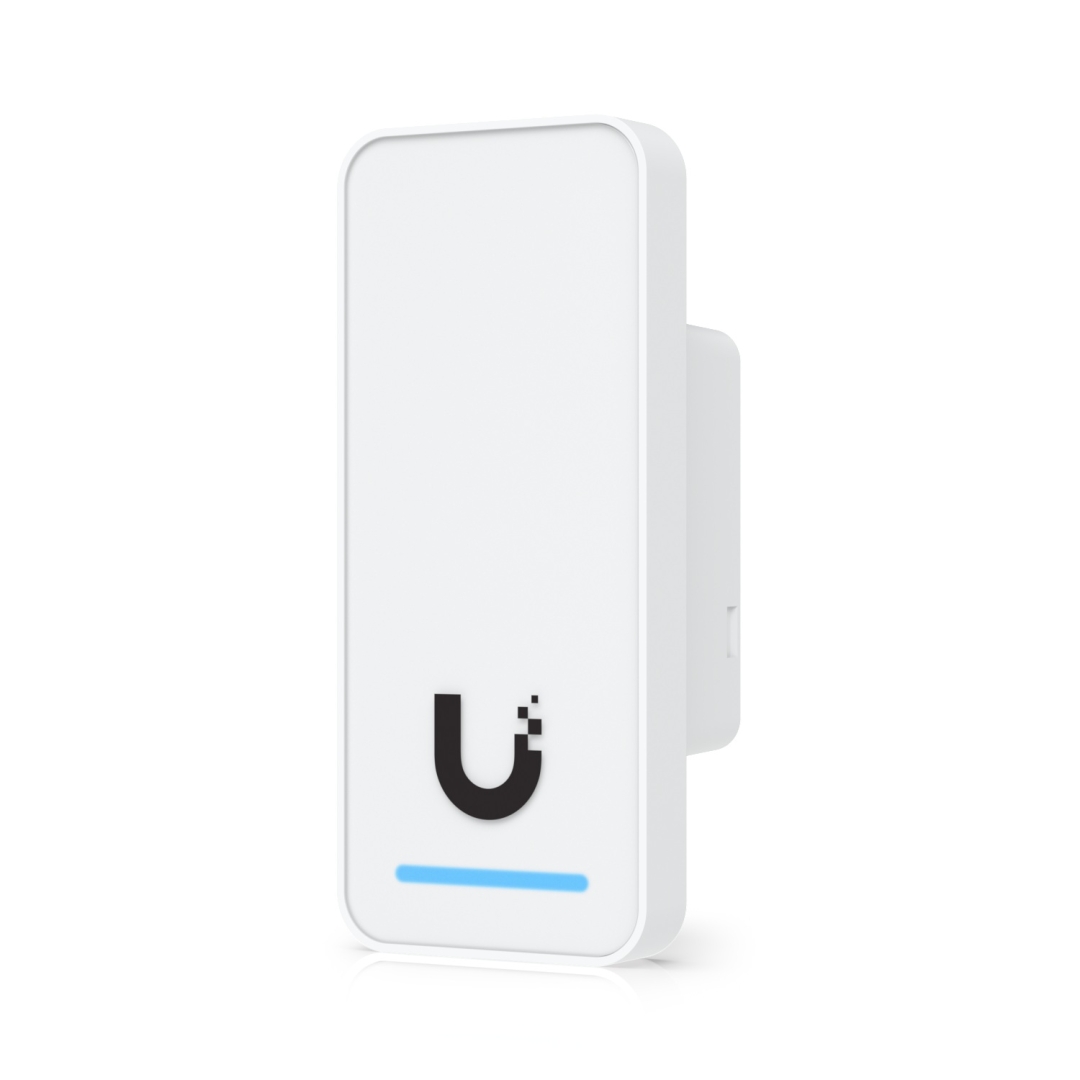

G3 Reader

Dimensions: 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
NFC Card & Keyfob Access: Yes
Apple/Google Wallet: Yes
Mobile Unlock: Yes
Handwave Request to Exit: Yes
Weatherproofing: IP55
NDAA Compliant: Yes
UL 294 Level:
    Destructive attack: Level I
    Line security: Level I
    Endurance: Level I
    Standby power: Level I
Weight: 82 g (2.9 oz)
Enclosure Material: Polycarbonate, glass
Mount Material: Aluminum alloy
Mounting: In-wall, gang box (Included) Junction box (Optional)
Indoor and Outdoor Use: Yes
Ambient Operating Temperature: -30 to 45° C (-22 to 113° F)
Ambient Operating Humidity: 5 to 90% noncondensing
Networking Interface: (1) 10/100 MbE RJ45 port
Connectivity: BLE 4.1 NFC
Power Method:
    PoE
    UL 294 Power-limited Class 2 PSU
    UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption: 5W
Supported Voltage Range: 48V DC
ESD/EMP Protection: Air: ±15kV, contact: ±8kV
Sensors: Proximity sensor
Speaker: (1) Yes, 0.7W
LEDs: R/G/B/W Learn More
Button: (1) Factory-reset
NFC Frequency: 13.56 MHz
NFC Read Range: < 30 mm (1.18'')
NFC Technology:
    ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
    MIFARE Classic / MIFARE DESFIRE
    Sony FeliCa™ (ID only)
    NFC Forum tags T1T, T2T, T3T, T4T and T5T
    ECP 2.0
PoE Cabling Requirements: Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade: Grade assignment: I
Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Software Information: The software version can be checked at https://unifi.ui.com

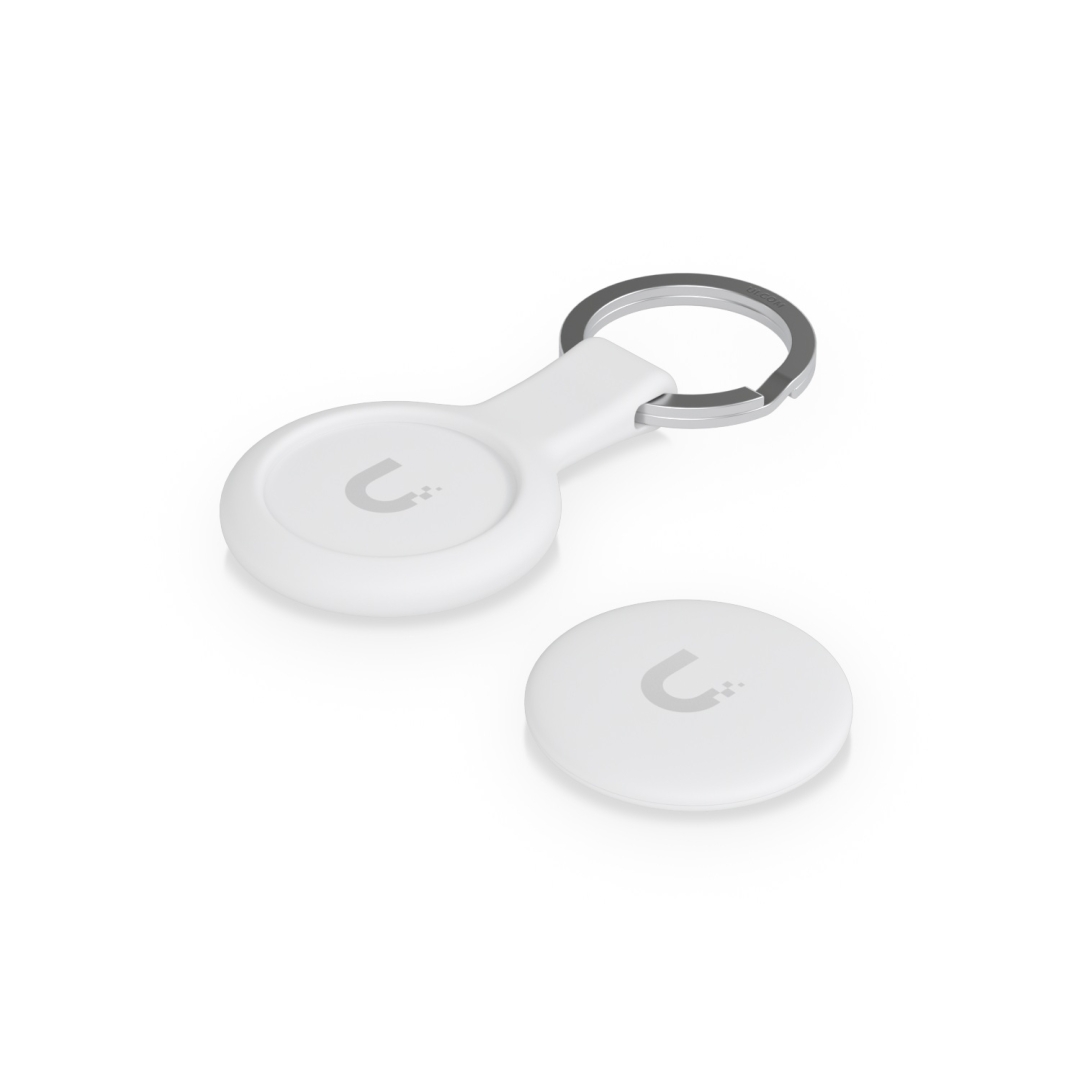

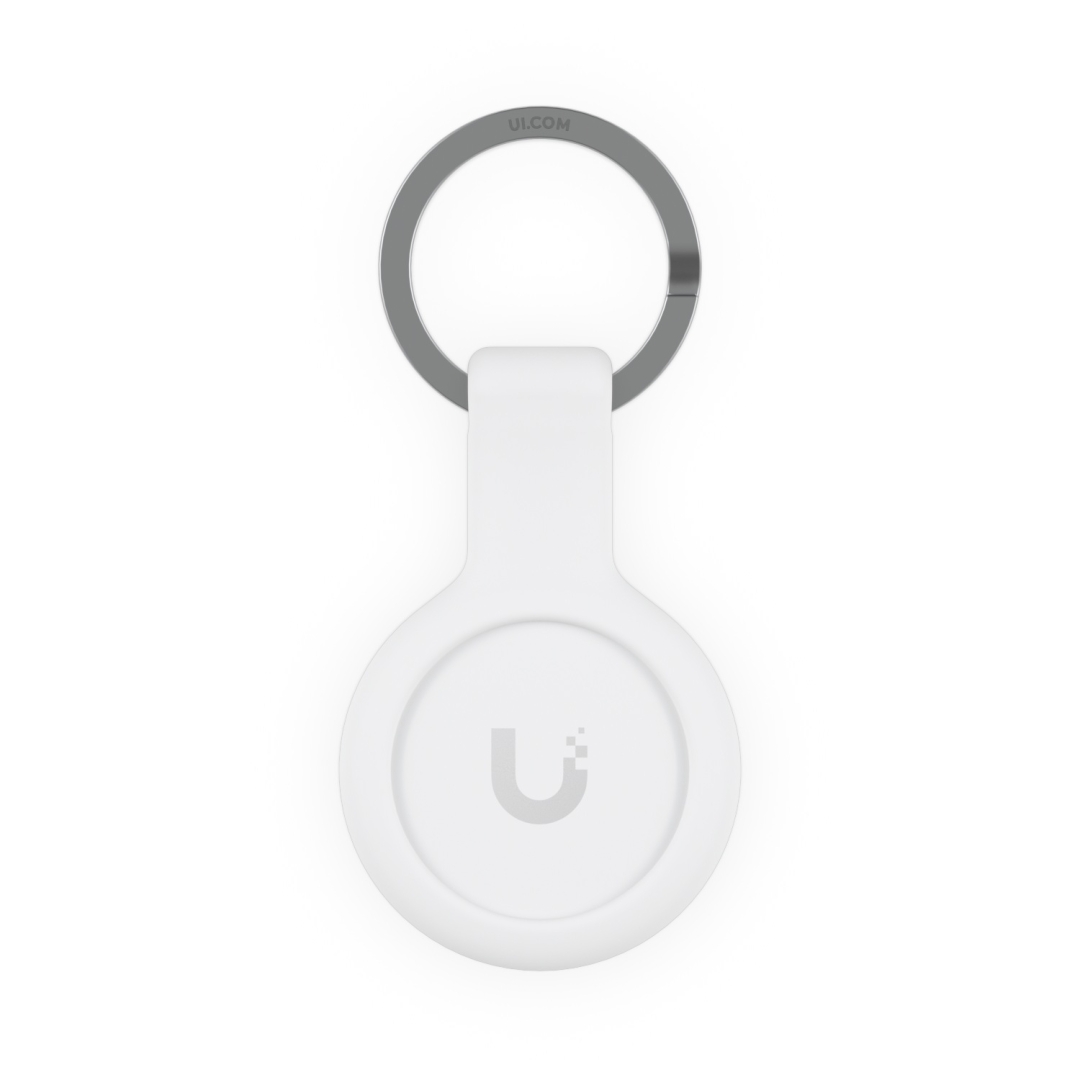

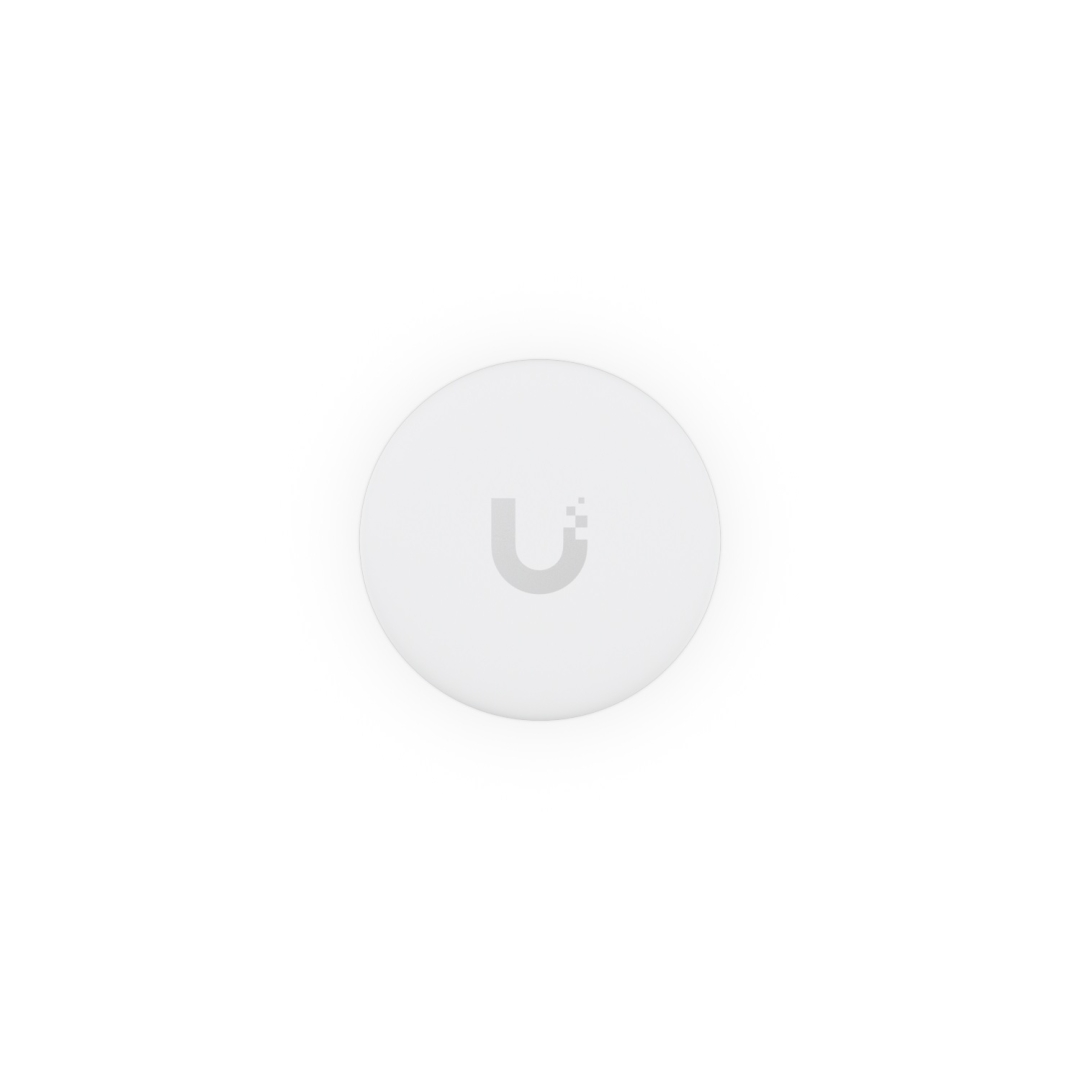

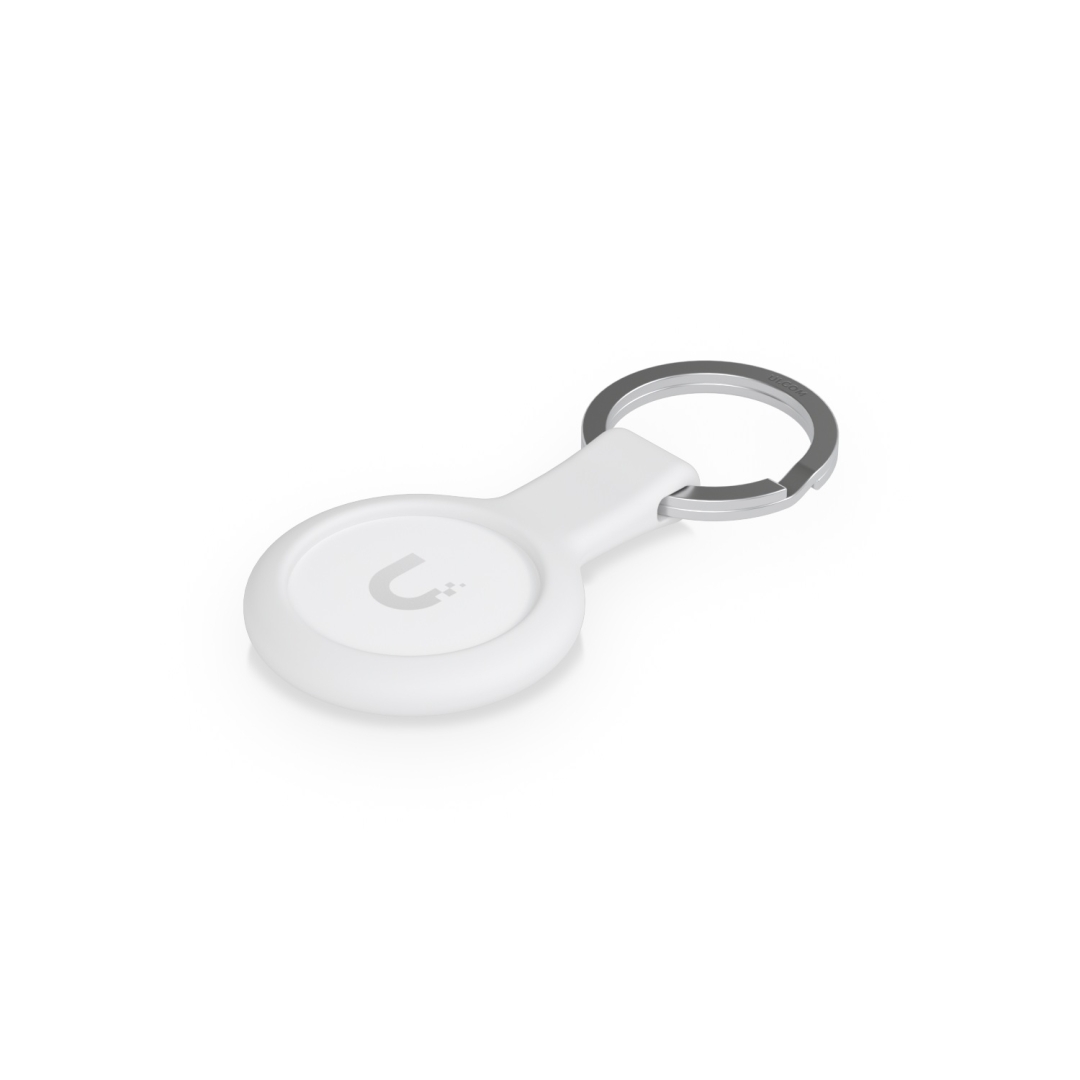

Pocket Keyfob

Dimensions: 84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29")
Weight: 16 g (0.56 oz)
Enclosure Material: Polycarbonate, stainless steel, silicone rubber
Weatherproofing: IP54
NDAA Compliant: Yes
Ambient Operating Humidity: 10 to 90% noncondensing
Ambient Operating Temperature: -10 to 45° C (14 to 113° F)
NFC Frequency: 13.56 MHz
NFC Technology:
    ISO/IEC 14443 Type A
    MIFARE DESFire EV3 4K
    UniFi Access Proprietary Security Protocol
Certification: CE
