UBIQUITI GPON Optical Network Unit (ONU) UFiber Nano G (UF-Nano)

Produkto savybės:

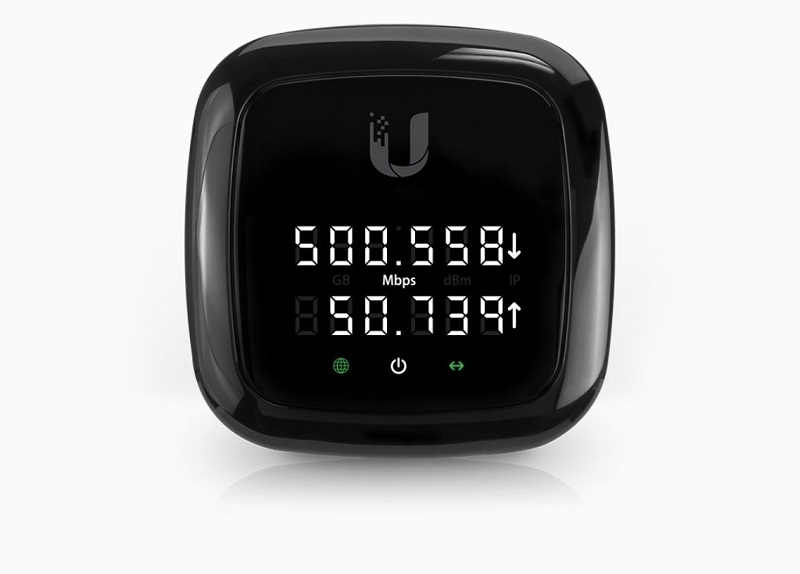

The U Fiber Nano G is a robust, high-performance GPON ONU that features an informational LED display and a sleek, sophisticated industrial design.

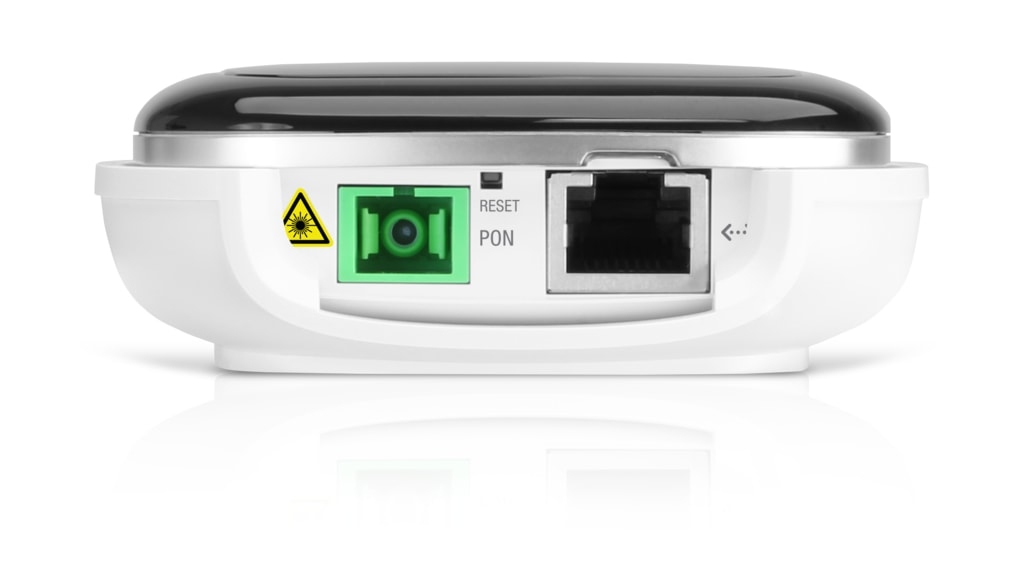

• WAN: (1) GPON Port
• LAN: (1) Gigabit Ethernet Port
• GPON Speeds: 2.488 Gbps Downstream (RX), 1.244 Gbps Upstream (TX)
• Wavelengths: 1490 nm Downstream (RX), 1310 nm Upstream (TX)
• Display: Digital LED for Status Reporting
• Max. Power Consumption: 7W
• Power Method: 24V Passive PoE
• Mounting: Wall-Mountable (Indoor)

Produkto specifikacijos:

Dimensions: 77 x 77 x 28 mm (3.03 x 3.03 x 1.1")

Weight: 110 g (3.88 oz)

Networking Interface Speeds:
(1) GPON WAN, ITU G.984, 2.488 Gbps Downstream, 1.244 Gbps Upstream
(1) GbE LAN, 10/100/1000 Mbps

Management Interface: In-Band Ethernet/PON

Normal Optical Power Range:
TX (Class B+): 1.5 dBm to 5 dBm
RX: -8 dBm to -28 dBm

Power Method: Passive PoE (Pins +4, 5; -7, 8) (Dying Gasp Support)

Power Supply: PoE Adapter: 24V, 0.3A (Included)

Max. Power Consumption: 7W

Supported Voltage Range: 20V to 28V

Processor Specs: MIPS32, 240 MHz

Memory Information: 128 MB DDR3

Buttons:
(1) Display Information
(1) Reset

Operating Temperature: -10 to 45° C (14 to 113° F)

Operating Humidity: 5 to 95% Noncondensing

Certifications: CE, FCC, IC
