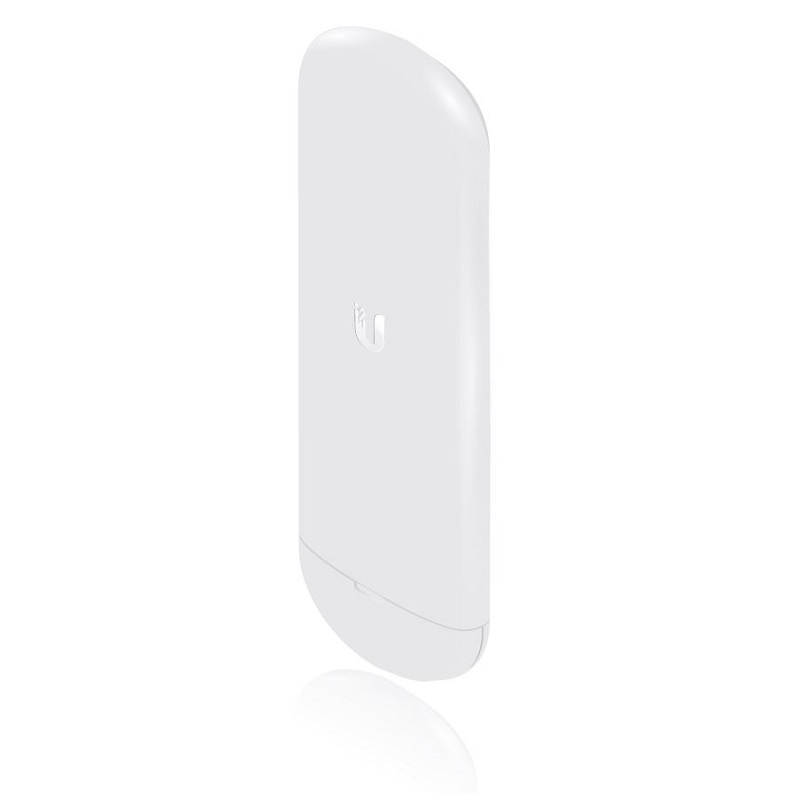

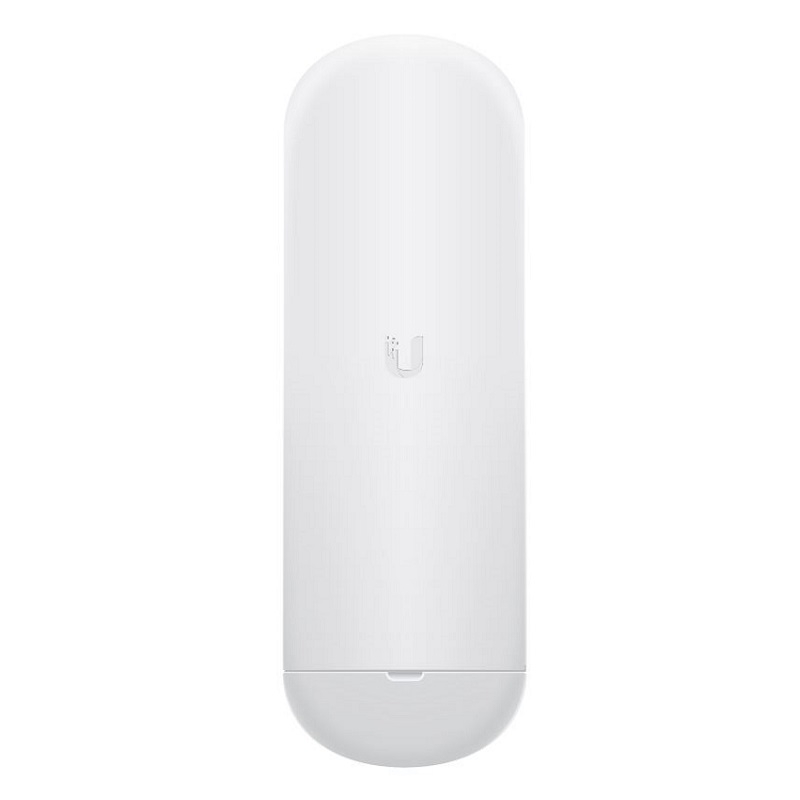

UBIQUITI NanoStation 5AC 16 dBi Outdoor 5 GHz airMAX ac CPE withWi-Fi Management Radio (NS-5AC)

Indoor/outdoor, high-performance CPEs featuring airMAX® AC technology and a dedicated Wi-Fi radio for management, frequency: 5 GHz, throughput: 450+ Mbps, range: 15+ km, 2 x Gigabit Ethernet Port, PoE PSU, 802.3af Support

naujiena
Kaina be PVM: Kaina su PVM (21%): Kainos lygis, kai užsakymo suma:
89.44€ 108.22€ >0€
>100€
89.03€ 107.73€ >300€
Kiekis:
Sandėlyje neturime



Produkto savybės:

Sleek Industrial Design

The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.

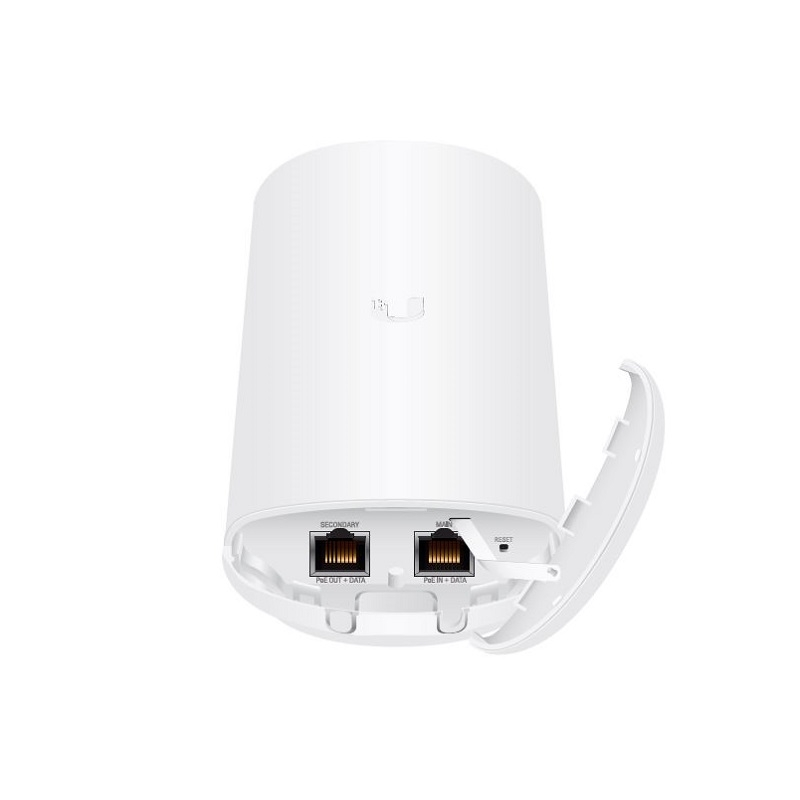

Dual Ethernet Connectivity

The NanoStation AC provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration.

Management Wi-Fi Radio

Each NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.



Improved Surge Protection

The NanoStation AC and NanoStation AC loco feature enhanced protection against ESD events.

Now with airOS®8

airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Produkto specifikacijos:

Dimensions: 257 x 84 x 30 mm (10.12 x 3.31 x 1.18") - With Mount, 257 x 84 x 41 mm (10.12 x 3.31 x 1.61") - Without Mount
Weight: 233 g (8.22) oz
Power Supply: 24V, 0.5A Gigabit PoE Supply (Included)
Max. Power Consumption: 8.5W
Power Method: 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return), 24V Passive PoE (Pairs 4, 5+; 7, 8 Return)
Gain: 16 dBi
Networking Interface: (2) 10/100/1000 Mbps Ethernet Ports
Channel Bandwidths: 10/20/30/40/50/60/80 MHz
Processor Specs: Atheros MIPS 74Kc, 560 MHz
Memory: 64 MB DDR2
Cross-pol Isolation: 20 dB Minimum
Max. VSWR: 1.6:1
Beamwidth: 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
Polarization: Dual Linear
Enclosure: UV Resistant Polycarbonate
LEDs: (1) Power, Eth1, Eth2; (1) Signal Strength
Mounting: Pole-Mount (Kit Included)
Operating Temperature: -40 to 70° C (-40 to 158° F)
Operating Humidity: 5 to 95% Noncondensing
RoHS Compliance: Yes
ESD/EMP Protection: ±24kV Contact/Air
Shock & Vibration: ETSI300-019-1.4
Certifications: CE, FCC, IC

Operating Frequency (MHz): 5150 - 5875
Management Radio (MHz): 2412 - 2472

Papildoma informacija apie produktą:

Datasheet
Quick Start Guide
Link to manufacturer product page
