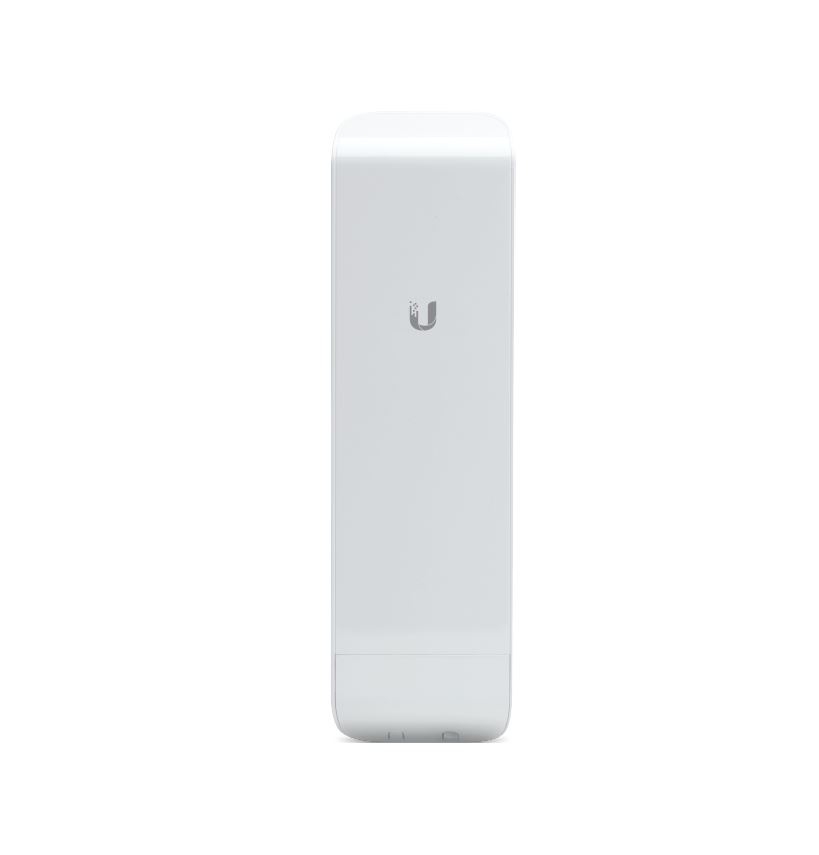

UBIQUITI NanoStation® M2 10.4-11.2 dBi vidaus/lauko airMAX® CPE (NSM2)
UBIQUITI NanoStation®M AirMAX - vidaus/lauko CPE, 802.11a/n, dažnis: 2,4 GHz, pralaidumas: 150+ Mbps, diapazonas: 13+ km, 2 x LAN
Leading-Edge Industrial Design
Ubiquiti Networks set the bar for the world's first low-cost and efficient broadband Customer Premises
Equipment (CPE) with the original NanoStation®. The NanoStationM and NanoStationlocoM took the same
concept to the future with sleek and elegant form factors, along with integrated airMAX® (MIMO TDMA
protocol) technology. The low cost, high performance, and small form factor of NanoStationM and NanoStationlocoM make them extremely versatile and economical to deploy.
Utilize airMAX Technology
Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller. This “time slot” method eliminates hidden node collisions and maximizes airtime efficiency. It provides many magnitudes of performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.
Intelligent QoS - Priority is given to voice/video for seamless streaming.
Scalability - High capacity and scalability.
Long Distance - Capable of high‑speed, carrier-class links.
Latency - Multiple features dramatically reduce noise.
Dual Ethernet Connectivity
The NanoStationM provides a secondary Ethernet port with software-enabled PoE output for seamless IP video integration.
The remote hardware reset circuitry of the NanoStationM allows the device to be remotely reset from the power supply location.
The NanoStationM may also be powered by the Ubiquiti Networks® EdgeSwitch™. In addition, any NanoStationM can easily become 48V, 802.3af compliant through use of the Ubiquiti® Instant 802.3af Adapter (sold separately).
* Remote reset is an option that is sold separately as the POE-24. The NanoStationM includes a 24V PoE adapter without remote reset.
Dimensions: 294 x 31 x 80 mm (11.57 x 1.22 x 3.15")
Weight: 400 g (14.11 oz)
Power Supply: (PoE) 24V, 0.5A
Max. Power Consumption: 8W
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Frequency: 2412-2462 MHz
Gain: 10.4-11.2 dBi
Networking Interface: (2) 10/100 Ethernet Ports
Processor Specs: Atheros MIPS 24Kc, 400 MHz
Memory: 32 MB SDRAM, 8 MB Flash
Frequency: 2.4 GHz
Cross-pol Isolation: 23 dB Minimum
Max. VSWR: 1.6:1
Beamwidth: 55° (H-pol) / 53° (V-pol) / 27° (Elevation)
Polarization: Dual Linear
Enclosure Outdoor: UV Stabilized Plastic
Mounting: Pole-Mount (Kit Included)
Operating Temperature: -30 to 75° C (-22 to 167° F)
Operating Humidity: 5 to 95% Noncondensing
Wireless Approvals: FCC Part 15.247, IC RS210, CE
RoHS Compliance: Yes
Shock & Vibration: ETSI300-019-1.4
