UBIQUITI Lauko 4-prievadu PoE Passthrough komutatorius (N-SW)

Kodas: N-SW
ID: #1488

Lauko, atsparus oro sąlygoms korpusas, 1x Gigabito 24V Pasyvus PoE In prievadas, 3x Gigabito 24V pasyvus PoE Out prievadai, PoE Injektorius Neįtrauktas

38.71€ su PVM

Kaina be PVM: 31.99€

Kiekis:


Produkto savybės:

The NanoSwitch is an outdoor 4-port Gigabit switch with PoE passthrough. It is powered by 24V Passive PoE and provides up to 24W of power on three PoE out ports. The NanoSwitch is designed for outdoor deployment and supports up to 4 Gbps total, non-blocking line rate.

Power Strip Simplicity for 24V Devices

Simply providing 24V 2-pair input makes NanoSwitch an outdoor 4-port unmanaged switch with "always on" 24V 2-pair output on three ports.

PoE Passthrough

PoE In — RJ45 port supports 10/100/1000 Ethernet connections, and supports passive 24V, 2-pair PoE to power the switch.

PoE Out — RJ45 ports support 10/100/1000 Ethernet connections, and the three passive 24V, 2-pair PoE ports provide up to 24W PoE output.



Designed for Outdoor Durability

The NanoSwitch features an outdoor weatherproof form factor.
Operating Temperature: -30 to 70° C (-22 to 158° F)



Produkto specifikacijos:

Dimensions: 196.4 x 93.5 x 32.4 mm (7.73 x 3.68 x 1.28")
Weight: 271 g (9.6 oz)
Enclosure Characteristics: White Polycarbonate
Total Non-Blocking Line Rate: 4 Gbps
Typical Power Consumption: 1.5W
Passive PoE Max. Wattage per Port: 24V, 2-Pair, 1A per Port (24W)
Total Passive PoE Max. Wattage: 24V, 2-Pair, 1A for 3 Ports (24W)
Power Method: Passive 24V, 2-Pair PoE In
Power Supply: POE-24-24W PoE Adapter (Not Included)
Passive PoE Voltage Range: 21.6 - 26.4V
LEDs: Speed/Link/Activity (All Ports)

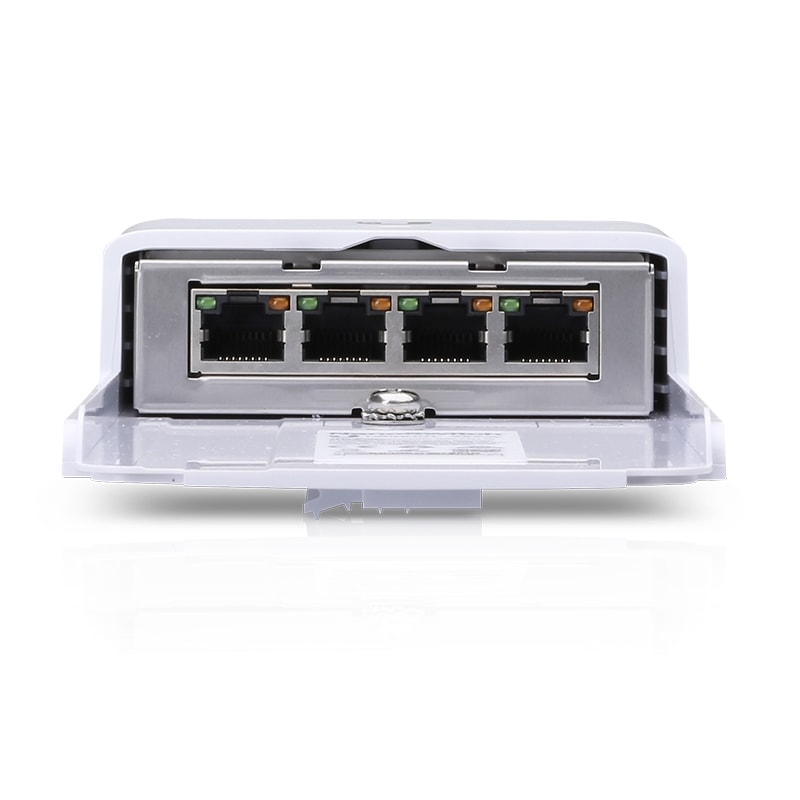

Networking Interfaces: (4) 10/100/1000 Mbps RJ45 Ports
PoE Interfaces: Passive 24V, 2-Pair PoE In
ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature: -30 to 70° C (-22 to 158° F)
Operating Humidity: 5 to 95% Noncondensing
Shock and Vibration: ETSI300-019-1.4 Standard
Certifications: CE, FCC, IC
