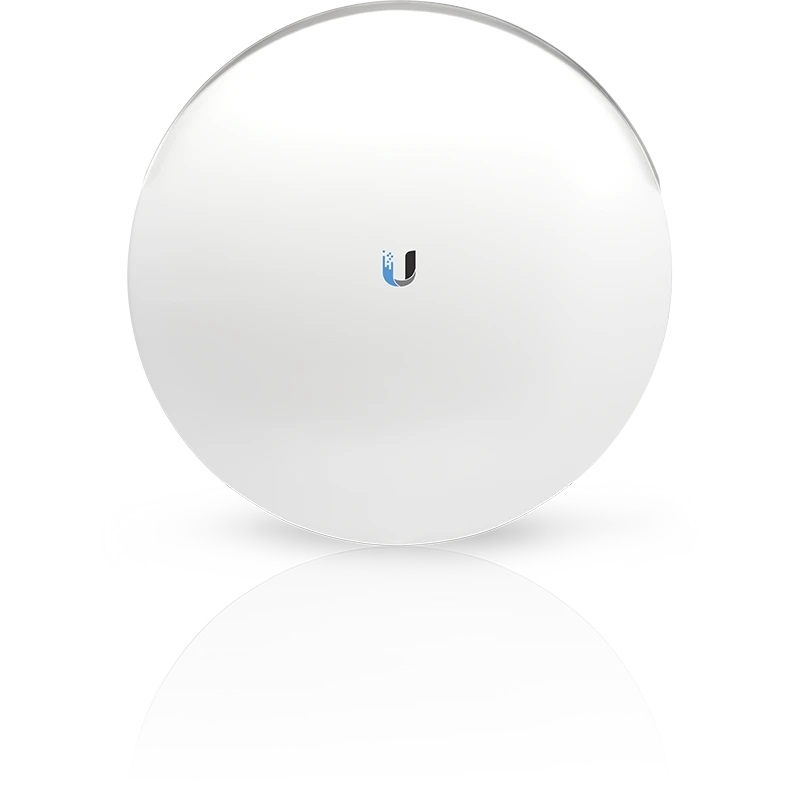

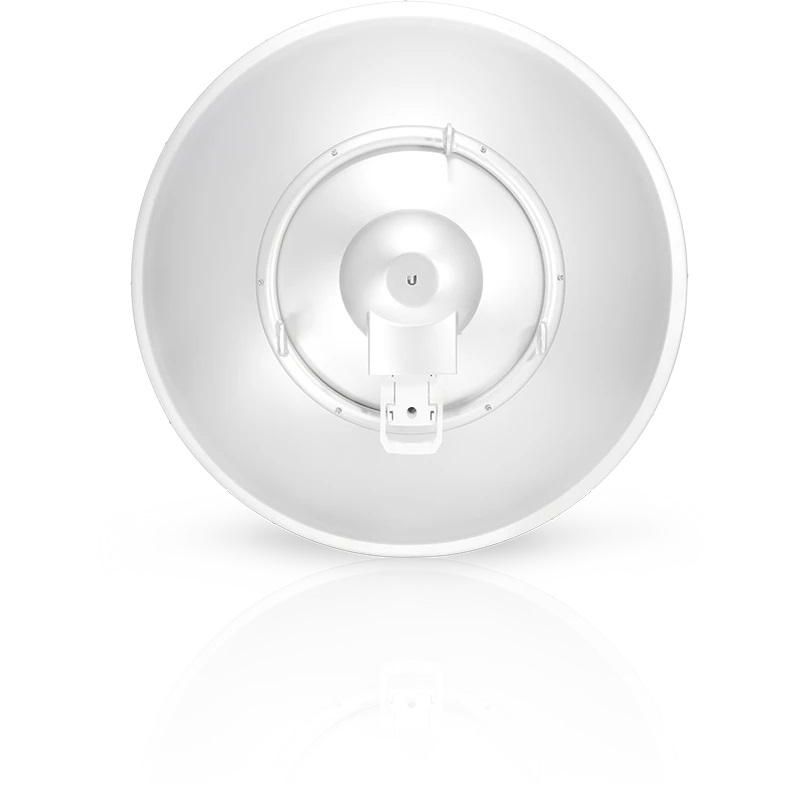

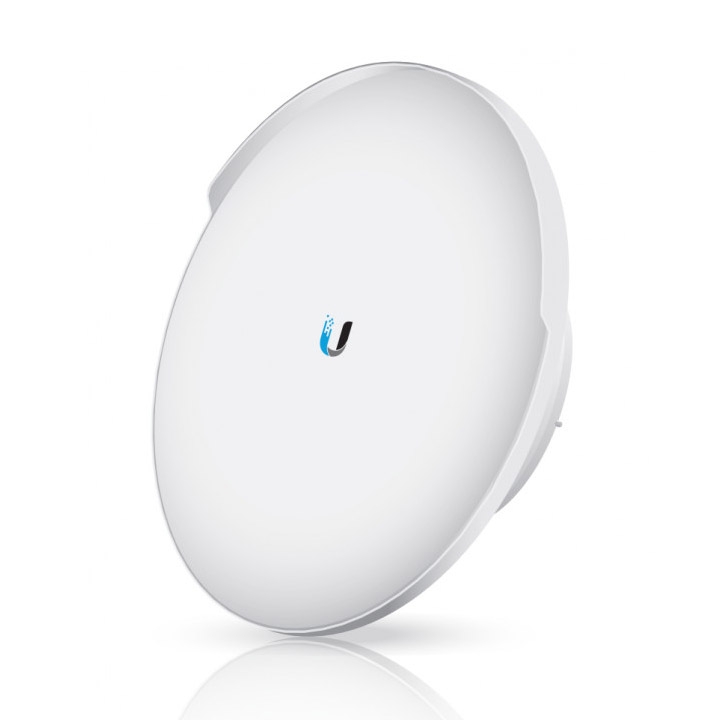

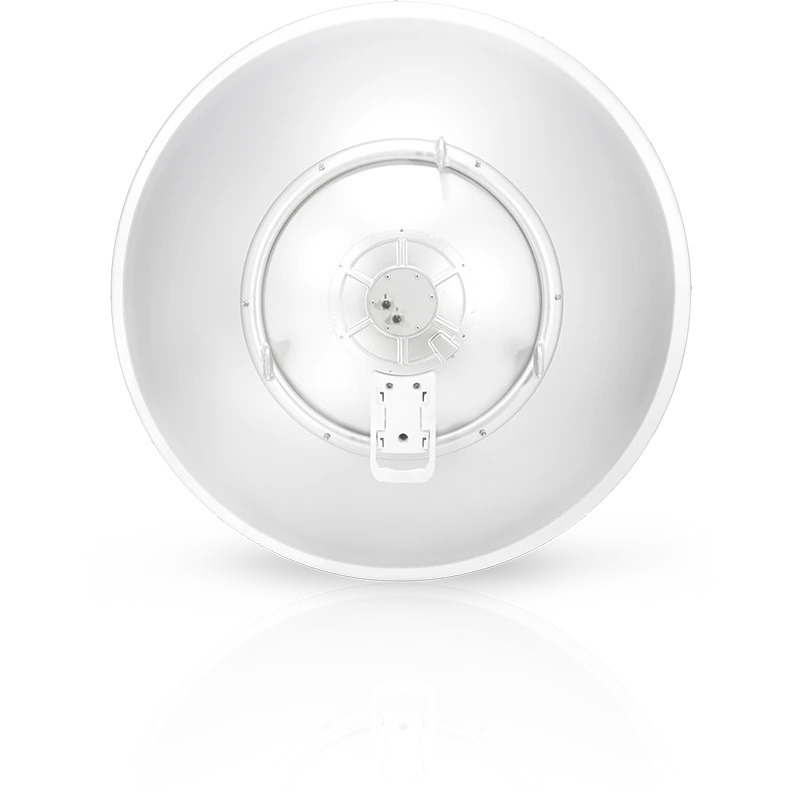

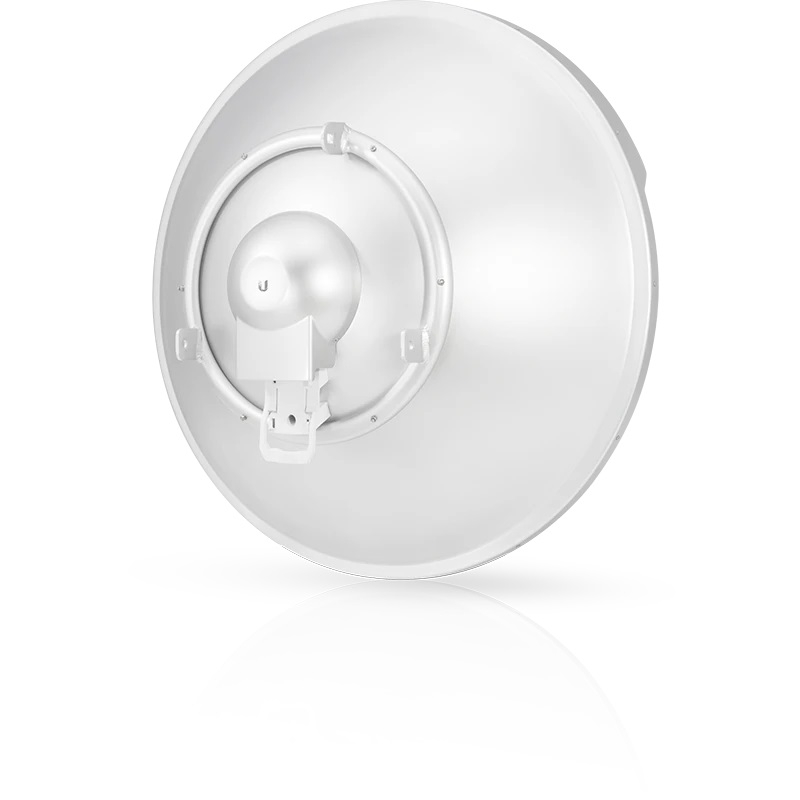

UBIQUITI RocketDish 5G31 AC (RD-5G31-AC)
UBIQUITI AirMAX RocketDish AC 5 GHz Duplex MIMO Antenna, 31 dBi, 2x RSMA, Radome and cables for Rocket M5/M5AC included
Breakthrough Design and Performance
The powerful RocketDish™ ac Antennas feature carrier-class construction and 2x2, dual-polarity performance.

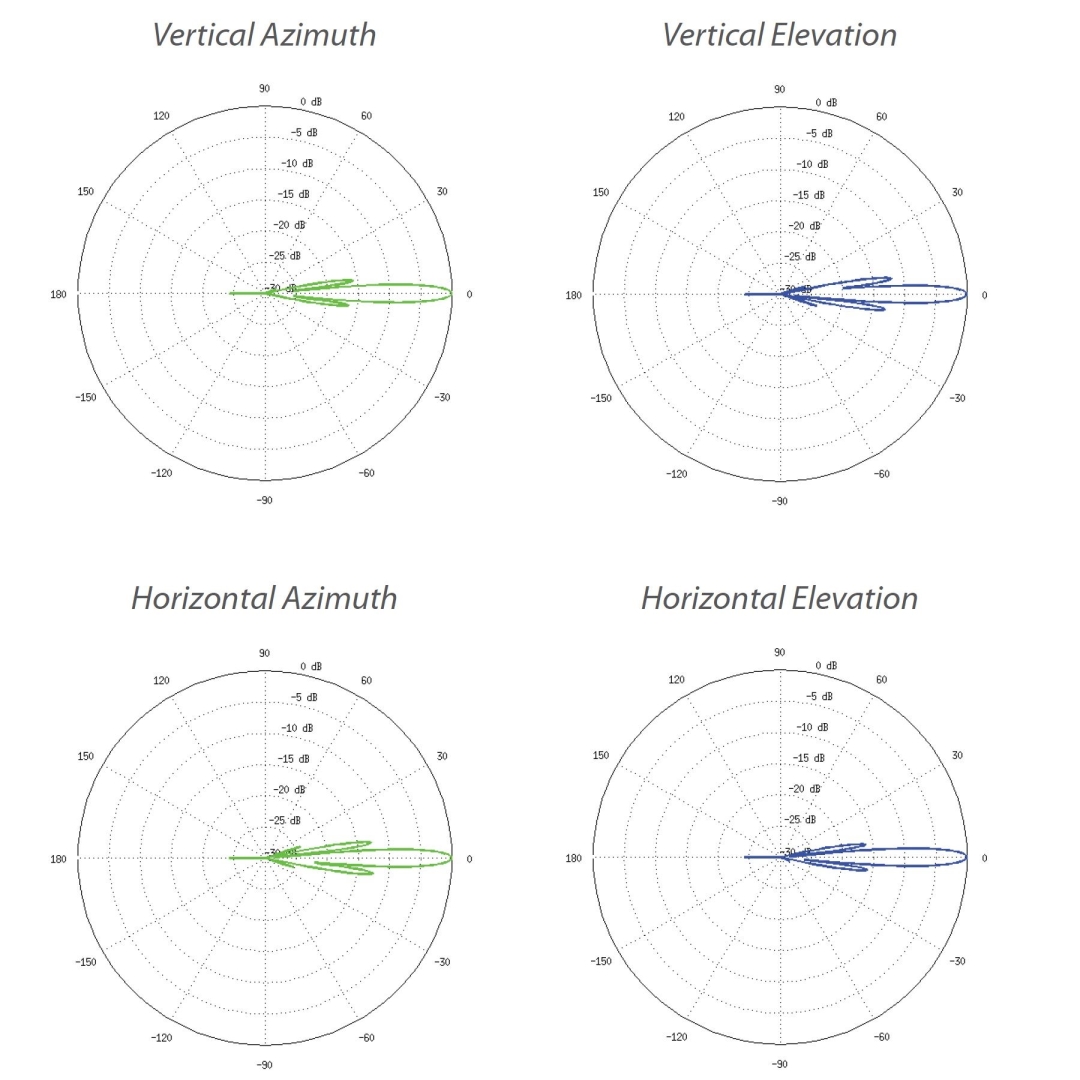

Powerful Beam Directivity
The RocketDish™ ac Antennas feature high isolation and improved F/B ratio for better Signal-to-Noise Ratio (SNR), which allows the use of higher-order modulation and the maximum data rate.
Reduced Interference, Higher Gain
The improved F/B ratio and lower sidelobes significantly reduce interference, so the innovative RocketDish™ ac Antennas provide superior gain and beam performance for high-capacity, multipoint networks.
RocketDish™ ac Antennas are designed with robust mechanical design for outdoor application use.

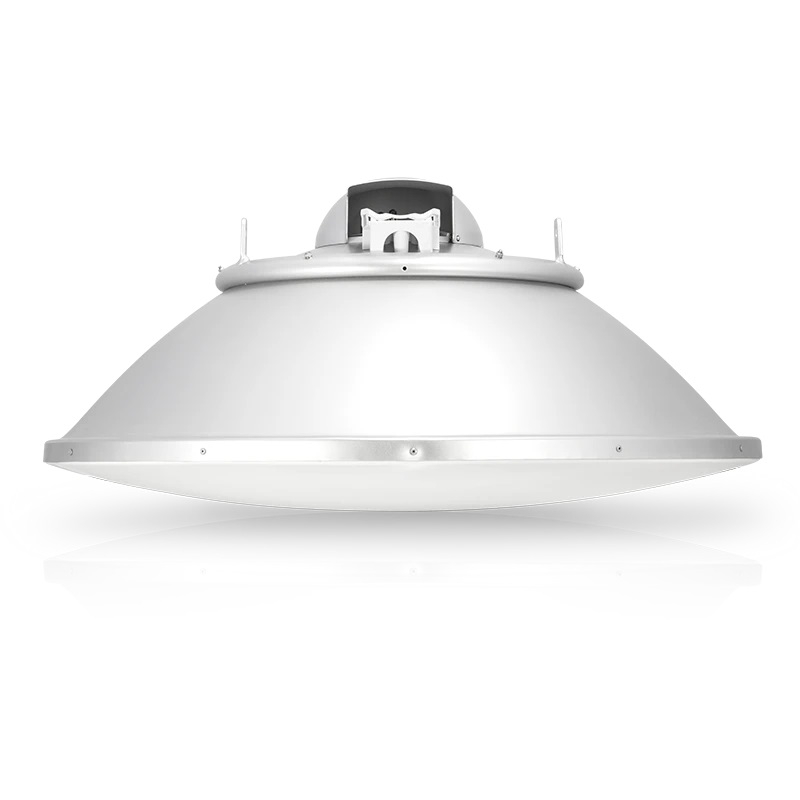

Ruggedized yet lightweight components resist corrosion and are designed to withstand harsh outdoor conditions. The included radome and metal shroud help protect against nature’s elements.

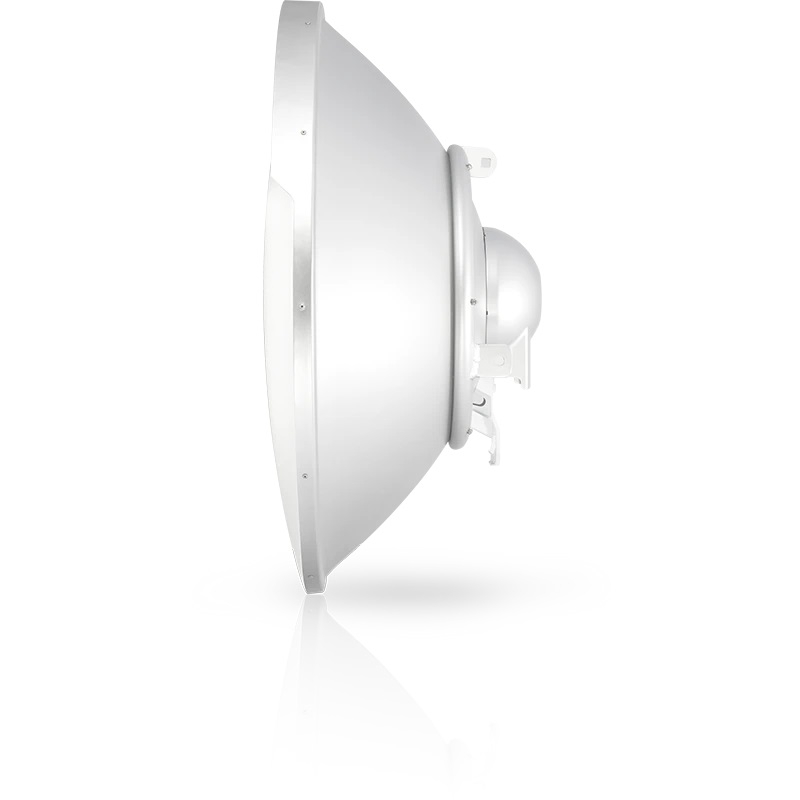

Dimensions 748 x 748 x 349 mm (29.45 x 29.45 x 13.74 in)*
Weight 7.6 kg (16.76 lb)
Frequency Range 5.1 - 5.8 GHz
Gain 31 dBi
Max. VSWR 1.4:1
Wind Survivability 200 km/h (125 mph)
Wind Loading 1,028 N @ 200 km/h (231 lbf @ 125 mph)
Cross-pol Isolation 35 dB Min.
ETSI Specification EN 302 326 DN2

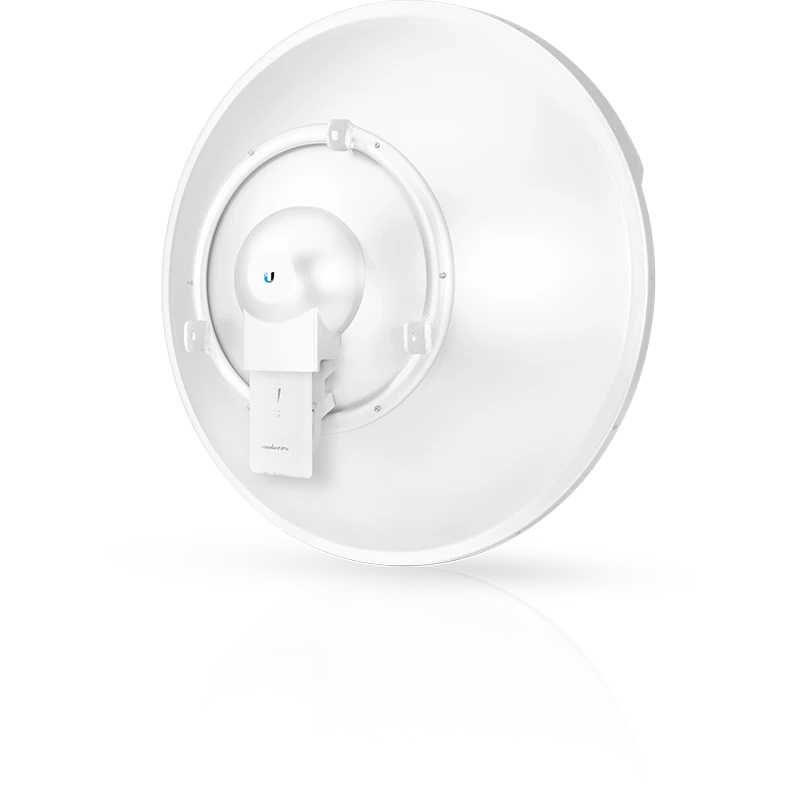

Mounting Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
