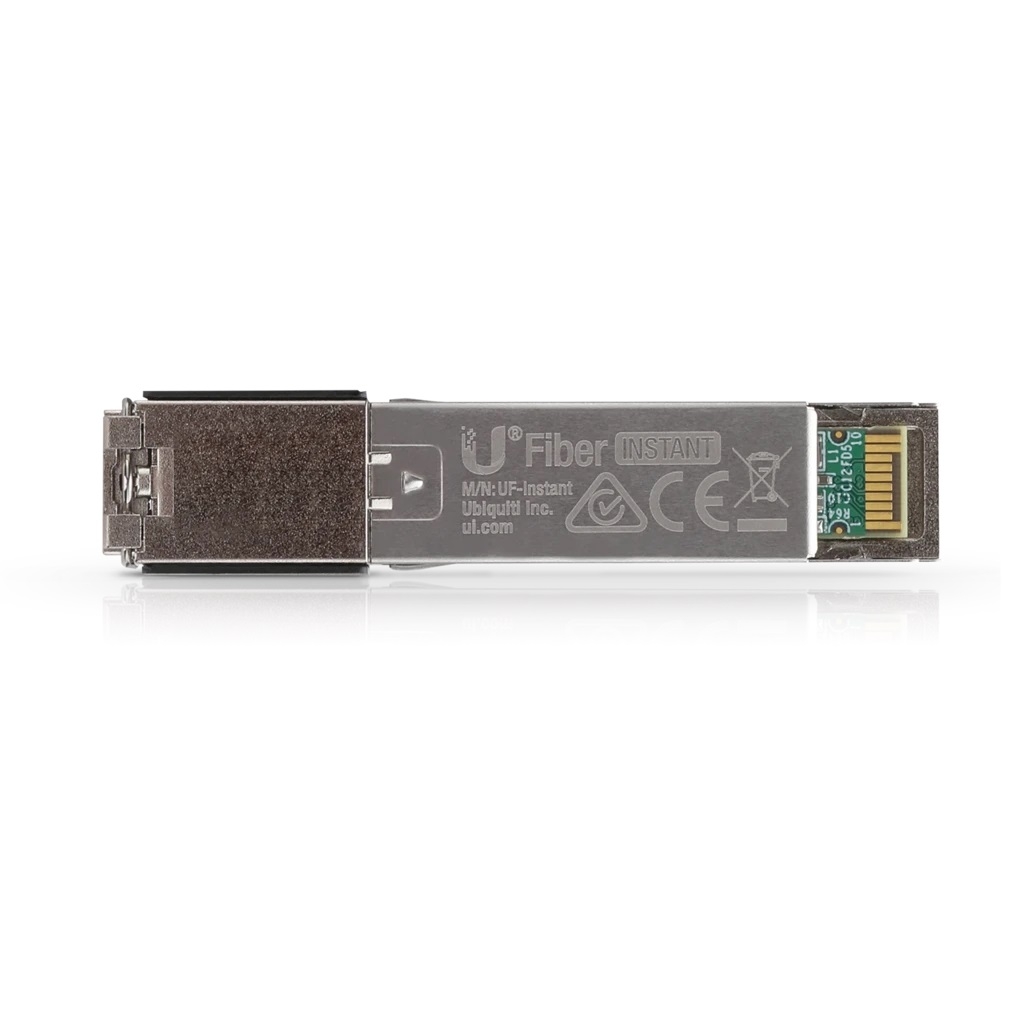

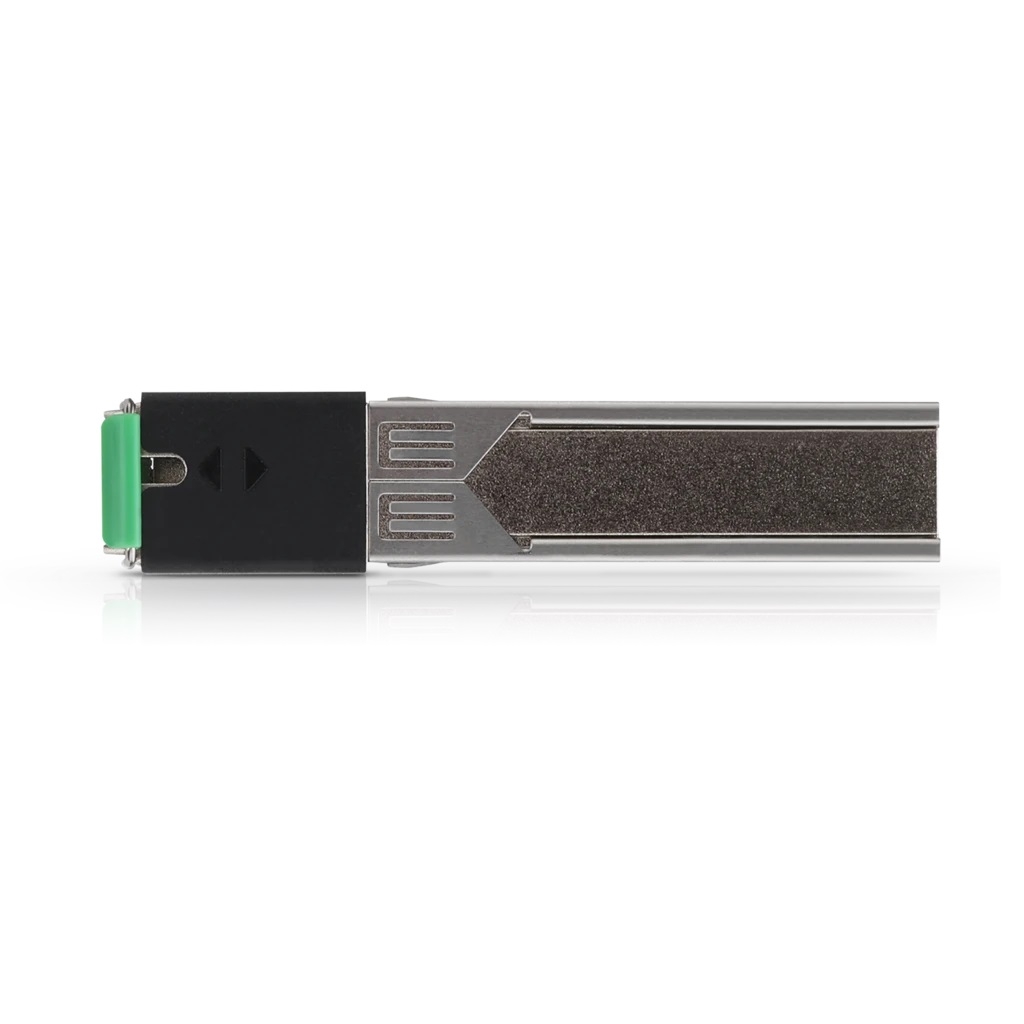

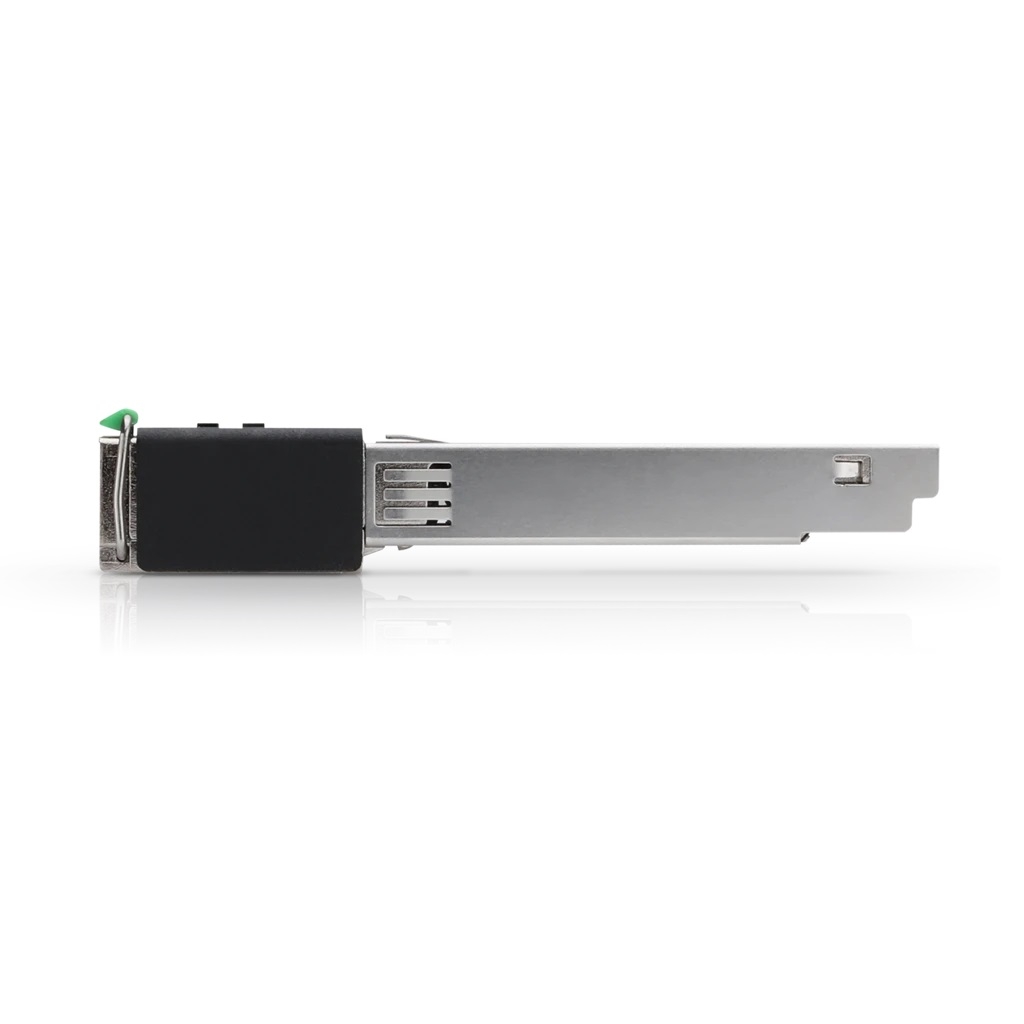

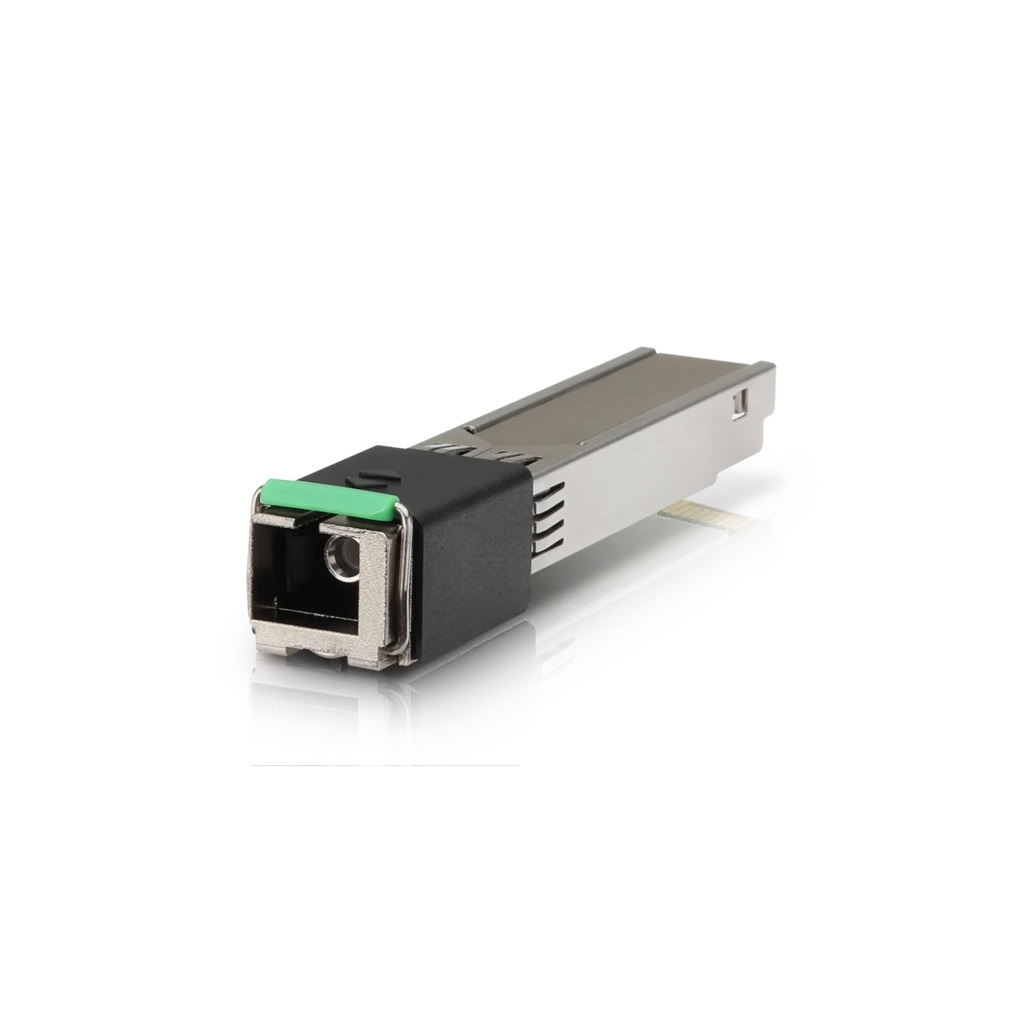

UBIQUITI UFiber Instant Optical Transceiver (UF-Instant)
OEM kodas:
UF-Instant
Kodas:
UF-Instant
ID:
#2359
High‑performance GPON CPE in the form factor of an SFP module | features an SGMII Ethernet LAN port and is powered by SFP
43.56€ su PVMKaina be PVM: 36.00€ |
Produkto savybės:
- High-Performance GPON CPE
- Up to 2.4 Gbps Downstream and 1.2 Gbps Upstream GPON structure

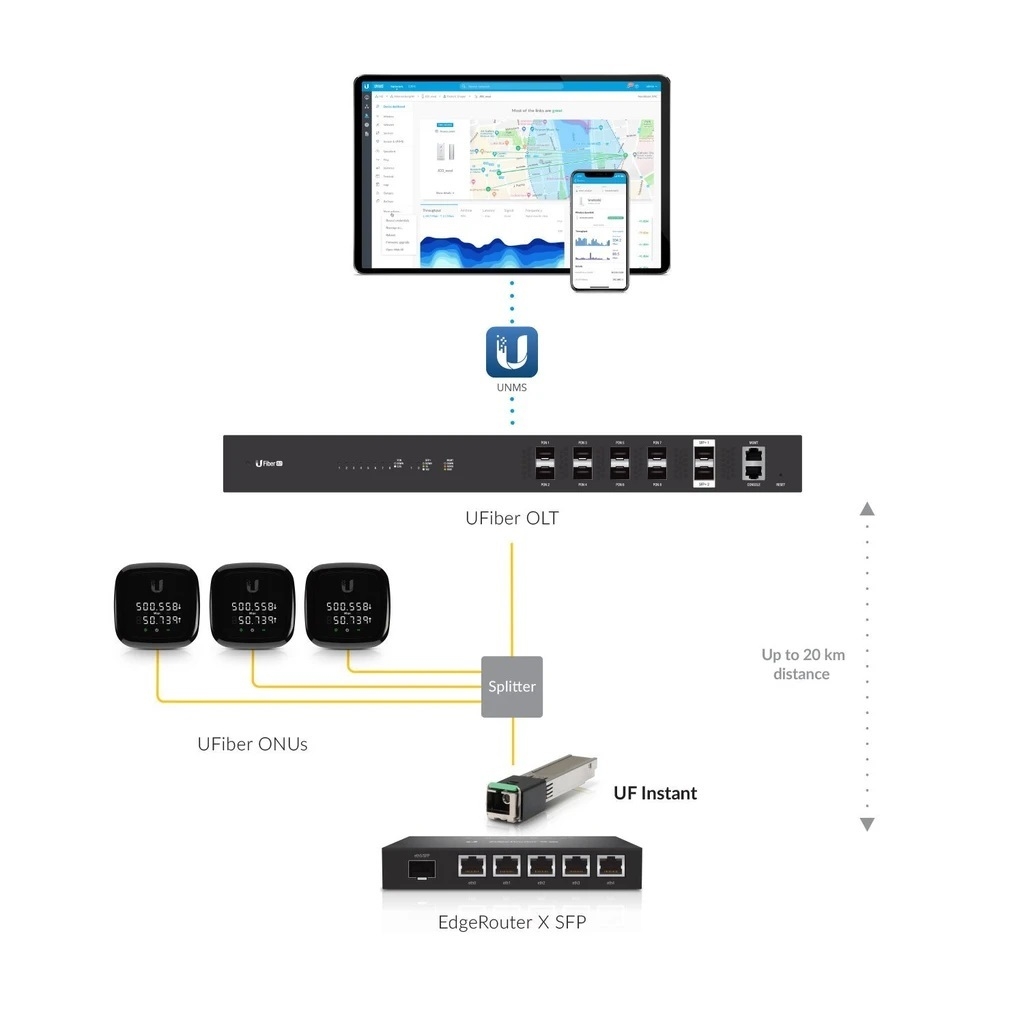

- Supports up to 20 km GPON Links
- Powerful Layer 2/3 Management Features

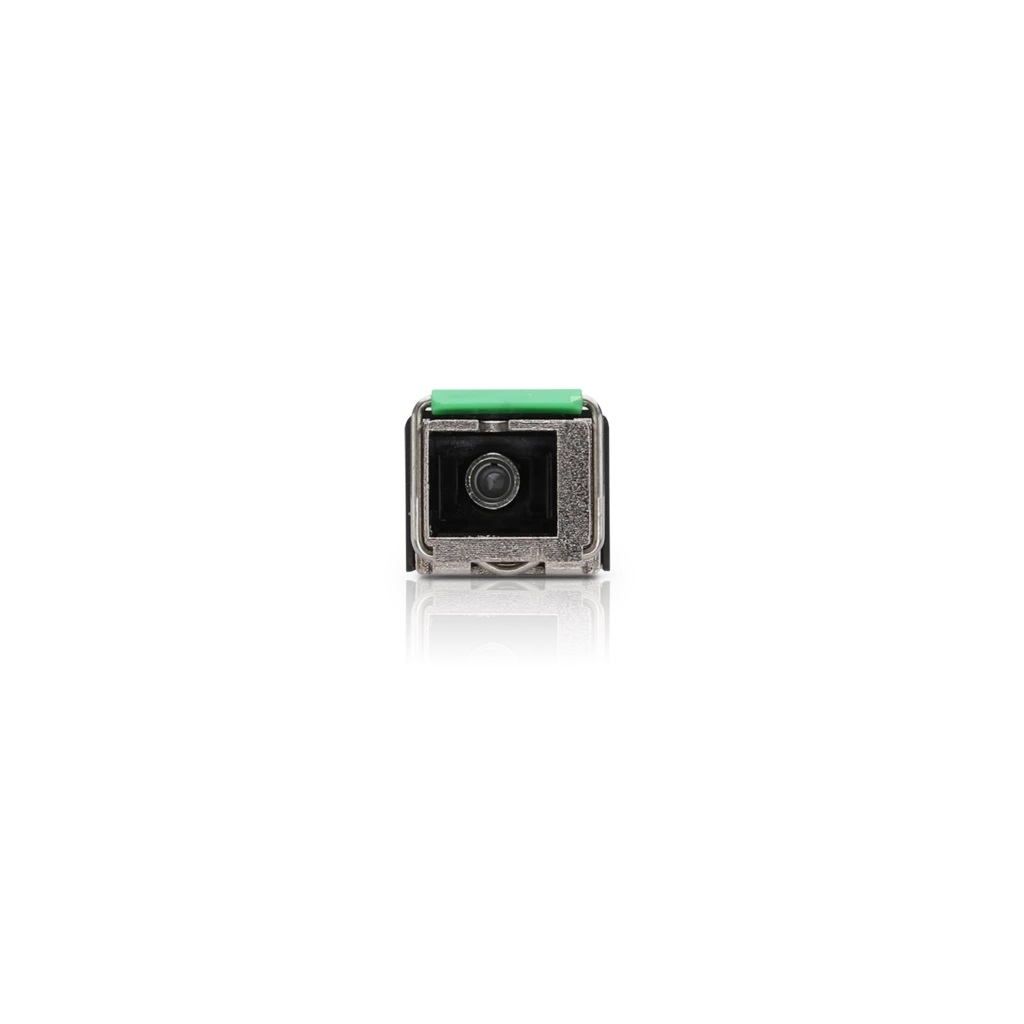

- (1) GPON WAN Port, SC/APC
- (1) 1Gbps SFP interface
Produkto specifikacijos:
| Dimensions | 69.46 x 13.70 x 11.30 mm (2.74 x 0.54 x 0.45") |
| Weight | 30 g (0.96 oz) |

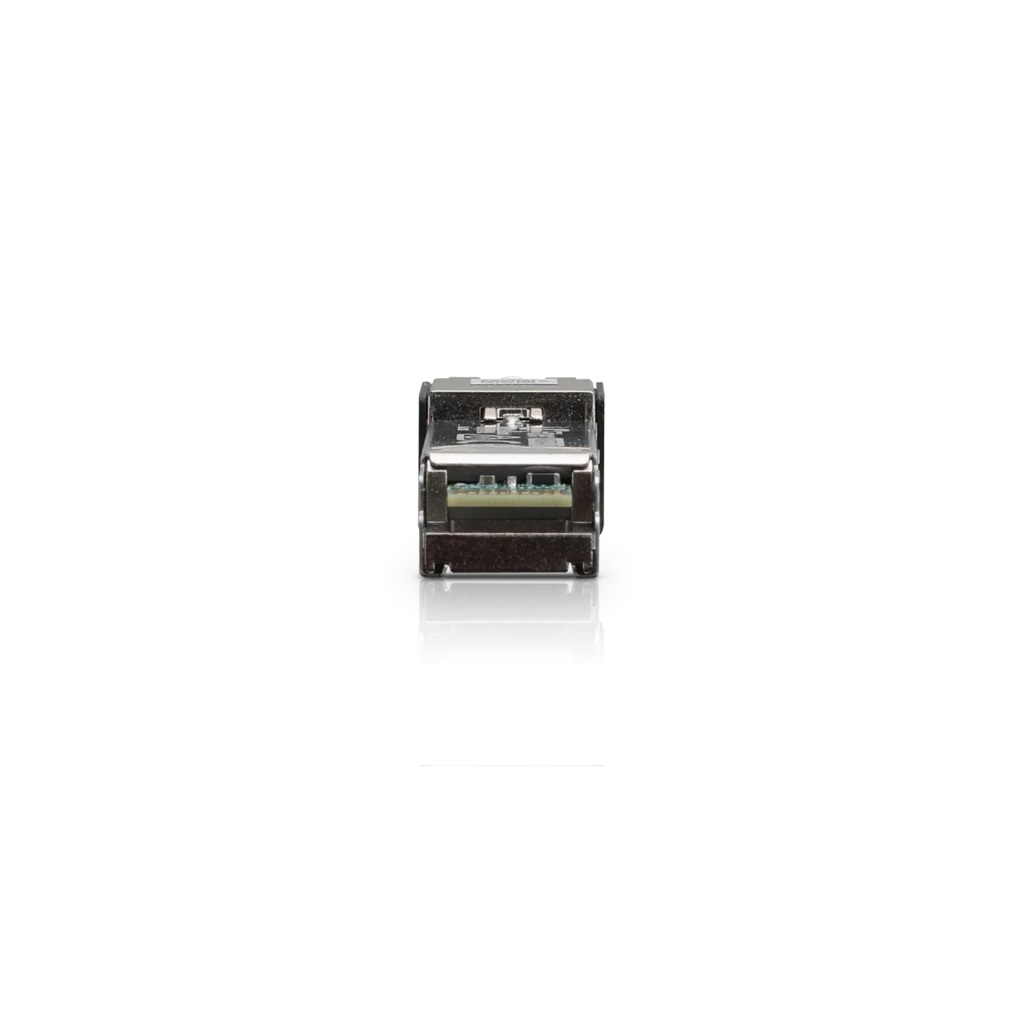

| Networking Interfaces | (1) SC/APC, GPON WAN (1) SGMII Ethernet LAN |
| Networking Interface Speeds GPON WAN, ITU G.984 GbE LAN |
2.488 Gbps Downstream 1.244 Gbps Upstream 1 Gbps |
| Management Interface | In‐Band Ethernet PON |
| Normal Optical Power Range | TX (Class B+): 1.5 to 5 dBm RX: ‐28 to ‐8 dBm |
| Power Method | SFP |
| Power Supply | 3.3V |
| Max. Power Consumption | 2W |
| Supported Voltage Range | 3.3V |
| Processor Specs | MIPS 100 MHz |
| Memory Information | 32 MB DDR |
| Operating Temperature | ‐10 to 45° C (14 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
