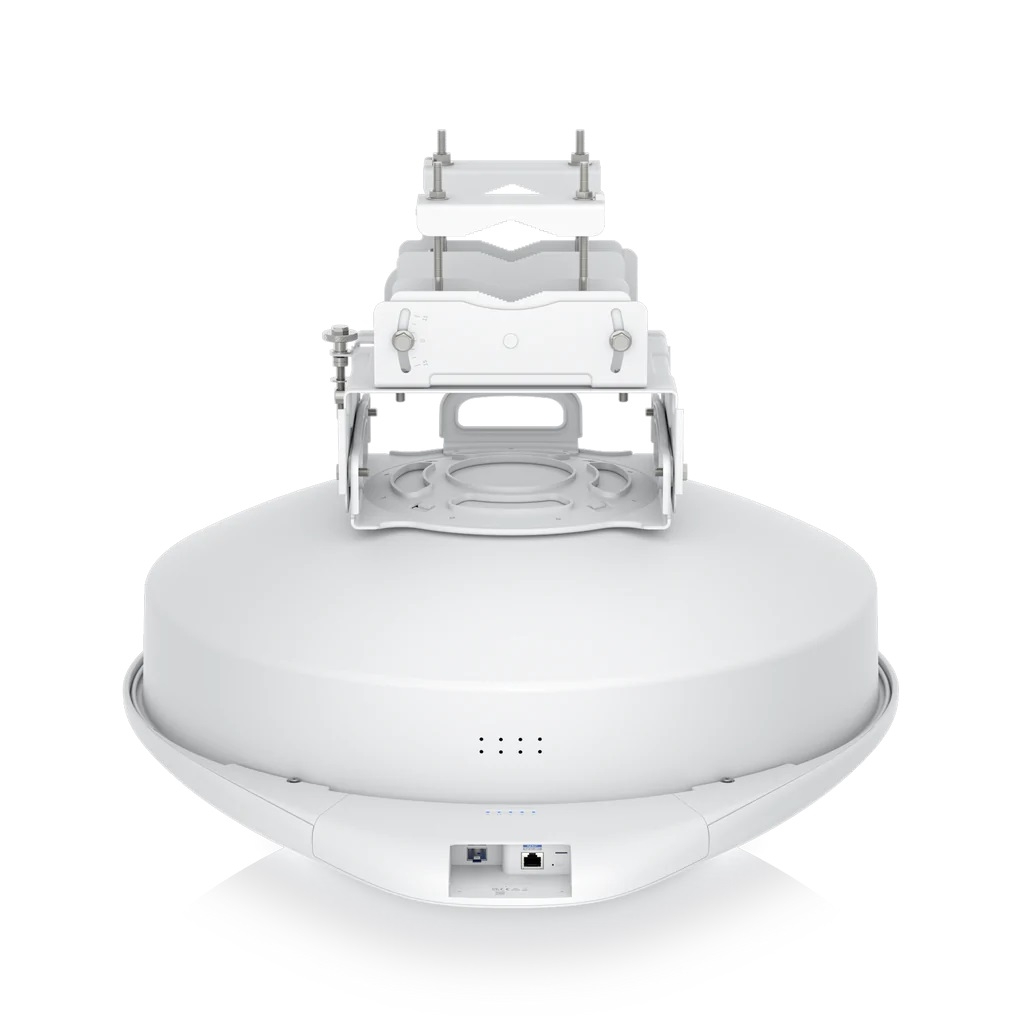

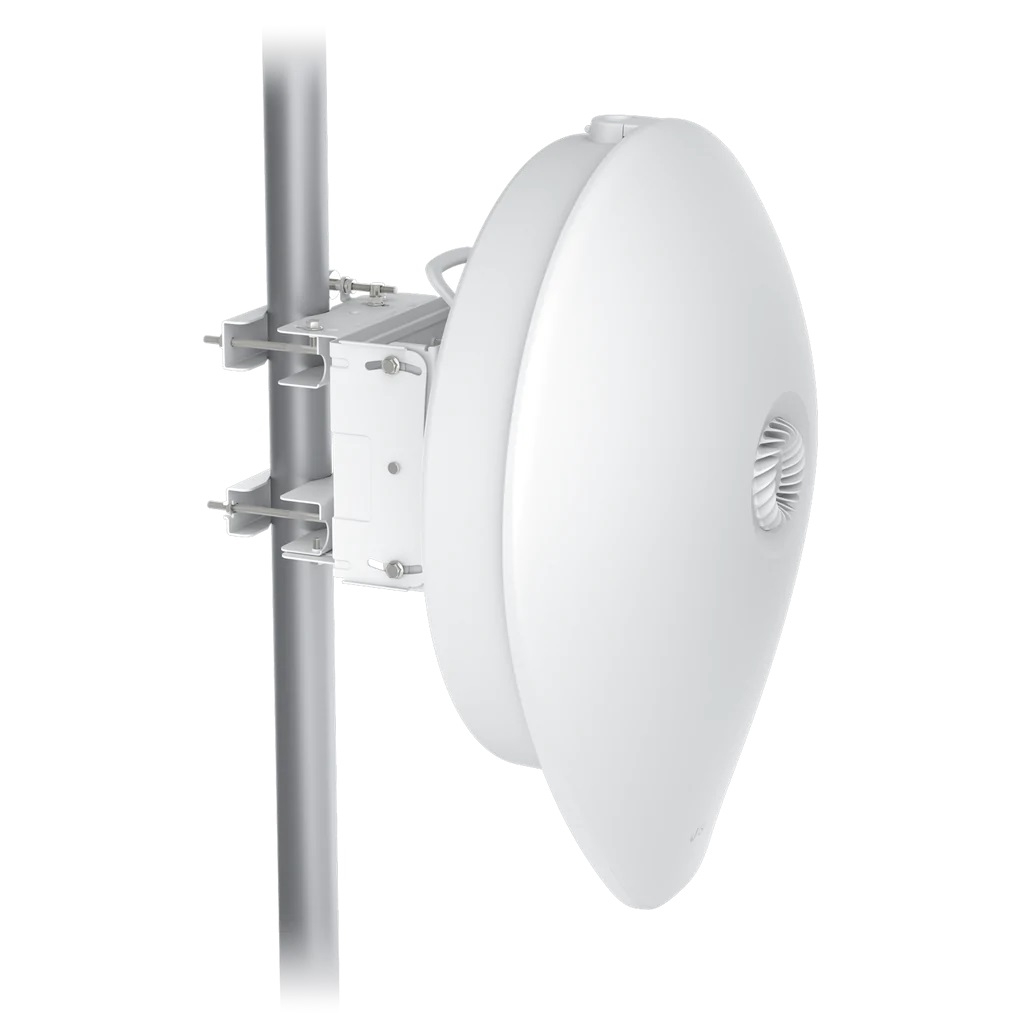

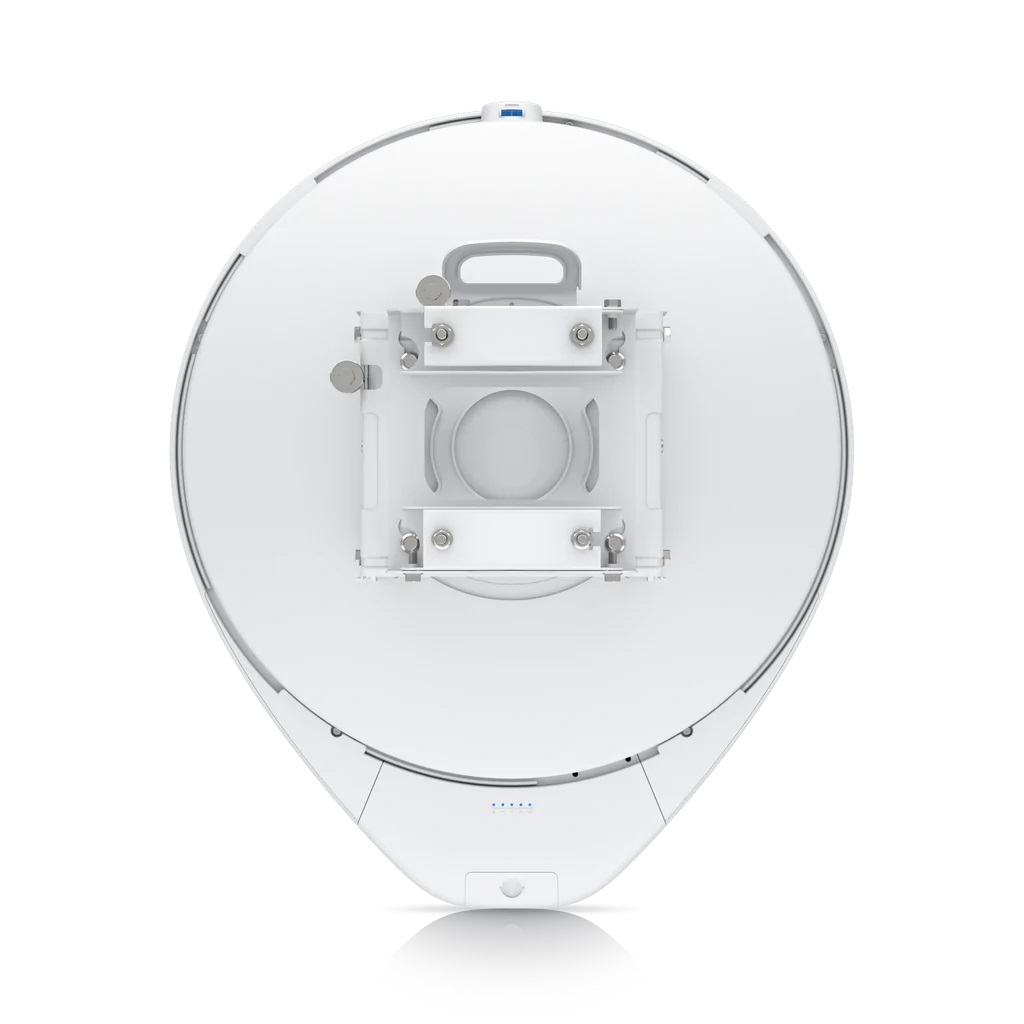

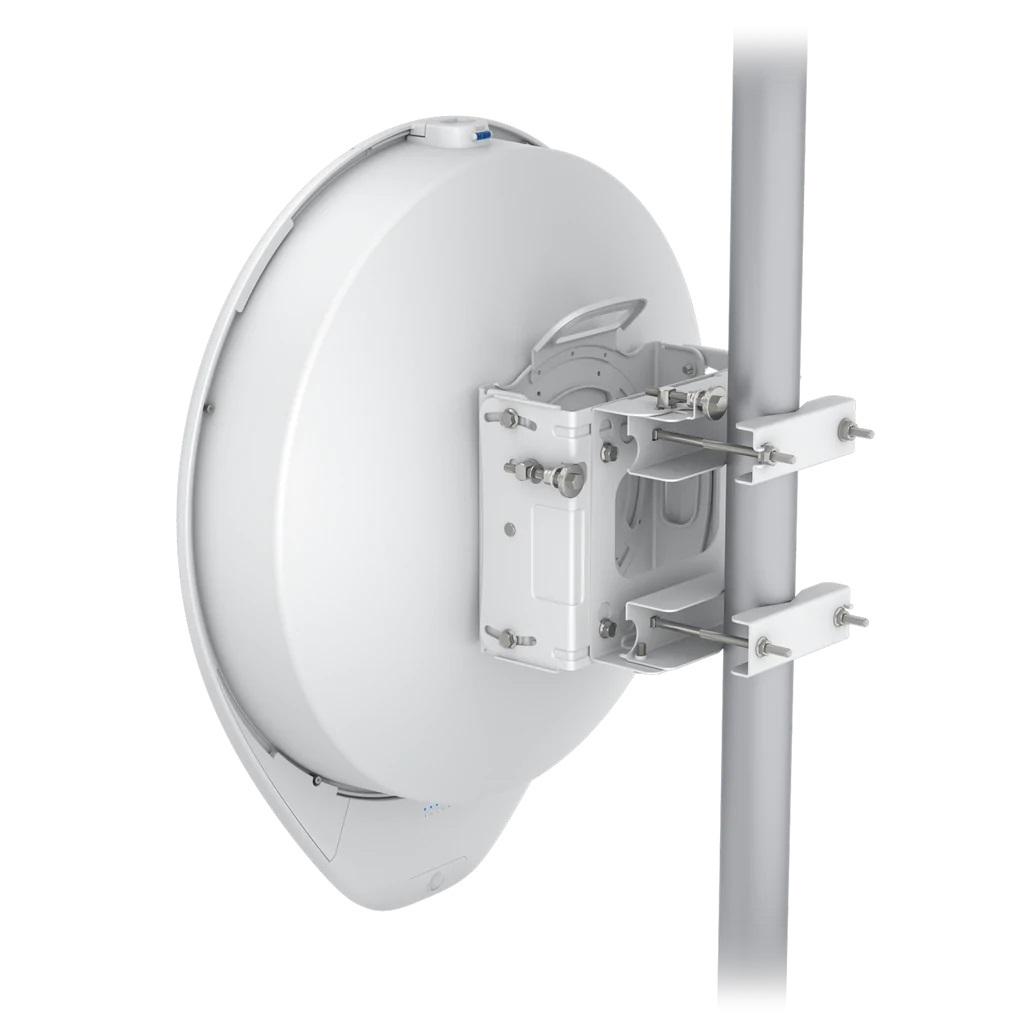

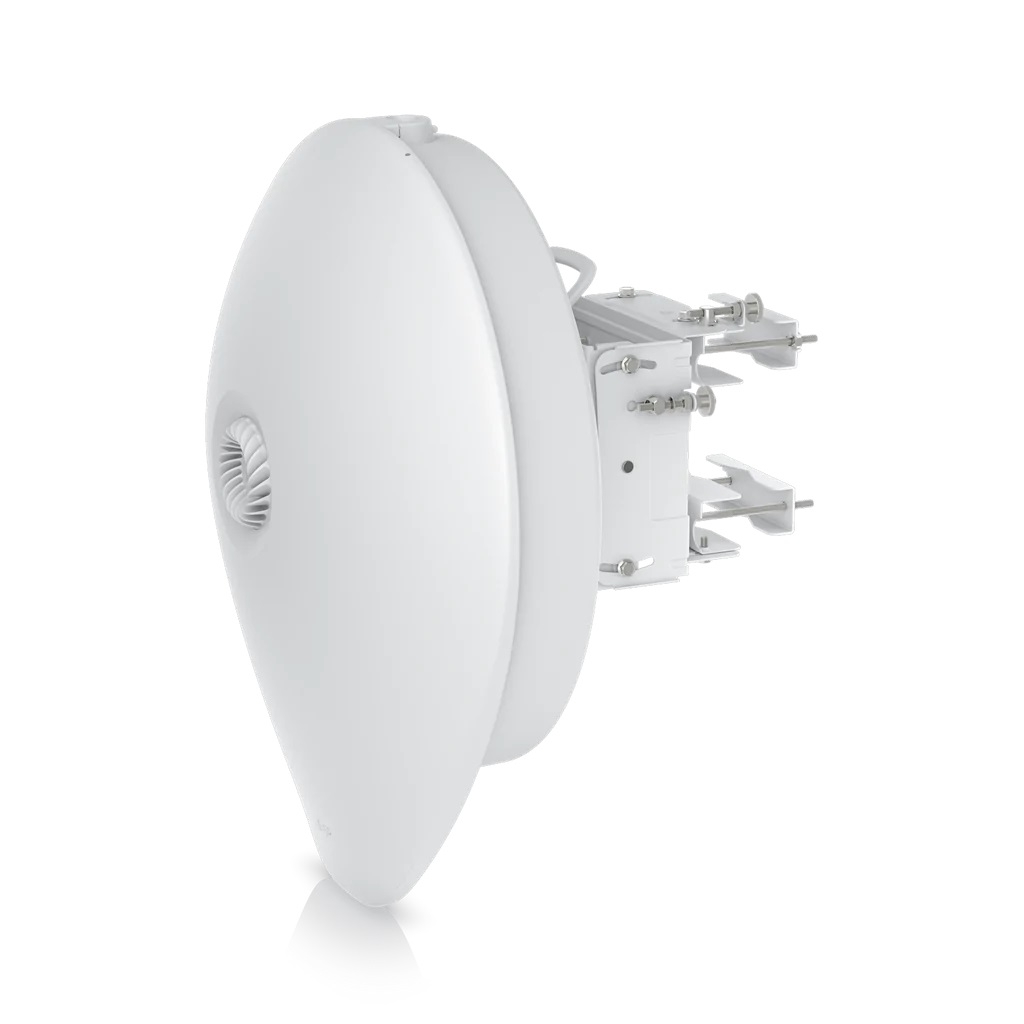

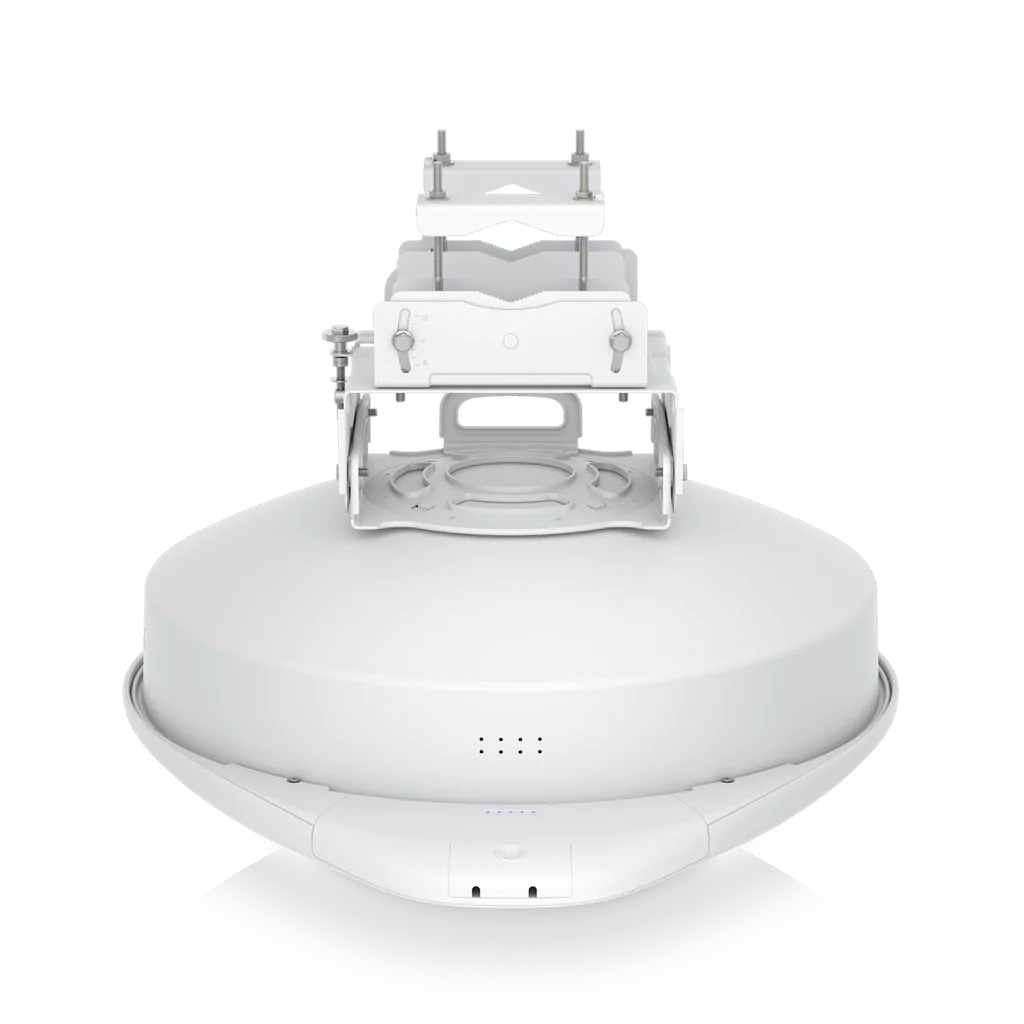

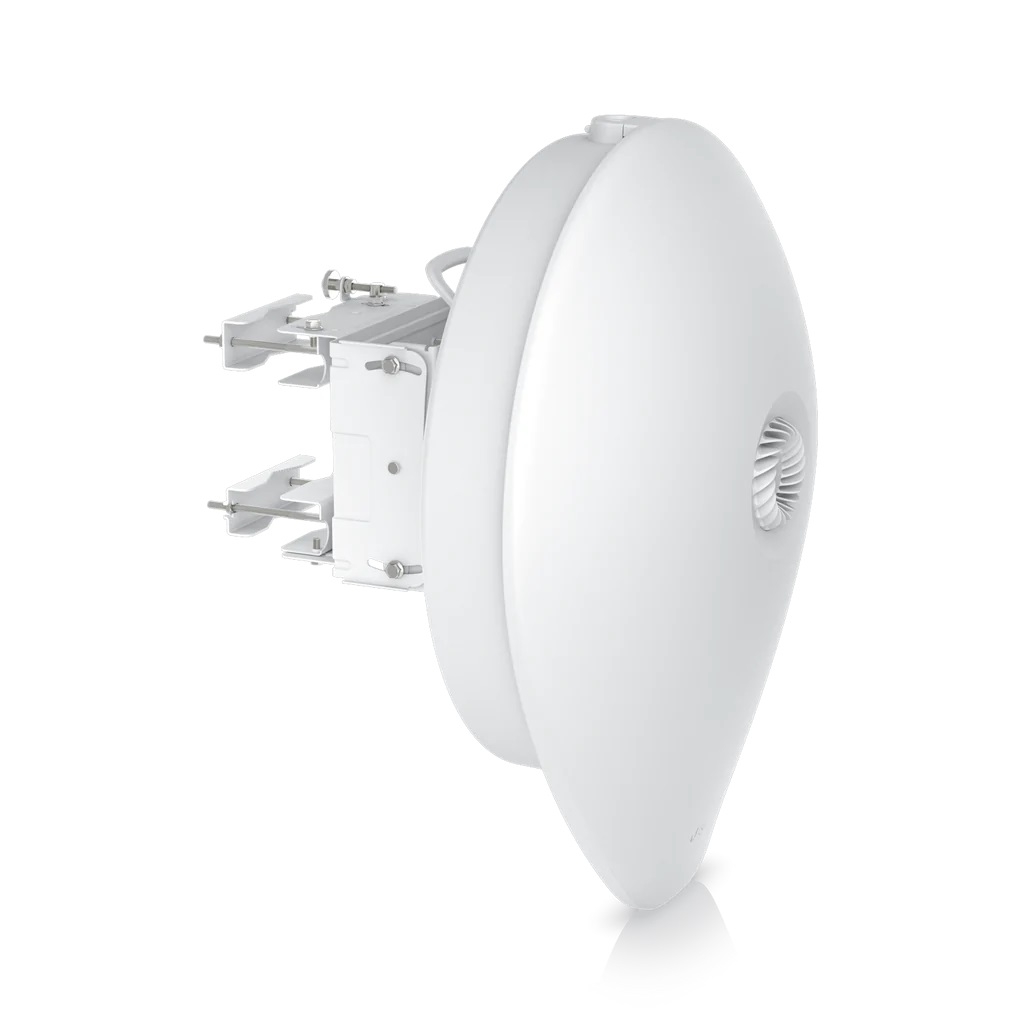

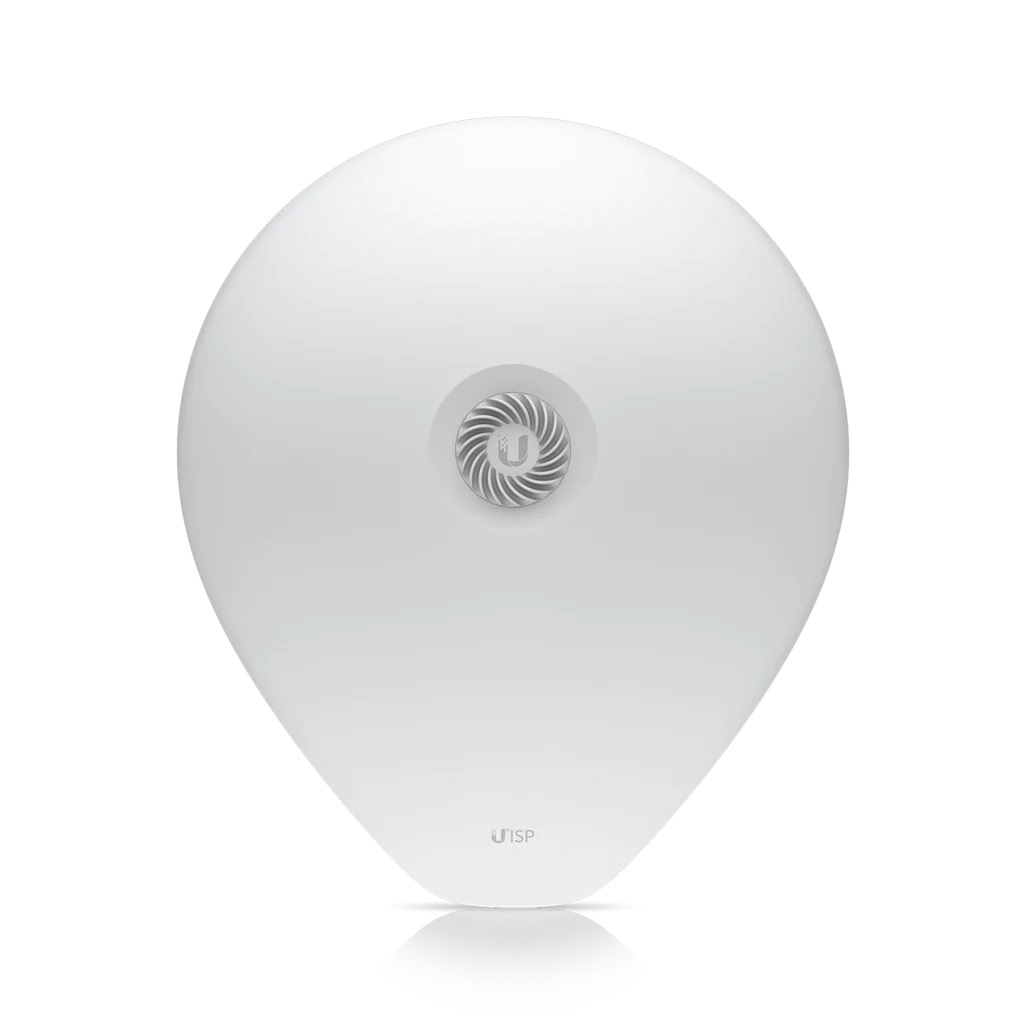

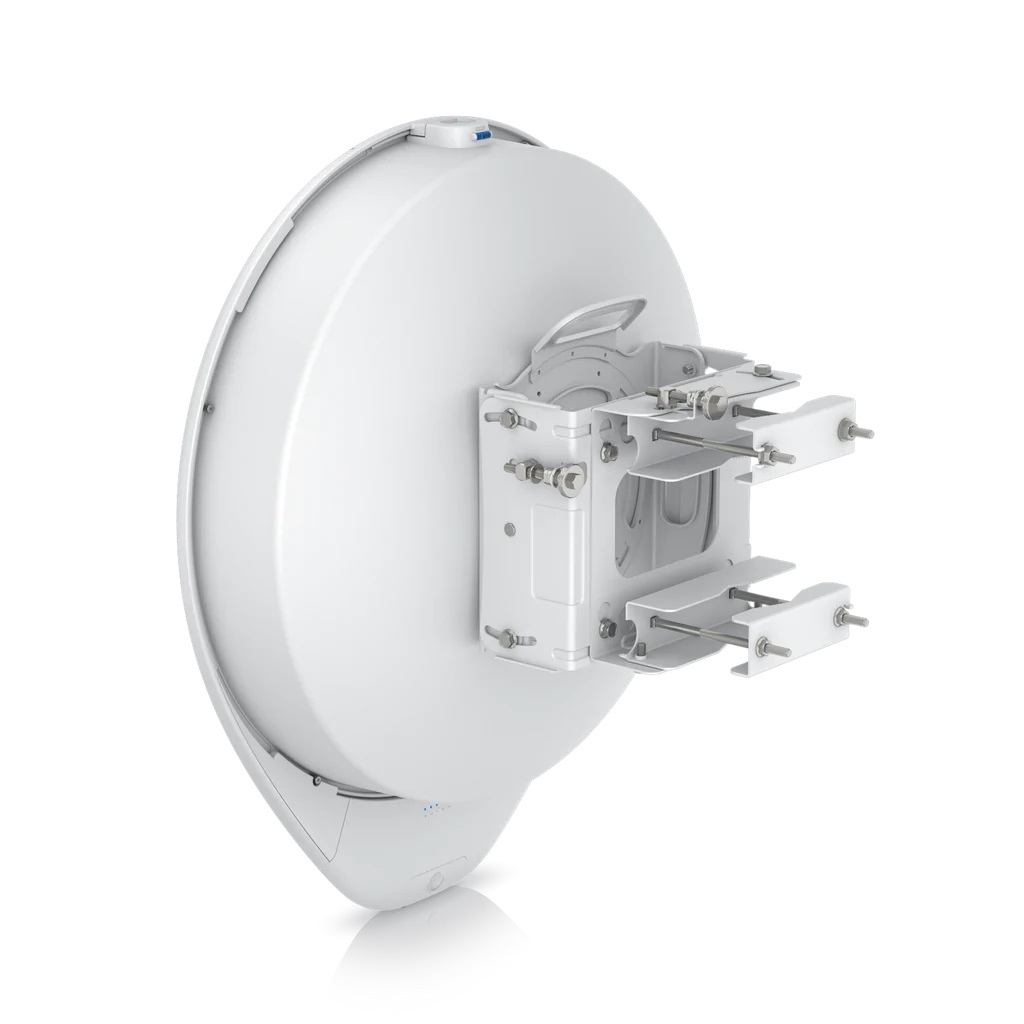

UBIQUITI UISP airFiber 60 XR (AF60-XR)
OEM kodas:
AF60-XR
Kodas:
AF60-XR
ID:
#3817
1x 10G SFP+ port | 1x Gigabit LAN (RJ45) port | 60 GHz radio | Low-interference 60 Ghz spectrum | 5.4 Gbps total throughput (2.7 Gbps duplex) | For links up to 15+ km | 5 GHz backup radio | Integrated GPS and Bluetooth management radio
1202.36€ su PVMKaina be PVM: 993.69€ |
Produkto savybės:
Multi-gigabit, 60 GHz bridge designed to create long-distance links and deliver 5.4 Gbps total throughput (2.7 Gbps duplex) over them.
It's also equipped with a 5 GHz backup radio for operational redundancy, as well as a Bluetooth radio to simplify setup via the UISP® Mobile app.
Features:
- 5 GHz backup radio
- Link range: 15+ km
- (1) 10G SFP+ port
- Integrated GPS
- Link planning support via the ISP Design Center
Produkto specifikacijos:
| Mechanical | |
|---|---|
| Dimensions | 779 x 664 x 383 mm (30.7 x 26.1 x 15.1") |
| Weight | Without mount: 8.6 kg (19 lb) With mount: 13 kg (28.7 lb) |
| Enclosure materials | UV stabilized polycarbonate, steel |
| Mount material | Galvanized steel |
| Mounting | Precision alignment kit (included) Pole compatibility: Ø40 to 80 mm (Ø1.5 to 3.15") on pipe outer diameter |
| Wind loading | 422 N at 200 km/h (94.86 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A53 at 1.4 GHz |
| Memory | DDR3L1 GB |
| Networking interface | (1) GbE RJ45 port (1) 1/10G SFP+port |
| Max. power consumption | 24W |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-) |
| Power supply | 48VDC, 0.65A gigabit PoE adapter (included) |
| RF connections | Internal |
| Button | Factory reset |
| LEDs | Power, Ethernet, GPS, link |
| Operating temperature | -40 to 55° C (-40 to 131° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| OS | airOS® |
| Operating mode | PtP only |
| Ubiquiti specific features | Integrated 60 GHz radio, discovery protocol, Wave technology |
| Services | UISP, ping watchdog, NTP client, device discovery |
| Tools | Antenna alignment, discovery utility, ping, trace route, speed test |
| Network | Bridge mode |
| Software management | Bluetooth management for easy setup over UISP app WEB UI |
| Minimum software requirements | Any modern web browser/iOS™ or Android™ based smartphone |
| System | |
| Maximum throughput | 2.5+ Gbps |
| Maximum range | 15+ km |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating frequency* | 57 to 71 GHz * Depends on regulatory region. |
| Channel bandwidth | 2160, 1080 MHz |
| Operating channels* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120 MHz * Depends on regulatory region. |
| Modulation | 16QAM, BPSK, QPSK |
| Beamwidth | Azimuth: ± 1° Elevation: ± 1° |
| Management radio | 2400 - 2483.5 MHz |
| Electrical downtilt | 0° |
| Back-Up RF | |
| Operating frequency* US/CA Worldwide |
U-NII-1 5150 - 5250 Mhz U-NII-3 5725 - 5850 Mhz 5150 - 5875 MHz * Depends on regulatory region. |
| Channel bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (2⁄3), 64QAM (¾), 64QAM (5⁄6), 256QAM (¾), 256QAM (5⁄6) |
| Antenna gain | 26 dBi |
| Beamwidth | Azimuth: ± 7° Elevation: ± 7° |
| Cross-pol isolation | 14 dB |
| Electrical downtilt | 0° |
| LEDs | |
| Power | Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application |
| Ethernet | Flashing blue: Ethernet activity |
| GPS | Blue: receiving at least (4) GPS satellite signals |
| Link | Blue: 5GHz link Blue: 60GHz link |
