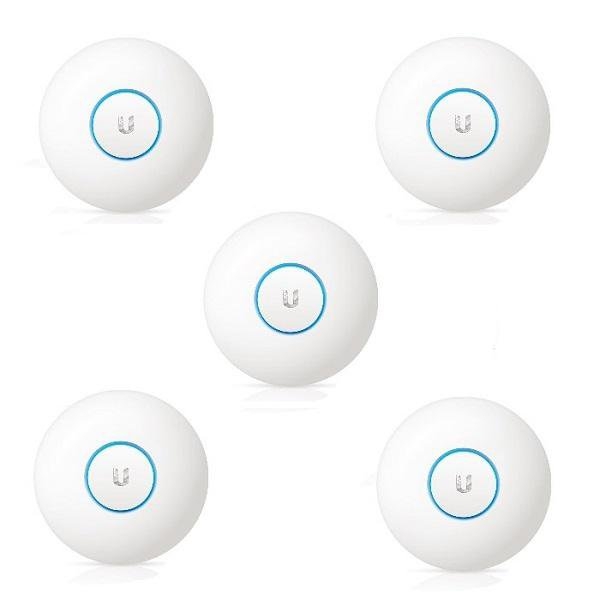

UBIQUITI UniFi AC Lite 5pack (UAP-AC-LITE-5)
Wireless data transfer speed up to 1167 Mbps | AP/Hotspot | 2.4/5 GHz | Standards 802.11a/b/g/n/ac is supported | MIMO 2×2 | PoE 802.3at/A supported. | PoE units are not included in package
Set of 5 pieces! The UniFi AC Lite (UAP-AC-LITE) features the latest Wi-Fi 802.11ac technology in a refined industrial design and is ideal for cost-effective deployment of high-performance wireless networks.
Package consists of 5 pieces of UniFi AC Lite units. Package NOT includes 24V GigE PoE adaptor!
Dual-Radio Performance, Gigabit Speeds
The UniFi AC Lite delivers 5x the performance of the first-generation UniFi AP while still maintaining Ubiquiti’s disruptive pricing strategy.
The UniFi AC Lite AP can work with wireless data transfer up to 1167 Mbps, standard 802.11a/b/g/n/ac is supported, UniFi uses MIMO 2×2 antennas system 3dBi. The signal range is up to 122 m.
Sleek, Ultra-Compact Design
The UniFi AC Lite AP features a cleaner design in a reduced footprint – half the size compared to the standard UniFi AP.
Scalable Enterprise Wi-Fi Management
The UniFi Controller v4 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller. Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field.
|Dimensions||160 x 160 x 31.45 mm (6.30 x 6.30 x 1.24")|
With Mounting Kits
|170 g (6.0 oz)
185 g (6.5 oz)
|Networking Interface||(1) 10/100/1000 Ethernet Port|
|Power Method||802.3af/A PoE
24V Passive PoE (Pairs 4, 5+; 7, 8 Return)
|Power Supply||24V, 0.5A Gigabit PoE Adapter*|
|Maximum Power Consumption||6.5W|
|Maximum TX Power
|Antennas||(2) Dual‑Band Antennas, 3 dBi Each|
|Wi-Fi Standards||802.11 a/b/g/n/r/k/v/ac|
|Wireless Security||WEP, WPA‑PSK, WPA‑Enterprise (WPA/WPA2, TKIP/AES)|
|BSSID||Up to 8 per Radio|
|Mounting||Wall/Ceiling (Kits Included)|
|Operating Temperature||‑10 to 70° C (14 to 158° F)|
|Operating Humidity||5 to 95% Noncondensing|
|Certifications||CE, FCC, IC|
|Supported Data Standards||802.11ac,n,a,g,b|
* Only the single‑pack of the UAP‑AC‑LITE includes a PoE adapter.
Advanced Traffic Management
|Advanced QoS||Per‑User Rate Limiting|
|Guest Traffic Isolation||Supported|
|WMM||Voice, Video, Best Effort, and Background|
