UBIQUITI UniFi AC LR Long Range (UAP-AC-LR)
UBIQUITI UniFi AC Long Range, UAP-AC-LR, 1317 Mbps AP/Hotspot 2,4/5 GHz, 802.11ac, MIMO 3×3 - indoor
The UniFi AC LR AP features the latest Wi-Fi 802.11ac technology in a refined industrial design and is ideal for long-range deployment of high-performance wireless networks.
Dual-Radio Performance, Gigabit Speeds
The UniFi AC Long Range delivers 5x the performance of the first-generation UniFi AP while still maintaining Ubiquiti’s disruptive pricing strategy.
The UniFi AC Long Range can work with wireless data transfer up to 1317 Mbps, standard 802.11a/b/g/n/ac is supported, UniFi uses MIMO 3×3 antennas system 3dBi. The signal range is up to 183 m.
Innovative Antenna Design
The innovative antenna design provides a long-range, symmetrical-link coverage area, and the antenna gain of the UniFi AC LR AP performs better than one-way, high transmit power does for connecting distant clients.
Scalable Enterprise Wi-Fi Management
The UniFi Controller v4 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller. Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field.

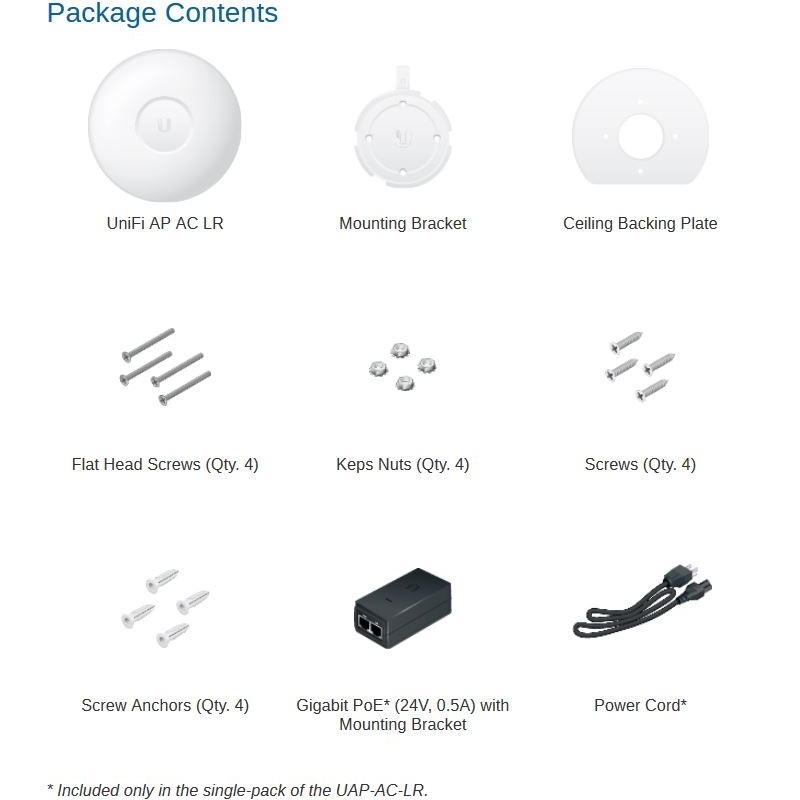

Package includes 24V GigE PoE adaptor.
|Dimensions||160 x 160 x 31.45 mm (6.30 x 6.30 x 1.24")|
With Mounting Kits
|170 g (6.0 oz)
185 g (6.5 oz)
|Networking Interface||10/100/1000 Ethernet Port|
|Power Method||802.3af/A PoE
24V Passive PoE (Pairs 4, 5+; 7, 8 Return)
|Power Supply||24V, 0.5A Gigabit PoE Adapter*|
|Maximum Power Consumption||6.5W|
|Maximum TX Power
|Antennas||(2) Dual‑Band Antennas, 3 dBi Each|
|Wi-Fi Standards||802.11 a/b/g/n/ac|
|Wireless Security||WEP, WPA‑PSK, WPA‑Enterprise (WPA/WPA2, TKIP/AES)|
|BSSID||Up to 8 per Radio|
|Mounting||Wall/Ceiling (Kits Included)|
|Operating Temperature||‑10 to 70° C (14 to 158° F)|
|Operating Humidity||5 to 95% Noncondensing|
|Certifications||CE, FCC, IC|
|Supported Data Standarts||802.11ac/n/a/g/b|
* Only the single‑pack of the UAP‑AC‑LITE includes a PoE adapter.
Advanced Traffic Management
|Advanced QoS||Per‑User Rate Limiting|
|Guest Traffic Isolation||Supported|
|WMM||Voice, Video, Best Effort, and Background|
