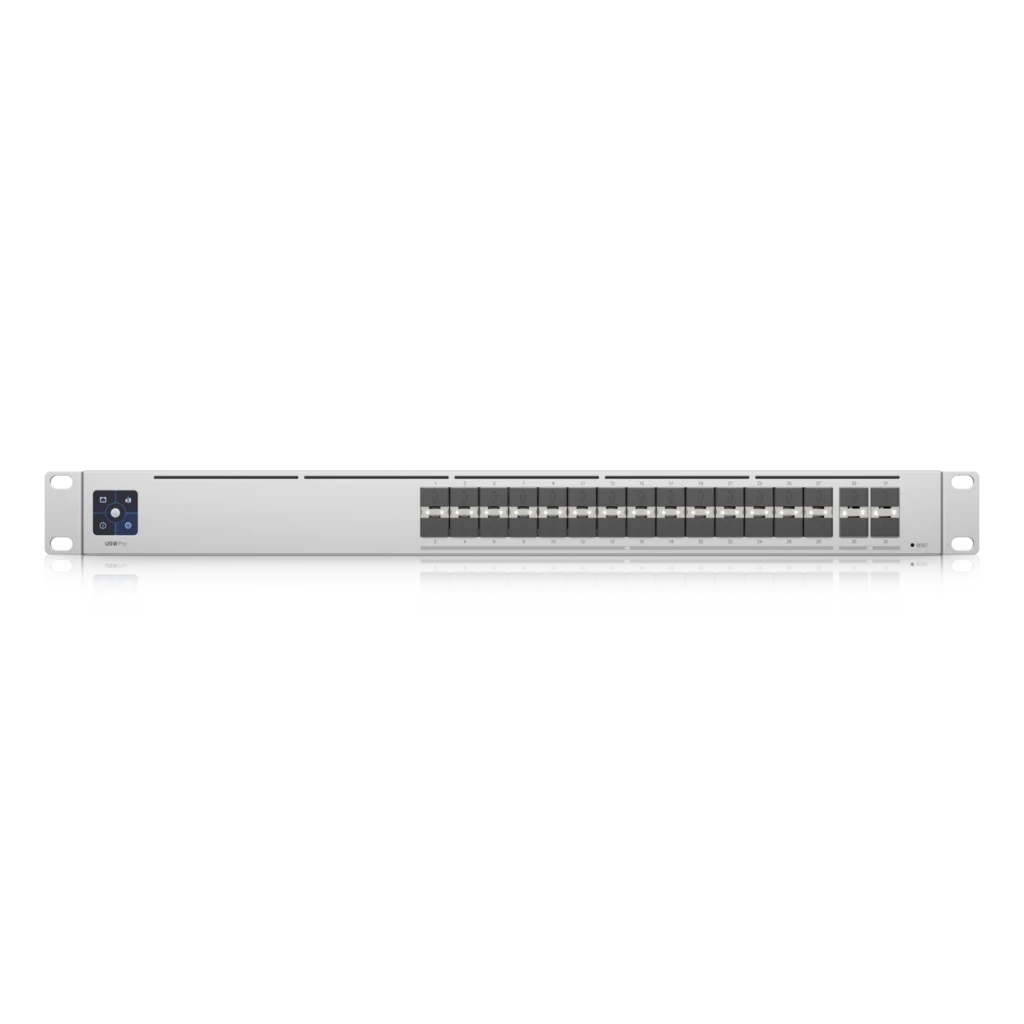

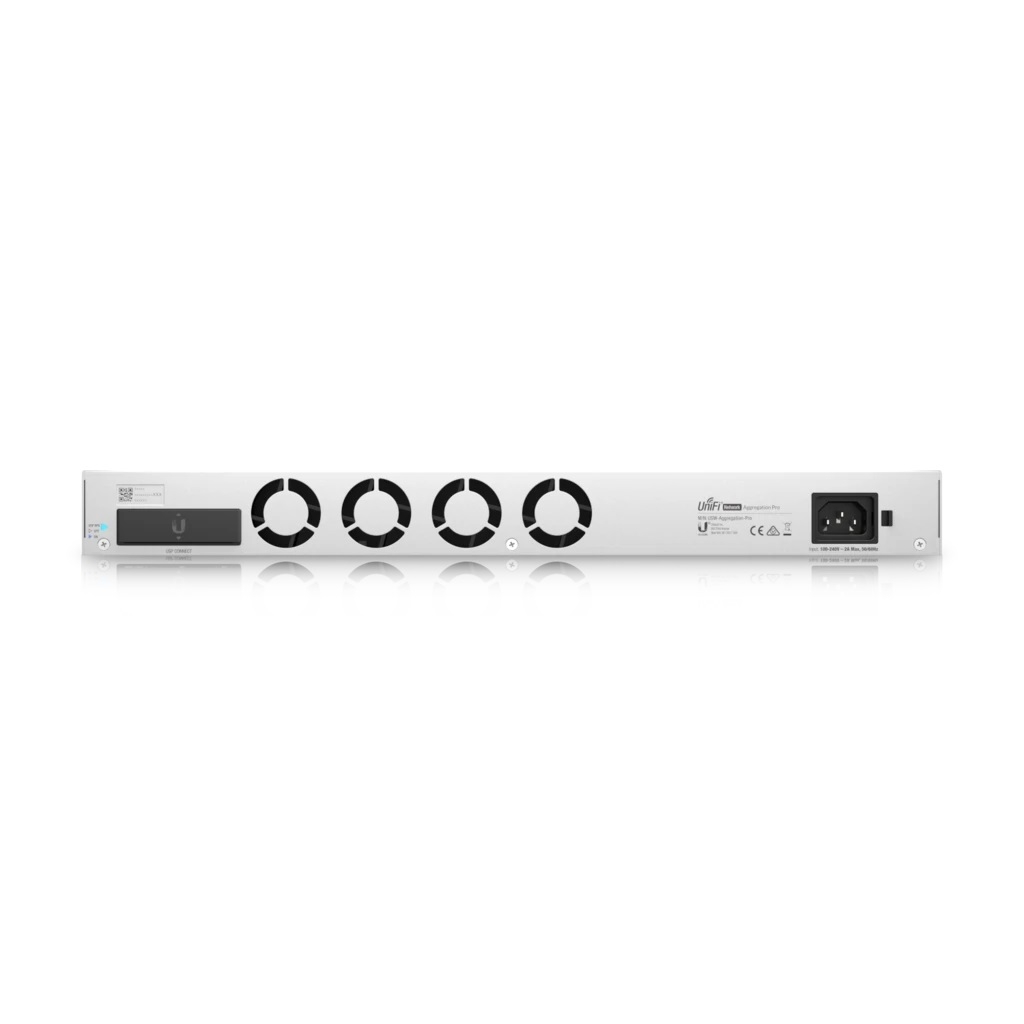

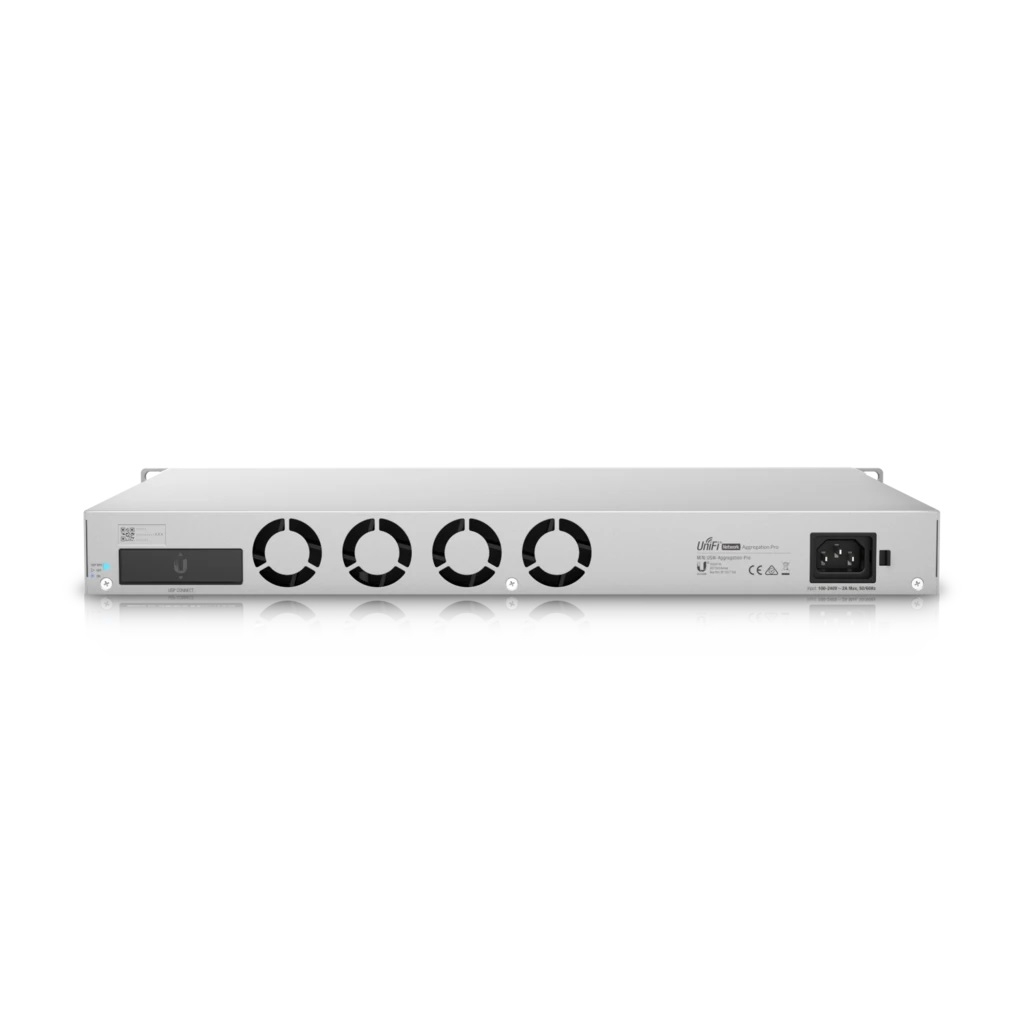

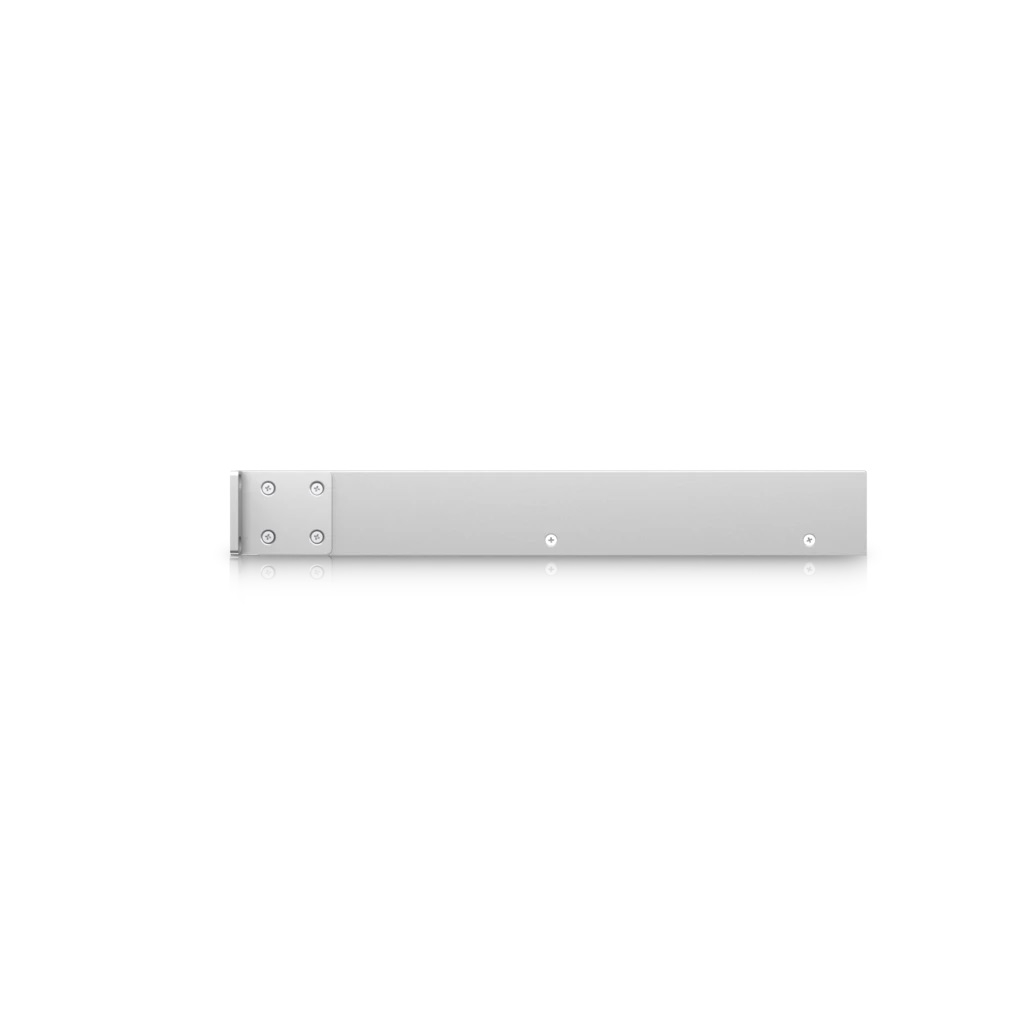

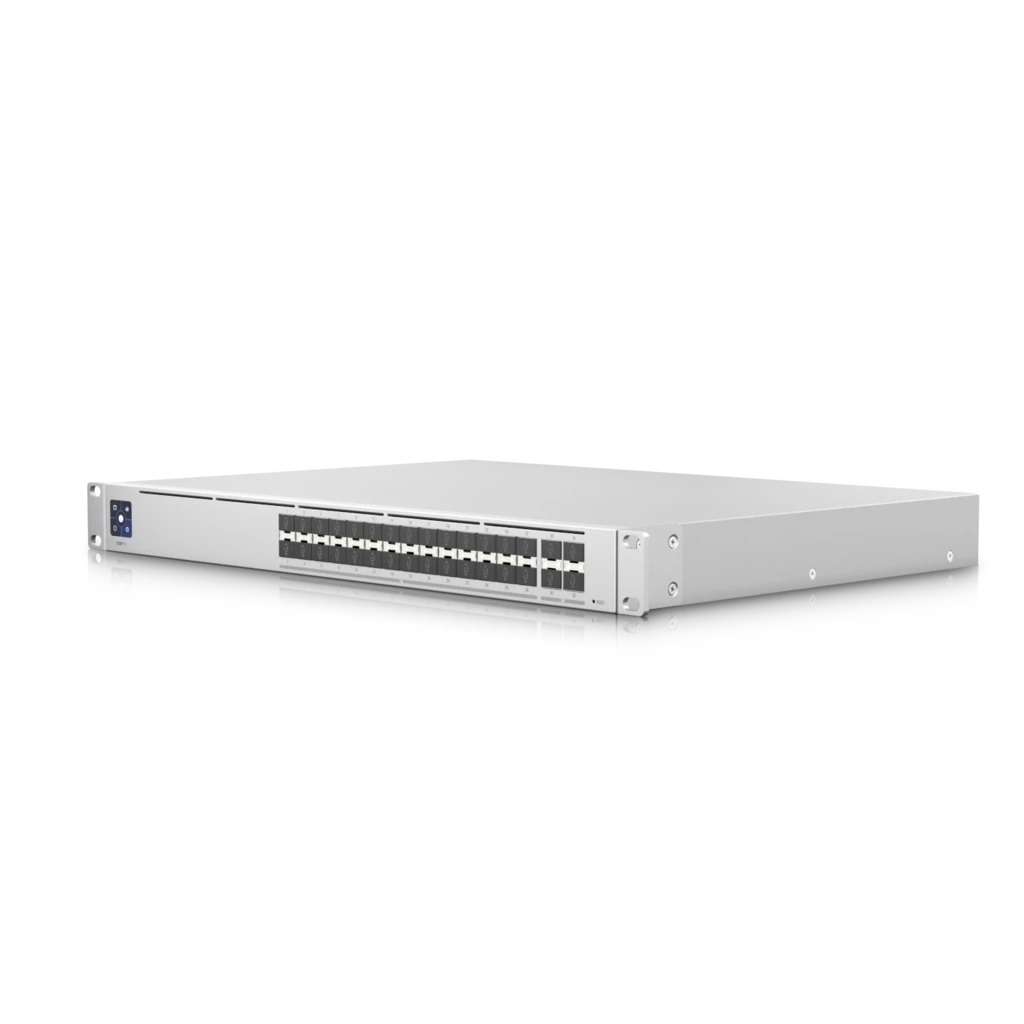

UBIQUITI UniFi Aggregation Switch Pro (USW-Aggregation-Pro)

OEM kodas: USW-Pro-Aggregation
Kodas: USW-Aggregation-Pro
ID: #3456

28x 10 Gbps SFP+ Ports | 4x 20 Gbps SFP28 Ports | 1.3" Touchscreen with AR switch management | Layer 3 | SmartPower RPS

943.03€ su PVM

Kaina be PVM: 779.36€

Kiekis:


Produkto savybės:

The UniFi Switch Pro Aggregation is a fully managed, Layer 3 switch with (4) 25G SFP28 ports and (28) 10G SFP+ ports.

The UniFi Switch Pro Aggregation utilizes high-bandwidth links to create link aggregation that enhances its switching capacity. The UniFi Switch Pro Aggregation is managed with the UniFi Network application (web and mobile), allowing you to easily build, scale, and monitor your enterprise networks.

Features:

Managed with UniFi Network Application Version: 6.1.25 or higher

    • (28) 10 Gbps SFP+ ports
    • (4) 25 Gbps SFP28 ports
    • 760 Gbps switching capacity
    • (1) 1.3” touchscreen with AR switch management
    • (1) Backup 12V DC input connector, SmartPower RPS

Produkto specifikacijos:

Mechanical
Dimensions 442 x 325 x 44 mm
(17.4 x 12.8 x 1.7")
Weight Without Mount: 4.6 kg (10.14 lb)
With Mount: 4.7 kg (10.36 lb)
Enclosure Material SGCC Steel
Hardware
Total Non-Blocking Throughput 380 Gbps
Switching Capacity 760 Gbps
Forwarding Rate 565.44 Mpps
Max. Power Consumption 100W
Power Method (1) Universal AC input, 100-240VAC, 2A Max, 50/60 Hz
(1) USP-RPS DC input, 11.5VDC, 8.7A
Power Supply AC/DC, Internal, 100W
Network Interface (28) 1/10 Gbps SFP+ Ethernet
(4) 1/10/25 Gbps SFP28 Ethernet*
LCM Display (1) 1.3" Touchscreen
Bootup Animation: Bootup in Progress
Firmware Upgrade Icon: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
LEDs SFP28/SFP+: White, Link and Activity
Management Interface Ethernet In-Band
Modes SMB Layer 3 10/25 G Fiber Switch
ESD/EMP Protection Air: ± 16kV, Contact: ± 12kV
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 - 90% Noncondensing
Certifications CE, FCC, IC


*The four SFP28 ports don't support mixed speed at 25Gbps mode.
Once one of the SFP28 ports is configured at 25Gbps mode, the others will be limited at 25Gbps too.
The SFP28 ports only support mixed speed when all ports are at 1Gbps or 10Gbps.
