UBIQUITI UniFi Cloud Gateway Max (UCG-Max)

Produkto savybės:

Powerful Network Management
The Ubiquiti Cloud Gateway Max (UCG-Max) is a high-performance network gateway designed to streamline and optimize your network infrastructure. This compact and versatile device offers a robust set of features to manage and secure your network environment, catering to the needs of small to medium-sized businesses and enterprises. Equipped with a powerful processor and ample memory, the UCG-Max delivers exceptional performance and responsiveness. It supports up to 30 UniFi devices and over 300 clients, ensuring smooth network operation even under heavy load. The gateway also features advanced firewall capabilities and intrusion detection/prevention (IDS/IPS) to safeguard your network from cyber threats.

Seamless Integration and Centralized Management
The UCG-Max seamlessly integrates with the UniFi Network application, providing centralized management for all your UniFi devices. This unified platform allows you to monitor network performance, configure settings, and troubleshoot issues with ease. The UCG-Max also supports a wide range of networking protocols and standards, ensuring compatibility with existing network infrastructure. With its built-in storage, the UCG-Max offers flexible options for data retention and backup. The included 512GB NVMe SSD provides ample space for storing network logs, configuration files, and other critical data. Additionally, the gateway supports NVR functionality, allowing you to record and store video footage from compatible UniFi cameras, providing a comprehensive security solution.

Enhanced Security and Performance
The UCG-Max prioritizes network security with advanced features like firewall rules, intrusion detection, and VPN support. The gateway's ability to identify and block malicious traffic helps protect your network from cyber threats. Furthermore, the UCG-Max offers application-aware firewall rules, allowing you to control network access based on specific applications and users. The UCG-Max delivers exceptional performance with its high-speed networking capabilities. With four 1/2.5 Gigabit Ethernet ports, the gateway supports various network topologies and devices. Additionally, the UCG-Max features multi-WAN load balancing to ensure uninterrupted network access by distributing traffic across multiple internet connections.

Produkto specifikacijos:

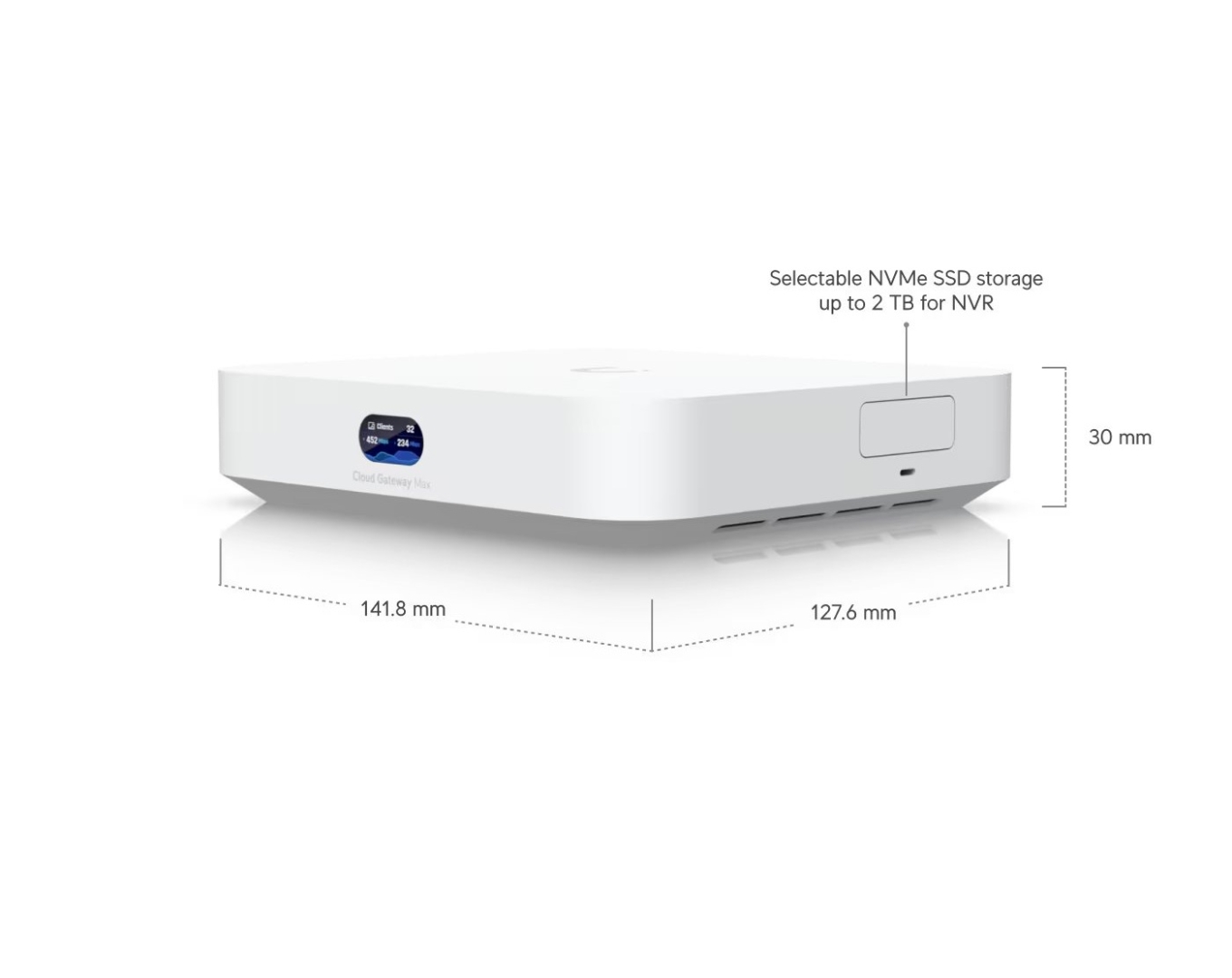

Dimensions: 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
UniFi Application Suite:
    Network: Yes
    Protect: Yes
    Access: Yes
    Talk: Yes
    Connect: Yes
Managed UniFi Devices: 30+
Managed Cameras:
    (15) HD
    (8) 2K
    (5) 4K
Simultaneous Users Connected: 300+

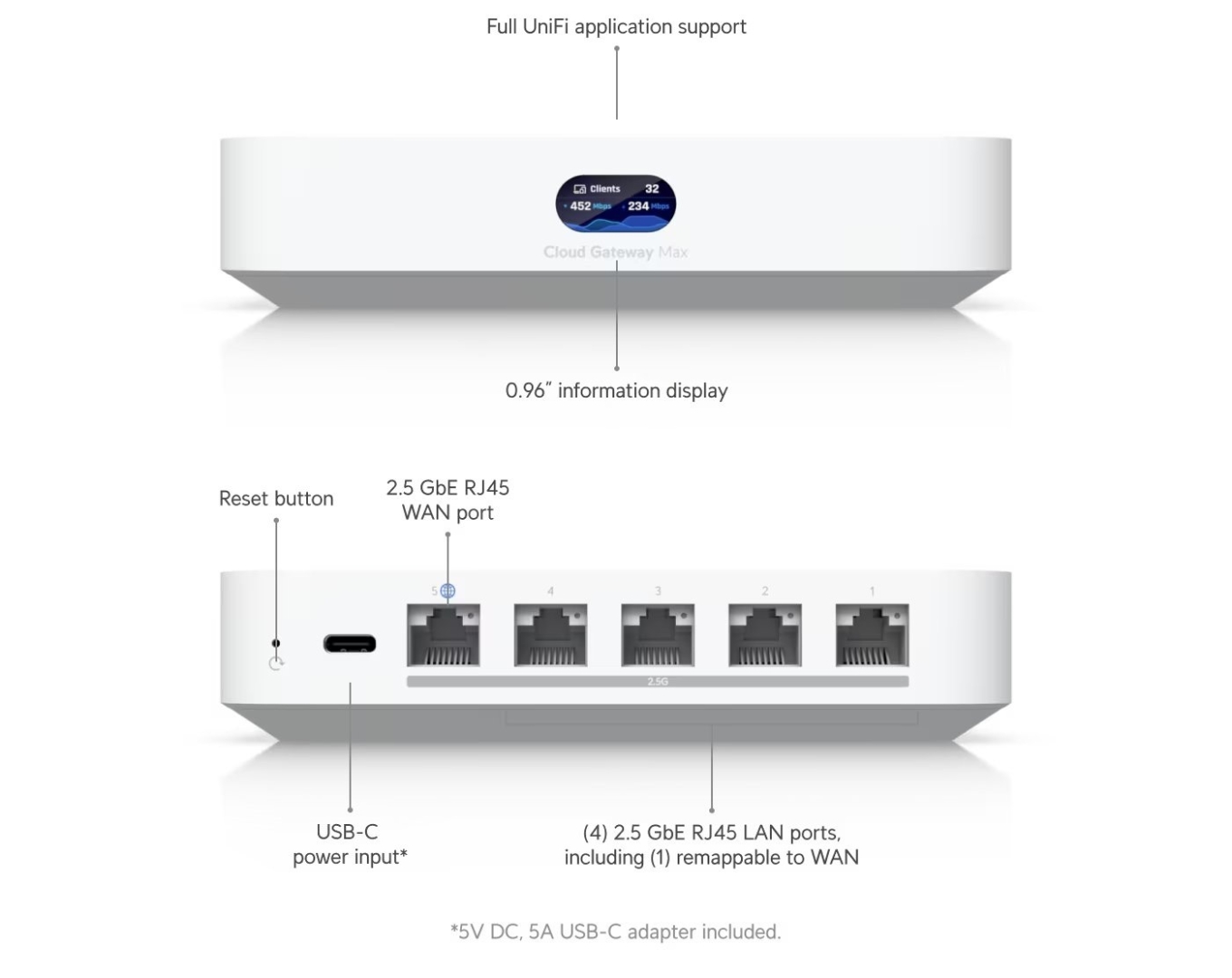

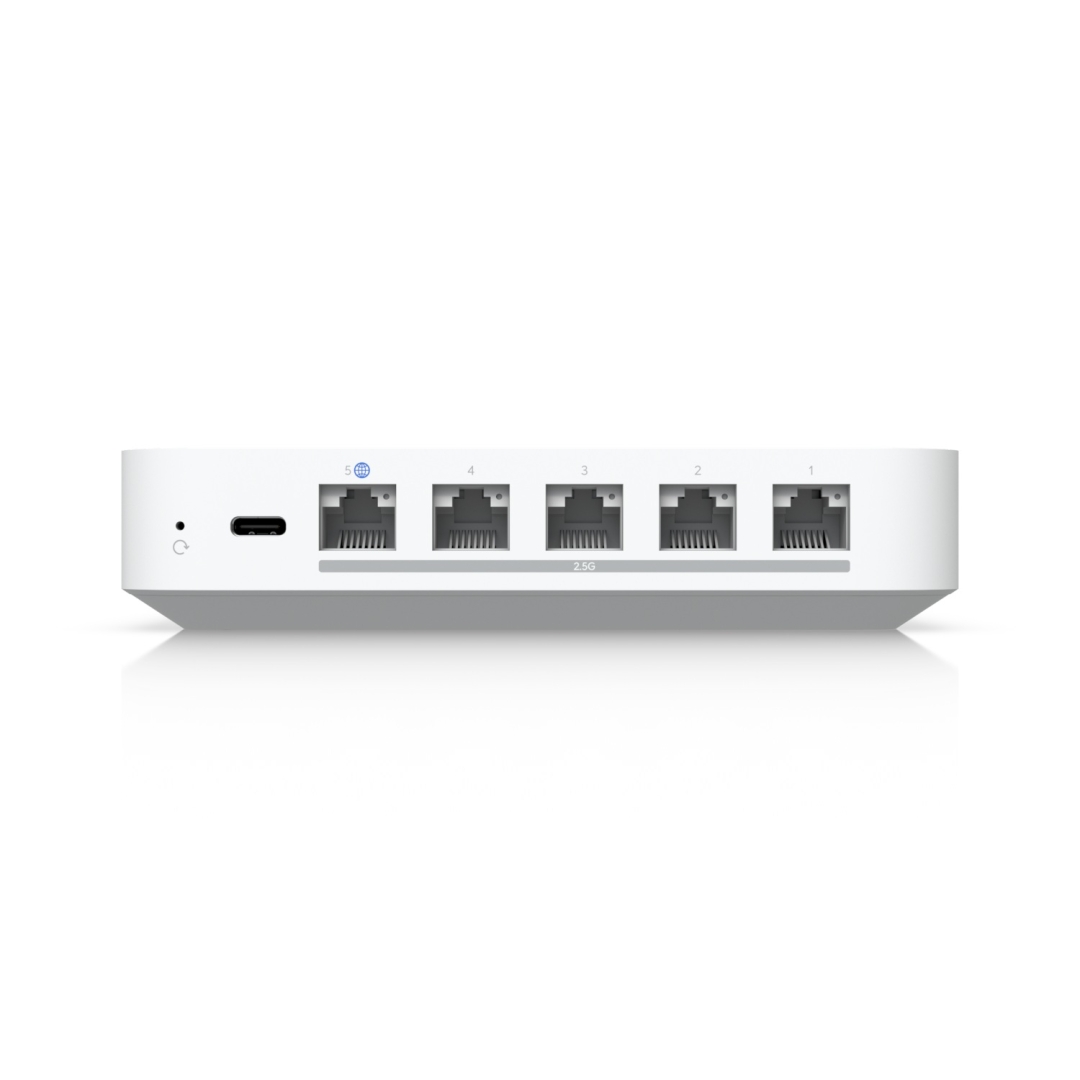

Default WAN Ports: (1) 2.5 GbE RJ45
LAN Ports: (4) 2.5 GbE RJ45
IDS/IPS Throughput: 2.3 Gbps
Form Factor: Compact desktop

Security

Stateful Firewall: Yes
Application-Aware Layer 7 Firewall: Yes
DPI & Traffic Identification: Yes
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps): Yes
Content Filtering: Yes
Intrusion Prevention (IPS/IDS): Yes
Ad Blocking: Yes
IDS/IPS Signatures: 55,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation: Yes

VPN & SD-WAN

License-Free SD-WAN: Yes
Site-to-Site VPN:
    Site Magic: Yes
    IPsec: Yes
    OpenVPN: Yes
VPN Server:
    Identity Endpoint One-Click VPN: Yes
    Teleport Zero-Configuration VPN: Yes
    WireGuard: Yes
    OpenVPN: Yes
    L2TP: Yes
VPN Client:
    OpenVPN: Yes
    WireGuard: Yes

Networking

Multi-WAN Load Balancing: Yes
Dynamic Routing:
    OSPF: Yes
Advanced QoS: Yes
Multicast DNS (mDNS): Yes
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT): Yes
Integrated RADIUS Server: Yes
RADIUS over TLS (RadSec): Yes
Additional Internet Failover with UniFi LTE Backup: Yes
Internet Quality and Outage Reporting: Yes
MAC Address Table Size: 2,000
Policy-based WAN and VPN Routing: Yes
Customizable DHCP Server: Yes
IPv6 ISP Support: Yes
IGMP Proxy: Yes

Hardware

NVR Storage: Selectable NVMe SSD up to 2 TB
Max. Power Consumption: 16.1W
Power Method: USB type C (5V DC/5A)

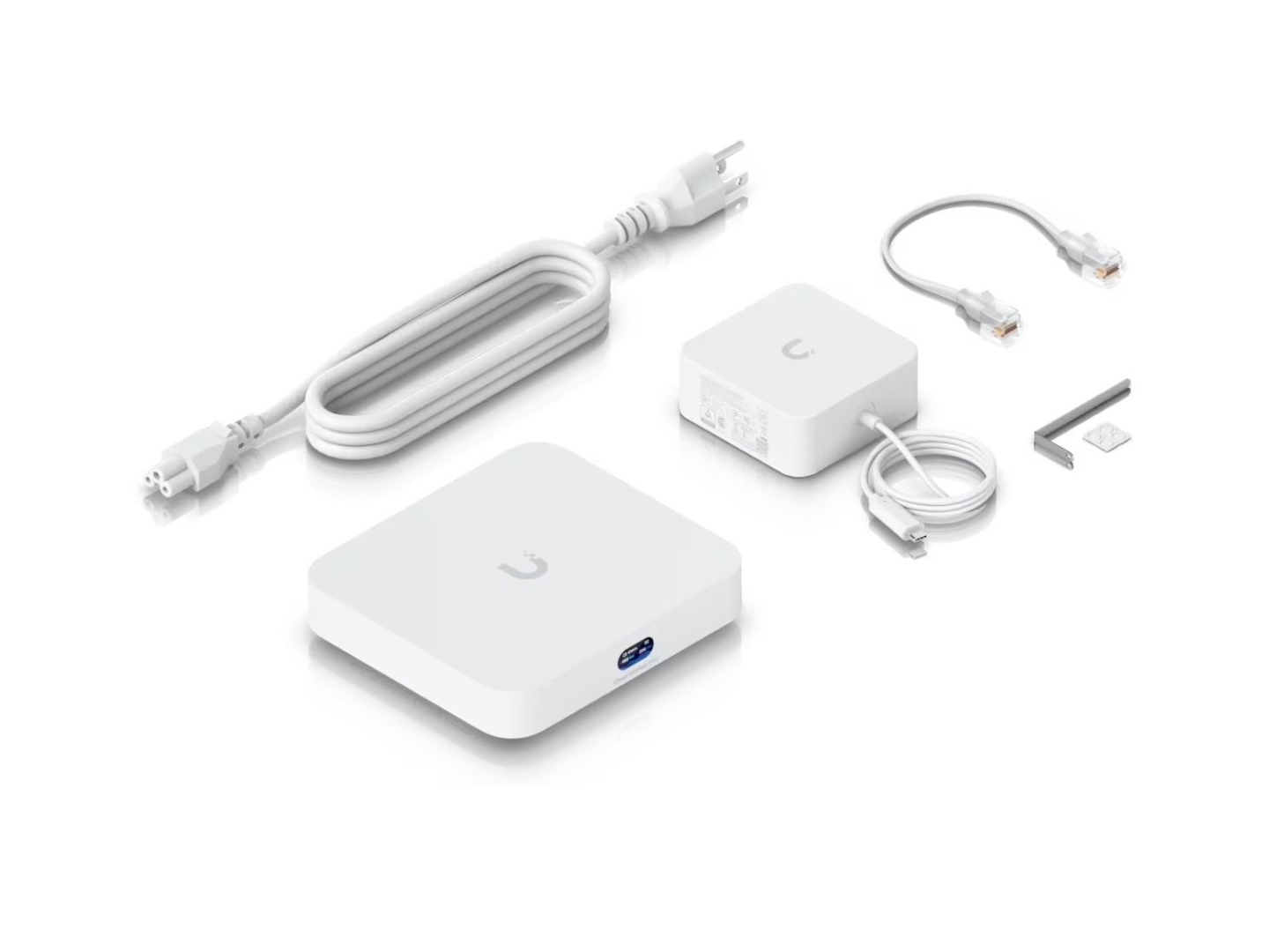

Power Supply: USB type C (5V DC/5A) (Adapter included)
Supported Voltage Range: 100—240V AC
System Memory: 3 GB
Weight: Without SSD: 460 g (1 lb) With SSD: 519 g (1.1 lb)
Enclosure Material: Polycarbonate

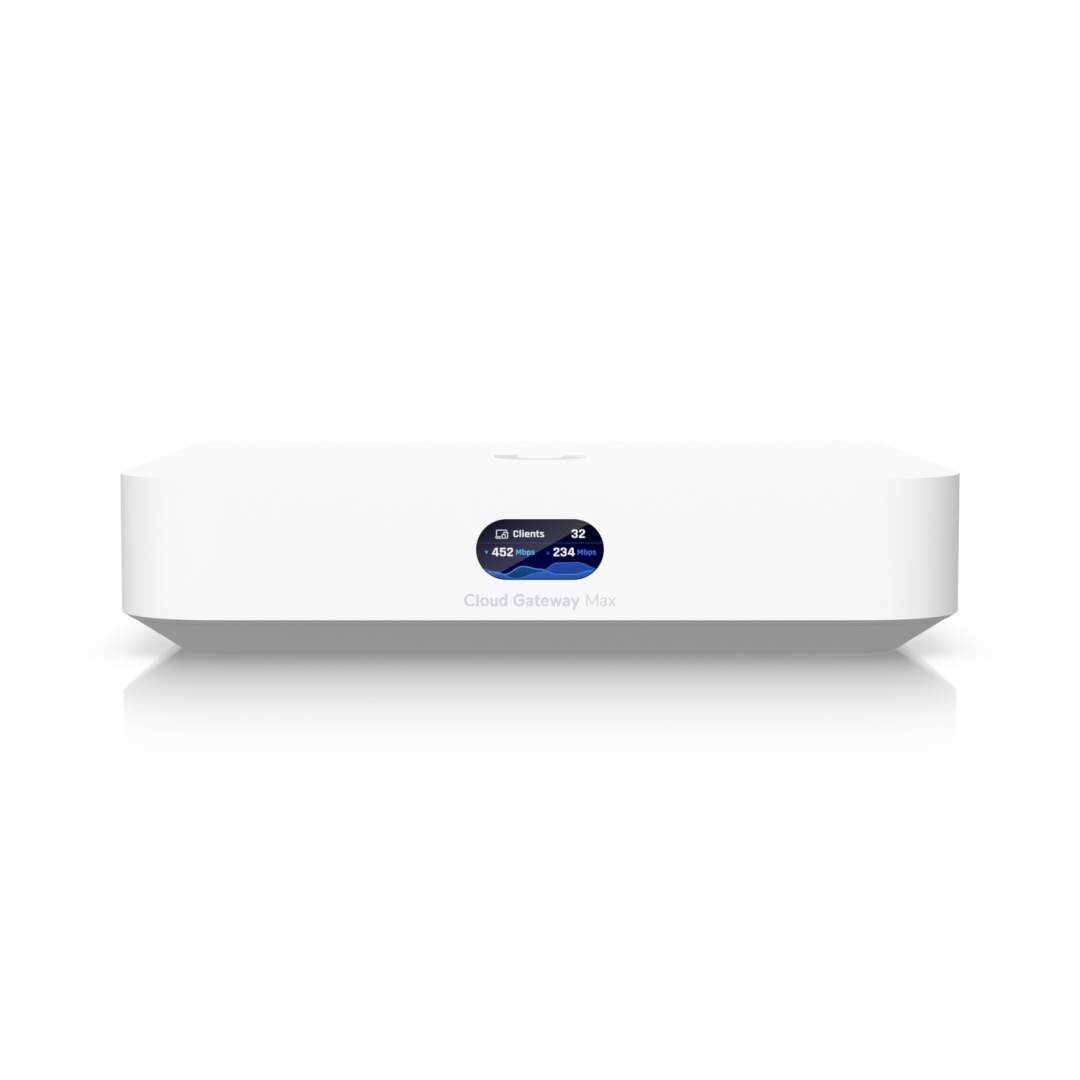

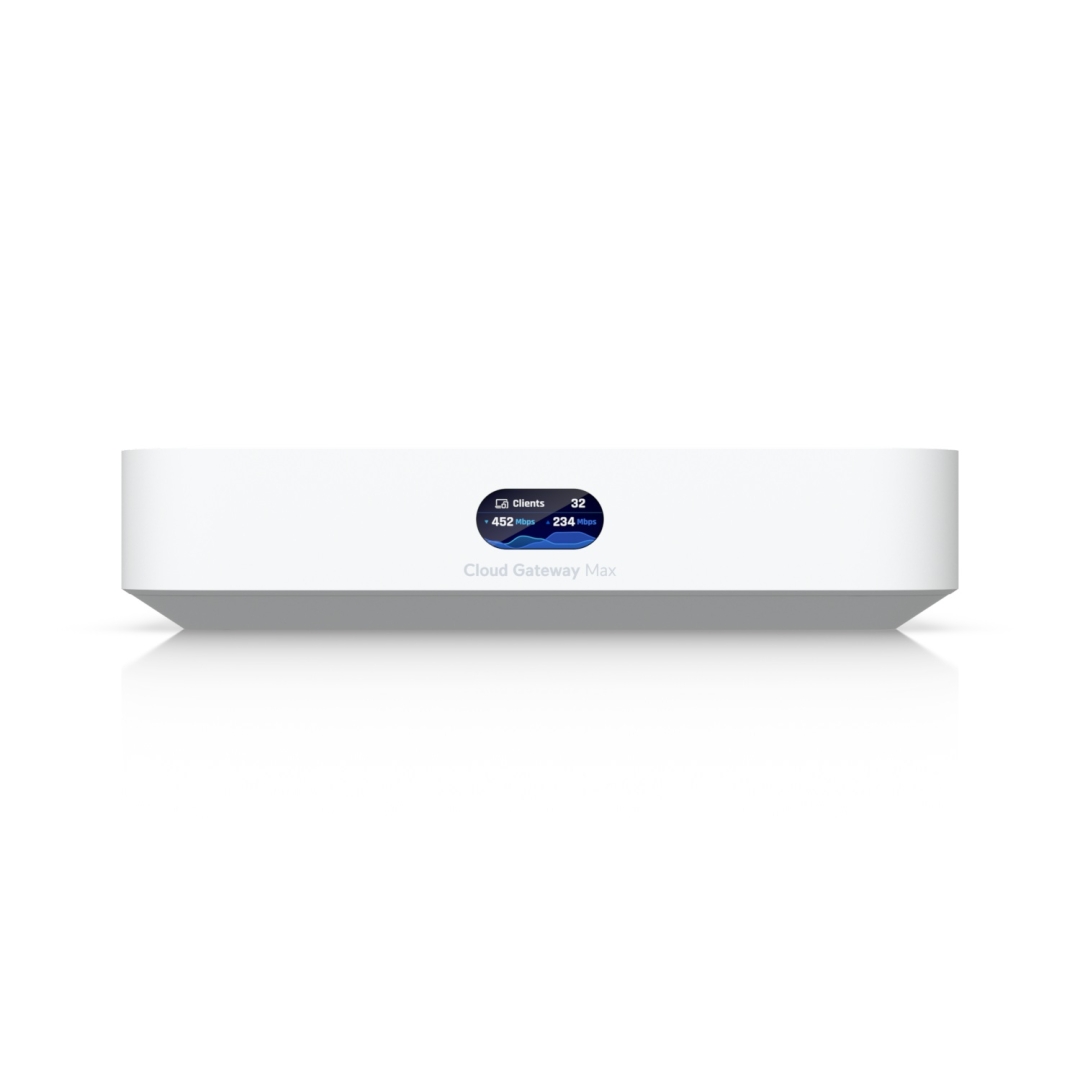

LCM Display: 0.96" status display
Management: Ethernet Bluetooth
LEDs:
    Ethernet: Yes
Button: (1) Factory-reset
ESD/EMP Protection: Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
NDAA Compliant: Yes

Software

Application Requirements:
    Mobile App: UniFi iOS™ and Android™: Version 10.17.2 and later
