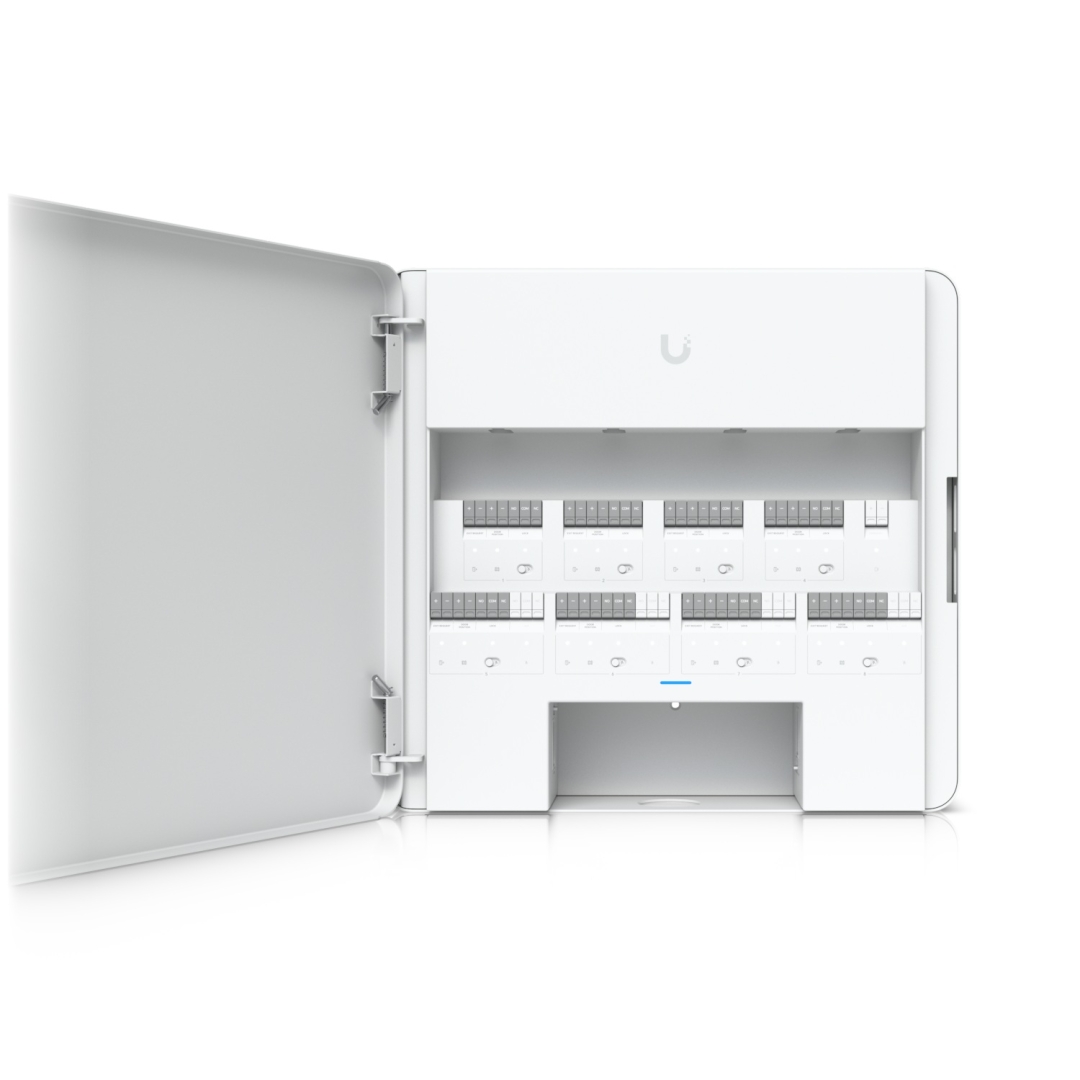

UBIQUITI UniFi Enterprise Access Hub (EAH-8)

Produkto savybės:

Enhanced Access Control

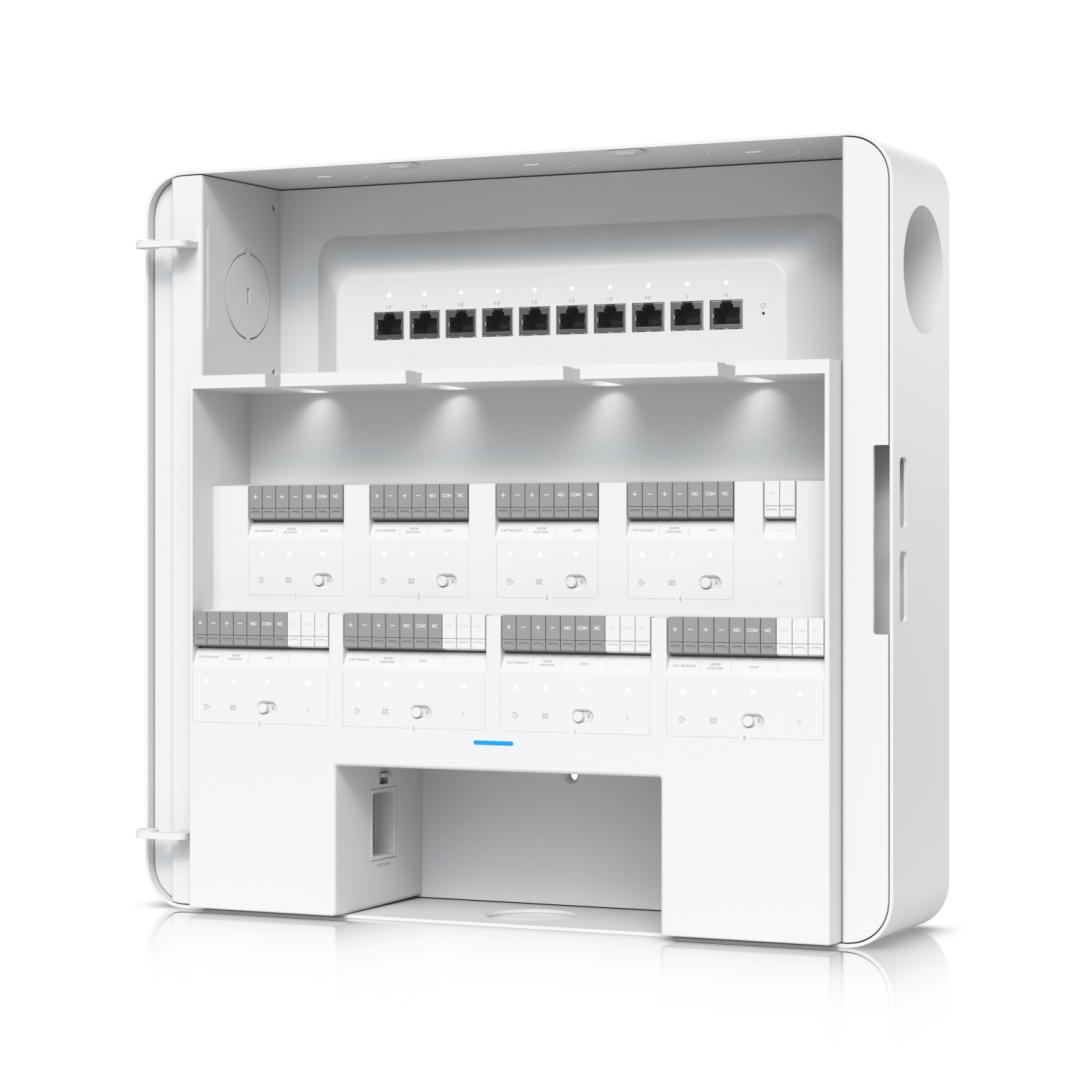

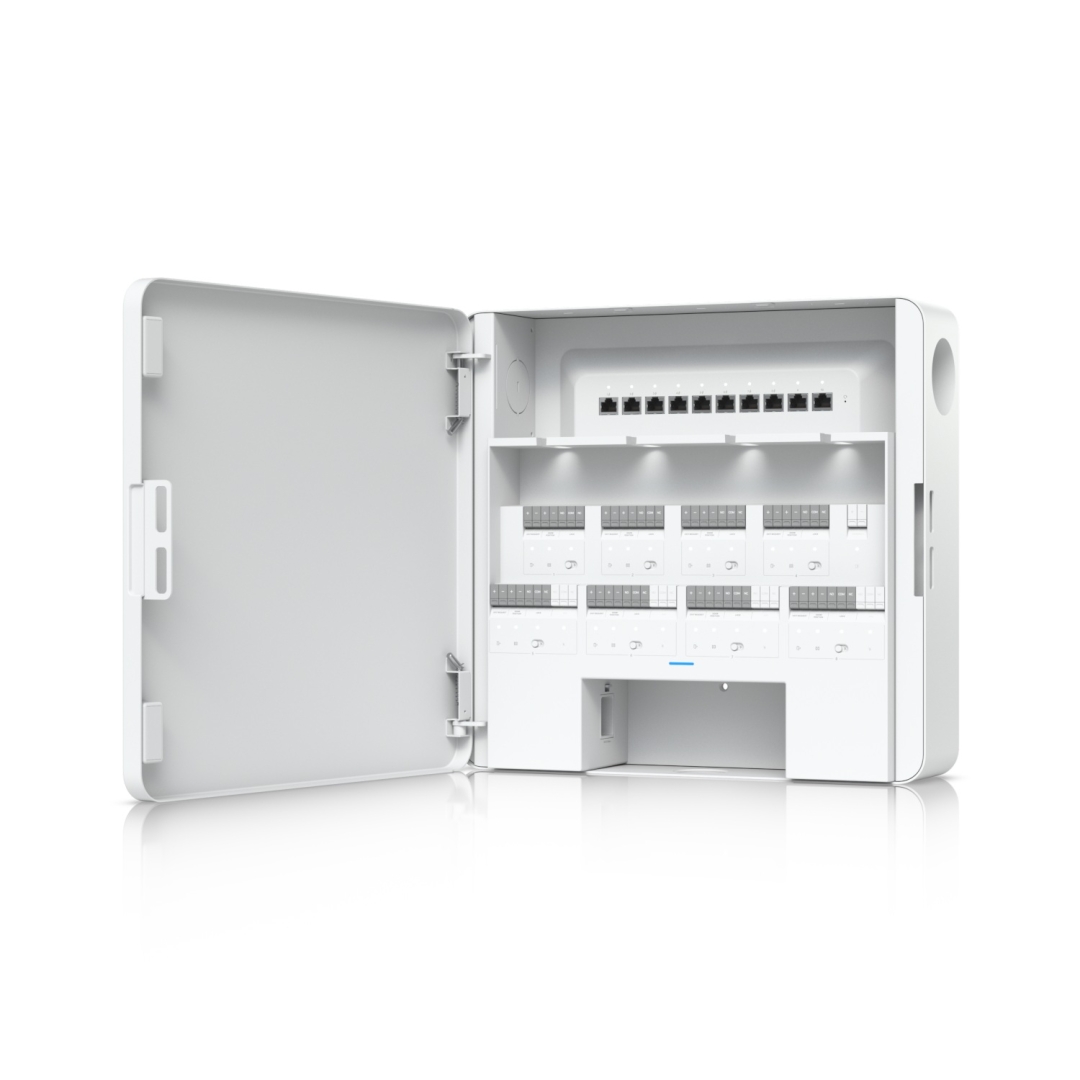

Elevate your security measures and streamline access management with the Ubiquiti Enterprise Access Hub (EAH-8), a powerful access control solution designed for enterprise-level applications. This robust hub seamlessly integrates with your existing access control infrastructure, providing centralized control over eight doors and offering a host of advanced features. Its eight lock terminals support both 12V and dry contact locks, ensuring compatibility with a wide range of access control systems. Additionally, eight dedicated inputs for push buttons, motion sensors, and door position sensors enable real-time monitoring and automated door control.

Features:

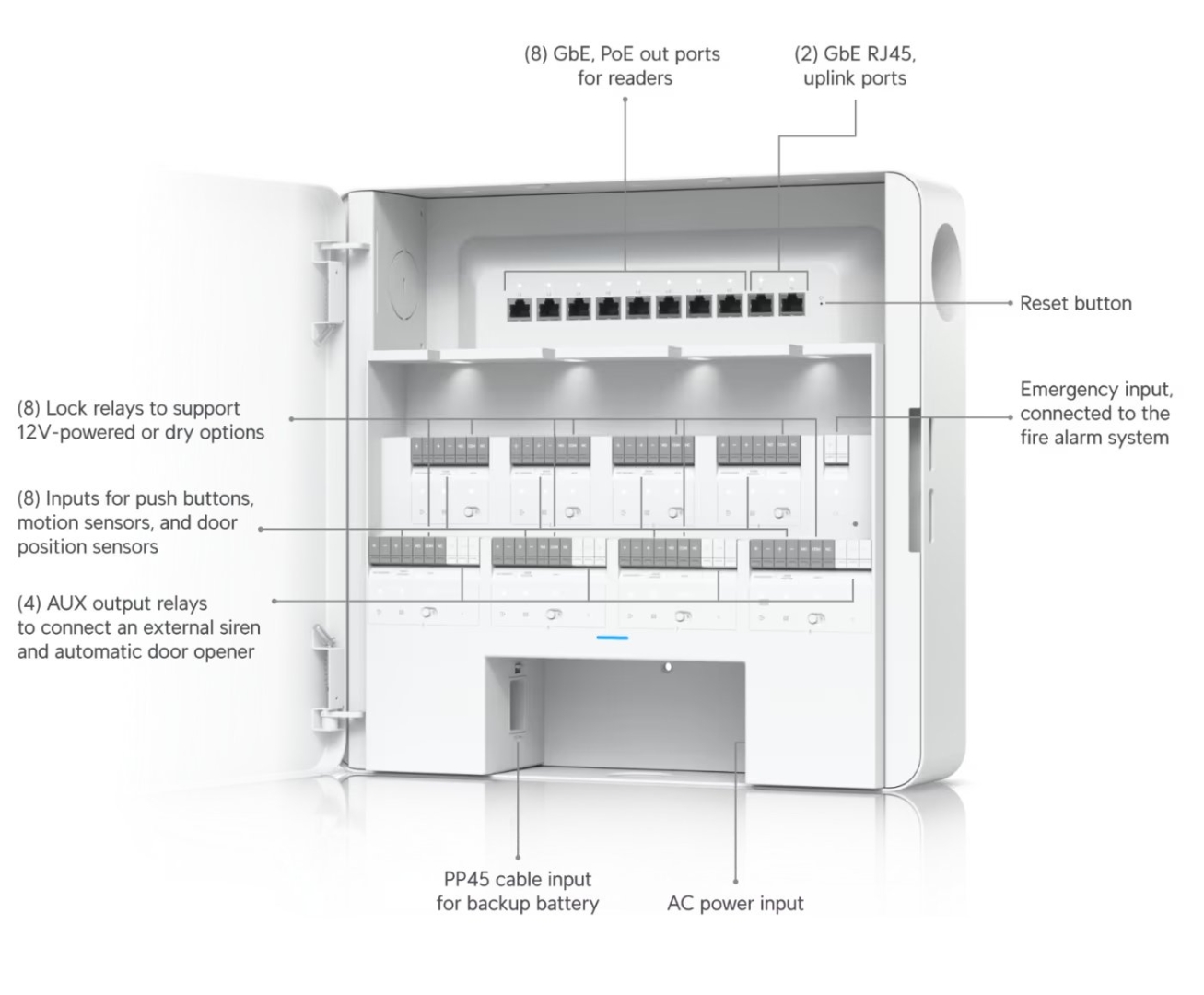

• 8 Lock terminals (12V or Dry)
• 8+8 x Inputs for request-to-exit devices and door position sensors

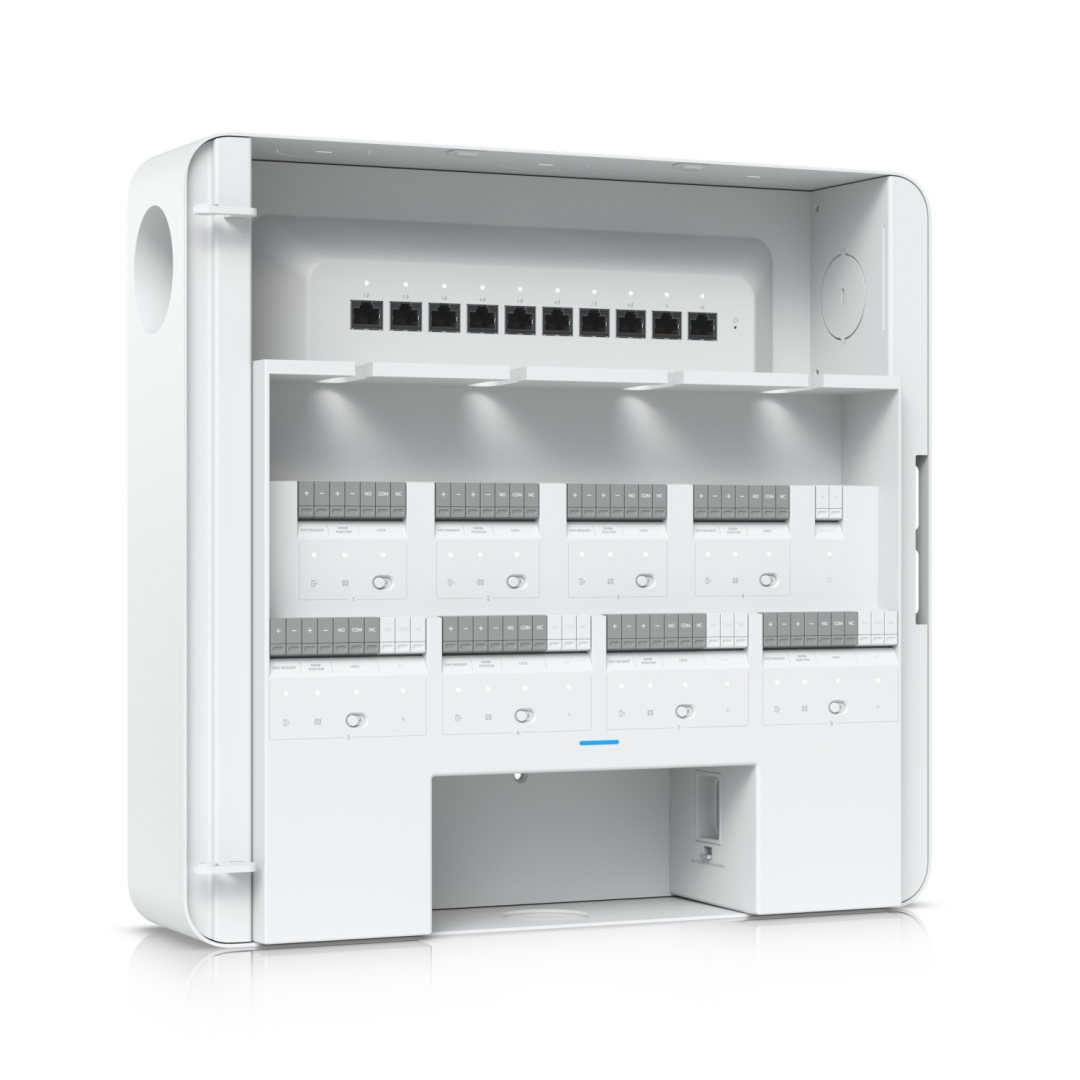

• 8 x PoE ports for Access Readers
• 4 x AUX terminals for chimes, sirens, or door openers
• 1 x Battery backup input (32–48V)

Uninterrupted Operation

Safeguard against power outages with the integrated PP45 cable input for backup battery connection. This input supports a 32–48V DC Lead Acid Battery, ensuring uninterrupted operation even in the event of power disruptions. Enterprise Access Hub offers four AUX output relays for connecting external sirens, door openers, or chimes. These relays provide additional control options, allowing you to customize your access control system to suit your specific needs. Moreover, the eight PoE ports cater to Access Readers, simplifying installation and eliminating the need for separate power supplies.

This hub is certified by CE, FCC, and IC, ensuring compliance with international standards for safety and performance. Its design for indoor use only underlines its suitability for a wide range of enterprise environments where secure and reliable access control is paramount. The EAH-8 represents a sophisticated solution for businesses looking to enhance their access control systems with state-of-the-art technology from Ubiquiti.

Produkto specifikacijos:

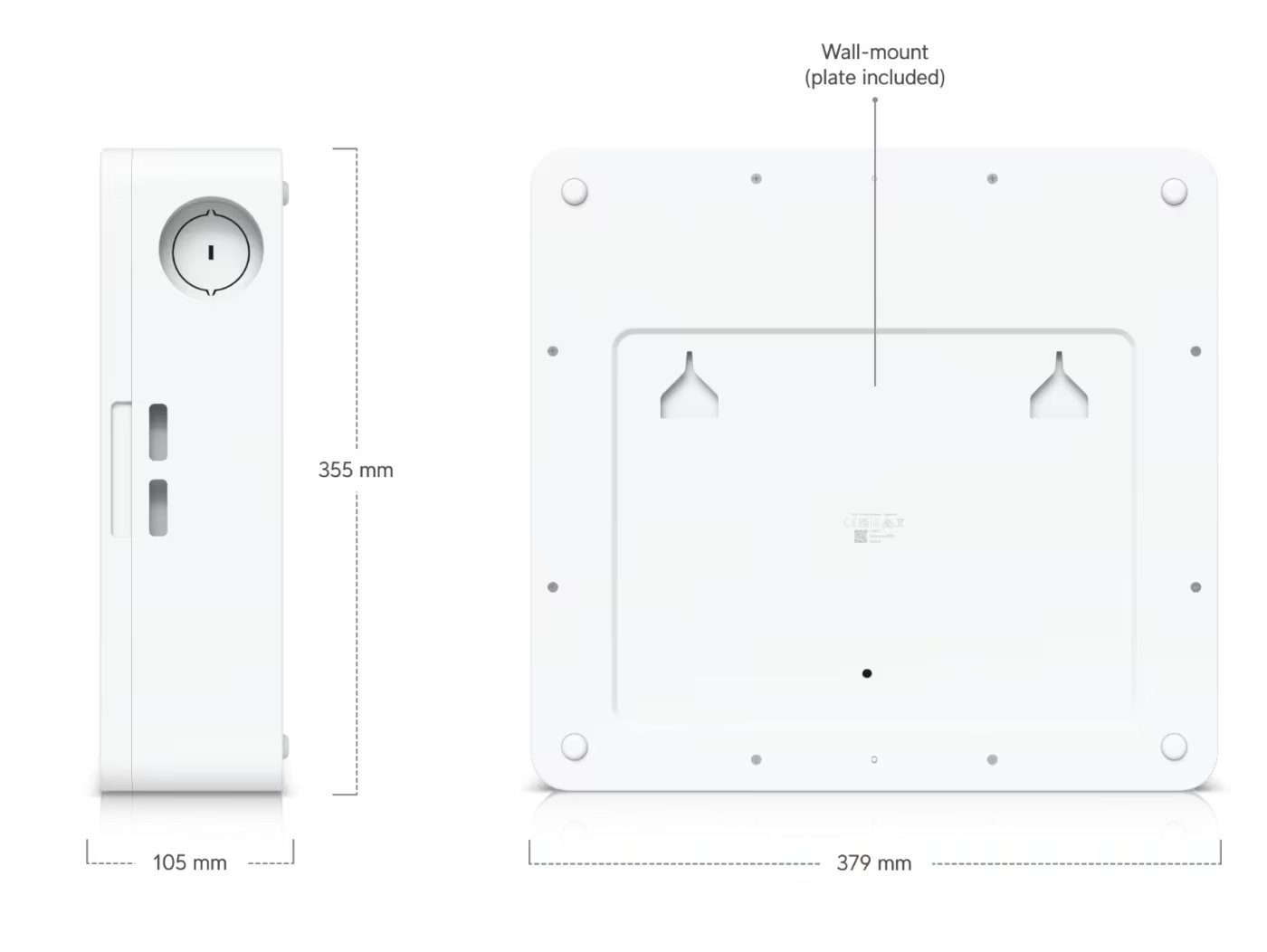

Dimensions: 379 x 355 x 105 mm (15 x 14 x 4.1")
UniFi Application Suite:
    Access: Yes
Supported Doors: 8
Input Terminals:
    (8) Door exit request
    (8) Door position
    (1) Emergency
Power Method:
    Universal input, 100–240V AC, Max. 4.4A, 50/60 Hz
    32–48V DC Lead Acid Battery, Max. 7.5A @32V
NDAA Compliant: Yes
UL 294 Level:
    Destructive attack: Level I
    Line security: Level I
    Endurance: Level I
    Standby power: Level I

Mechanical

Weight:
    Device: 9.1 kg (20 lb)
    Mount: 624 g (1.4 lb)

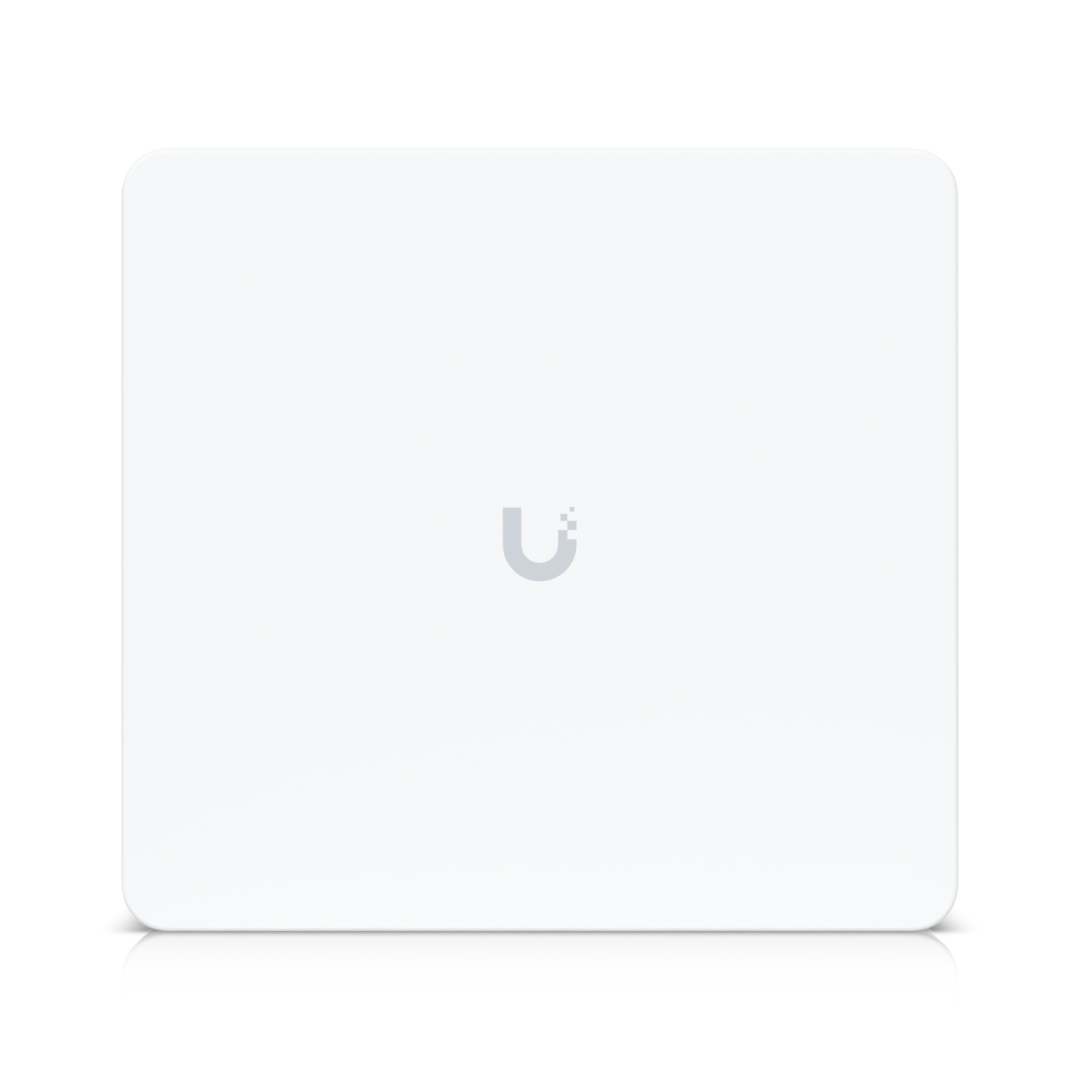

Enclosure Material: SGCC steel housing with polycarbonate cover
Mount Material: SGCC steel

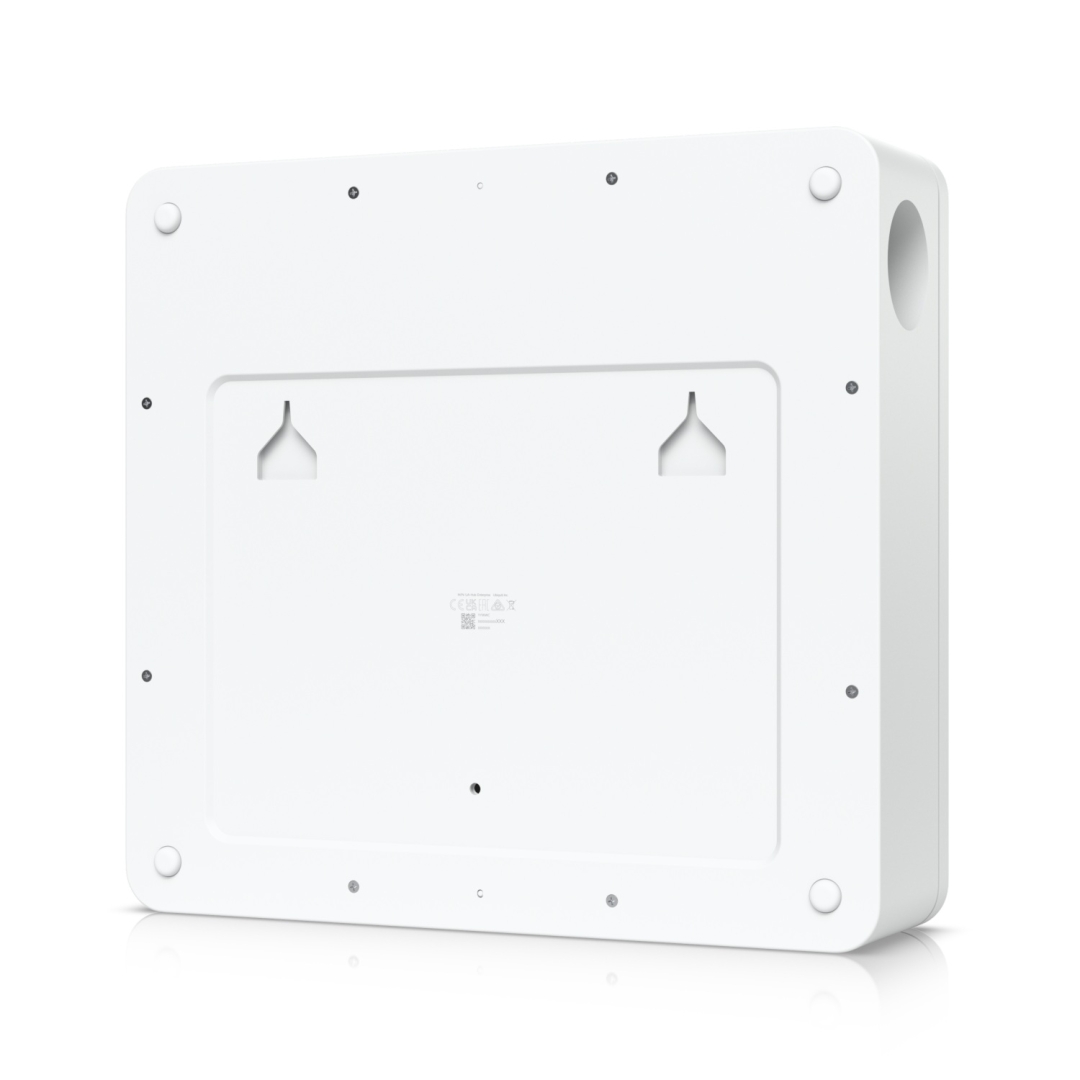

Mounting: Wall

Hardware

Digital Input:
    (8) Inputs for request-to-exit devices
    (8) Inputs for door position sensors
    (1) Emergency
Dry Output Relay:
    (8) Lock terminals (12V or Dry)
    (4) AUX terminals for advanced setup (Chime/Siren/Door opener)
Powered Output Relay:
    Lock: 12V DC, 1A/ Dry
    Aux: Dry only
Indoor and Outdoor Use: Indoor only
Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing
Networking Interface: (10) 10/100/1000 Base-T
PoE Interface: (8) PoE
Total Available PoE: 60W
Power Supply: AC/DC, internal
Max. Power Consumption: 240W
Max. PoE Wattage per Port: 15.4W
LEDs: W/B Learn More
Buttons: (1) Factory-reset
Recommend Max. Cable Length:
    UA-Lock-Electric (400mA):
        24 AWG length: 25 m (82 ft)
        22 AWG length: 42 m (138 ft)
        20 AWG length: 66 m (217 ft)
        18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
    UA-Lock-Magnetic-540kg (500mA)
        24 AWG length: 20 m (66 ft)
        22 AWG length: 32 m (105 ft)
        20 AWG length: 51 m (167 ft)
        18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
    UA-Lock-Magnetic-270kg (800mA)
        24 AWG length: 12 m (29 ft)
        22 AWG length: 20 m (98 ft)
        20 AWG length: 30 m (167 ft)
        18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
Other locks (1A):
    24 AWG length: 9 m (30 ft)
    22 AWG length: 15 m (49 ft)
    20 AWG length: 24 m (79 ft)
    18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
PoE Cabling Requirements: Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade: Grade assignment: I
Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level: EAH-8, Ver 01

Software

Management Application: Access
Software Information: The software version can be checked at https://unifi.ui.com
