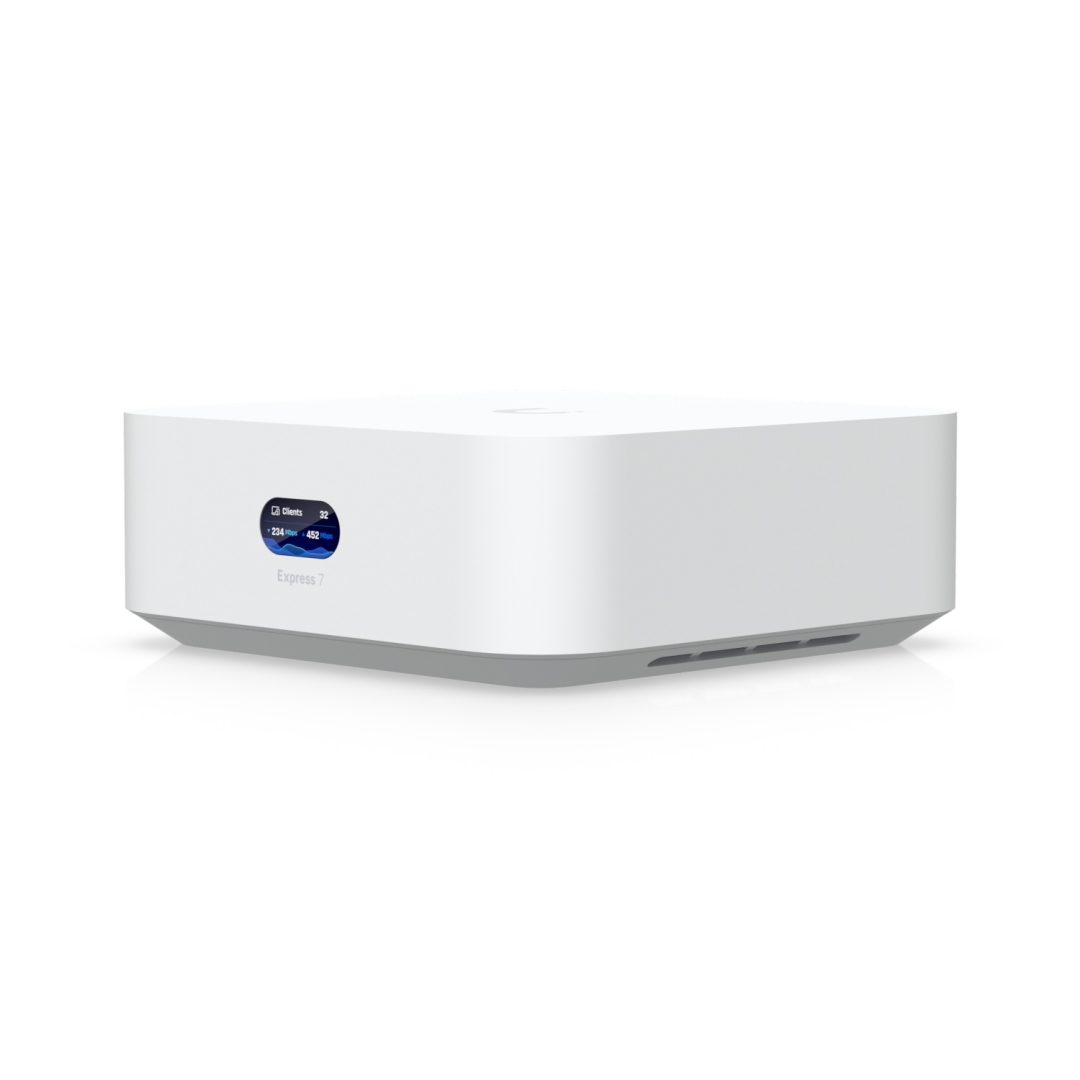

UBIQUITI UniFi Express 7 (UX7)

Produkto savybės:

Advanced Networking Features
The Ubiquiti UniFi Express 7 (UX7) is a high-performance, compact networking device designed for both home and small business environments. With integrated 6-stream WiFi 7, including support for the 6 GHz band, the UX7 delivers ultra-fast, low-latency wireless connectivity with a total coverage area of up to 140 m² (1,500 ft²). This makes it an ideal choice for users who demand next-generation wireless performance. The UX7 is equipped with a high-speed 10 GbE RJ45 WAN port and a 2.5 GbE RJ45 LAN port, allowing for lightning-fast wired connections.
Powered by a quad-core ARM Cortex-A53 processor running at 1.5 GHz and equipped with 3 GB of system memory, the UX7 ensures seamless networking operations while efficiently managing up to 30+ UniFi devices and 300+ client connections. Its compact form factor (117 x 117 x 42.5 mm) and lightweight design (422 g) make it easy to integrate into any setup. The device supports VLAN and subnet-based traffic segmentation, advanced QoS, dynamic routing with OSPF, and an integrated RADIUS server for granular network control. Whether you're running a small office or a smart home, the UX7 delivers robust security and performance.

User-Friendly Management
Managing the UX7 is straightforward with the UniFi Network application, offering an intuitive interface for monitoring and configuring network settings. The device includes a 0.96" status display for real-time information and supports Bluetooth for easy setup. Security features such as content filtering, ad blocking, and guest traffic isolation ensure a safe browsing experience for all users. The UX7's compact desktop form factor and polycarbonate enclosure make it a practical choice for modern networking needs.
The UX7 offers flexibility in deployment, functioning as a standalone router, a wired UniFi access point, or a wireless mesh node to extend network coverage seamlessly. It supports license-free SD-WAN, site-to-site VPN with IPsec and OpenVPN, and zero-configuration VPN with Teleport, ensuring secure and efficient remote connectivity. The device also features advanced NAT configurations, policy-based WAN and VPN routing, and full IPv6 support, making it adaptable to various networking scenarios. Additionally, its robust security protocols, traffic management capabilities, and seamless UniFi ecosystem integration make it a versatile choice for both home and enterprise environments, providing reliable, high-performance networking with simplified management.

Produkto specifikacijos:

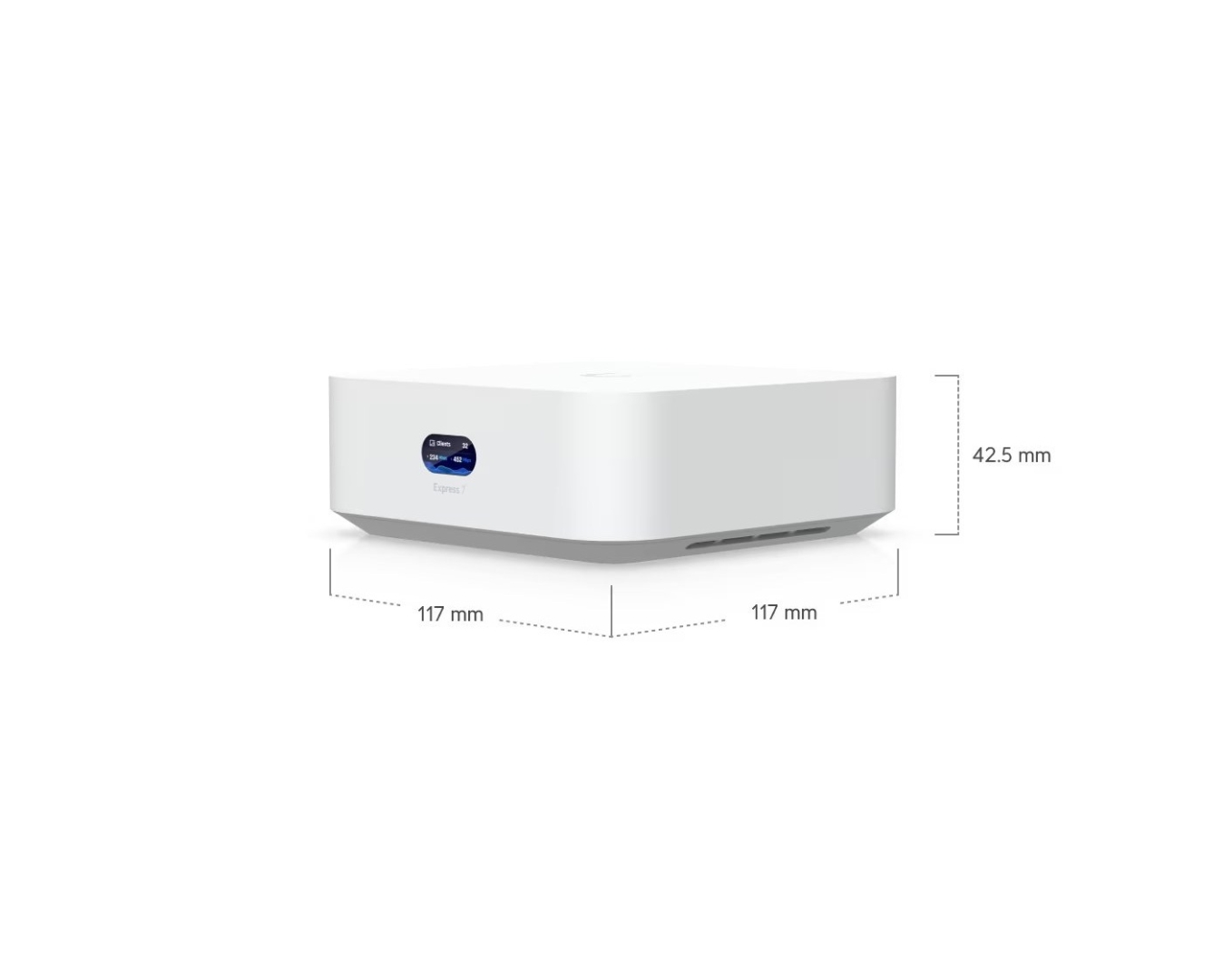

Dimensions: 117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67'')
UniFi Application Suite:
    Network: Yes
Managed UniFi Devices: 30
Simultaneous Users Connected: 300

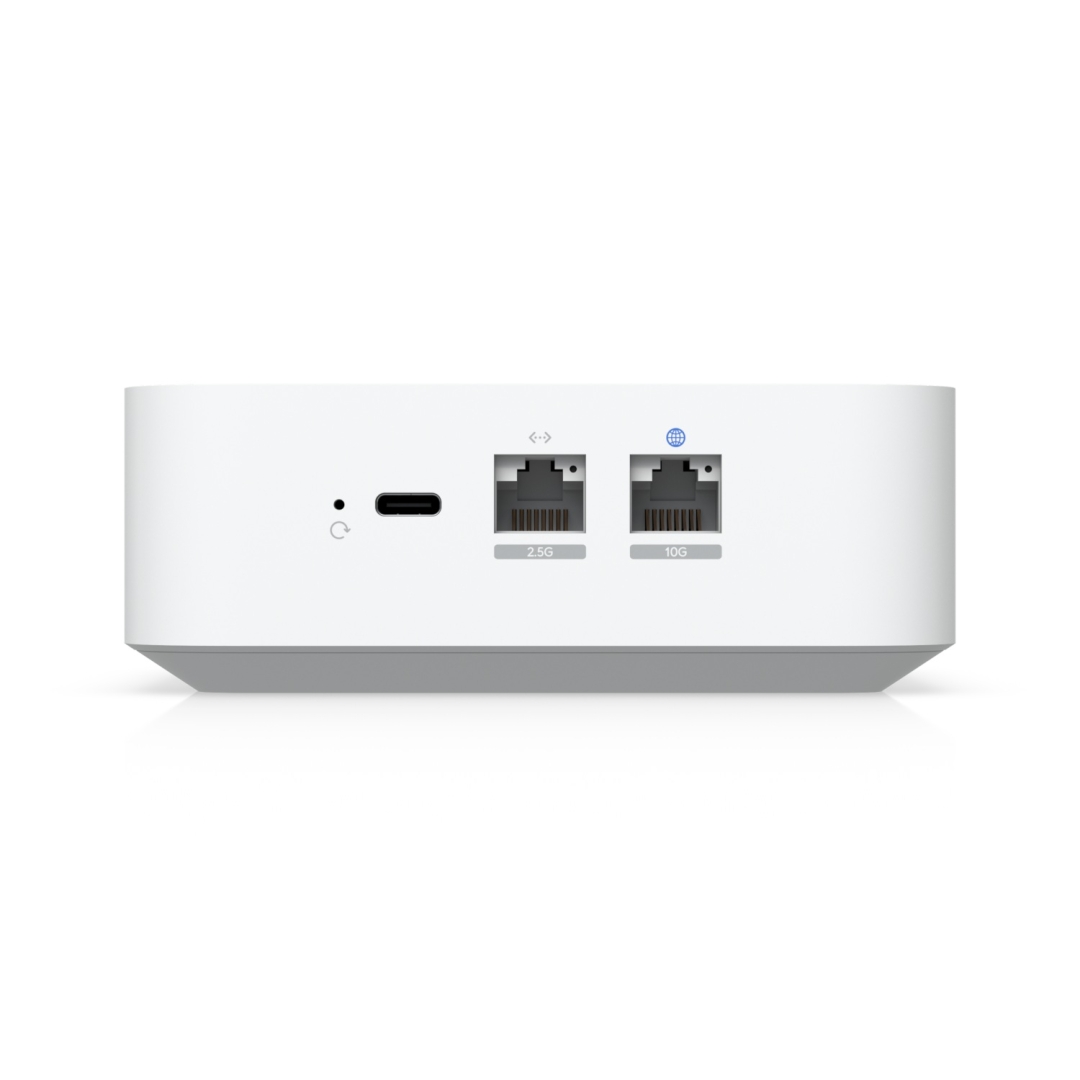

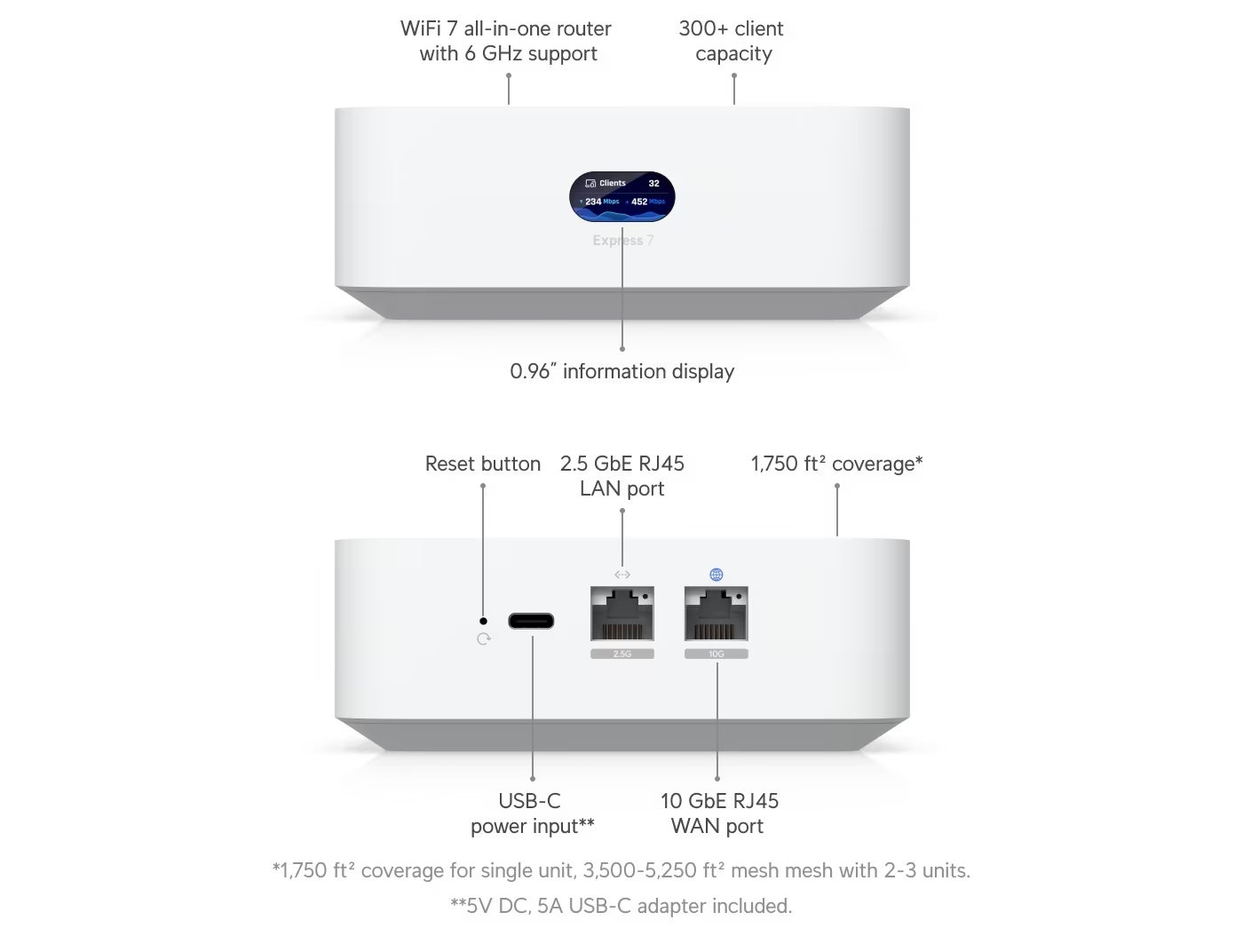

Default WAN Ports: (1) 10 GbE RJ45
LAN Ports: (1) 2.5 GbE RJ45
IDS/IPS Throughput: 2.3 Gbps
Form Factor: Compact desktop
Coverage Area: 160 m² (1,750 ft²)

Security

Stateful Firewall: Yes
Application-Aware Layer 7 Firewall: Yes
DPI & Traffic Identification: Yes
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps): Yes
Content Filtering: Yes
Intrusion Prevention (IPS/IDS): Yes
Ad Blocking: Yes
IDS/IPS Signatures: 20,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation: Yes

VPN & SD-WAN

License-Free SD-WAN: Yes
Site-to-Site VPN:
    Site Magic: Yes
    IPsec: Yes
    OpenVPN: Yes
VPN Server:
    Identity Endpoint One-Click VPN: Yes
    Teleport Zero-Configuration VPN: Yes
    WireGuard: Yes
    OpenVPN: Yes
    L2TP: Yes
VPN Client:
    OpenVPN: Yes
    WireGuard: Yes

Networking

Dynamic Routing:
    OSPF: Yes
Advanced QoS: Yes
Multicast DNS (mDNS): Yes
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT): Yes
Integrated RADIUS Server: Yes
RADIUS over TLS (RadSec): Yes
Additional Internet Failover with UniFi LTE Backup: Yes
Internet Quality and Outage Reporting: Yes
Policy-based WAN and VPN Routing: Yes
Customizable DHCP Server: Yes
IPv6 ISP Support: Yes
IGMP Proxy: Yes

Integrated WiFi

WiFi Standard: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Throughput:
    6 GHz: 5.7 Gbps
    5 GHz: 4.3 Gbps
    2.4 GHz: 688 Mbps
MIMO:
    6 GHz: 2 x 2 (DL/UL MU-MIMO)
    5 GHz: 2 x 2 (DL/UL MU-MIMO)
    2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Antenna Gain:
    6 GHz: 6 dBi
    5 GHz: 7 dBi
    2.4 GHz: 4 dBi
Max. TX Power:
    6 GHz: 24 dBm
    5 GHz: 26 dBm
    2.4 GHz: 23 dBm
Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Max. BSSIDs: 4 per Radio (Gateway Mode) 4 per Radio (AP Mode)
Supported Data Rates:
    802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    802.11b: 1, 2, 5.5, 11 Mbps
    802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
    802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
    802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
    802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Hardware

Max. Power Consumption: 22W
Power Method: USB type C (5V DC/5A)

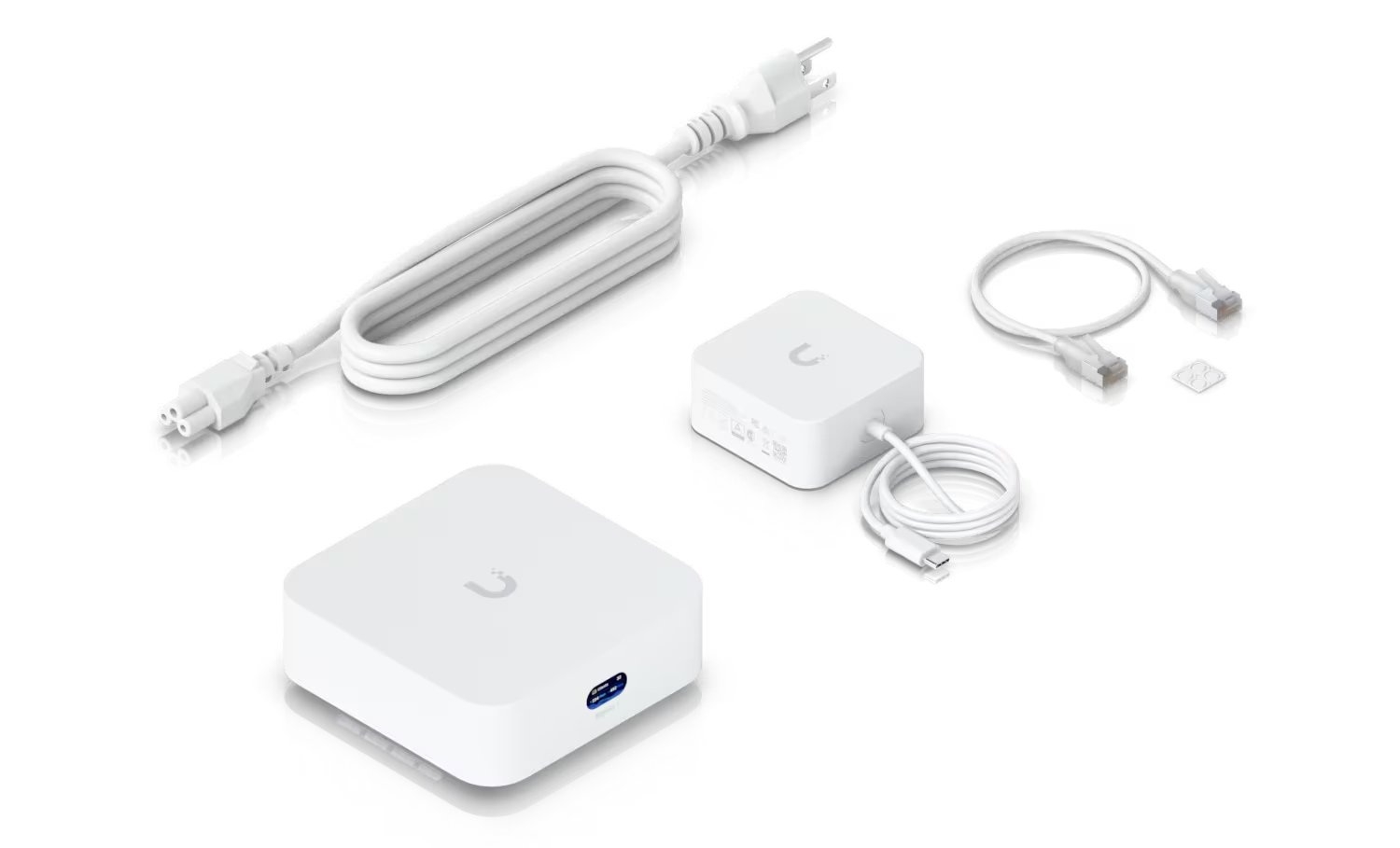

Power Supply: USB type C (5V DC/5A) (Adapter included)
Supported Voltage Range: 100—240V AC
Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory: 3 GB
Weight: 422 g (14.9 oz)
Enclosure Material: Polycarbonate

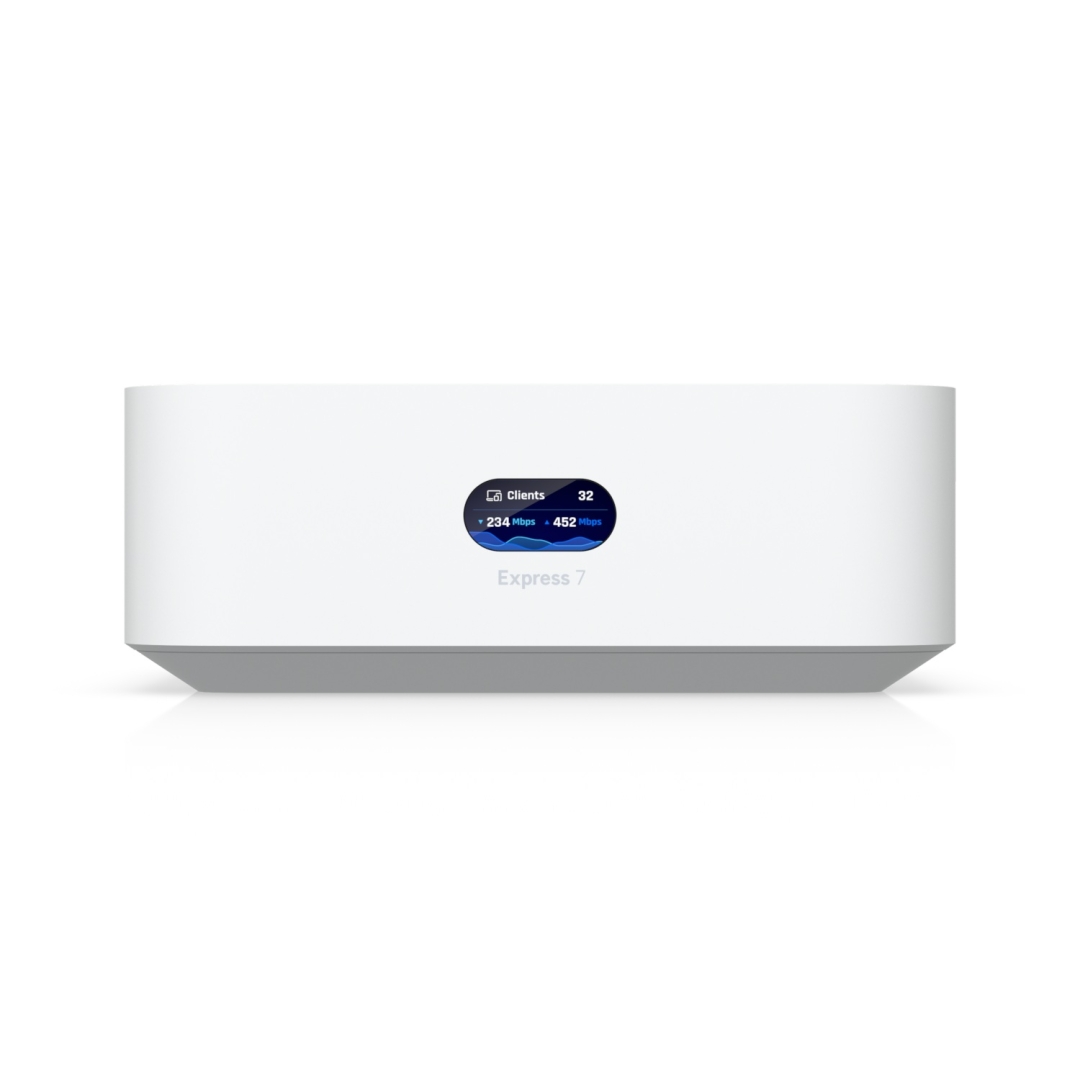

LCM Display: 0.96" status display
Management: Ethernet Bluetooth
LEDs:
    Ethernet: Yes
Button: (1) Factory-reset
ESD/EMP Protection: Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
NDAA Compliant: Yes

Software

VLAN: 802.1Q
Guest Traffic Isolation: Yes
Application Requirements:
    UniFi Network: Version 9.0.108 and later
