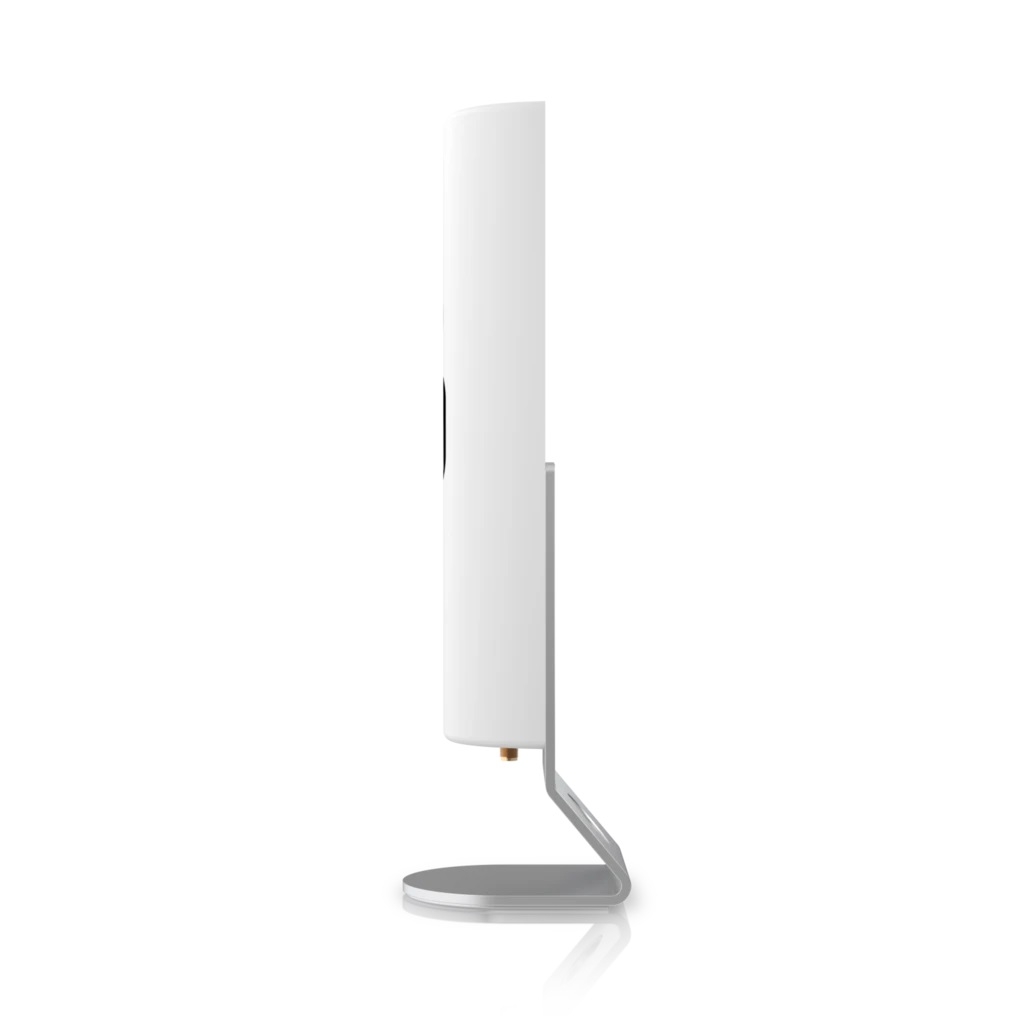

UBIQUITI UniFi Network LTE Pro, LTE router, EU version (U-LTE-Pro-EU)
OEM kodas:
U-LTE-Pro-EU
Kodas:
U-LTE-Pro
ID:
#3469

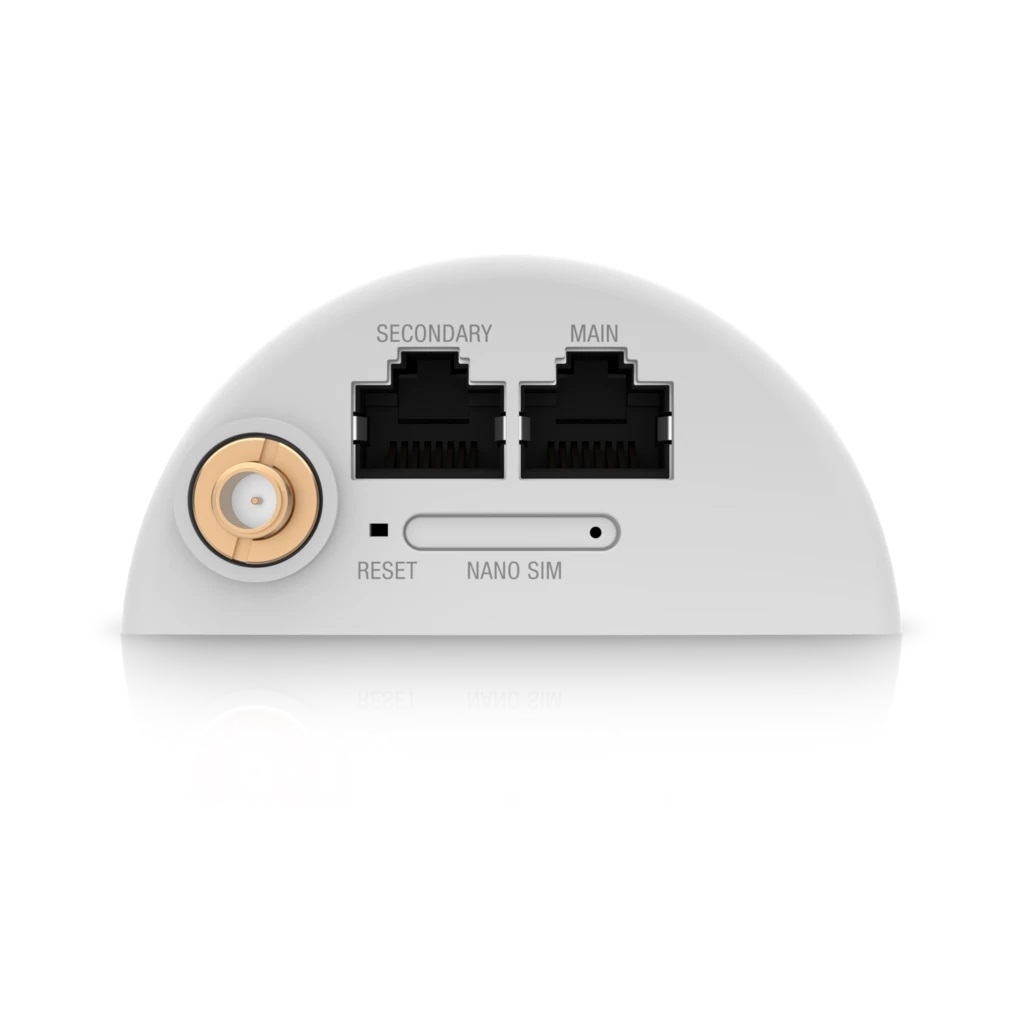

2x Gigabit LAN Ports | U-LTE 2 x 2 Category 4 LTE Radio, Nano SIM | 1.54" LCM Display | PoE In/Out, 802.3at PoE, Passive PoE (48V) | External Connector for RP-SMA Antenna
308.01€ su PVMKaina be PVM: 254.55€ |
Produkto savybės:
Third-Party SIM Card Support
Avoid internet downtime and lost productivity by adding a UniFi LTE Pro to your existing UniFi network.
UniFi LTE Pro provides backup cellular internet connectivity to ensure your UniFi WAN network is always running. This model works in the EU region and supports European LTE and WCDMA bands. It has a Nano SIM card slot for your own card. Insert the Nano SIM, connect to any switch port in your corporate network, and activate the device.
Features:
- Automatic redundant WAN connection
- Integrated with UniFi Network application
- PoE (802.3af) powered

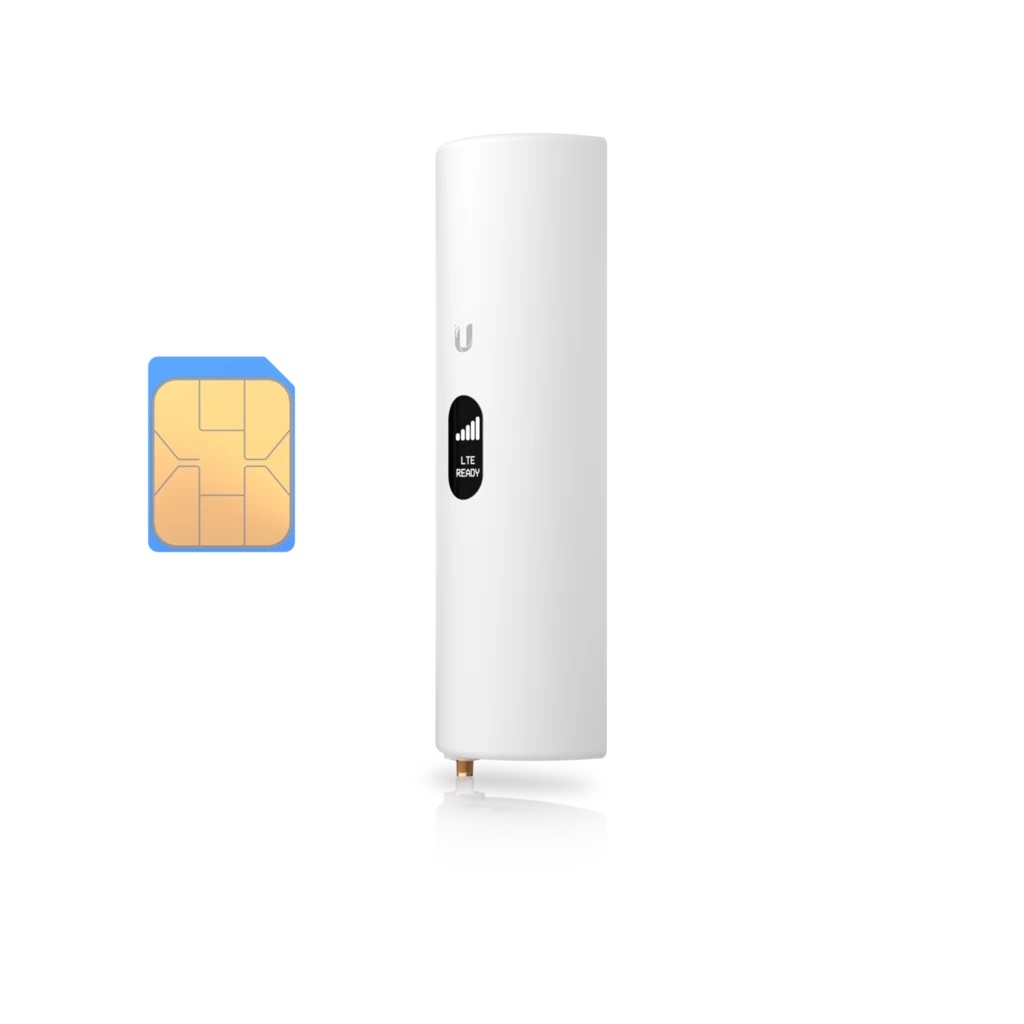

- Nano SIM card slot
- Supports European bands: LTE (1, 3, 7, 8, 20, 28), WCDMA (1, 8)
- Coverage and speed depend on the mobile network. Requires UniFi Security Gateway or UniFi Dream Machine.
Produkto specifikacijos:
| Mechanical | |
|---|---|
| Dimensions | 66 x 202 x 32 mm (2.60 x 7.96 x 1.27") |
| Weight | Without Stand: 223 g (7.86 oz) With Stand: 336 g (11.85 oz) |
| Enclosure Material | Polycarbonate |
| Mount Materials | Stand: Aluminum Wall Mount: Polycarbonate |
| Hardware | |
| Processor | 74 Kc MIPS Processor at 775 MHz |
| Memory Information | 128 MB DDR2 |
| Management Interface | Ethernet |
| Networking Interfaces | (2) 10/100/1000 Mbps RJ45 Port WP7607 LTE |
| SIM | Nano-SIM |
| LTE Bands | CAT4, B1/3/7/8/20/28 |
| LCM Display | 1.54" Screen |
| Power Method | 802.3at PoE, Passive PoE (48V) |
| Power Supply | 802.3at PoE (Pins 1, 2+/3, 6- or 4, 5+/7, 8-) |
| PoE Out | 48V Passthrough (Pins 1, 2+; 3, 6-) |
| Supported Voltage Range | 44 to 57VDC |
| Max. Power Consumption | 8.5W |
| Max. TX Power | 19 dBm |
| MIMO | U-LTE 2 x 2 Category 4 LTE Radio |
| Throughput Speeds | 150 Mbps |
| Antenna Gain LTE B1 B3 B7 B8 B20 B28 |
2 dBi 1.5 dBi 2 dBi 3.5 dBi 2 dBi 2 dBi |
| Button | Factory Reset |

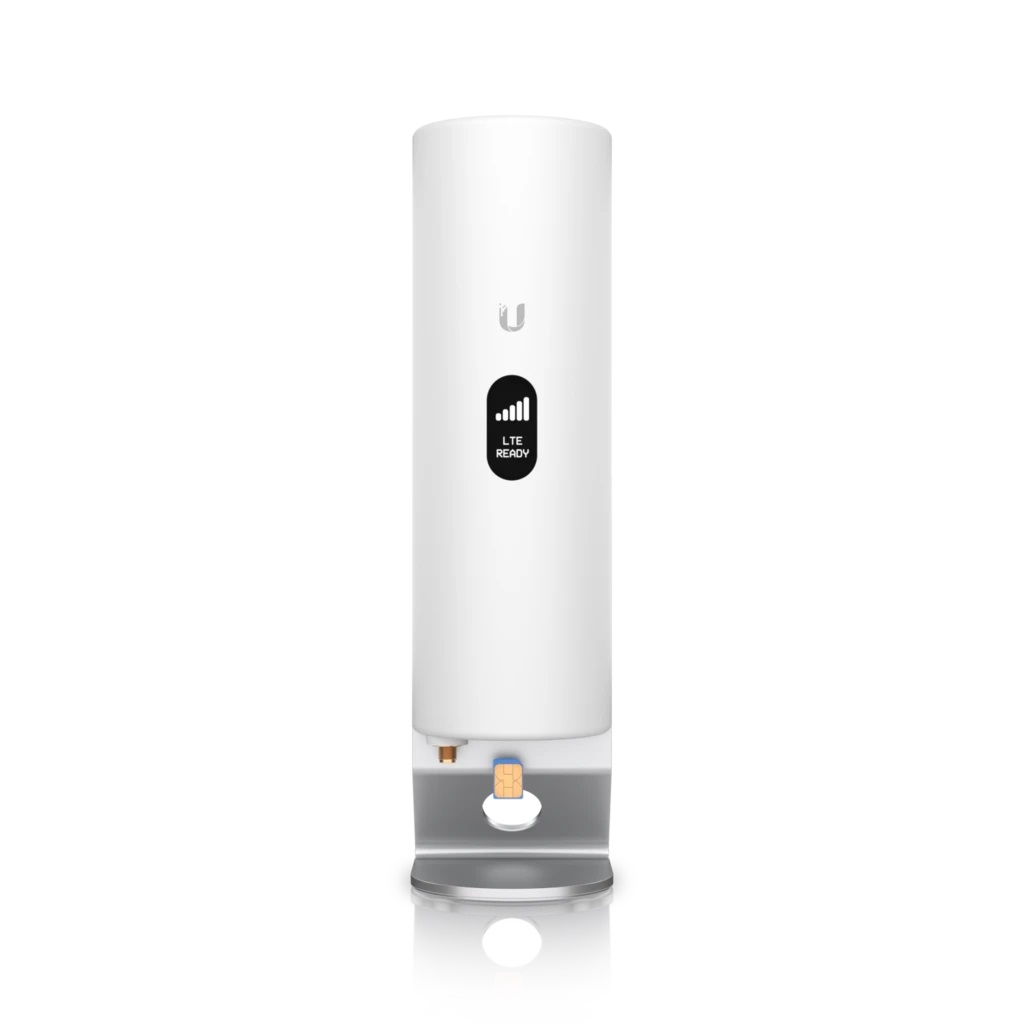

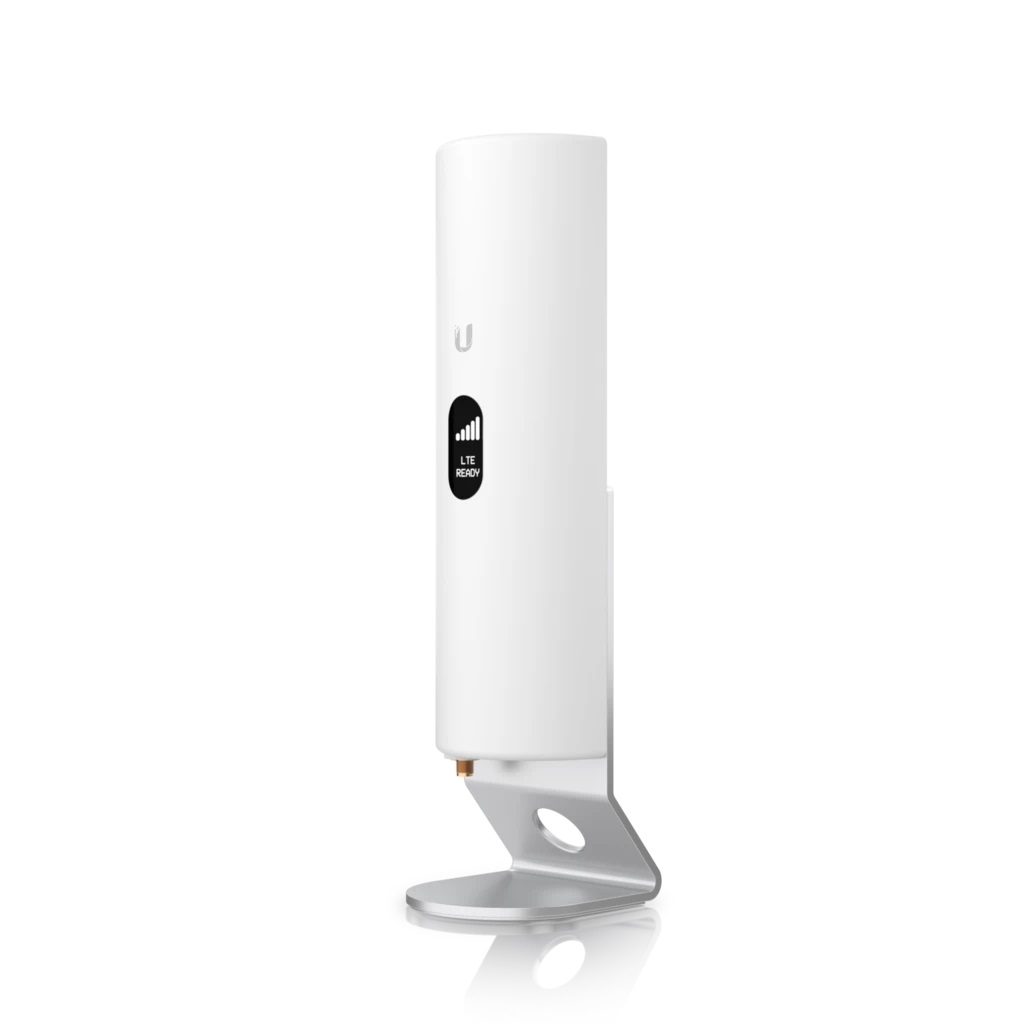

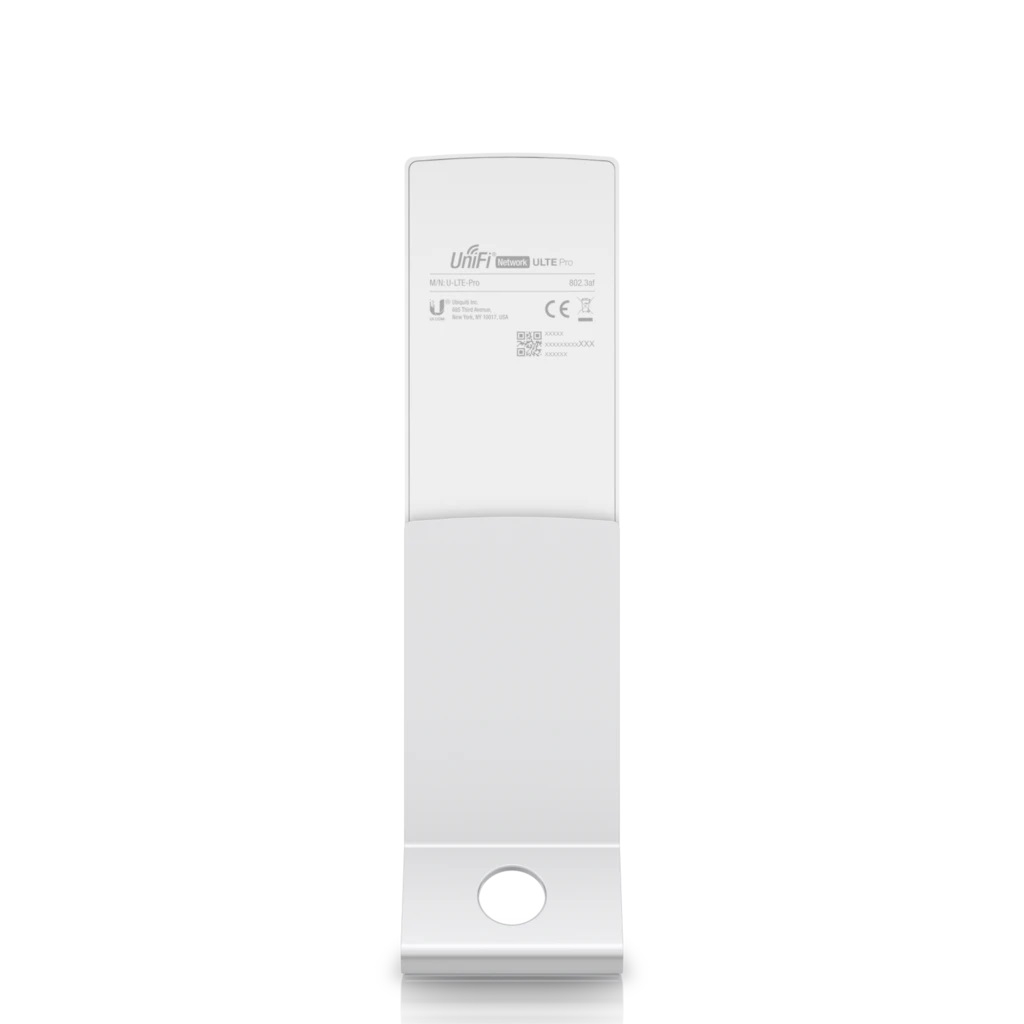

| Mounting | Wall Mount/Foot Stand (Included) |
| ESD/EMP Protection | Air/Contact: ± 24 kV |
| Operating Temperature | -10 to 60° C (-14 to 140° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
