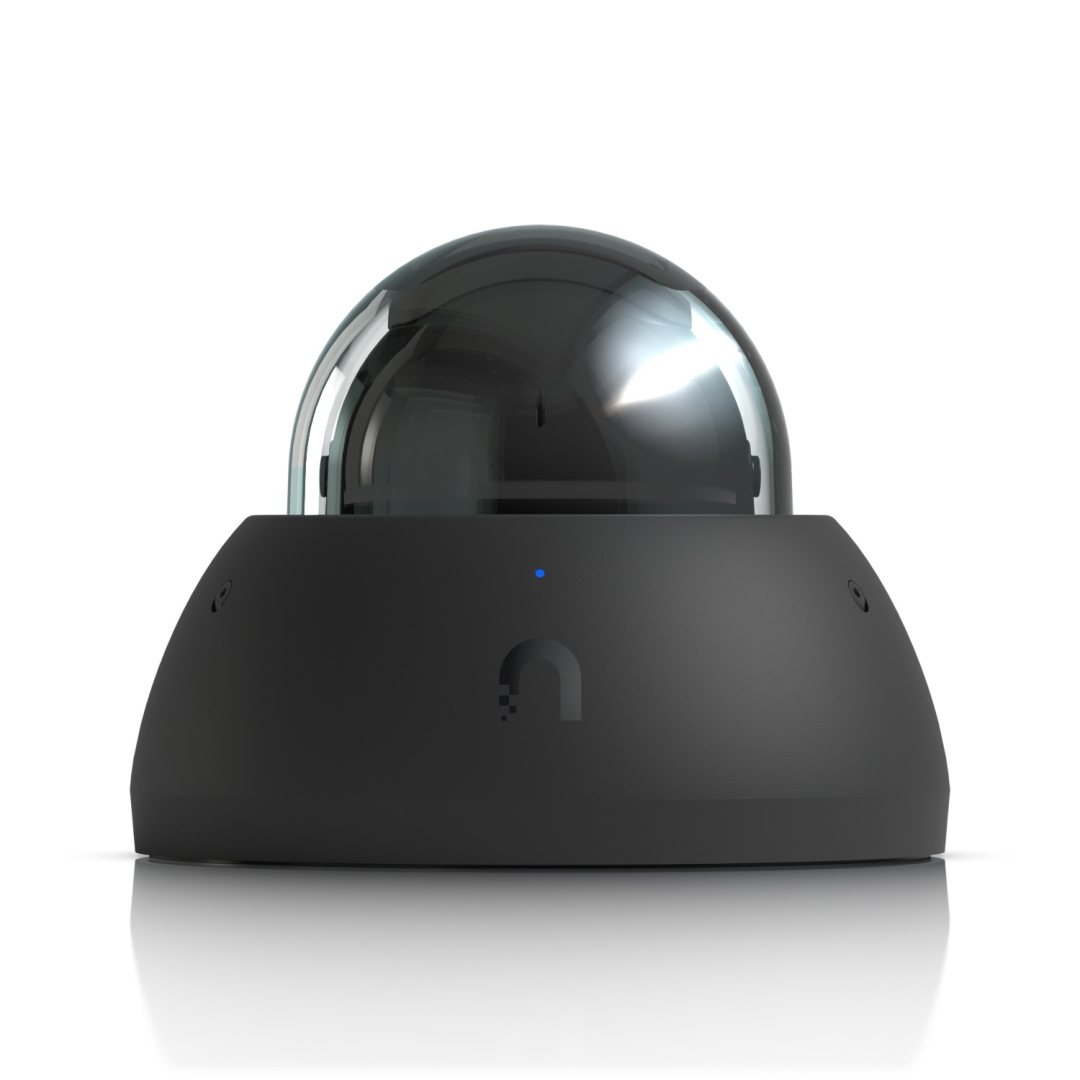

UBIQUITI UniFi Protect AI Dome, Black (UVC-AI-Dome-B)

Produkto savybės:

High-Resolution Imaging
The Ubiquiti UniFi AI Dome (UVC-AI-Dome-B) is equipped with a 1/1.8" 8MP image sensor, delivering 4K Ultra HD video resolution of 3840 x 2160 pixels in a 16:9 aspect ratio. This high-resolution capability ensures exceptionally detailed and clear video capture. The camera features a fixed focal length lens with an ultra-wide horizontal field of view of 109.9°, vertical field of view of 56.7°, and diagonal field of view of 134.1°. This expansive coverage reduces the need for multiple cameras in wide-area monitoring scenarios. Advanced image settings, including color, brightness, sharpness, contrast, white balance, exposure control, 2D and 3D noise reduction (2DNR, 3DNR), motion-based noise reduction, masking, and High Dynamic Range (HDR), allow adapting to various lighting conditions and surveillance requirements.

Advanced Night Vision
Designed for round-the-clock surveillance, the UniFi AI Dome integrates built-in infrared (IR) LED illumination complemented by an IR cut filter, enabling effective night vision capabilities. It provides clear and detailed imagery in low-light conditions with an IR illumination range extending up to 40 meters. The camera's advanced artificial intelligence features include facial and license plate recognition, enhancing security operations through automated identification and alerting mechanisms. These AI-driven functionalities facilitate proactive threat detection and efficient monitoring of critical areas, making the UniFi AI Dome a robust solution for intelligent surveillance systems. The AI Dome can distinguish between human and vehicle movements, significantly reducing false alarms caused by non-relevant activity such as animals or weather-related motion.

Seamless Integration
The UniFi AI Dome features a Gigabit Ethernet (GbE) RJ45 port for high-speed network connectivity, facilitating efficient data transmission essential for high-resolution video streams. It supports Power over Ethernet (PoE) with a voltage range of 42.5–57V DC, allowing for simplified installation by transmitting power and data over a single cable. The camera's maximum power consumption is rated at 10W, promoting energy efficiency without compromising performance. Integrated with the UniFi Protect software platform, the UniFi AI Dome offers a user-friendly interface accessible via web applications and mobile apps for iOS™ and Android™, enabling comprehensive remote management and monitoring capabilities. This seamless integration ensures that the camera can be effectively incorporated into existing network infrastructures, providing a scalable and efficient surveillance solution.

Produkto specifikacijos:

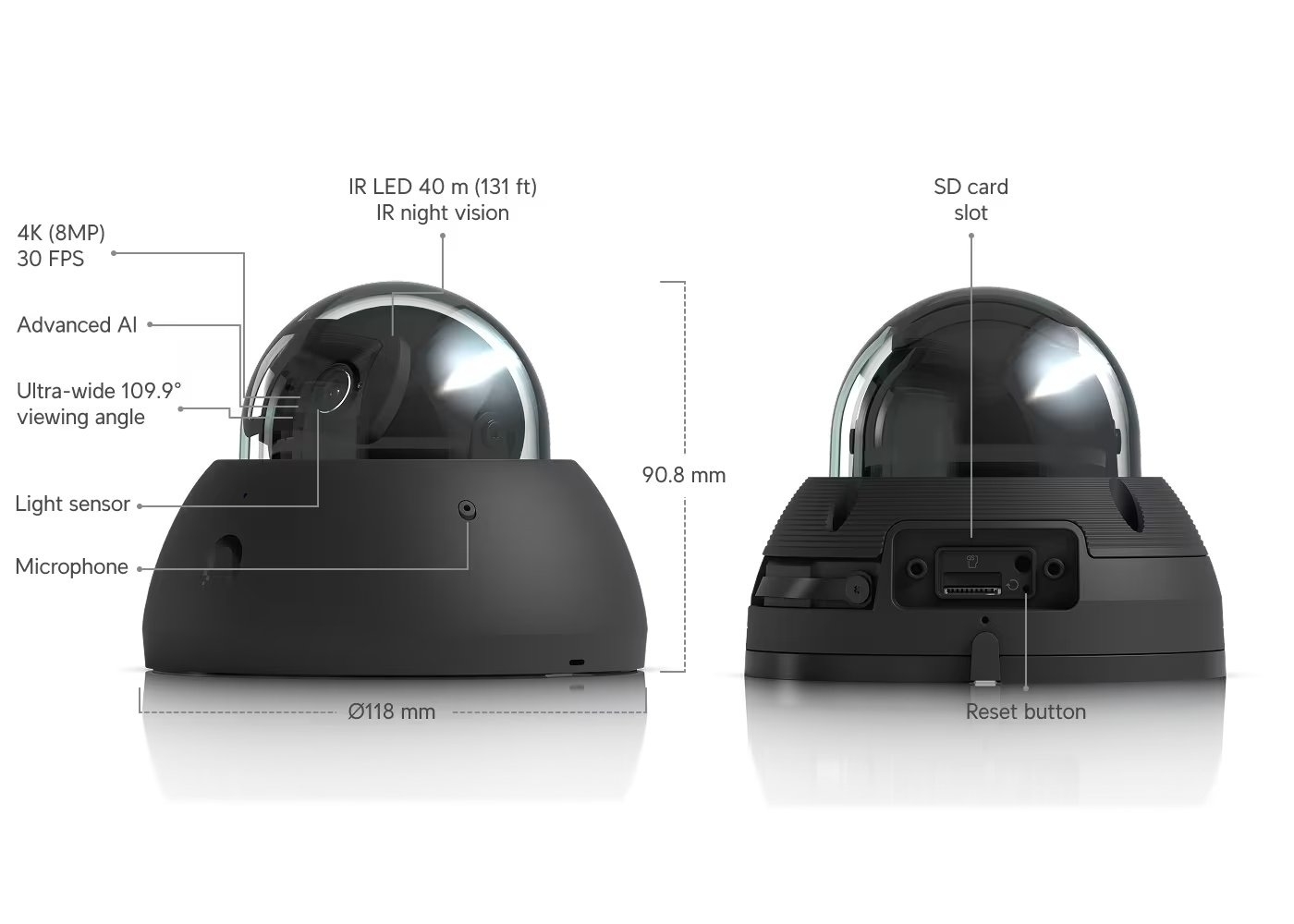

Dimensions: Ø118 x 90.8 mm (Ø4.6 x 5.5")
IR Night Vision: 40 m (131 ft)
Face Recognition: Yes
License Plate Recognition: Yes
Smart Detections (People, Vehicles, Animals): Yes
Resolution: 4K
Field of View: H: 109.9°, V: 56.7°, D: 134.1°
Audio: Microphone

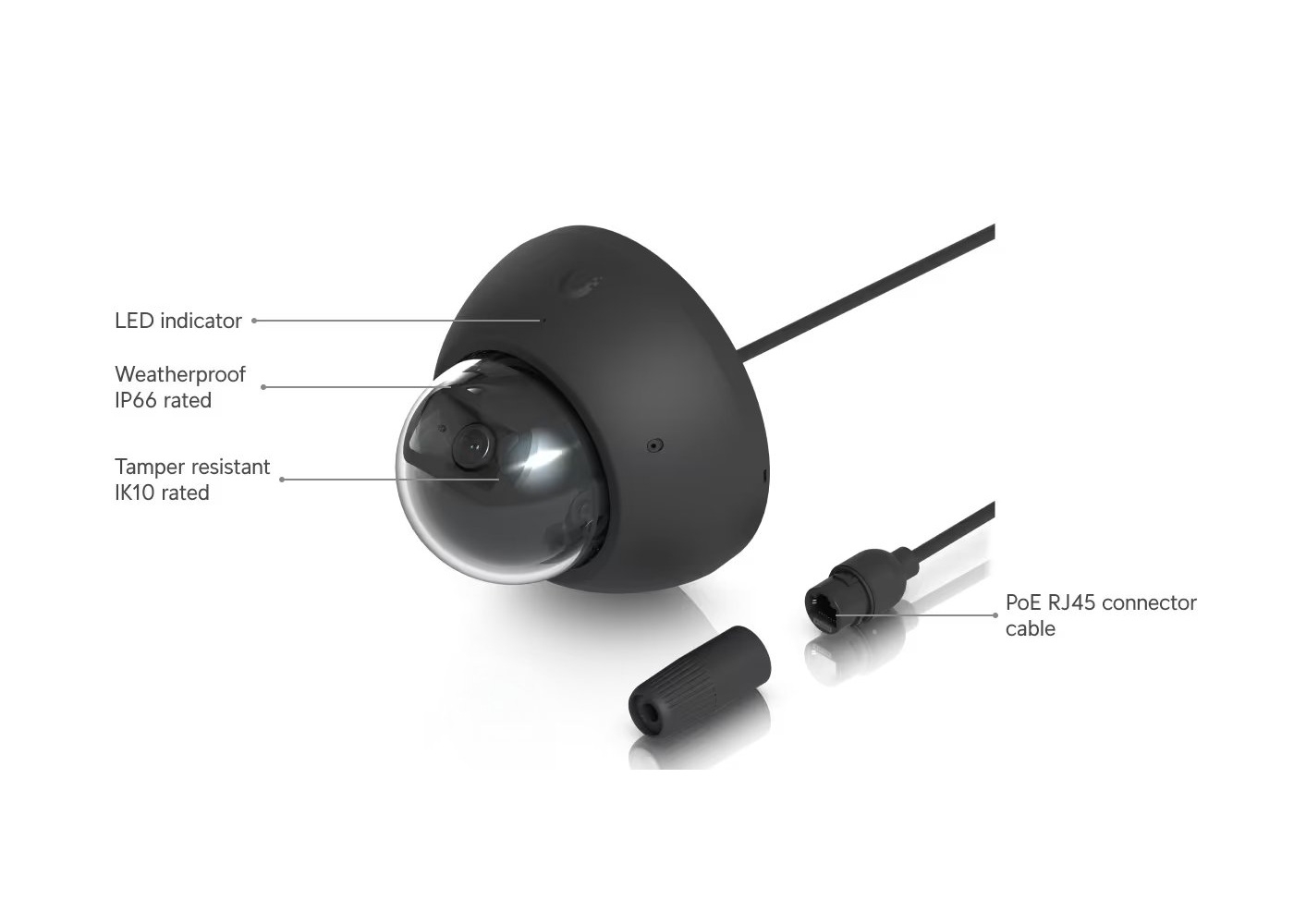

Weatherproofing: IP66
Tamper Resistance: IK10

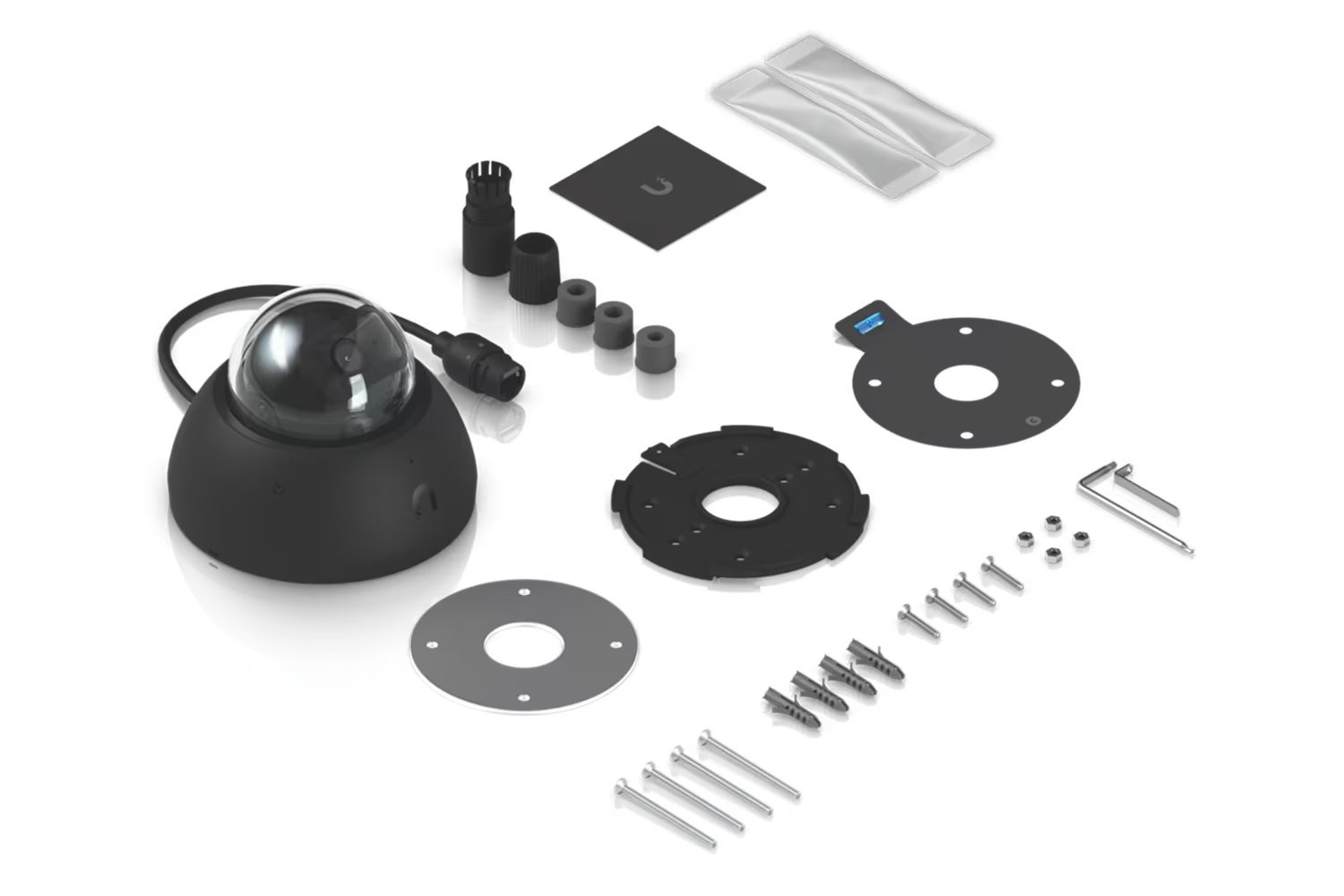

Mounting: Arm, ceiling , pendant, wall mount, junction box

Performance

Networking Interface: GbE RJ45 port
Video:
    Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
    Max. Frame Rate: 30 FPS
    Resolution: 8MP 3840 x 2160 (16:9)
Optics:
    Sensor: 1/1.8" 8MP
    Lens: Fixed focal length
    Night Mode: Built-in IR LED illumination and IR cut filter

Hardware

Max. Power Consumption: 10W
Supported Voltage Range: 42.5—57V DC
Power Method: PoE
Processor: Quad-core Arm® Cortex®-A53 based chip
Weight: 700 g (1.5 lb)
Enclosure Material: Aluminum alloy, polycarbonate

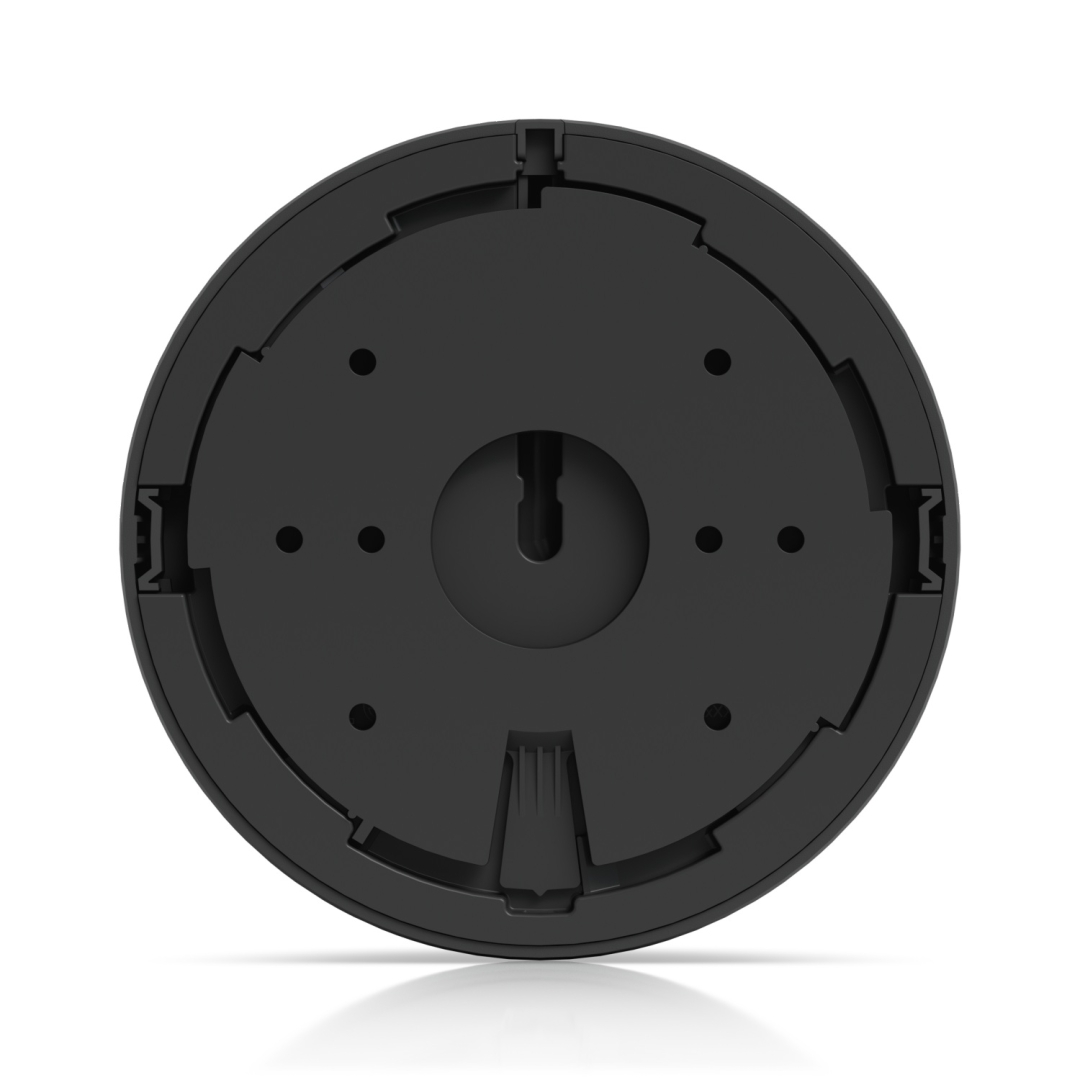

Mount Material: Surface mount: polycarbonate
Expansion Slot: MicroSD Card
Button: (1) Factory-reset
Cable:
    Cable Connector Type: RJ45
    Cable Diameter: 4.5 mm (0.2")
    Cable Length: 30 cm (1 ft)
    Jacket Material: Thermoplastic elastomer
    Jacket Enclosure Dimensions: Ø20 x 70.6 mm (0.8 x 2.8")
    Jacket Enclosure Material: Thermoplastic elastomer, polycarbonate, silicone rubber
Ambient Operating Temperature: -30 to 50° C (-22 to 122° F)
Ambient Operating Humidity: 0 to 90% noncondensing
NDAA Compliant: Yes
Certifications: CE, FCC, IC
