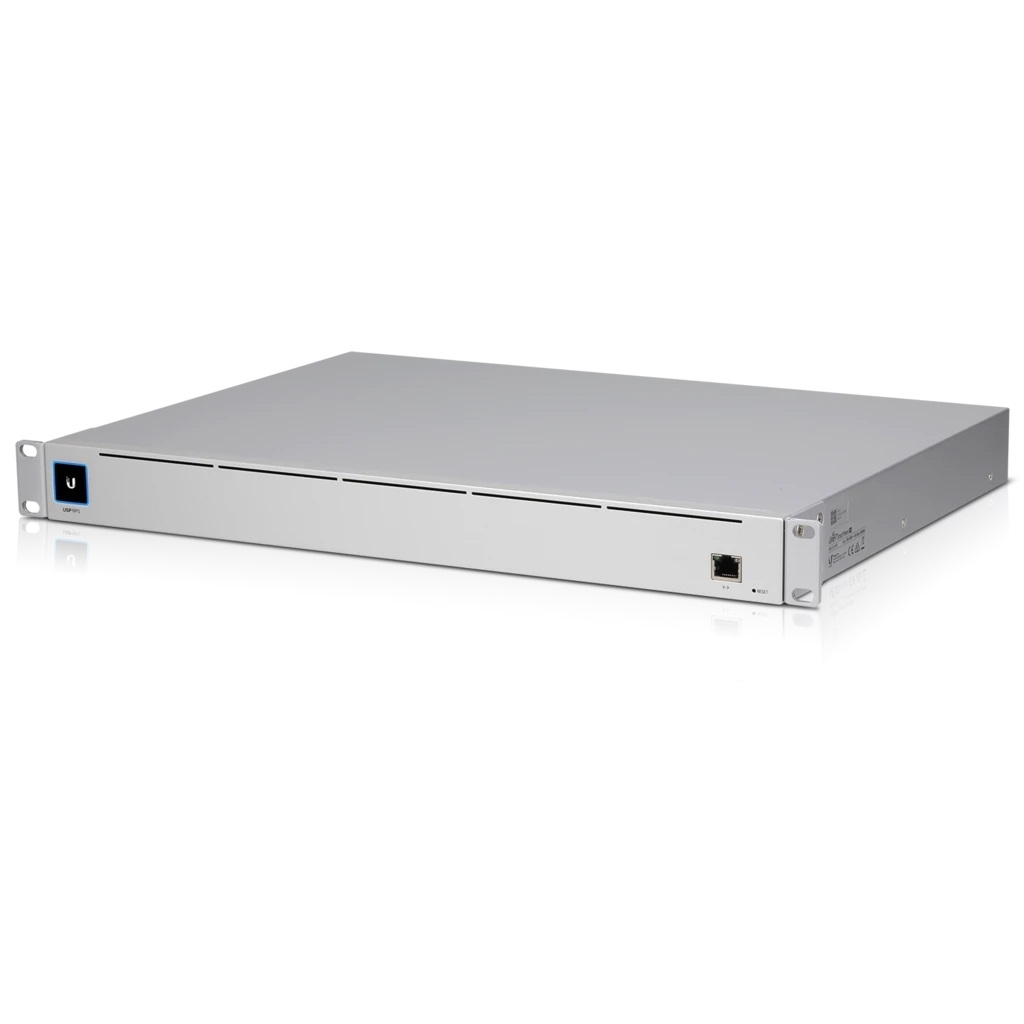

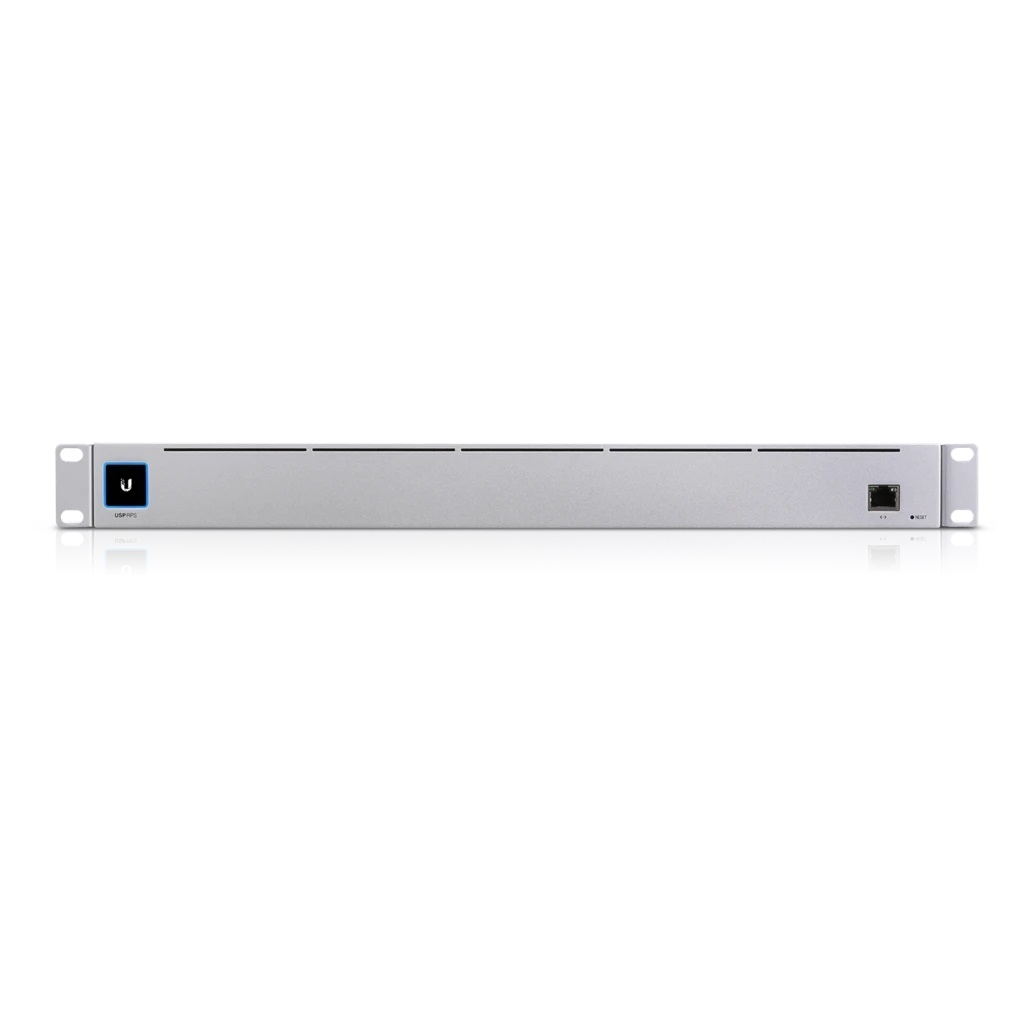

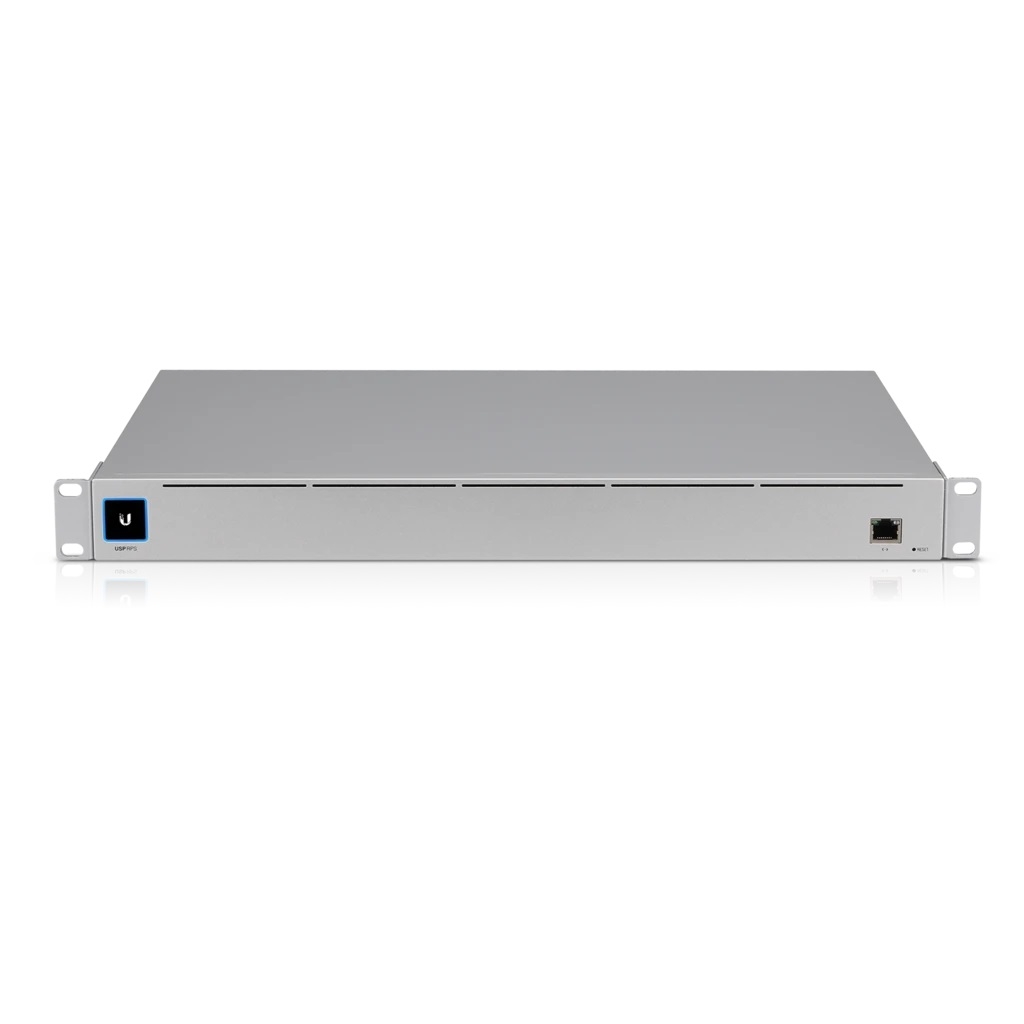

Ubiquiti UniFi SmartPower Redundant Power System (USP-RPS)

OEM kodas: USP-RPS
Kodas: USP-RPS
ID: #2400

Protect up to six UniFi SmartPower supported devices from sudden power supply module failure | Power budget: 950W

398.22€ su PVM

Kaina be PVM: 329.11€

Kiekis:


Produkto savybės:

The UniFi® SmartPower Redundant Power System, model USP-RPS, is a proprietary redundant power system designed to protect up to six UniFi SmartPower supported devices from sudden power supply module failure. The USP-RPS continually monitors all attached devices. In the event of an internal AC/DC power supply failure, failover is automatic so your network continues to operate with no interruption in service. With a 950W DC power budget, the USP-RPS can protect a variety of high-power devices, including UniFi PoE switches. An integrated 1.3" color touchscreen LCM displays system information for convenient monitoring.

  • (6) USP DC output ports
  • (1) Ethernet port
  • 1U Rackmountable (kit included)
  • 1.3" Touchscreen display with status information
  • Managed by UniFi Network Controller version: 5.12.11 or later

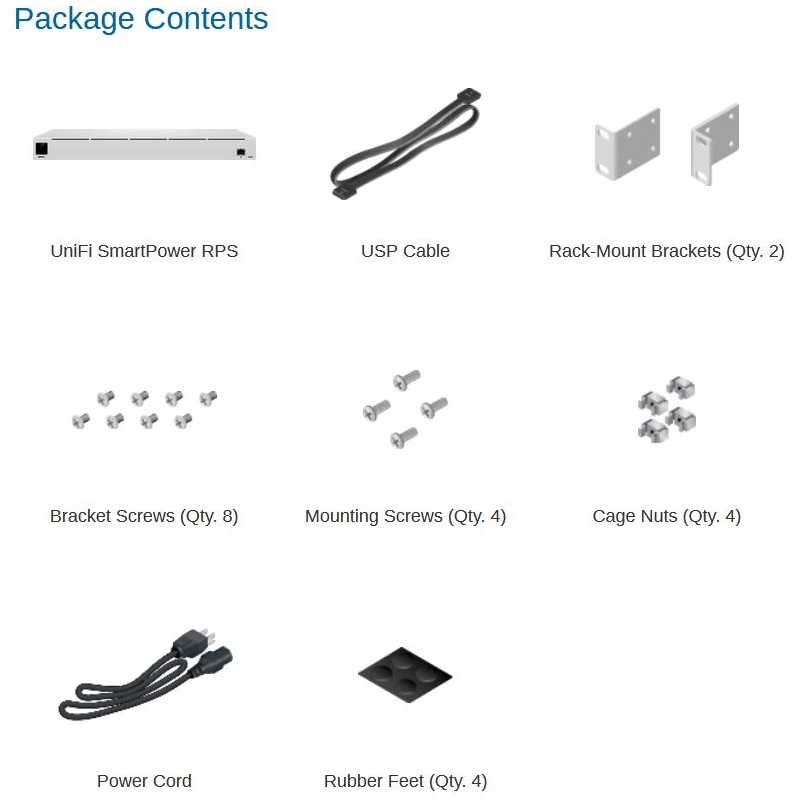

One USP Cable is included with the UniFi SmartPower Redundant Power System. To attach additional devices, the USP-Cable is sold separately as an accessory.

Produkto specifikacijos:

Dimensions 442.40 x 325.60 x 43.70 mm
(17.42 x 12.82 x 1.72")
Weight
With Mount Brackets
5.500 kg (12.13 lb)
5.590 kg (12.32 lb)
Interfaces
Networking
Management
Power Output

(1) 10/100/1000 Mbps RJ45 Port
Ethernet In-Band
(6) RPS DC Ports
Max. Power Consumption 995W
Power Method (1) Universal AC Input, 100 to 240VAC
Power Supply Internal 350W AC/DC
Internal 645W AC/DC
Supported Voltage Range 100 - 240VAC
Display 1.3" Color Touch Panel
LED
System
RJ45
USP RPS

Status
Link/Activity
Activity
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Operating Temperature -5 to 45° C (23 to 113° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC
Total Output Power
52VDC
11.5VDC

11.54A (600W)
30.44A (350W)
Max. Output Power per RPS Port
52VDC
11.5VDC

11.54A (600W)
30.44A (350W)
