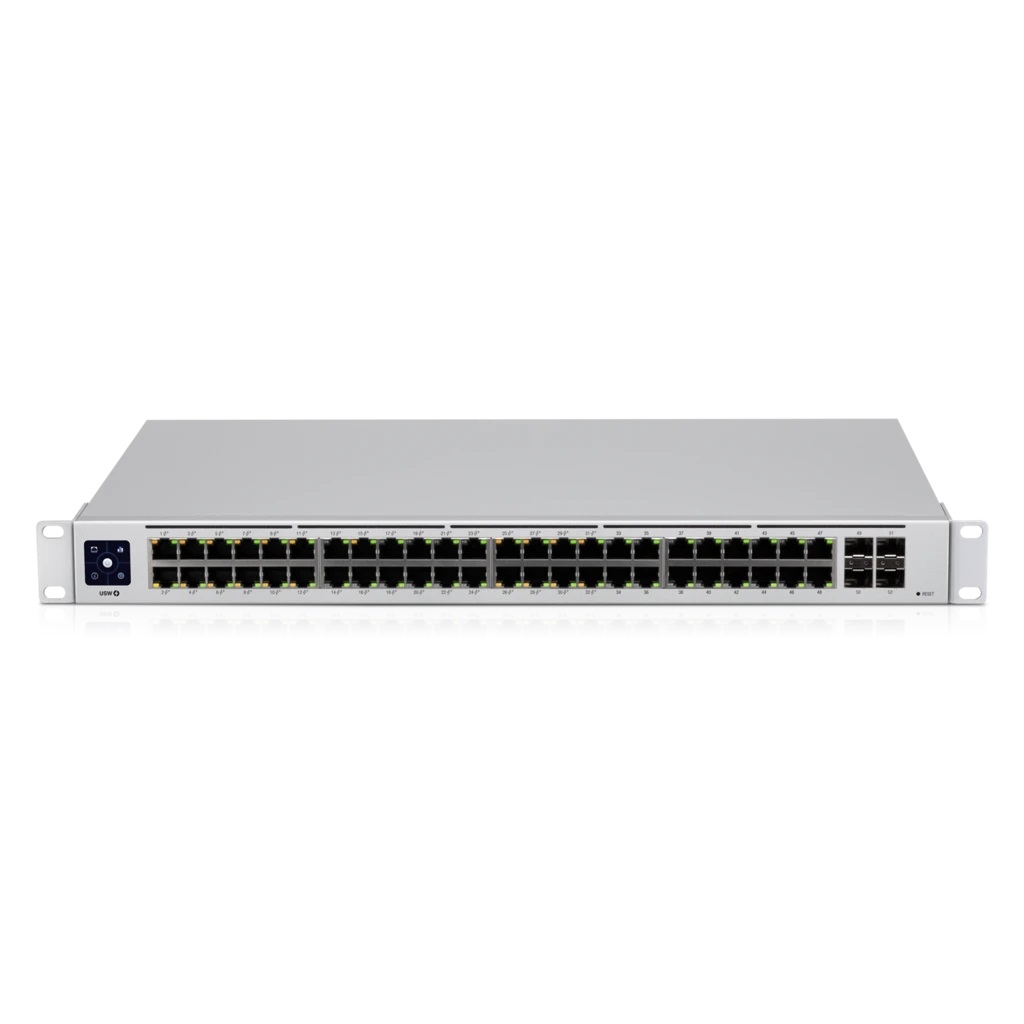

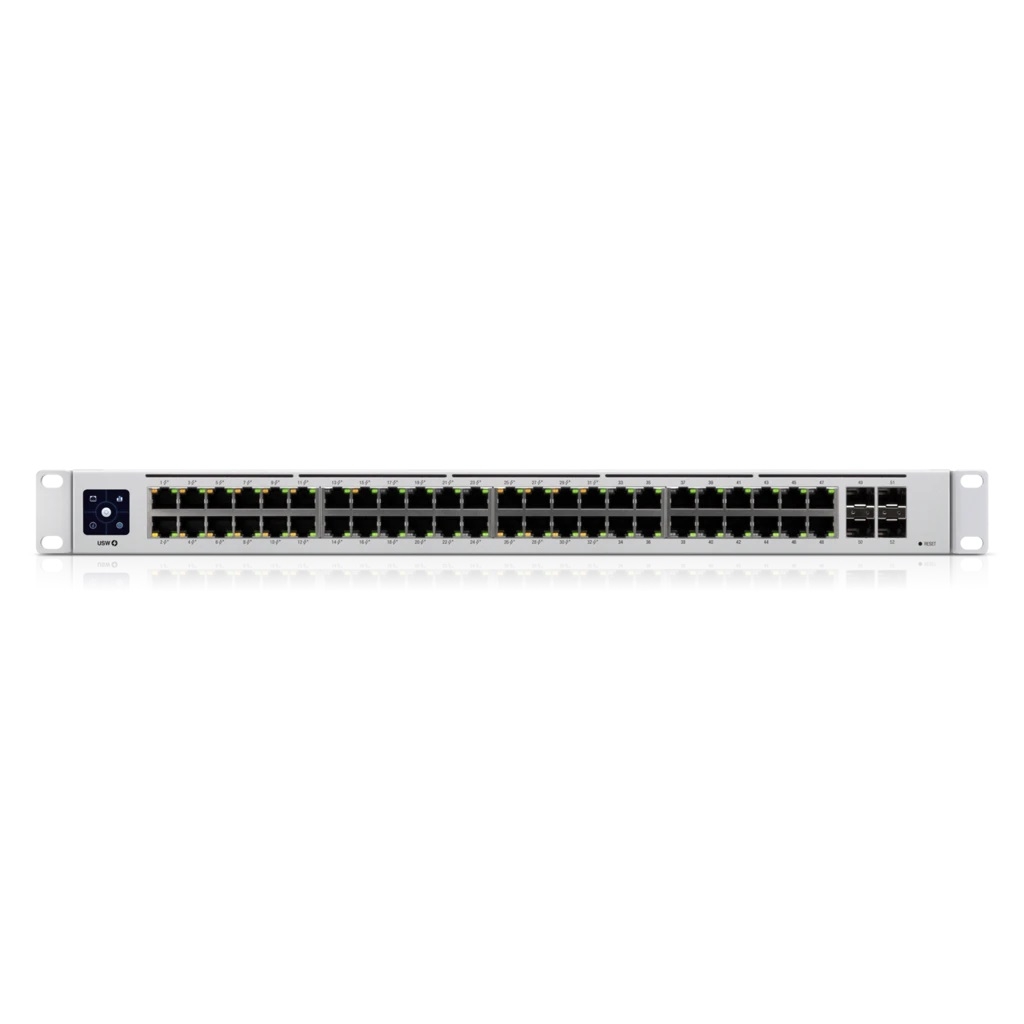

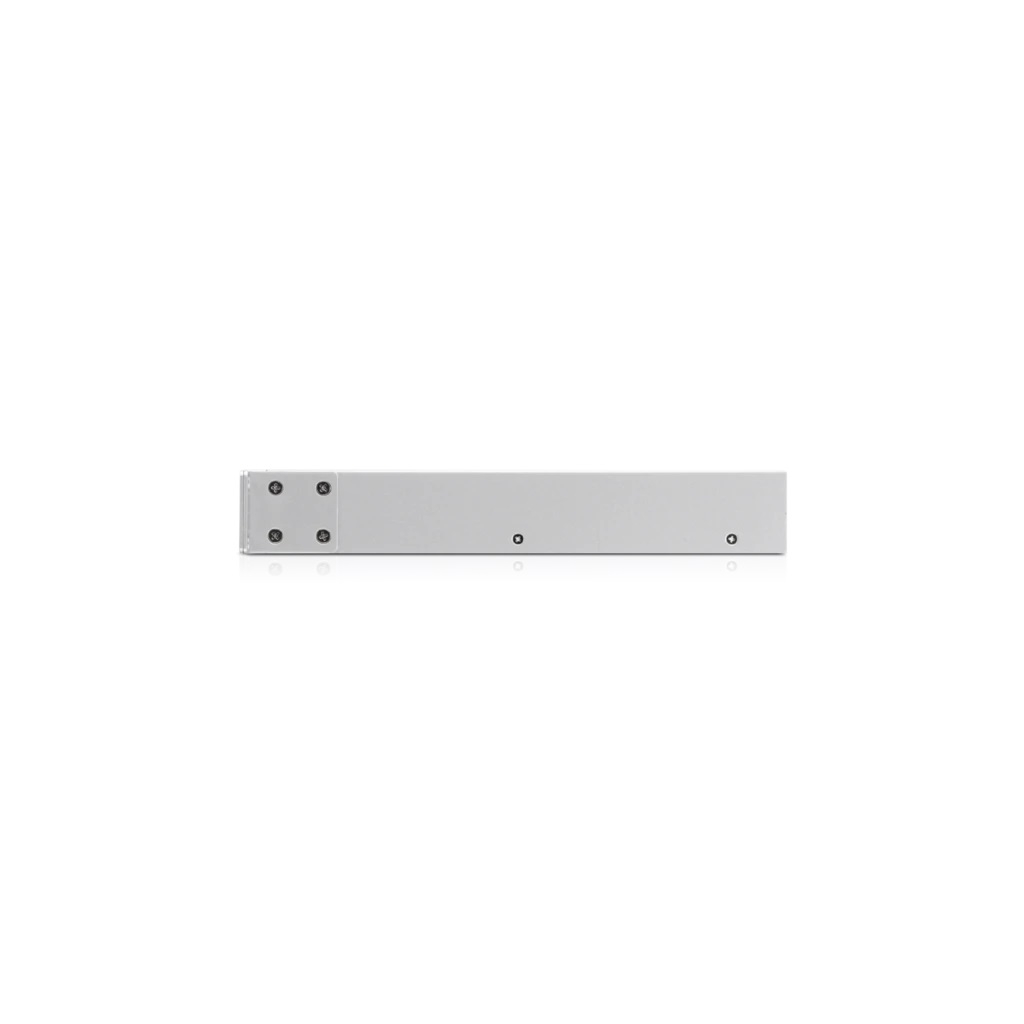

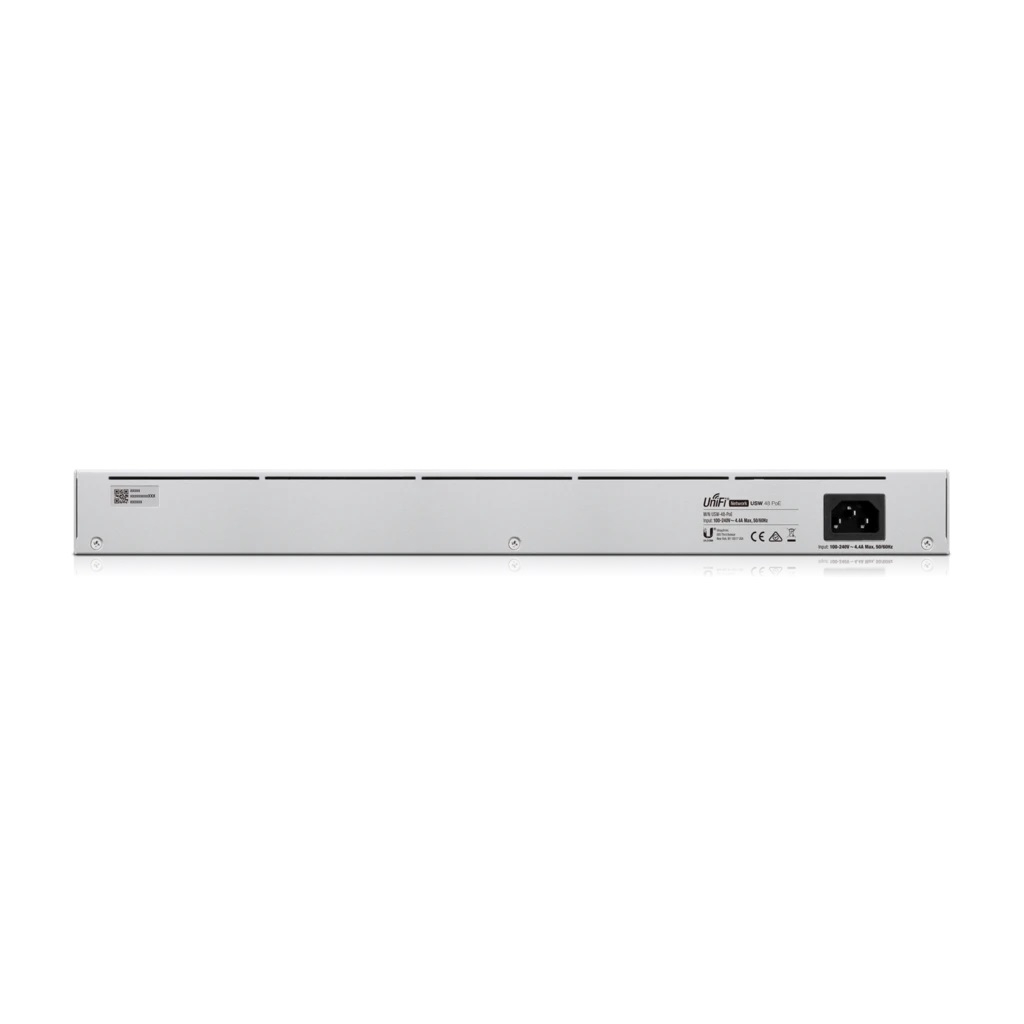

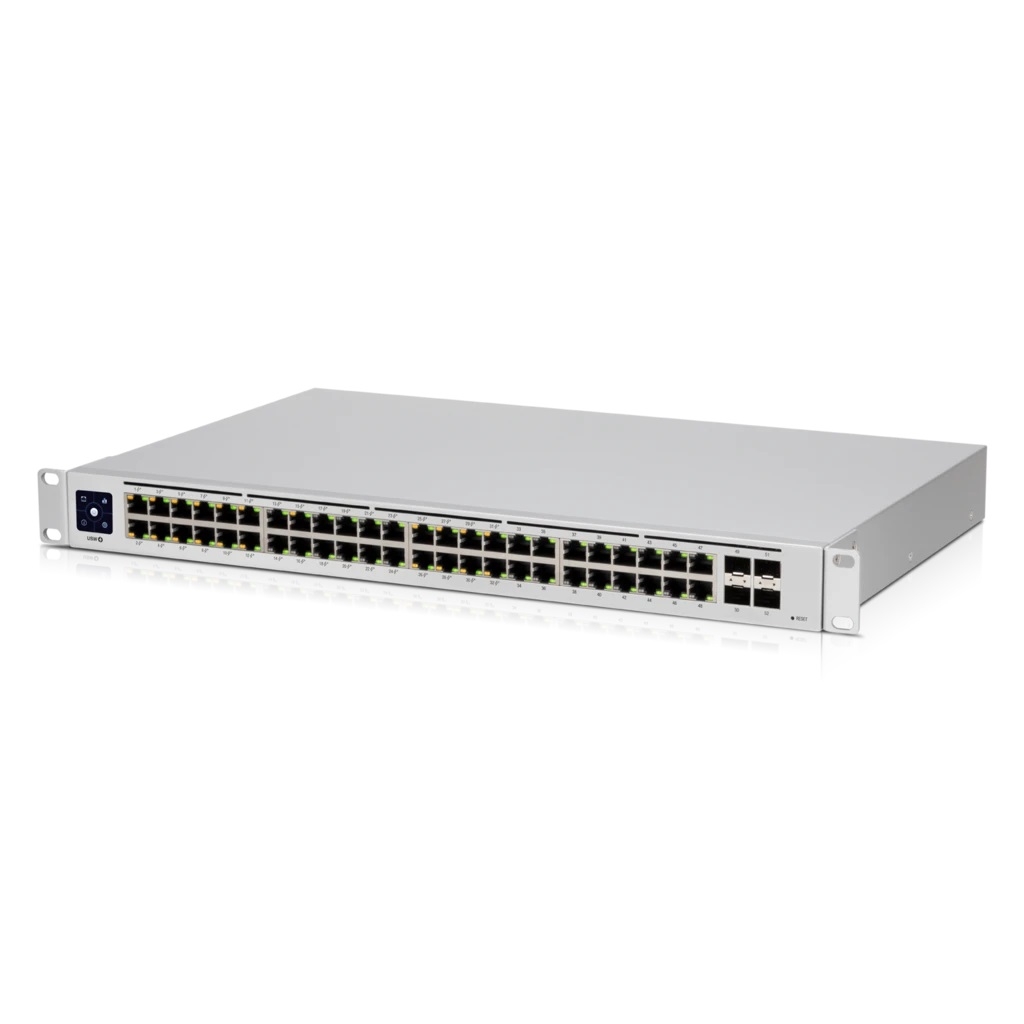

UBIQUITI UniFi Switch 48 PoE, Gen2 (USW-48-POE)

OEM kodas: USW-48-PoE
Kodas: USW-48-POE
ID: #2466

48x Gigabit RJ45 ports | 4x SFP ports | Configurable Gigabit Layer-2 switch with auto-sensing 32 ports 802.3at PoE+

naujiena

556.44€ su PVM

Kaina be PVM: 459.87€

Kiekis:


Produkto savybės:

48-Port managed PoE switch with (48) Gigabit Ethernet ports including (32) 802.3at PoE+ ports, and (4) SFP ports. Powerful second-generation UniFi switching.

The USW-48-PoE is a configurable Gigabit Layer 2 switch with 48 Gigabit Ethernet ports including 32 auto-sensing 802.3at PoE+ ports, and 4 SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-48-PoE features a 1.3" touch LCM to provide status
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-48-PoE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

Features:

  • (48) Gigabit Ethernet Ports including (32) 802.3at PoE+
  • (4) 1G SFP Ports
  • 1.3" touch LCM
  • Managed by UniFi Controller
  • 240W Power supply

Managed by UniFi Network Controller version: 5.12.32 or higher

Produkto specifikacijos:

Dimensions 442.4 x 285 x 43.7 mm
(17.42 x 11.22 x 1.72")
Weight
With Rackmount Brackets
4.52 kg (9.97 lb)
4.61 kg (10.16 lb)
Interfaces
Networking

Management

(48) 10/100/1000 RJ45 Ports
(4) 1G SFP Ethernet Ports
Ethernet In-Band
Power Method 100-240VAC, 50/60 Hz, Universal Input
Power Supply AC/DC, Internal, 240W
Supported Voltage Range 100 to 240VAC
Max. Power Consumption (Excluding PoE Output) 45W
LEDs
RJ45 Data Ports
SFP Data Ports

PoE; Speed/Link/Activity
Link/Activity
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC
PoE
Total Available PoE 195W
PoE Interfaces
Ports 1-32

POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Max. PoE Wattage per Port by PSE
802.3at

32W
Voltage Range 802.3af Mode 44-57V
Voltage Range 802.3at Mode 50-57V
