UBIQUITI UniFi Switch Flex 2.5G (USW-Flex-2.5G-8)

Produkto savybės:

Advanced Switching Features
The Ubiquiti UniFi Switch Flex 2.5G (USW-Flex-2.5G-8) is engineered to provide robust and high-speed networking solutions for both home and business environments. Equipped with eight 2.5 Gigabit Ethernet (GbE) RJ45 ports, it ensures rapid data transfer rates, accommodating bandwidth-intensive applications such as high-definition video streaming, online gaming, and large file transfers. Additionally, the switch features a versatile 10 Gigabit Ethernet RJ45/SFP+ combination uplink port, offering flexible connectivity options to integrate seamlessly with existing network infrastructures.
Beyond its impressive hardware capabilities, the USW-Flex-2.5G-8 offers advanced Layer 2 switching features to enhance network performance and security. These include support for Spanning Tree Protocol (STP/RSTP) with configurable priorities and port-level disable options, storm control, multicast and broadcast rate limiting, flow control, jumbo frames, egress rate limiting, proprietary loop protection, port isolation, and port mirroring. These features empower network administrators to optimize traffic management, prevent network loops, and maintain a robust and secure networking environment, catering to the demands of modern network infrastructures.

Flexible Power Options
The USW-Flex-2.5G-8 offers multiple power input methods to suit various deployment scenarios. It can be powered via a 5V, 3A USB-C adapter, providing a straightforward and accessible power solution. Alternatively, the switch supports Power over Ethernet Plus (PoE+), allowing it to receive power through the 10 GbE RJ45 uplink port when connected to a compatible PoE+ source. This flexibility simplifies installation and reduces cable clutter, making it an ideal choice for diverse networking setups.

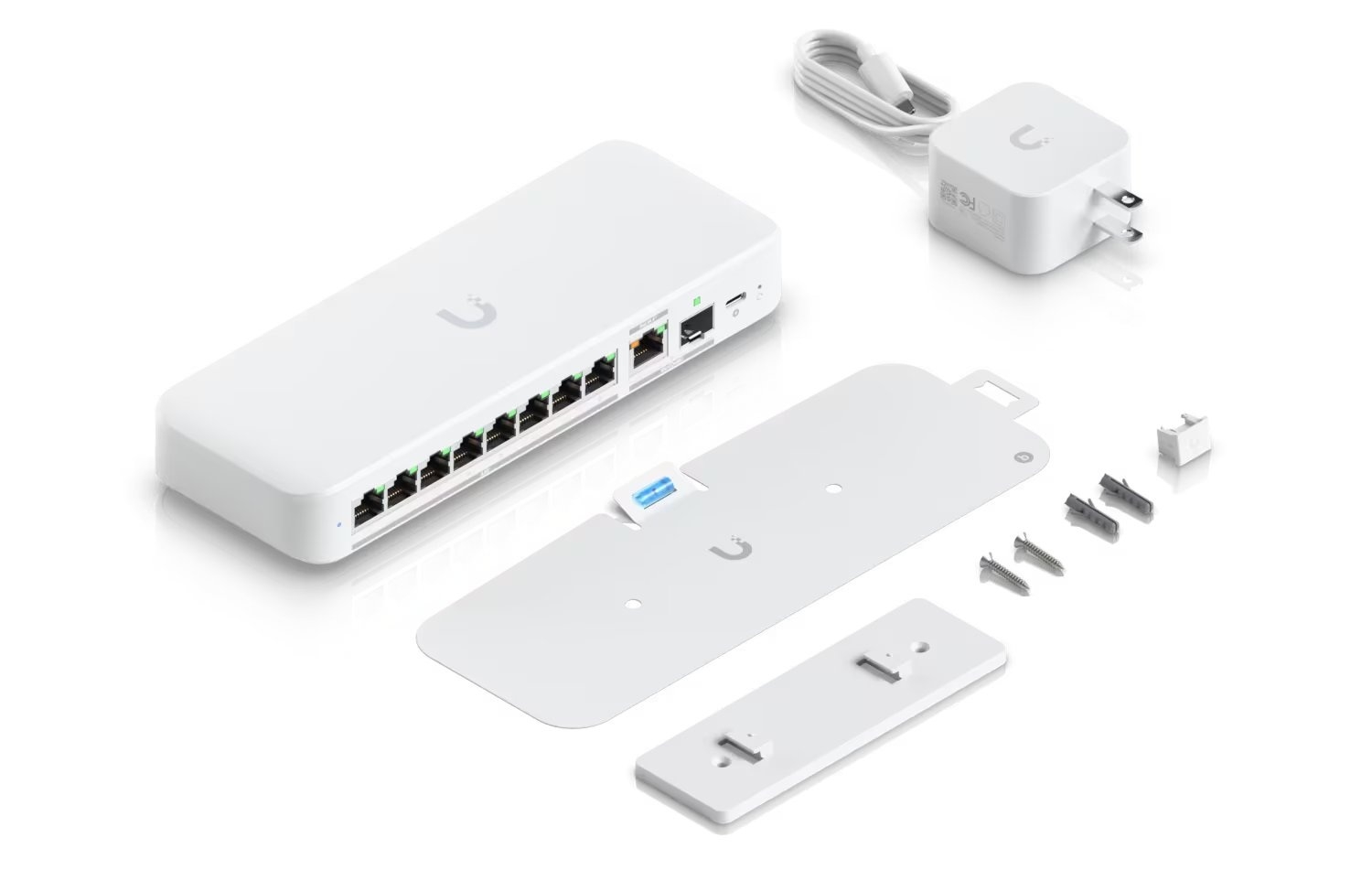

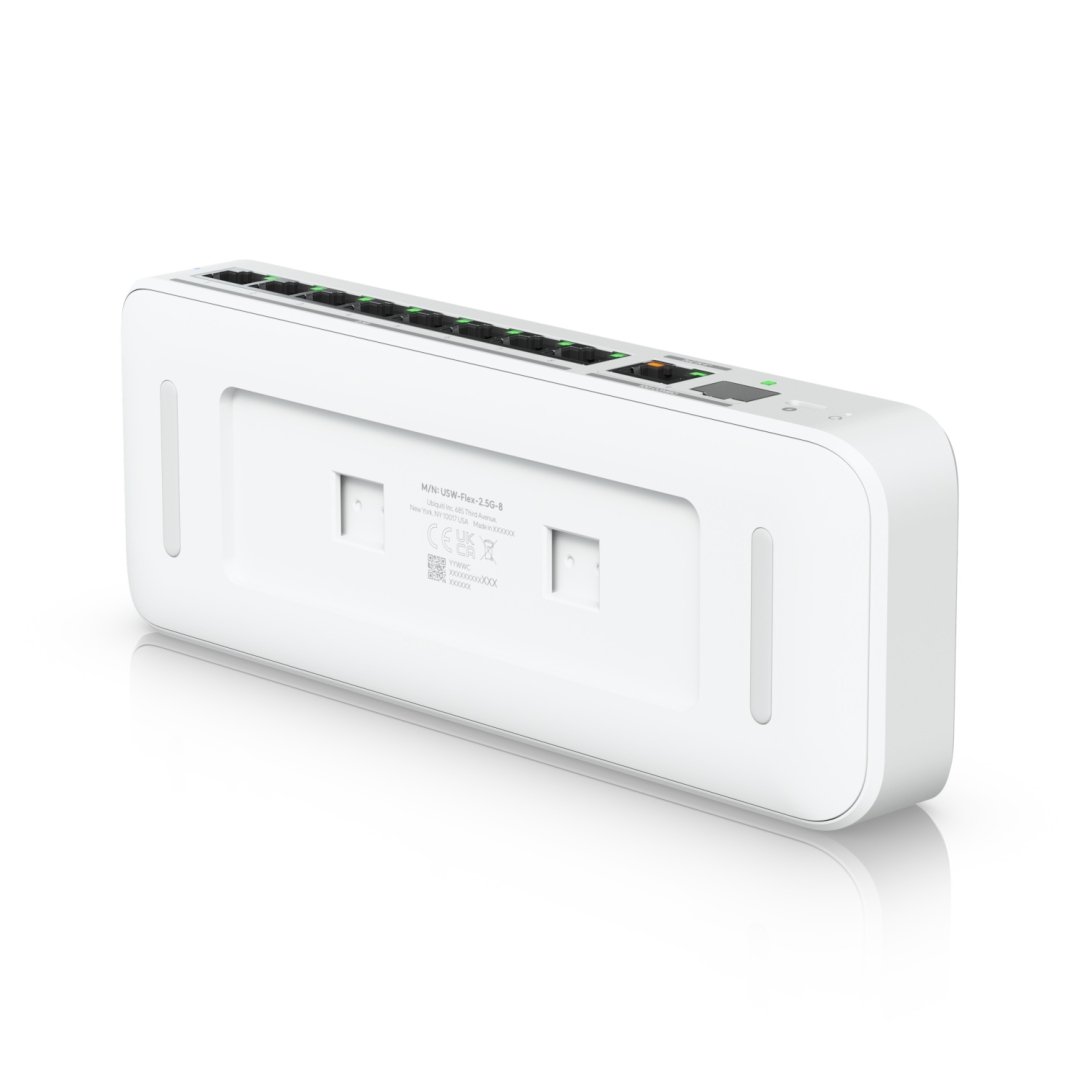

The USW-Flex-2.5G-8 boasts a sleek and compact form factor, measuring 212.9 x 76 x 33.5 mm and weighing 420 grams. Its polycarbonate enclosure ensures durability while maintaining a lightweight profile. The switch is designed for versatile mounting options, including wall mounting (kit included) and DIN rail mounting (sold separately), allowing for flexible placement in various environments. Its compact size and flexible installation options make it suitable for both space-constrained and open areas, ensuring optimal network deployment.

Produkto specifikacijos:

Overview

Dimensions: 212.9 x 76 x 33.5 mm (8.4 x 3 x 1.3")

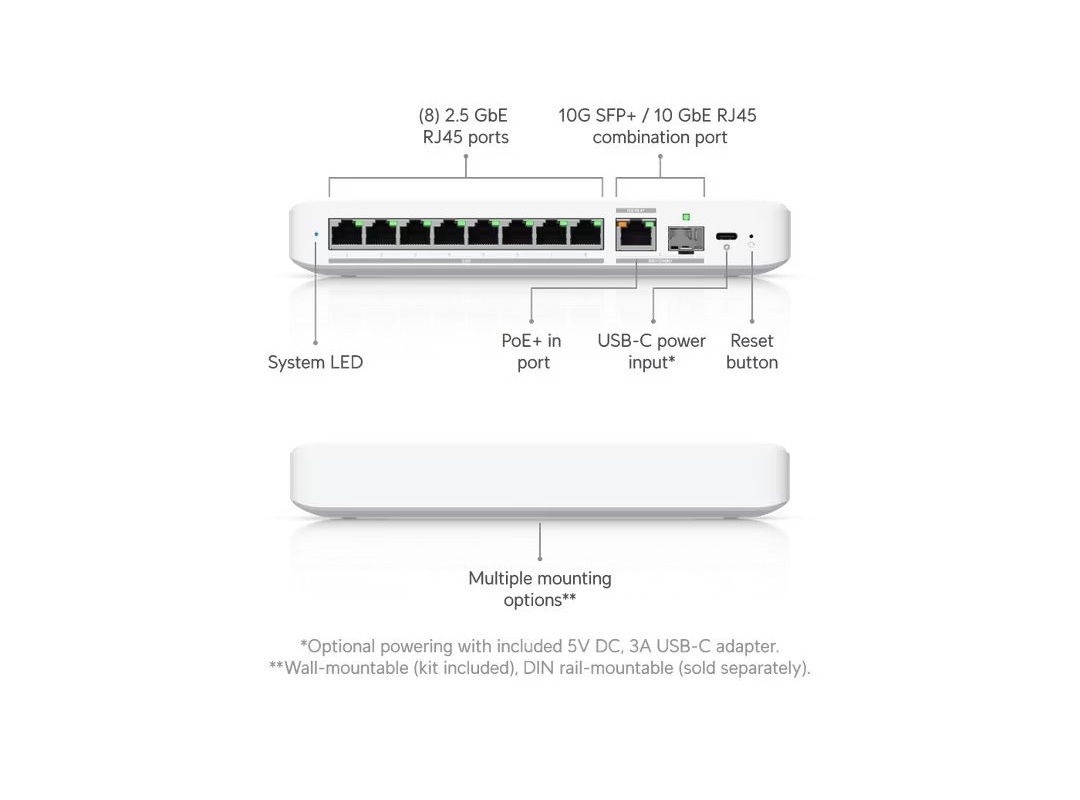

Port Layout:
    2.5 GbE RJ45: 8 (2.5G/1G/100M/10M)
    10 GbE RJ45: 1 (10G/5G/2.5G/1G/100M)
    10G SFP+: 1
Form Factor: Compact Desktop, wall, DIN, magnetic

Performance

Switching Capacity: 60 Gbps
Total Non-Blocking Throughput: 30 Gbps
Forwarding Rate: 45 Mpps
Supported VLANs: 256
MAC Address Table Size: 4,000

Layer 2 Features

STP & RSTP: Yes
Egress Rate Limit: Yes
Flow Control: Yes
Storm Control: Yes
Multicast & Broadcast Rate Limiting: Yes
Port Isolation: Yes
Port Mirroring: Yes
Jumbo Frames: Yes
Loop Protection: Yes

Hardware

Max. Power Consumption:
    14W with PoE input
    14W with AC adapter input
Power Method:
    (1) USB Type-C, 5V DC, 3A
    (1) PoE+
Power Input Method:
    USB Input
    PoE
Power Supply: AC/DC, external, 15W
Supported Voltage Range:
    4.8—5.2V DC/USB
    44V—57V PoE
Management: Ethernet
Weight: 395 g (0.87 lb)
Enclosure Material: Polycarbonate
Mount Material: Polycarbonate
Ambient Operating Temperature: -20 to 45° C (-4 to 113° F)
Ambient Operating Humidity: 10 to 90% noncondensing
NDAA Compliant: Yes
Certifications: CE, FCC, IC

Software

Application Requirements:
    UniFi Network: Version 9.0.114 and later
