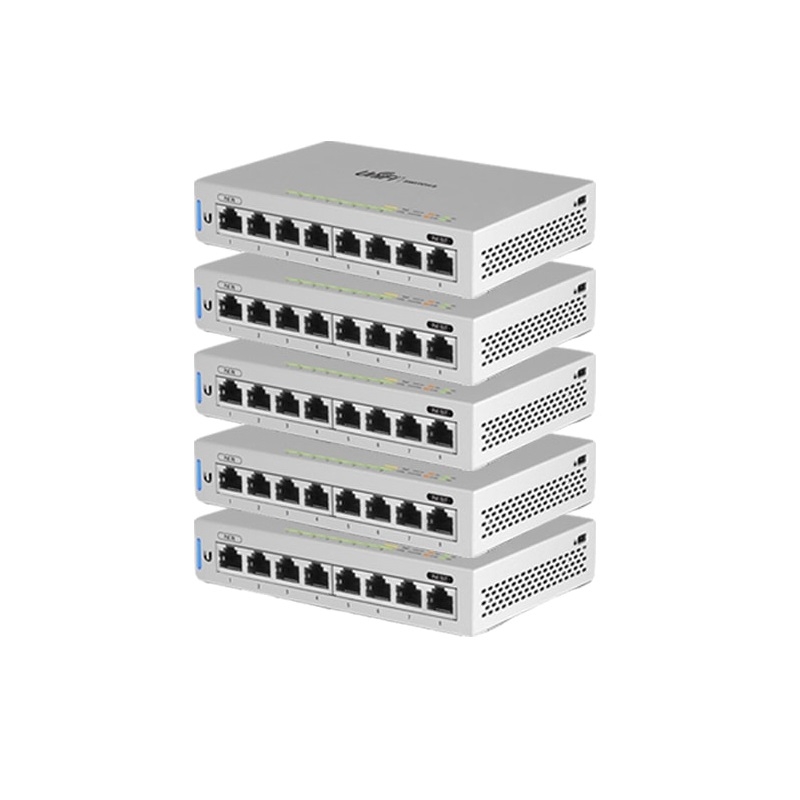

UBIQUITI Unifi Switch US-8, 5 pack (US-8-5)

Kodas: US-8-5
ID: #1503

8-Port Fully Managed Gigabit Switch with one POE Passthrough, 1x POE-in and 1xPOE-out ports, POE or DC powering, External AC/DC Adapter 48V, 0.5A included, 5 PACK (Power Supply Not Included !!!)

Kaina be PVM: Kaina su PVM (21%): Kainos lygis, kai užsakymo suma:
366.70€ 443.71€ >0€
>100€
>300€
Kiekis:
  Turime sandėlyje


Produkto savybės:

The UniFi Switch 8-port models feature Gigabit Ethernet ports in a compact form factor. The switches are fully manageable, delivering robust performance and intelligent switching for your networks.

The US-8 is a PoE Powered 8-port gigabit switch with PoE Passthrough. Perfect for cleanly adding Ethernet ports where needed, with passthrough to keep your PoE device powered.

Non-Blocking Throughput

The new 8-port models feature Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps.

Switching Capacity

The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16 Gbps.

Seamless Integration

A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

• (8) Gigabit RJ45 Ports
• (1) PoE Passthrough Port
• Non-Blocking Throughput: 8 Gbps
• Switching Capacity: 16 Gbps
• Forwarding Rate: 11.9 Mpps
• Maximum Power Consumption: 12W
• PoE or DC Input Option
• Available in Single-Pack and 5-Pack
(Power Supply Not Included with 5-Pack)

Produkto specifikacijos:

Dimensions: 148.0 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21")
Weight: 432 g (15.24 oz)
Enclosure Characteristics: SGCC Steel
Total Non-Blocking Throughput: 8 Gbps
Switching Capacity: 16 Gbps
Forwarding Rate: 11.9 Mpps
Max. Power Consumption: 12W (Excluding PoE Output)
Max. Passive PoE Wattage per Port:
   PoE Mode 1: 12W @ 802.3at
   PoE Mode 2: 12W @ 48V:
   DC Input Mode: 12W @ 48V
Passive PoE Voltage Range: Depends on Power Source
Power Method: (1) DC 48V, Max. 1.25A, (1) PoE Input, 802.3 af/at (Pins +1, 2; -3, 6)
Supported Voltage Range: DC: 48V; 48V Mode: 56V to 40V
Power Supply: External AC/DC Adapter, 48V, 0.5A
LEDs: PoE (Port 8), Speed/Link/Activity (All Ports)
Sound Level: 0.7 dBr (background noise level: 27.5 dBa), (Fanless)
Networking Interfaces: (8) 10/100/1000 Mbps RJ45 Ports
PoE In Interface (Port 1):
   PoE Mode 1: 802.3af/at (Pins +1, 2; -3, 6)
   PoE Mode 2: 48V (2-Pair Pins +4, 5; -7, 8)
PoE Out Interface (Port 8)
   PoE Mode 1: 48V (Pins +1, 2; -3, 6)
   PoE Mode 2: Passive 48V
   (2-Pair Pins +4, 5; -7, 8)
   DC Input Mode: DC Passthrough
   (Pins +1, 2; -3, 6)
Management Interface: Ethernet In-Band Management
ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature: -5 to 45° C (23 to 113° F)
Operating Humidity: 5 to 95% Noncondensing
Shock and Vibration: ETSI300-019-1.4 Standard
Certifications: CE, FCC, IC
