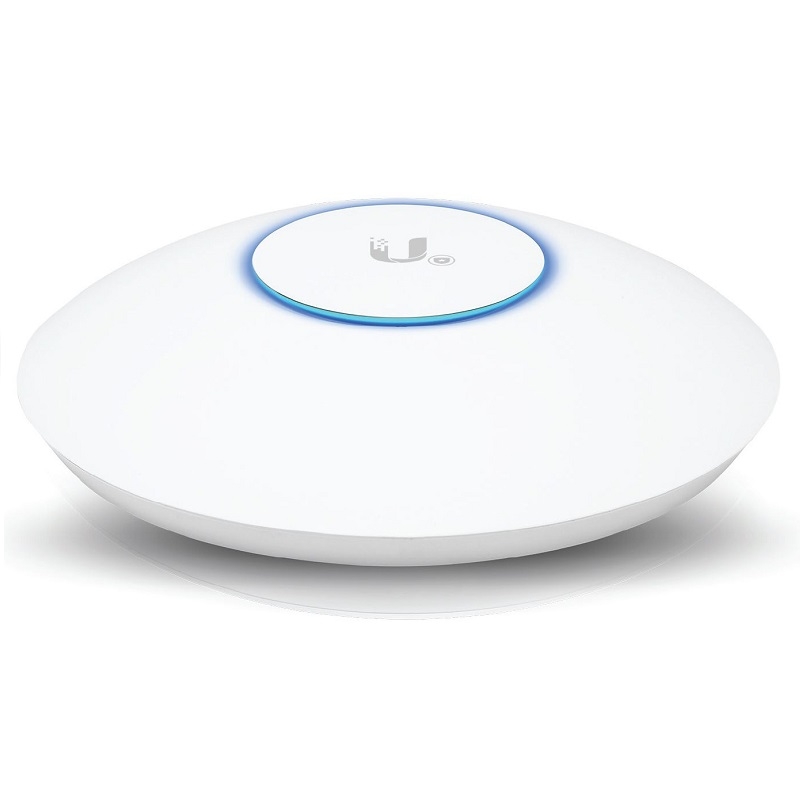

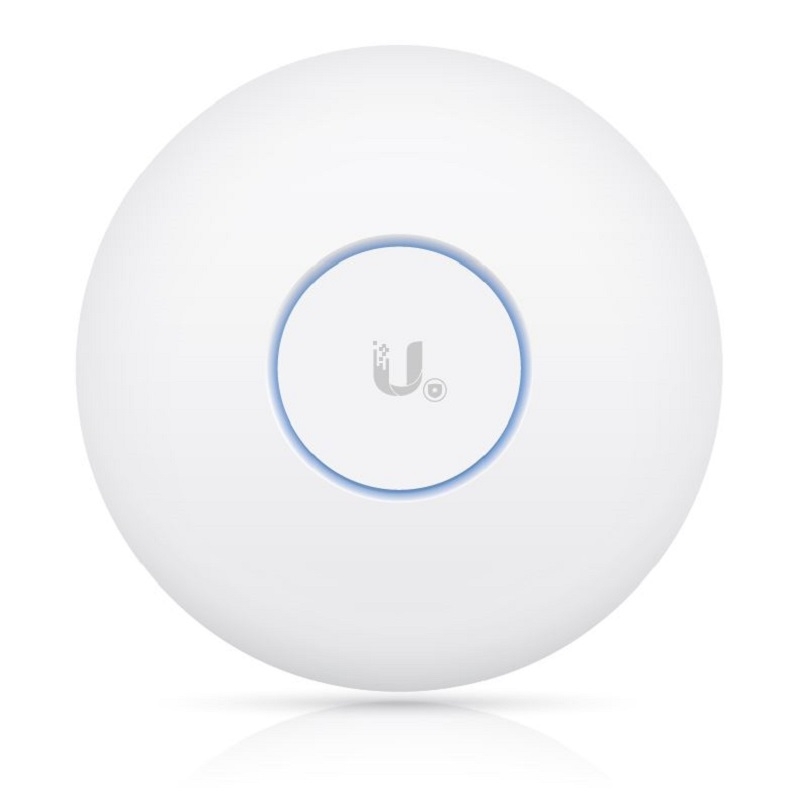

UBIQUITI UniFi SHD 802.11ac Wave 2 Enterprise Access Point with Dedicated Security Radio (UAP-AC-SHD)

Kodas: UAP-AC-SHD
ID: #1461

UBIQUITI indoor/outdoor UniFi AC SHD, 1733 Mbps (5 GHz) + 800 Mbps (2.4 GHz), 802.11ac Wave 2 MU‑MIMO (Multi‑User, Multiple Input, Multiple Output) technology, 2 x Gbit LAN, 500+ concurrent clients, single pack

Kaina be PVM: Kaina su PVM (21%): Kainos lygis, kai užsakymo suma:
323.50€ 391.44€ >0€
>100€
>300€
Kiekis:
  Turime sandėlyje


Produkto savybės:

• Simultaneous Dual-Band 4x4 Multi-User MIMO
• Dedicated Security Radio with Persistent Threat Management
• Real-Time Spectrum and airTime™ Utilization Engine

Real-time visibility into your RF spectrum

Real-time analysis of all of your available RF channels - with no performance impact or client disruption

Real‑time visibility into everything affecting your Wi‑Fi performance

Real-time analysis of all SSIDs, stations, data types, and interference - with no performance impact or client disruption

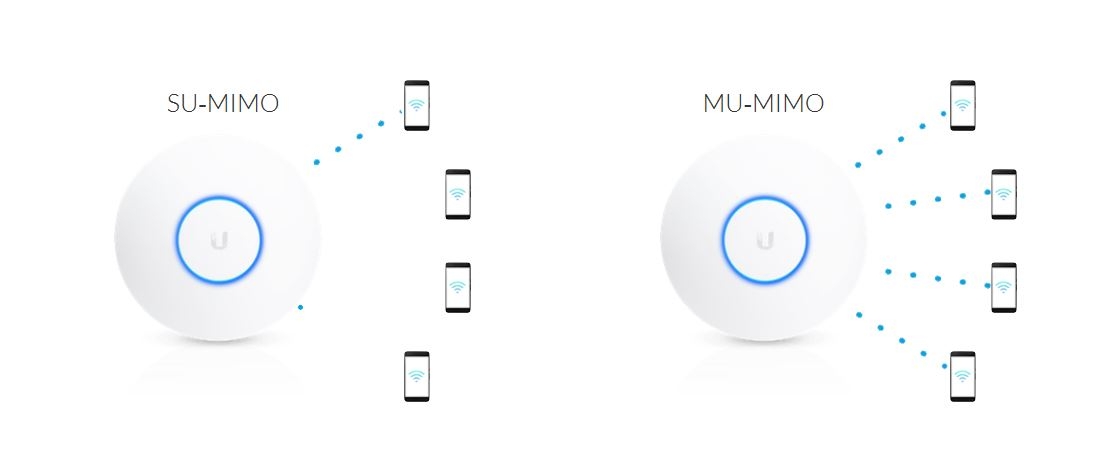

High‑Density Applications Powered by MU‑MIMO Technology

802.11ac Wave 2 MU‑MIMO (Multi‑User, Multiple Input, Multiple Output) technology allows a Wave 2 AP to communicate with multiple clients at the same time – significantly increasing multi‑user throughput and overall user experience.

Radio Hardware Acceleration Independent 2.4 GHz and 5 GHz dedicated hardware offload for maximized multi‑user throughput and reduced latency
CPU Hardware Acceleration
Dedicated hardware offload for QoS, guest control, and client management
Optimized for MU‑MIMO
Antenna system optimized for 802.11ac Wave 2 MU‑MIMO beamforming
Beamforming
Data sent and received using multiple antennas to increase throughput and range

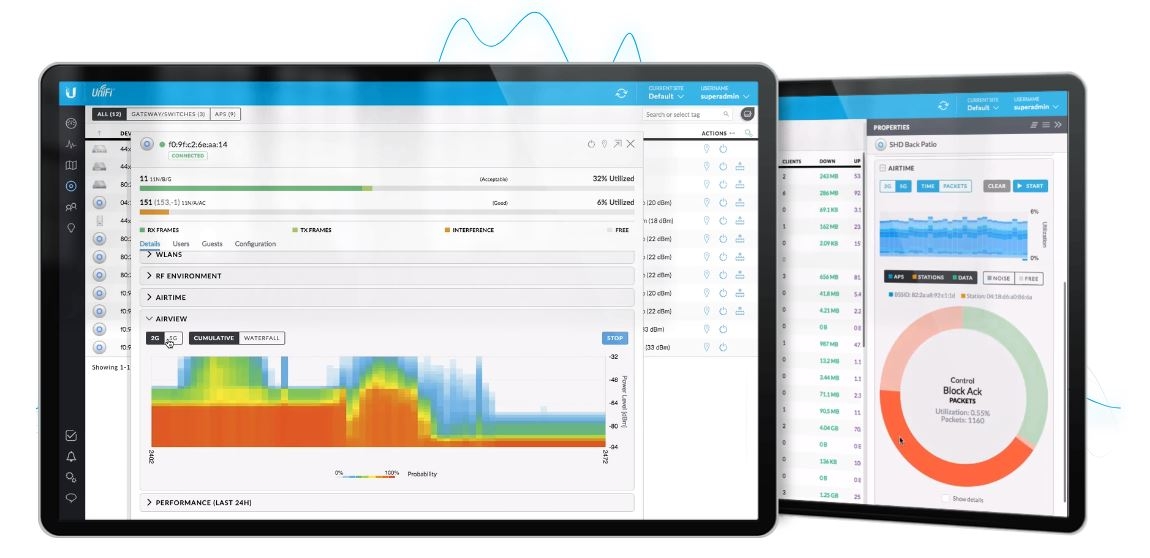

Realtime Spectral Analysis
Real‑time collection and analysis of full‑band 5 GHz and 2.4 GHz interference
Hardware WIPS
Dedicated Wireless Intrusion Prevention System (WIPS) security radio and processor for ultimate security, protection, and network awareness



Advanced Features in UniFi Controller

UniFi is the premiere Software Defined Networking (SDN) solution with seamless integration of high‑performance switching, gateways, and more.

Devices showcase

Produkto specifikacijos:

Dimensions: 220 x 220 x 48.1 mm (8.66 x 8.66 x 1.89")
Weight: 700 g (1.54 lb) (830 g (1.83 lb) with Mounting Kit)
Networking Interface: (2) 10/100/1000 Ethernet Ports
Buttons: Reset
Power Method: PoE+ 802.3at
Power Supply: UniFi Switch (PoE)
Power Save: Supported
Max. Power Consumption: 20W
Operating Frequency 2.4 GHz and 5 GHz
Max. TX Power:
2.4 GHz - 25 dBm
5 GHz - 25 dBm
Antennas:
2.4 GHz (2) Dual-Polarity
5 GHz (2) Dual-Polarity
Antenna Gain
2.4 GHz - 6 dBi
5 GHz - 6 dBi
Wi-Fi Standards: 802.11 a/b/g/n/ac/ac-wave2
Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID: Up to 8 per Radio

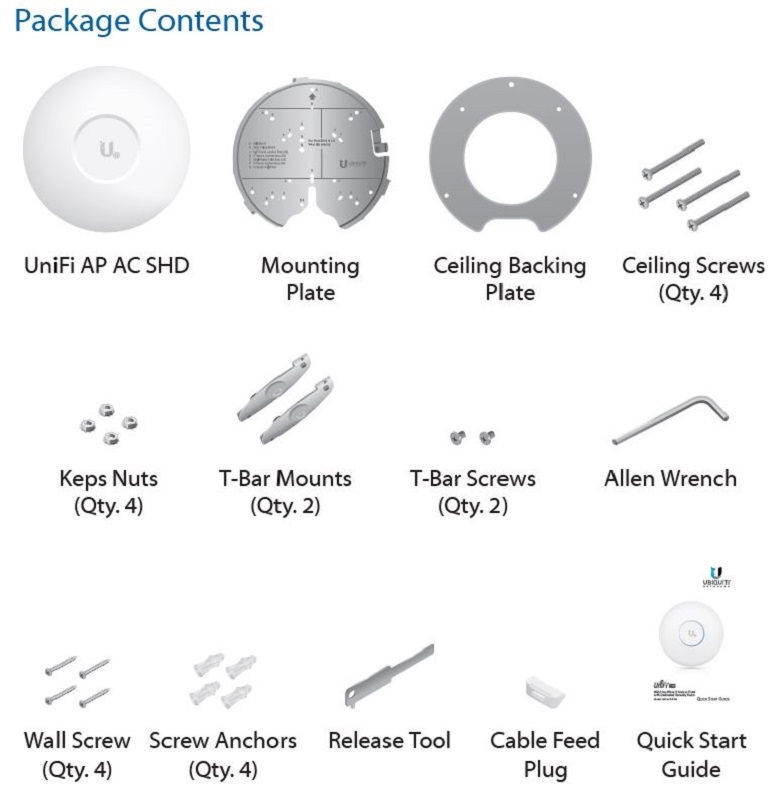

Mounting: Wall/Ceiling/Junction Box (Kits Included)
Operating Temperature: -10 to 70° C (14 to 158° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC

Advanced Traffic Management

VLAN: 802.1Q
Advanced QoS: Per-User Rate Limiting
Guest Traffic Isolation: Supported
WMM: Voice, Video, Best Effort, and Background
Concurrent Clients: 500+

Supported Data Rates (Mbps)

802.11a - 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n - 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11ac - 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
802.11b - 1, 2, 5.5, 11 Mbps
802.11g - 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Papildoma informacija apie produktą:

Datasheet
Quick Start Guide
Mounting Template
Link to manufacturer product page
