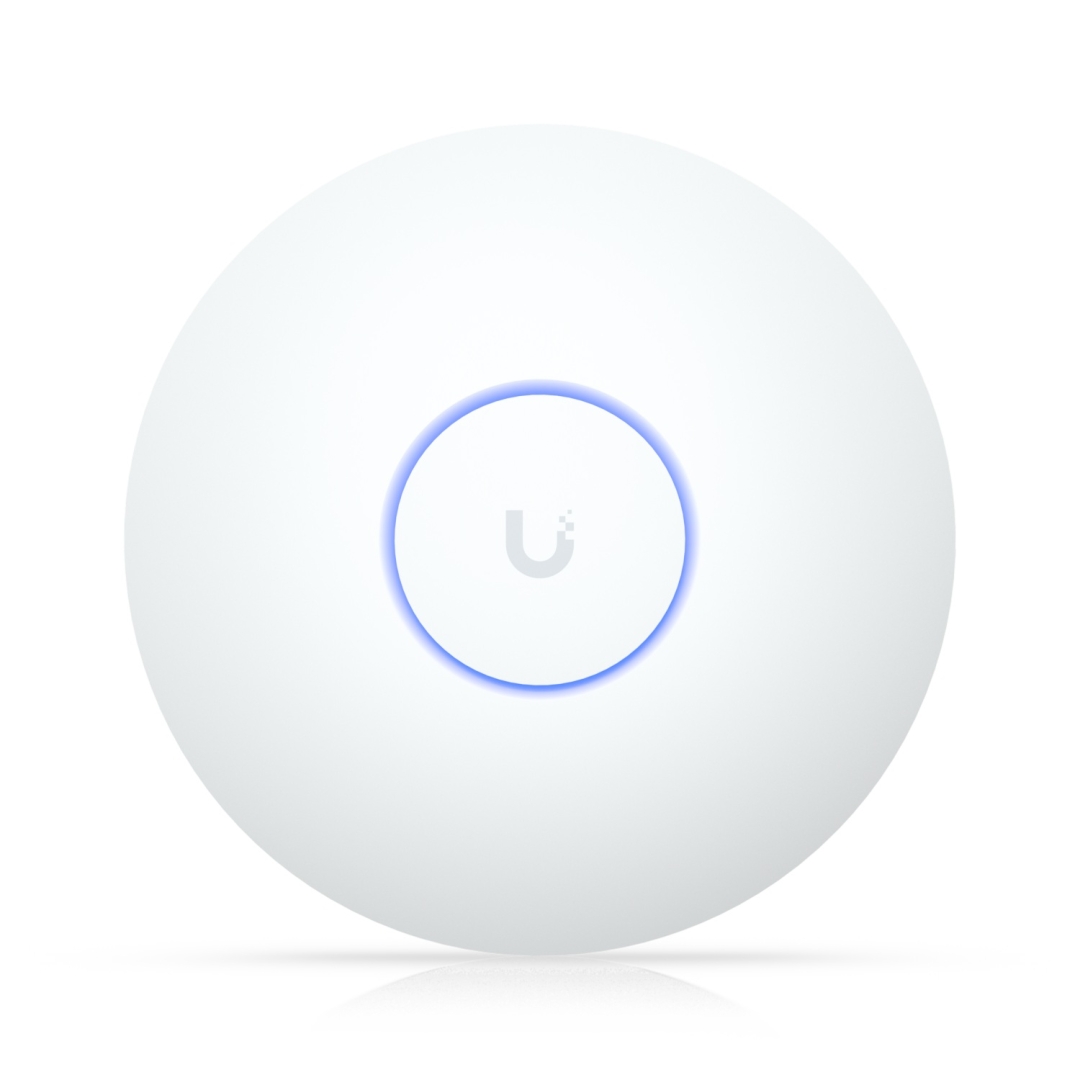

UBIQUITI UniFi WiFi 7 Access Point U7 Long-Range (U7-LR)

Produkto savybės:

WiFi 7 Performance
The UniFi U7 Long-Range (U7-LR) is a high-performance tri-band access point powered by the latest WiFi 7 (802.11be) technology. Designed for next-generation wireless connectivity, the U7-LR delivers ultra-fast speeds and exceptional capacity, ideal for dense environments and bandwidth-intensive applications. It operates across 2.4 GHz, 5 GHz, and 6 GHz bands, enabling aggregate throughput of up to 9.3 Gbps. The 6 GHz band unlocks additional spectrum for less interference and greater performance. With support for Multi-Link Operation (MLO), the U7-LR allows devices to transmit across multiple bands simultaneously, ensuring low-latency, high-speed connections. The access point is powered via 802.3at PoE+, offering maximum deployment flexibility. U7-LR supports up to 600+ concurrent clients, making it a future-proof solution for enterprise, campus, or advanced smart home networks.

Long-Range Coverage
Engineered for extended coverage, the UniFi U7-LR features a high-gain antenna array that provides exceptional range and signal strength. It is capable of blanketing large areas with fast and stable WiFi, making it perfect for open office spaces, schools, warehouses, and public venues. The unit is designed with beamforming, MU-MIMO and OFDMA technologies to improve signal clarity, especially in high-density client environments. The access point is equipped with one 2.5 Gigabit Ethernet port, enabling high-speed wired backhaul or uplink to other networking devices. Its IP54-rated enclosure ensures resistance to dust and light splashes, making it suitable for semi-outdoor installations under eaves or sheltered areas. The compact, minimalist design allows for unobtrusive ceiling or wall mounting while maintaining optimal signal propagation across long distances.

Seamless UniFi Integration
The U7 Long-Range access point is fully managed through the UniFi Network Controller or UniFi Cloud Portal, offering an intuitive interface for centralized configuration, monitoring, and firmware management. IT administrators benefit from features like zero-touch provisioning, traffic analytics, VLAN support, and guest portal setup. You can easily manage user access, define SSIDs per frequency band, and monitor real-time traffic with detailed client-level insights. The U7-LR also supports advanced QoS policies, which prioritize latency-sensitive applications such as VoIP and video conferencing. With WiFi 7's enhanced spectral efficiency and the proven reliability of UniFi software, this access point provides a scalable, secure, and easy-to-manage wireless solution for growing network demands.

Produkto specifikacijos:

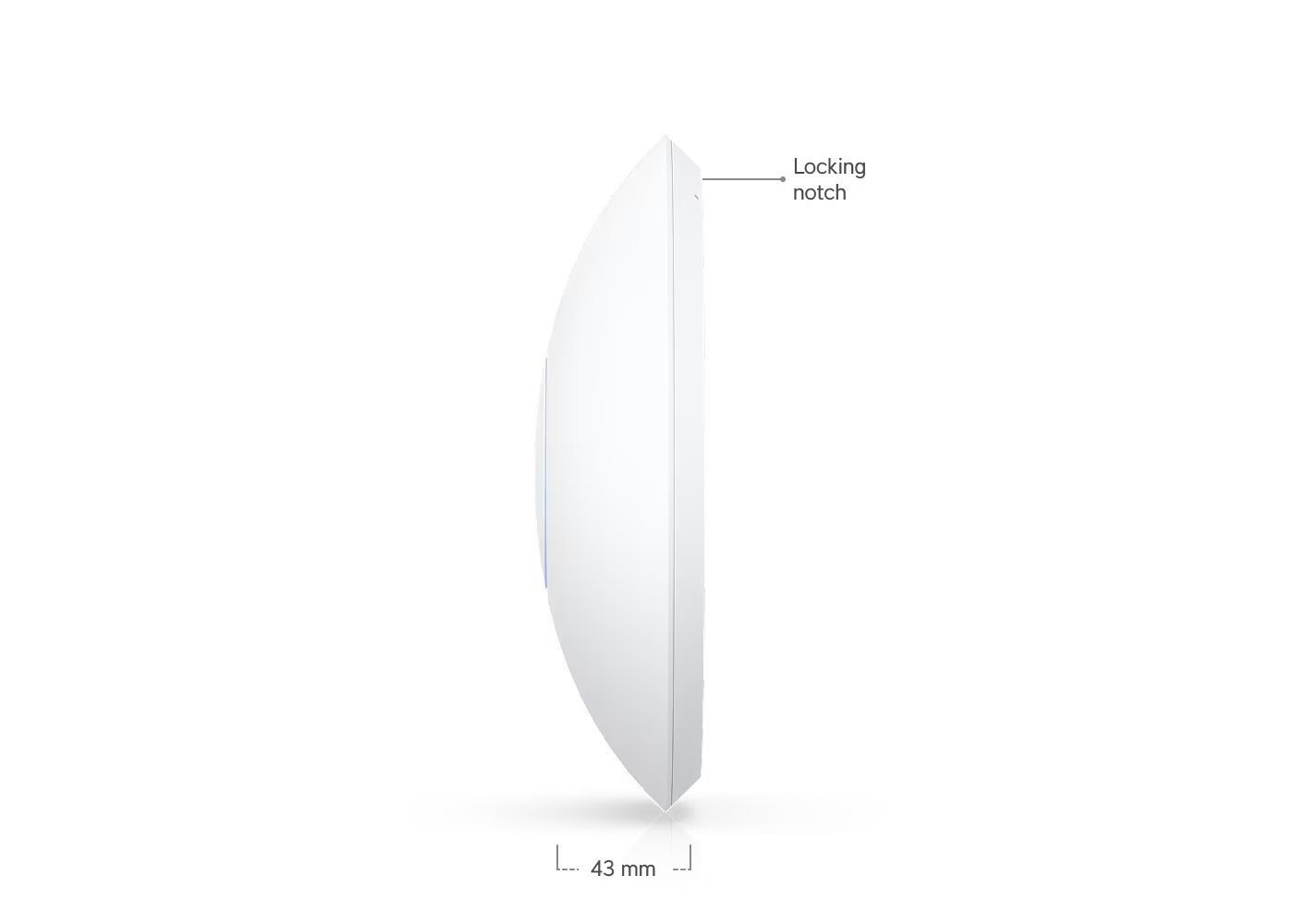

Dimensions: Ø175.7 x 43 mm (Ø6.9 x 1.7")
WiFi Standard: WiFi 7
Spatial Streams: 5
Coverage Area: 160 m² (1,750 ft²)
Max. Client Count: 300+
Uplink: 2.5 GbE

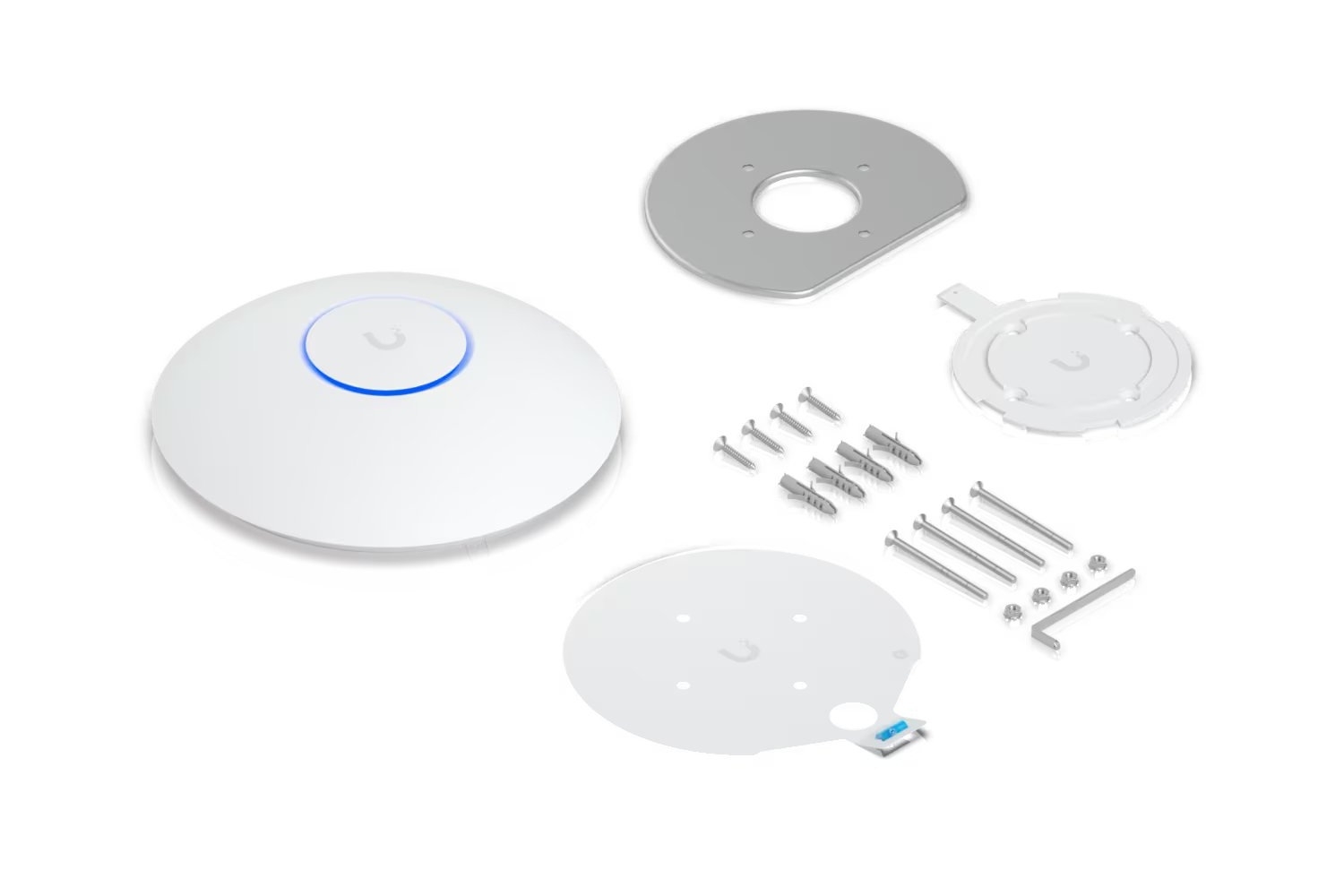

Mounting: Ceiling, Wall (Plastic Mounting Plate included)
Power Method: PoE

Performance

MIMO:
    5 GHz: 3 x 3 (DL/UL MU-MIMO)
    2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate:
    5 GHz: 4.3 Gbps (BW160)
    2.4 GHz: 688 Mbps (BW40)
Antenna Gain:
    5 GHz: 6 dBi
    2.4 GHz: 4 dBi
Max. TX Power:
    5 GHz: 27 dBm
    2.4 GHz: 26 dBm
Supported Data Rates:
    802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160)
    802.11ax (WiFi 6): 7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160)
    802.11ac (WiFi 5): 6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160)
    802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS23 , HT 20/40)

Features

Wireless Meshing: ✓
Band Steering: ✓
802.11v BSS Transition Management: ✓
802.11r Fast Roaming: ✓
802.11k Radio Resource Management (RRM): ✓
Advanced Radio Management: ✓
Passpoint (Hotspot 2.0): ✓
Captive Hotspot Portal:
    Custom Branding Landing Page: ✓
    Voucher Authentication: ✓
    Payment-Based Authentication: ✓
    External Portal Server Support: ✓
    Password Authentication: ✓
    Guest Network Isolation: ✓

Private Pre-Shared Key (PPSK): ✓
WiFi Speed Limiting: ✓
Client Device Isolation: ✓
WiFi Schedules: ✓
RADIUS over TLS (RadSec): ✓
Dynamic RADIUS-assigned VLAN: ✓

Hardware

Max. Power Consumption: 14W
Supported Voltage Range: 42.5—57V DC

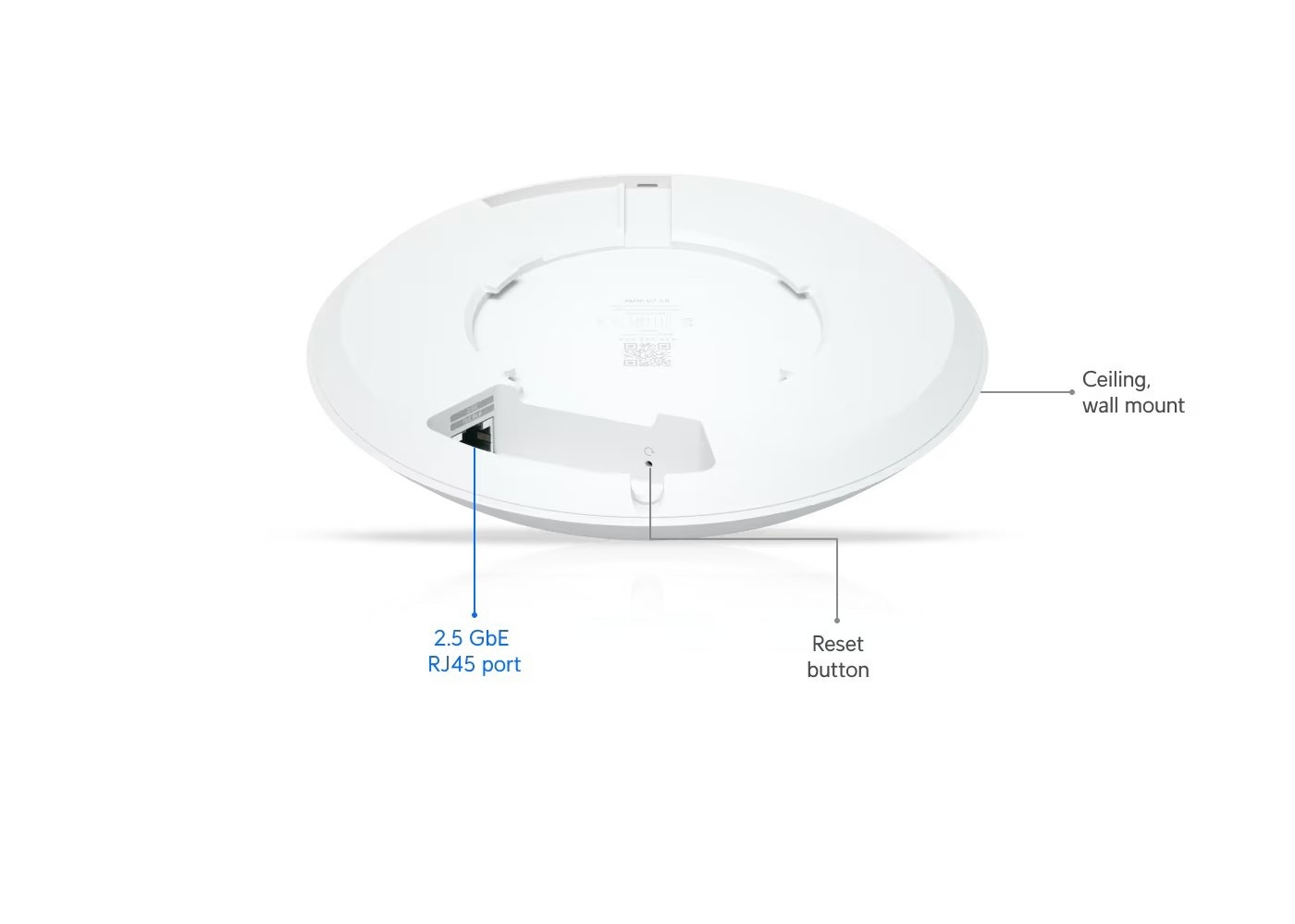

Networking Interface: (1) 2.5 GbE RJ45 port
Weight: 448 g (15.8 oz)
Management: Ethernet
Enclosure Material: Polycarbonate, aluminum alloy
Mount Material: Polycarbonate, galvanized steel (SGCC)
LEDs:
    System: White/Blue
Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)
NDAA Compliant: Yes
Certifications: CE, FCC, IC
Ambient Operating Temperature: -30 to 50° C (-22 to 122° F)
Ambient Operating Humidity: 5 to 95% noncondensing

Software

Application Requirements:
    UniFi Network: Version 9.1.120 and later
    Mobile App: iOS™ version 10.20.2 and later Android™ version 10.21.7 and later
