UBIQUITI UniFi WiFi 7 Access Point U7 Pro XG (U7-Pro-XG)

Produkto savybės:

Advanced Wi-Fi 7 Performance
The Ubiquiti U7 Pro XG is engineered to deliver cutting-edge wireless connectivity by leveraging Wi-Fi 7 (802.11be) technology. This access point operates across the 2.4 GHz, 5 GHz, and 6 GHz frequency bands, each utilizing a 2x2 (DL/UL MU-MIMO) configuration. U7 Pro XG achieves maximum data rates of 688 Mbps on the 2.4 GHz band, 4.3 Gbps on the 5 GHz band, and 5.8 Gbps on the 6 GHz band. The device supports channel bandwidths up to 320 MHz, facilitating high-throughput data transmission. With a coverage area of approximately 140 m² and the capacity to handle over 300 concurrent clients, the U7 Pro XG is well-suited for high-density environments requiring robust and reliable wireless performance.

Robust Hardware and Design
Constructed with durability and efficiency in mind, the U7 Pro XG features a compact design measuring Ø206 x 32.5 mm and weighing 750 grams. Its enclosure is made from UV-stabilized polycarbonate and aluminum alloy, ensuring resilience in various environmental conditions. The access point is equipped with internal antennas offering gains of 4 dBi for 2.4 GHz, 5 dBi for 5 GHz, and 6 dBi for 6 GHz bands. It supports maximum transmit power levels of 23 dBm for 2.4 GHz, 26 dBm for 5 GHz, and 24 dBm for 6 GHz, ensuring extensive coverage. The device operates efficiently within an ambient temperature range of -30 to 40°C and humidity levels between 5% to 95% non-condensing, making it suitable for diverse deployment scenarios.

Enhanced Management
The U7 Pro XG is equipped with a single 10 GbE RJ45 port, providing high-speed wired connectivity that aligns with its advanced wireless capabilities. It supports Power over Ethernet (PoE+) with a maximum power consumption of 22W, simplifying installation by transmitting power and data through a single Ethernet cable. The access point integrates seamlessly with Ubiquiti's UniFi Network platform, offering centralized management and monitoring. Advanced features include wireless meshing, band steering, 802.11r fast roaming, and guest network isolation, enhancing network efficiency and security. The device also supports up to 8 BSSIDs per radio and offers advanced Quality of Service (QoS) settings, allowing for granular control over network traffic to ensure optimal performance for critical applications.

Produkto specifikacijos:

Dimensions: Ø206 x 32.5 mm (Ø8.1 x 1.3")
WiFi Standard: WiFi 7
Spatial Streams: 6
Coverage Area: 140 m² (1,500 ft²)
Max. Client Count: 300+
Uplink: 10 GbE

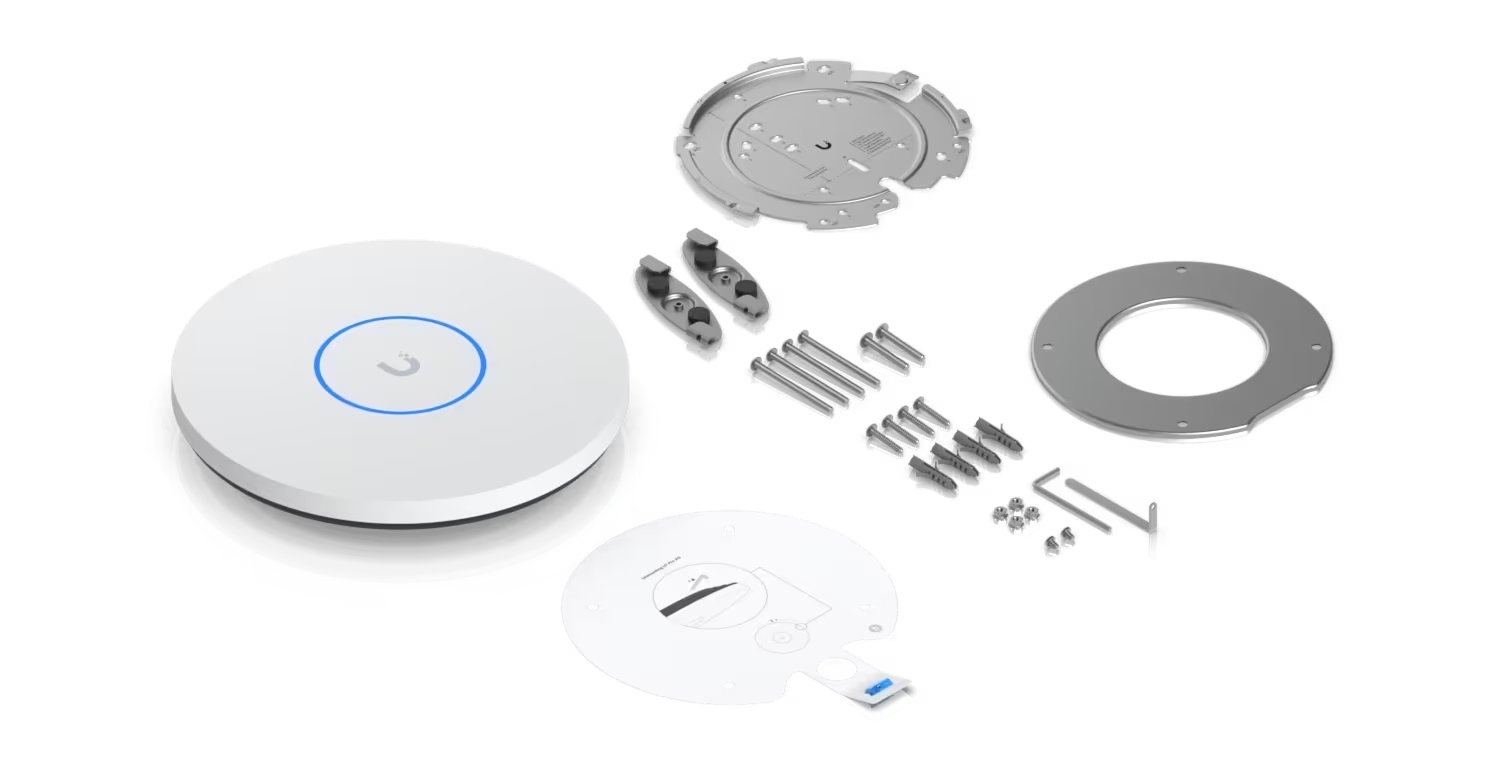

Mounting: Ceiling, Wall (Lite Mount Included)
Power Method: PoE+

Performance

MIMO:
    6 GHz: 2 x 2 (DL/UL MU-MIMO)
    5 GHz: 2 x 2 (DL/UL MU-MIMO)
    2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate:
    6 GHz: 5.8 Gbps (BW320)
    5 GHz: 4.3 Gbps (BW240)
    2.4 GHz: 688 Mbps (BW40)
Antenna Gain:
    6 GHz: 6 dBi
    5 GHz: 5 dBi
    2.4 GHz: 4 dBi
Max. TX Power:
    6 GHz: 24 dBm
    5 GHz: 26 dBm
    2.4 GHz: 23 dBm
Max. BSSIDs: 8 per Radio
Supported Data Rates:
    802.11be (WiFi 7):
        6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
        5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
    802.11ax (WiFi 6):
        7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
    802.11ac (WiFi 5):
        6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
    802.11n:
        6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features

Wireless Meshing: Yes
Band Steering: Yes
802.11v BSS Transition Management: Yes
802.11r Fast Roaming: Yes
802.11k Radio Resource Management (RRM): Yes
Advanced Radio Management: Yes
Passpoint (Hotspot 2.0): Yes
Captive Hotspot Portal:
    Custom Branding Landing Page: Yes
    Voucher Authentication: Yes
    Payment-Based Authentication: Yes
    External Portal Server Support: Yes
    Password Authentication: Yes
    Guest Network Isolation: Yes
Private Pre-Shared Key (PPSK): Yes
WiFi Speed Limiting: Yes
Client Device Isolation: Yes
WiFi Schedules: Yes
RADIUS over TLS (RadSec): Yes
Dynamic RADIUS-assigned VLAN: Yes
Max. Power Consumption: 22W
Supported Voltage Range: 42.5—57V DC
Networking Interface: (1) 10 GbE RJ45 port
Weight: 750 g (1.7 lb)
Management: Ethernet
Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
LEDs:
    System: White/Blue
Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
Certifications: CE, FCC, IC
NDAA Compliant: Yes
Ambient Operating Temperature: -30 to 40° C (-22 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing

Software

Application Requirements:
    UniFi Network: Version 9.0.114 and later
