UBIQUITI UniFi WiFi 7 Access Point U7 Pro XGS (U7-Pro-XGS)

Produkto savybės:

Cutting-Edge Wi-Fi 7 Capabilities
The Ubiquiti UniFi U7 Pro XGS access point leverages Wi-Fi 7 (802.11be) technology to deliver exceptional wireless performance across diverse environments. It operates on the 2.4 GHz, 5 GHz, and 6 GHz frequency bands, employing a 2x2 (DL/UL MU-MIMO) configuration for 2.4 GHz and 6 GHz, and an enhanced 4x4 (DL/UL MU-MIMO) setup for the 5 GHz band. This design facilitates maximum data rates of 688 Mbps on 2.4 GHz, 8.6 Gbps on 5 GHz, and 5.8 Gbps on 6 GHz, ensuring high-throughput connectivity for bandwidth-intensive applications. The device supports channel bandwidths up to 320 MHz, optimizing spectrum utilization and minimizing latency. With the capacity to manage over 500 concurrent clients and a coverage area of approximately 160 m², the U7 Pro XGS is well-suited for high-density deployments requiring robust and reliable wireless access. ​

Intelligent Management
The U7 Pro XGS is equipped with a 10 GbE RJ45 port, providing high-speed wired connectivity that aligns with its advanced wireless capabilities. It supports Power over Ethernet (PoE++) with a maximum power consumption of 29W, simplifying installation by transmitting power and data through a single Ethernet cable. The access point integrates seamlessly with Ubiquiti's UniFi Network platform, offering centralized management and monitoring. Advanced features include wireless meshing, band steering, 802.11r fast roaming, and guest network isolation, enhancing network efficiency and security. The device also supports up to 8 BSSIDs per radio and offers advanced Quality of Service (QoS) settings, allowing for granular control over network traffic to ensure optimal performance for critical applications.

Optimized Design
Constructed with durability and efficiency in mind, the U7 Pro XGS features a compact design measuring Ø215 x 32.5 mm and weighing 800 grams. Its enclosure is composed of UV-stabilized polycarbonate and aluminum alloy, ensuring resilience in various environmental conditions. The access point is equipped with internal antennas offering gains of 4 dBi for 2.4 GHz and 6 dBi for both 5 GHz and 6 GHz bands. It supports maximum transmit power levels of 23 dBm for 2.4 GHz, 29 dBm for 5 GHz, and 24 dBm for 6 GHz, ensuring extensive coverage. The device operates efficiently within an ambient temperature range of -30 to 40°C and humidity levels between 5% to 95% non-condensing, making it suitable for diverse deployment scenarios.

Produkto specifikacijos:

Dimensions: Ø215 x 32.5 mm (Ø8.5 x 1.3")
WiFi Standard: WiFi 7
Spatial Streams: 8
Coverage Area: 160 m² (1,750 ft²)
Max. Client Count: 500+
Uplink: 10 GbE

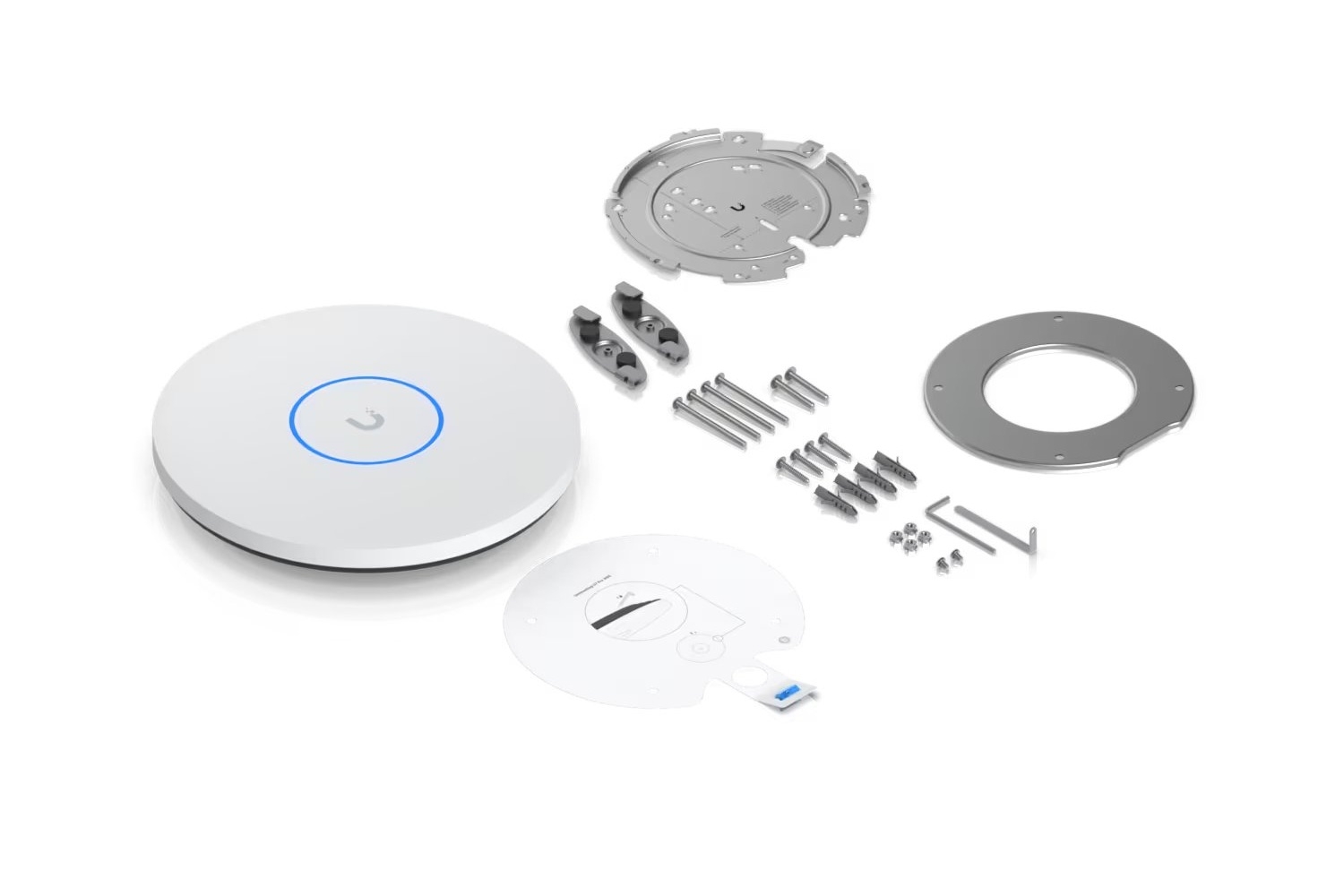

Mounting: Ceiling, Wall (Lite Mount Included)
Power Method: PoE++

Performance

MIMO:
    6 GHz: 2 x 2 (DL/UL MU-MIMO)
    5 GHz: 4 x 4 (DL/UL MU-MIMO)
    2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate:
    6 GHz: 5.8 Gbps (BW320)
    5 GHz: 8.6 Gbps (BW240)
    2.4 GHz: 688 Mbps (BW40)
Antenna Gain:
    6 GHz: 6 dBi
    5 GHz: 6 dBi
    2.4 GHz: 4 dBi
Max. TX Power:
    6 GHz: 24 dBm
    5 GHz: 29 dBm
    2.4 GHz: 23 dBm
Max. BSSIDs: 8 per Radio
Supported Data Rates:
    802.11be (WiFi 7):
        6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
        5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
    802.11ax (WiFi 6):
        7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
    802.11ac (WiFi 5):
        6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
    802.11n:
        6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

Features

Wireless Meshing: Yes
Band Steering: Yes
802.11v BSS Transition Management: Yes
802.11r Fast Roaming: Yes
802.11k Radio Resource Management (RRM): Yes
Zero-Wait DFS: Yes
Advanced Radio Management: Yes
Real-Time Spectral Analysis: Yes
Passpoint (Hotspot 2.0): Yes
Captive Hotspot Portal:
    Custom Branding Landing Page: Yes
    Voucher Authentication: Yes
    Payment-Based Authentication: Yes
    External Portal Server Support: Yes
    Password Authentication: Yes
    Guest Network Isolation: Yes
    Private Pre-Shared Key (PPSK): Yes
    WiFi Speed Limiting: Yes
    Client Device Isolation: Yes
    WiFi Schedules: Yes
    RADIUS over TLS (RadSec): Yes
    Dynamic RADIUS-assigned VLAN: Yes

Hardware

Max. Power Consumption: 29W
Supported Voltage Range: 42.5—57V DC
Networking Interface: (1) 10 GbE RJ45 port
Weight: 800 g (1.8 lb)
Management: Ethernet
Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
LEDs:
    System: White/Blue
Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
NDAA Compliant: Yes
Certifications: CE, FCC, IC
Ambient Operating Temperature: -30 to 40° C (-22 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing

Software

Application Requirements:
    UniFi Network: Version 9.0.114 and later
