Ubiquiti Air Max 13dBi 2.4GHz DualOmni antena (AMO-2G13)

Kodas: AMO-2G13
ID: #395

Ubiquiti AMO-2G13 - DualOmni 2.4GHz, 13dBi, „Next-Gen 2x2“ dvigubo poliškumo „MIMO Omni“ antena, orui atsparūs RF kabeliai ir "Rocket M“ tvirtinimo elementas.

211.77€ su PVM

Kaina be PVM: 175.02€

Kiekis:


Produkto savybės:

The airMAX® Omni Antenna is a carrier-class 2x2 dual-polarity MIMO omnidirectional antenna designed to seamlessly integrate with Rocket radios (Rocket sold separately).

Flexibility

To support your specific application, the airMAX Omni Antenna is available in multiple frequency models:
• 2.4 GHz
• 3 GHz
• 5 GHz

Breakthrough Design

The airMAX Omni Antenna is the first of its kind to feature a patented, dual‑polarity omni design.

Omnidirectional Coverage

The airMAX Omni Antenna provides powerful 360° coverage, 2x2 MIMO performance in Line‑of‑Sight (LoS) or Non‑Line‑of‑Sight (NLoS) applications.

Durable Construction

Each airMAX Omni Antenna features a robust mechanical design for outdoor application use.

Plug and Play Integration

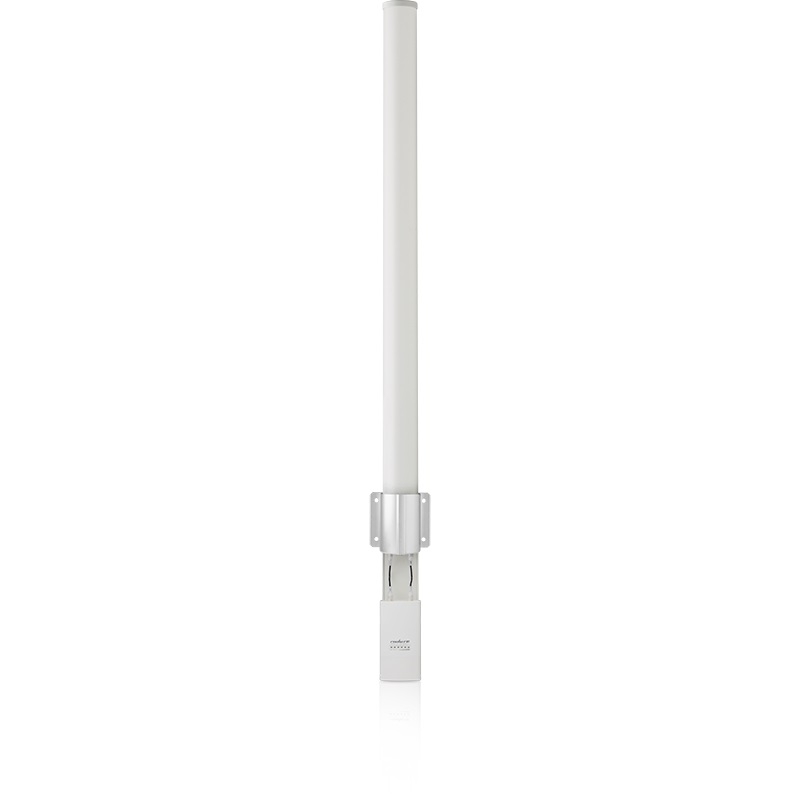

Every airMAX Omni Antenna has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna; you then have the optimal combination of Rocket radio and airMAX Omni Antenna for your application.

Pair the Rocket radio with the airMAX Omni Antenna to create a powerful omnidirectional basestation. This combination gives network architects unparalleled flexibility and convenience.

Produkto specifikacijos:

Dimensions: 1390 x 122 x 105 mm (54.72 x 4.8 x 4.13")
Weight with Mount: 2.4 kg (5.29 lb)
Frequency: 2.35 - 2.55 GHz
Gain: 13 dBi
Elevation Beamwidth: 7°
Electrical Downtilt: 2°
Max. VSWR: 1.7:1
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 111.2 N @ 200 km/h (25 lbf @ 125 mph)
Polarization: Dual Linear
Cross-Pol Isolation: 25 dB Min.
RF Connectors: 2 RP-SMA Connectors (Weatherproof )

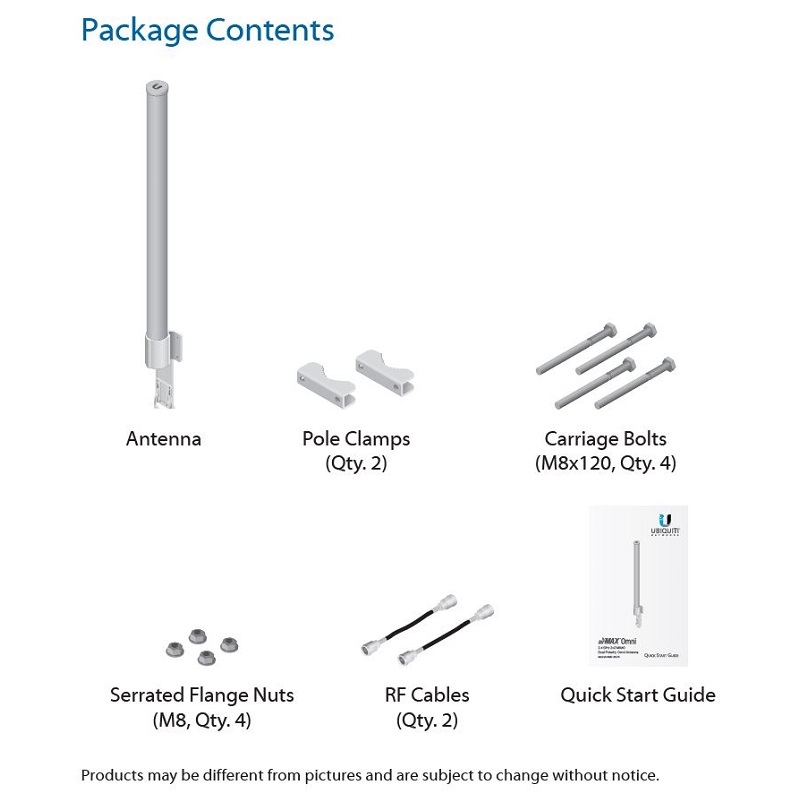

Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
ETSI Specification: EN 302 326 DN2
