Ubiquiti Air Max 10dBi 5GHz DualOmni Antenna (AMO-5G10)
Ubiquiti - AMO-5G10 - DualOmni 5GHz, 10dBi, Next-Gen 2x2 Dual Polarity MIMO Omni Antenna, Weatherproof RF Cables and Rocket M Mount Included
The airMAX® Omni Antenna is a carrier-class 2x2 dual-polarity MIMO omnidirectional antenna designed to seamlessly integrate with Rocket radios (Rocket sold separately).
To support your specific application, the airMAX Omni Antenna is available in multiple frequency models:
• 2.4 GHz
• 3 GHz
• 5 GHz
The airMAX Omni Antenna is the first of its kind to feature a patented, dual‑polarity omni design.
The airMAX Omni Antenna provides powerful 360° coverage, 2x2 MIMO performance in Line‑of‑Sight (LoS) or Non‑Line‑of‑Sight (NLoS) applications.
Each airMAX Omni Antenna features a robust mechanical design for outdoor application use.
Plug and Play Integration

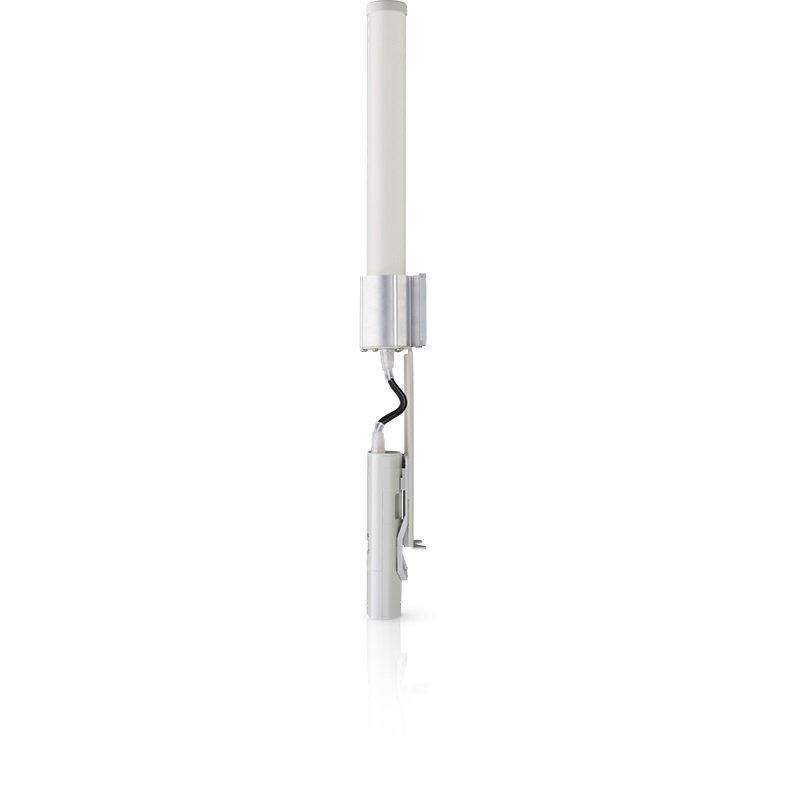

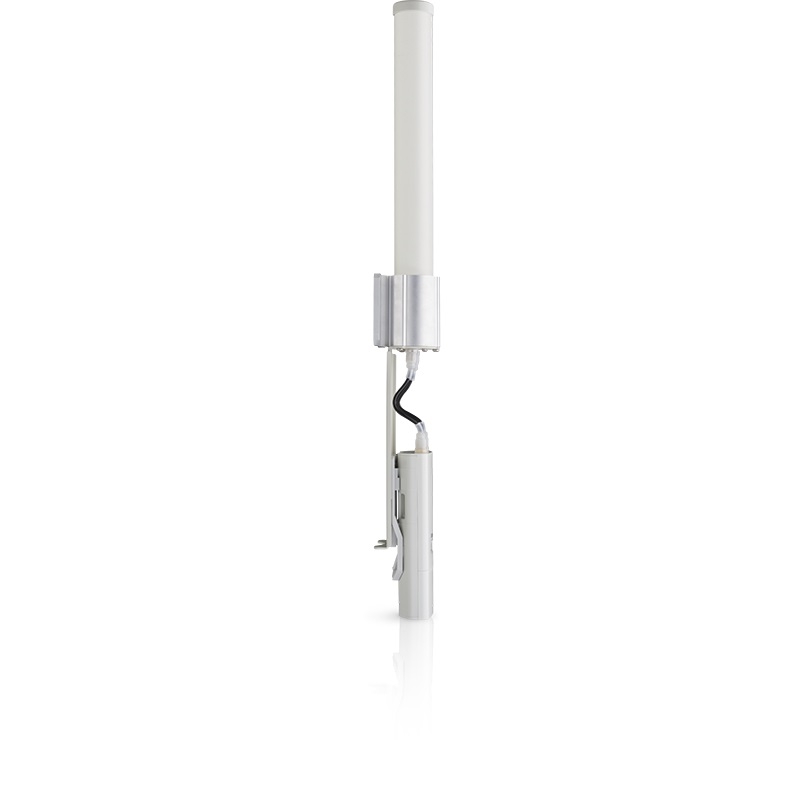

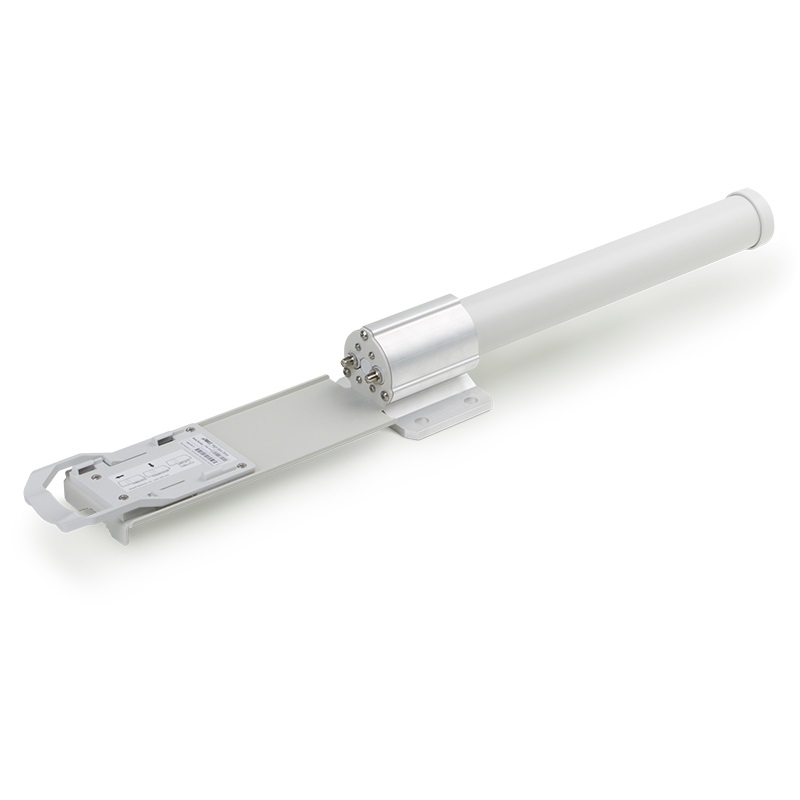

Every airMAX Omni Antenna has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna; you then have the optimal combination of Rocket radio and airMAX Omni Antenna for your application.

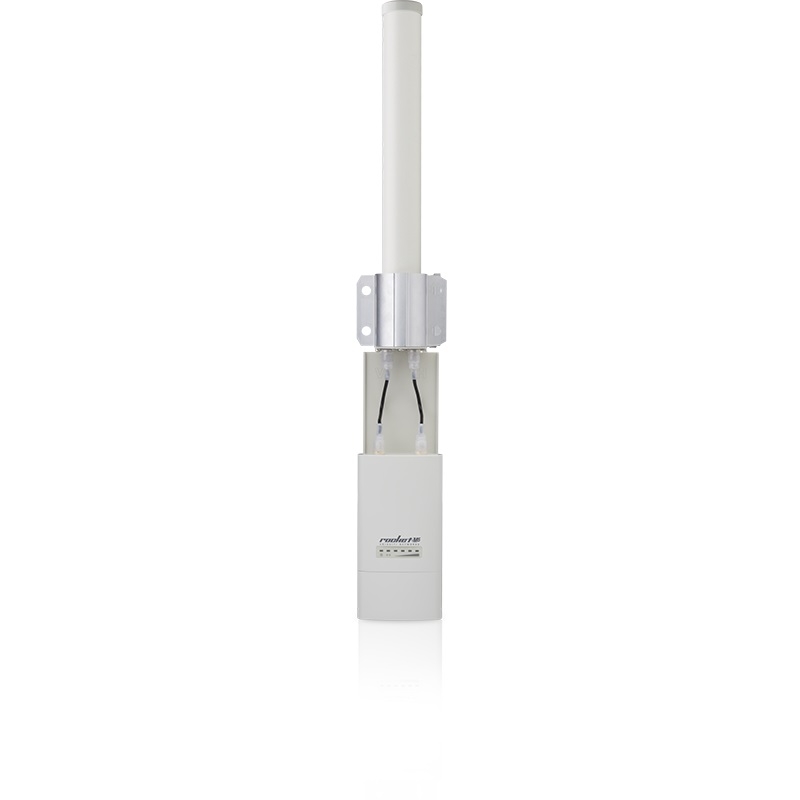

Pair the Rocket radio with the airMAX Omni Antenna to create a powerful omnidirectional basestation. This combination gives network architects unparalleled flexibility and convenience.
Dimensions: 582 x 90 x 65 mm (22.91 x 3.54 x 2.56")
Weight with Mount: 0.68 kg (1.50 lb)
Frequency: 5.45 - 5.85 GHz
Gain: 10 dBi
Elevation Beamwidth: 12°
Electrical Downtilt: 4°
Max. VSWR: 1.6:1
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 71.17 N @ 200 km/h (16 lbf @ 125 mph)
Polarization: Dual Linear
Cross-Pol Isolation: 25 dB Min.
RF Connectors: 2 RP-SMA Connectors (Weatherproof)

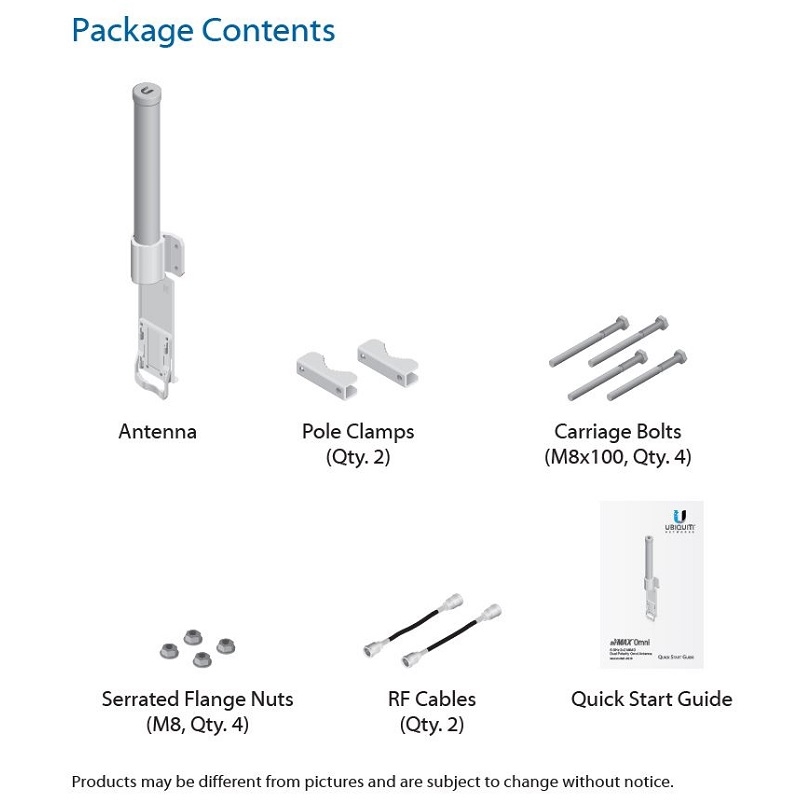

Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
ETSI Specification: EN 302 326 DN2
