UBIQUITI 3G12 AirMax 12dBi 3GHz DualOmni antena (AMO-3G12)
Ubiquiti AMO-3G12 - DualOmni 3GHz, 12dBi, „Next-Gen 2x2“ dvigubo poliškumo „MIMO Omni“ antena, orui atsparūs RF kabeliai ir "Rocket M“ tvirtinimo elementas.
The airMAX® Omni Antenna is a carrier-class 2x2 dual-polarity MIMO omnidirectional antenna designed to seamlessly integrate with Rocket radios (Rocket sold separately).
To support your specific application, the airMAX Omni Antenna is available in multiple frequency models:
• 2.4 GHz
• 3 GHz
• 5 GHz
The airMAX Omni Antenna is the first of its kind to feature a patented, dual‑polarity omni design.
The airMAX Omni Antenna provides powerful 360° coverage, 2x2 MIMO performance in Line‑of‑Sight (LoS) or Non‑Line‑of‑Sight (NLoS) applications.
Each airMAX Omni Antenna features a robust mechanical design for outdoor application use.
Plug and Play Integration
Every airMAX Omni Antenna has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna; you then have the optimal combination of Rocket radio and airMAX Omni Antenna for your application.
Pair the Rocket radio with the airMAX Omni Antenna to create a powerful omnidirectional basestation. This combination gives network architects unparalleled flexibility and convenience.
Dimensions: 1030 x 122 x 84 mm (40.55 x 4.8 x 3.31")
Weight with Mount: 2.05 kg (4.52 lb)
Frequency: 3.4 – 3.7 GHz
Gain: 12 dBi
Elevation Beamwidth: 8°
Electrical Downtilt: 4°
Max. VSWR: 1.6:1
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 111.2 N @ 200 km/h (25 lbf @ 125 mph)
Polarization: Dual Linear
Cross-Pol Isolation: 25 dB Min.
RF Connectors: 2 RP-SMA Connectors (Weatherproof)

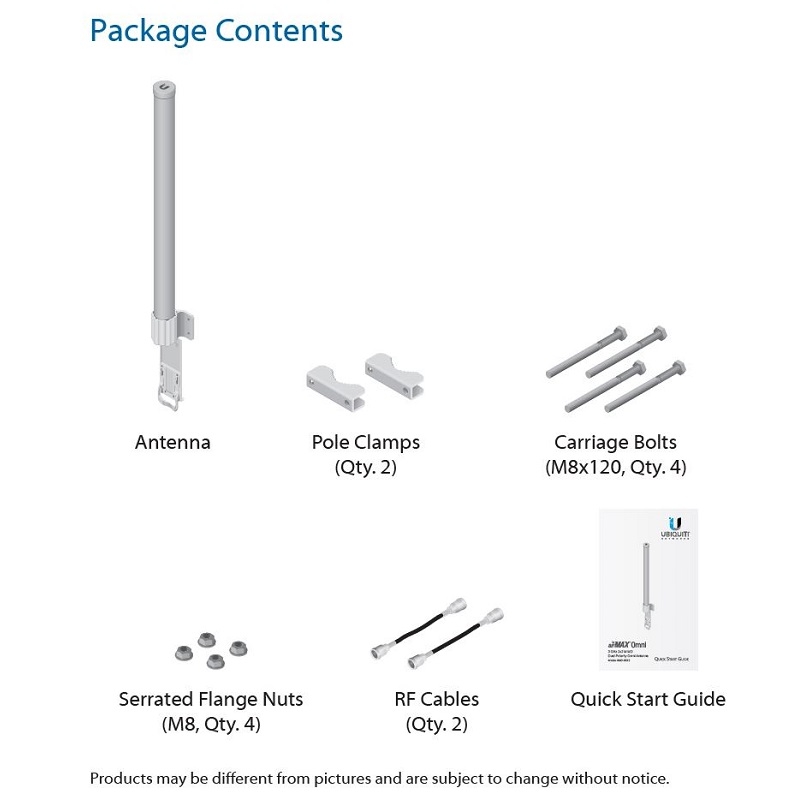

Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
ETSI Specification: EN 302 326 DN2
