Ubiquiti Air Max 16dBi 5GHz Sector Antenna (AM-5G16-120)

OEM kodas: AM-5G16-120
Kodas: AM-5G-16
ID: #257

Ubiquiti Air Max 5GHz Sector Antenna, Dual Polarization, MIMO, 16dBi, 120 degrees beamwidth, recommended for Ubiquiti Rocket M Platform.

68.93€ su PVM

Kaina be PVM: 56.97€

Kiekis:


Produkto savybės:

Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.
Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

Produkto specifikacijos:

Dimensions

367 x 63 x 41 mm
(14.45 x 2.48 x x 1.61")

Weight (Mount Included)

1.1 kg
(2.43 lb)

Frequency

5.10 - 5.85 GHz

Gain

15.0 - 16.0 dBi

HPOL Beamwidth

137° (6 dB)

VPOL Beamwidth

118° (6 dB)

Elevation Beamwidth

Electrical Downtilt

Max. VSWR

1.5:1

Wind Survivability

200 km/h
(125 mph)

Wind Loading

41.7 N @ 200 km/h
(9.375 lbf @ 125 mph)

Polarization

Dual Linear

Cross-Pol Isolation

22 dB Min.

ETSI Specification

EN 302 326 DN2

Mounting

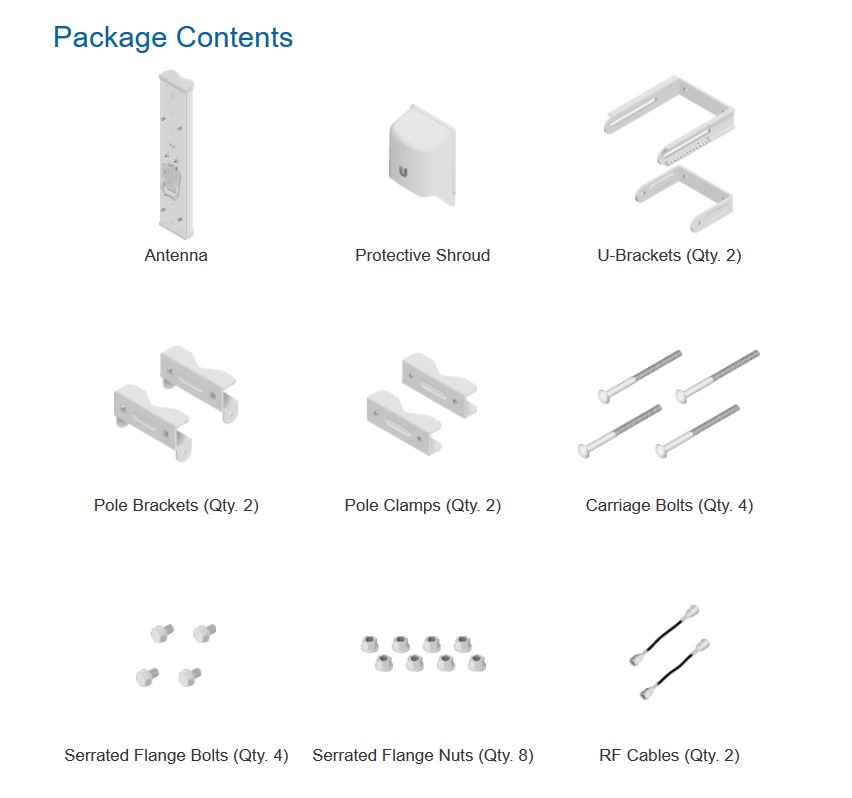

Universal Pole Mount, Rocket Bracket, and Weatherproof RF Jumpers Included
