Ubiquiti Air Max 19dBi 5GHz Sector Antenna (AM-5G19-120)

OEM kodas: AM-5G19-120
Kodas: AM-5G-19
ID: #255

Ubiquiti Air Max 5GHz Sector Antenna, Dual Polarization, MIMO, 19dBi, 120 degrees beamwidth, recommended for Ubiquiti Rocket M Platform.

115.31€ su PVM

Kaina be PVM: 95.30€


Produkto savybės:

Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.
Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

Produkto specifikacijos:



700 x 135 x 73 mm

(27.56 x 5.32 x 2.87")

Weight (Mount Included)

5.9 kg

(13 lbs)


5.15 - 5.85 GHz


18.6 - 19.1 dBi

HPOL Beamwidth

123° (6 dB)

VPOL Beamwidth

123° (6 dB)

Elevation Beamwidth

Electrical Downtilt



Wind Survivability

200 km/h

(125 mph)

Wind Loading

137.9 N @ 200 km/h

(31 lbf @ 125 mph)


Dual Linear

Cross-Pol Isolation

28 dB Min.

ETSI Specification

EN 302 326 DN2

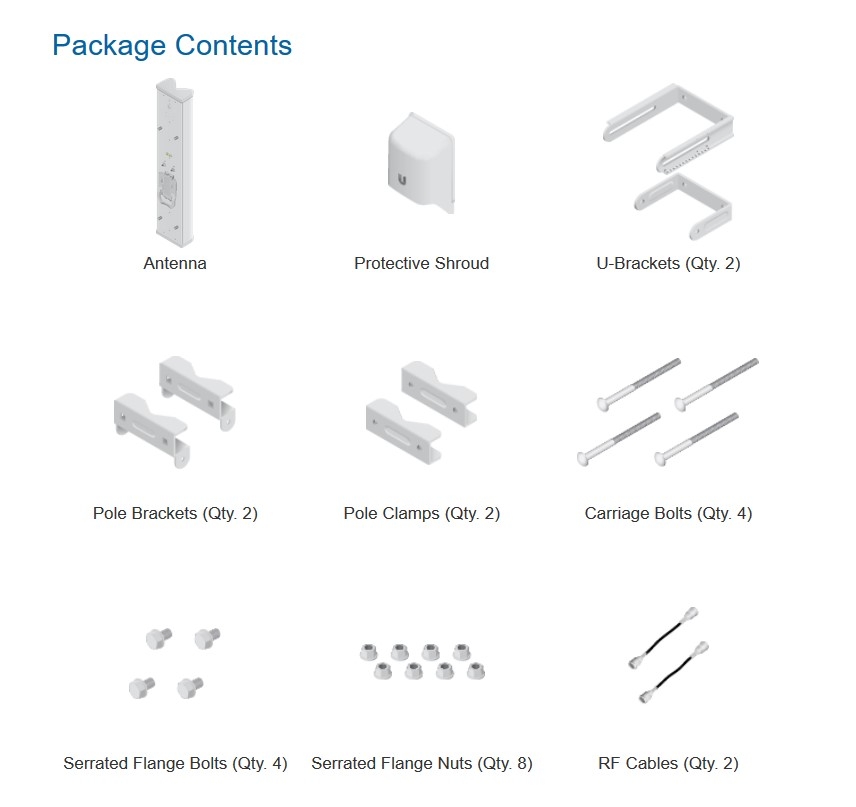

Universal Pole Mount, Rocket Bracket, and Weatherproof RF Jumpers Included
