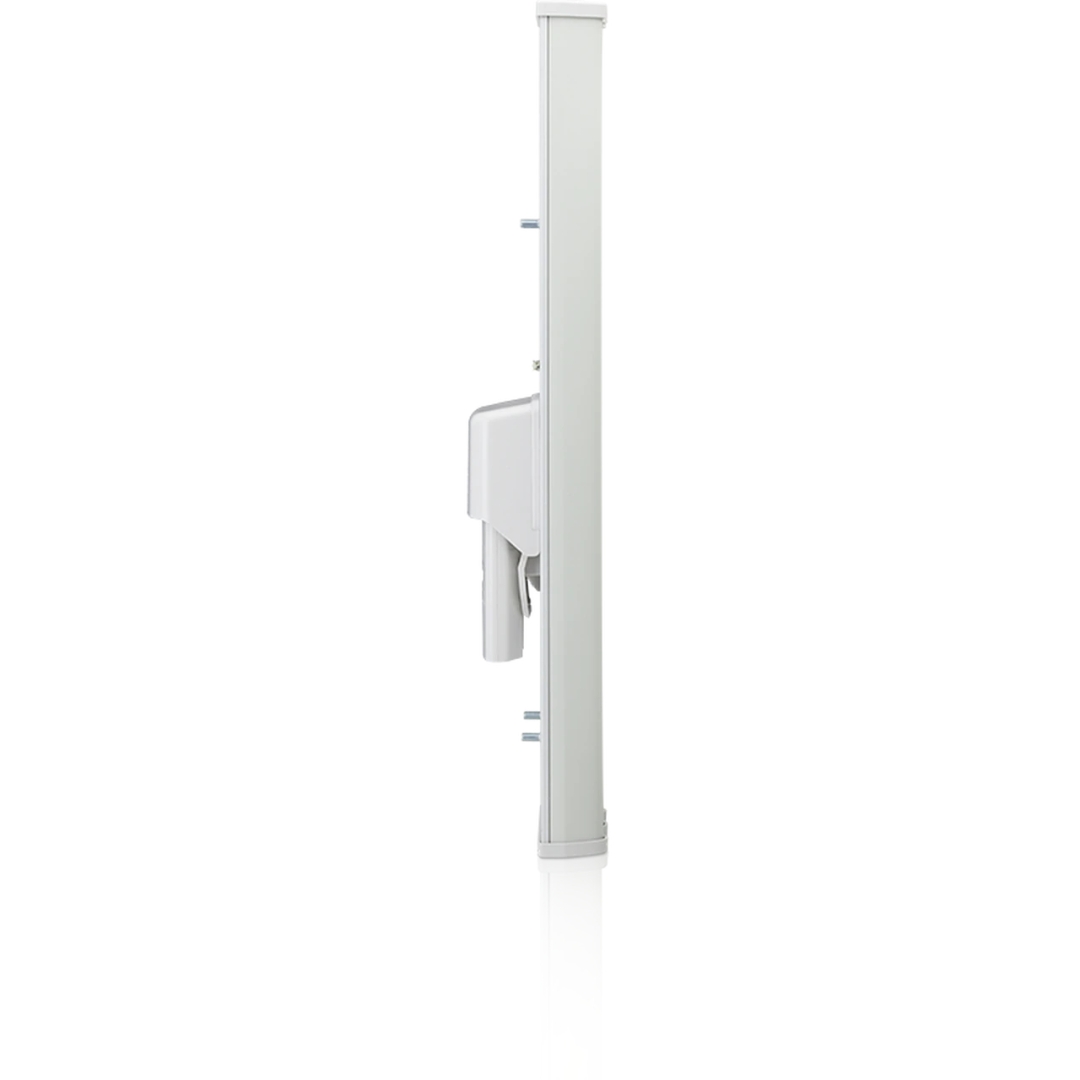

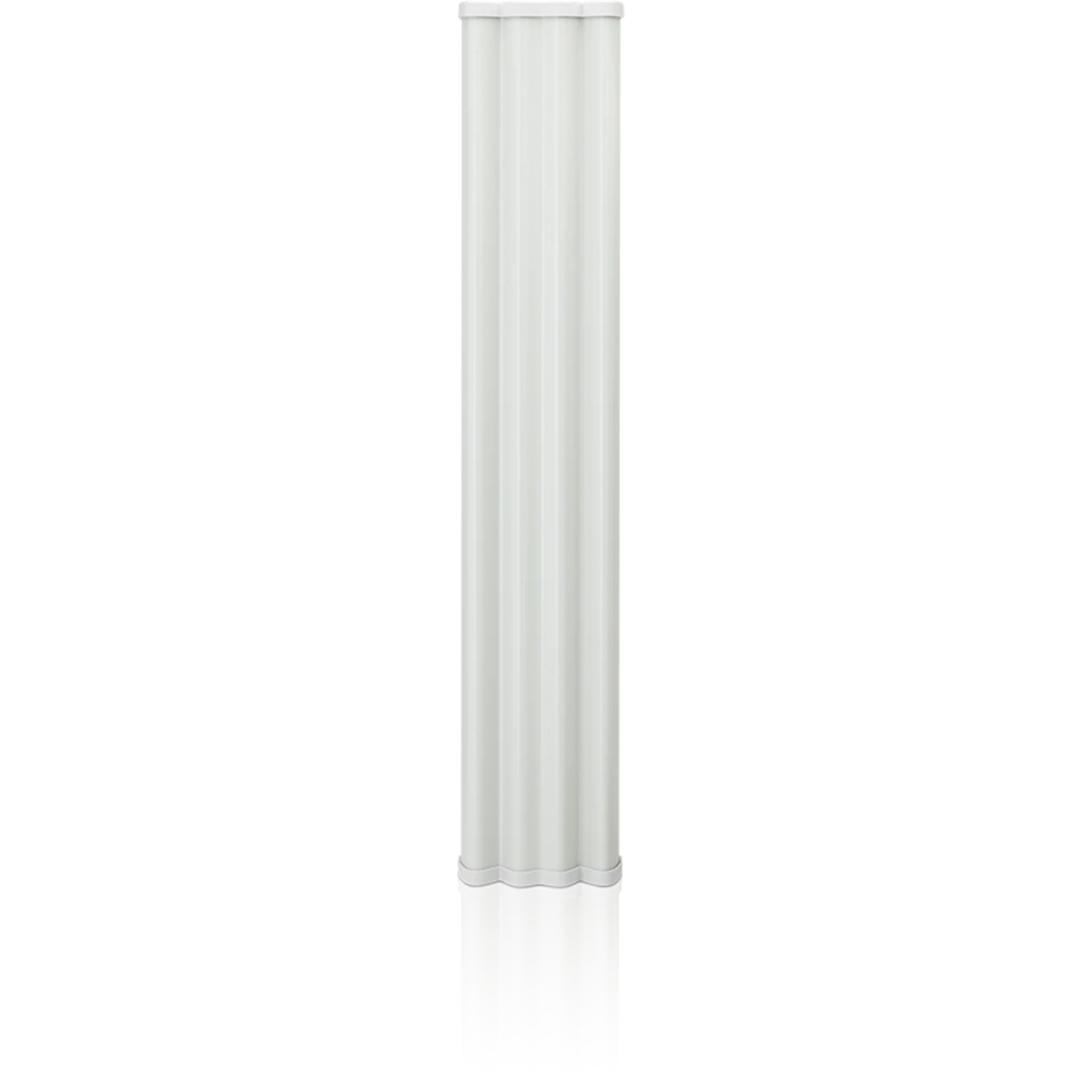

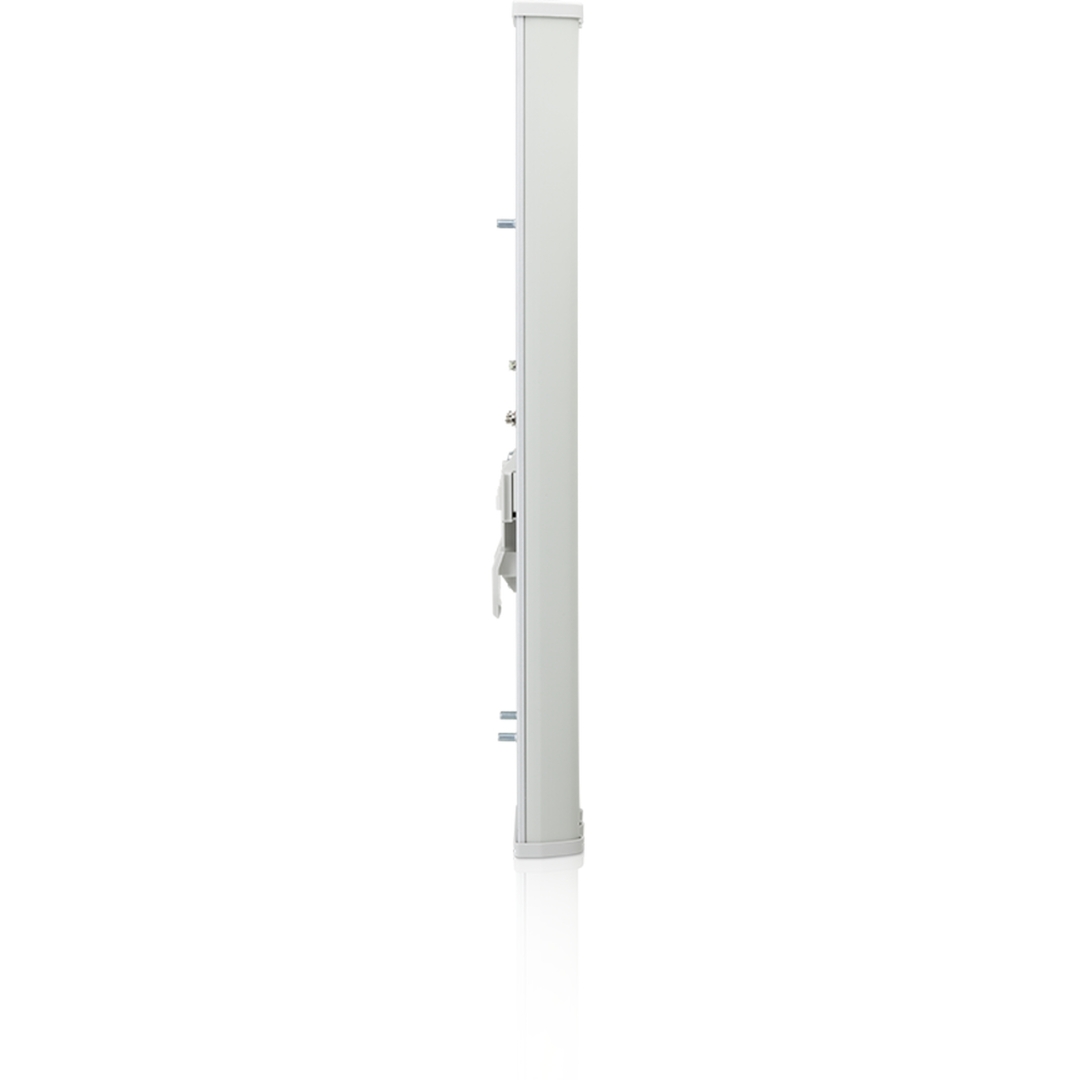

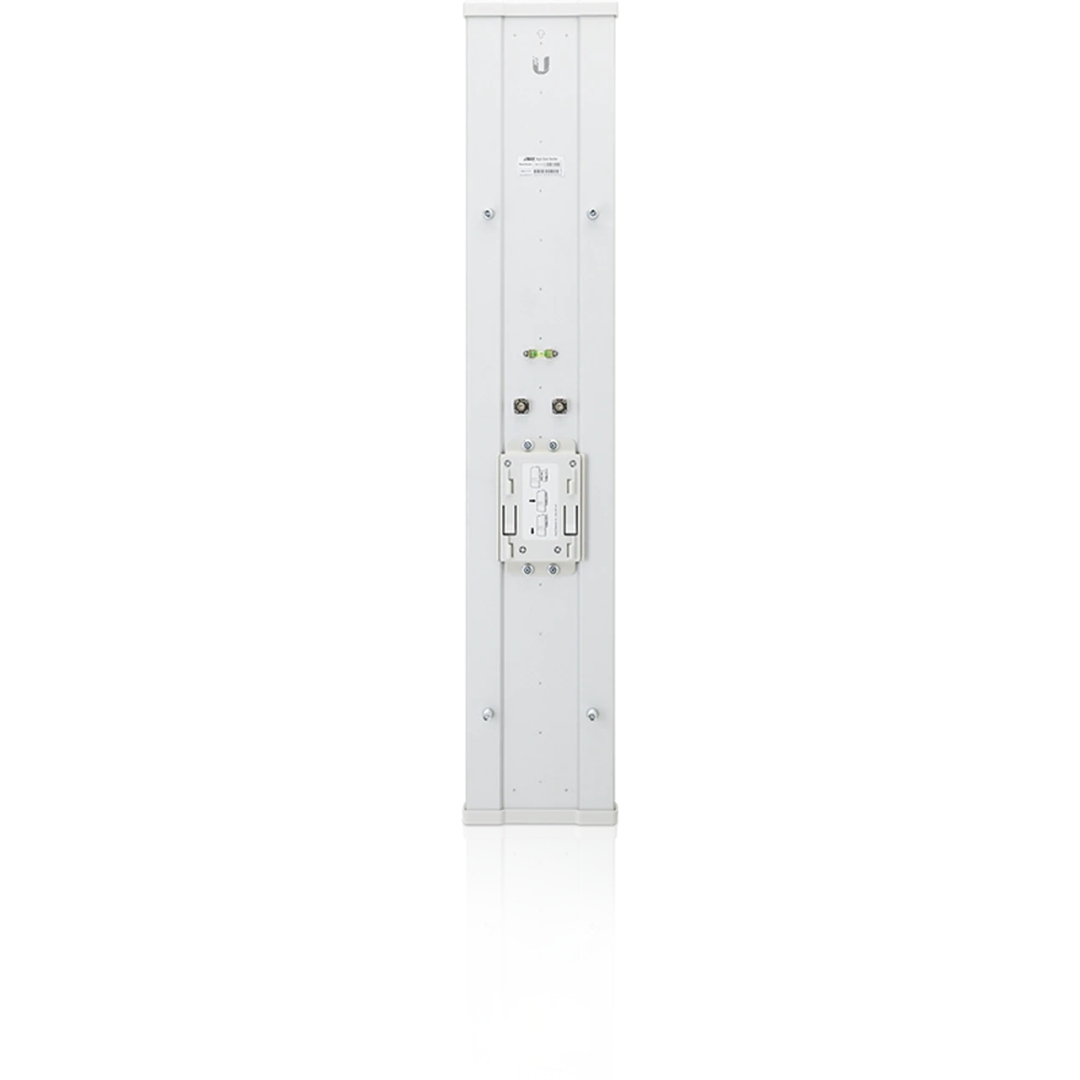

Ubiquiti Air Max 20dBi 5GHz Sector Antenna (AM-5G20-90)

OEM kodas: AM-5G20-90
Kodas: AM-5G-20
ID: #254

Ubiquiti Air Max 5GHz Sector Antenna, Dual Polarization, MIMO, 20dBi, 90 degrees beamwidth, recommended for Ubiquiti Rocket M Platform.

116.34€ su PVM

Kaina be PVM: 96.15€


Produkto savybės:

Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.

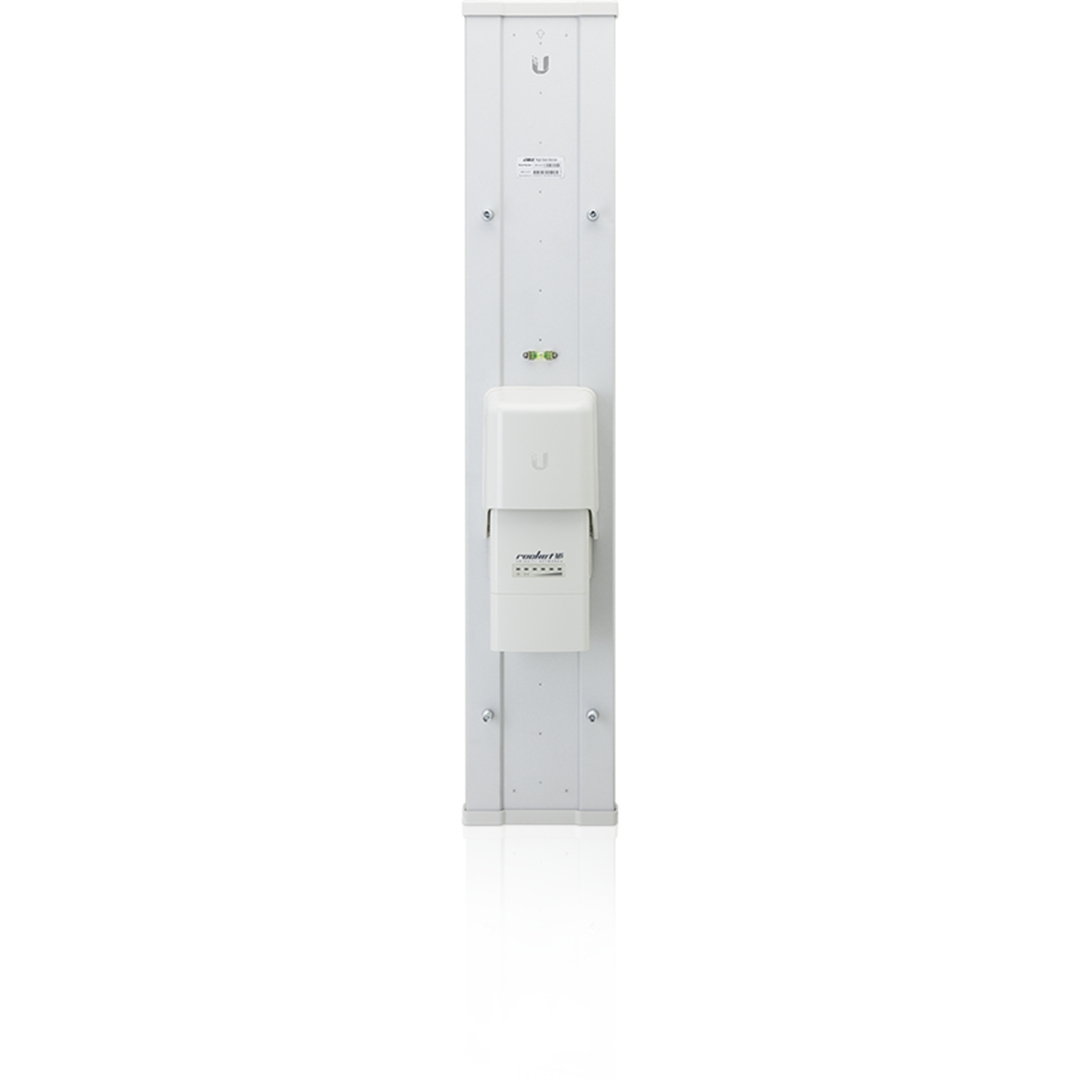

Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

Produkto specifikacijos:



700 x 135 x 70 mm
(27.56 x 5.32 x x 2.76")

Weight (Mount Included)

5.9 kg
(13.01 lb)


5.15 - 5.85 GHz


19.4 - 20.3 dBi

HPOL Beamwidth

91° (6 dB)

VPOL Beamwidth

85° (6 dB)

Elevation Beamwidth

Electrical Downtilt



Wind Survivability

200 km/h
(125 mph)

Wind Loading

182 N @ 200 km/h
(41 lbf @ 125 mph)


Dual Linear

Cross-Pol Isolation

28 dB Min.

ETSI Specification

EN 302 326 DN2

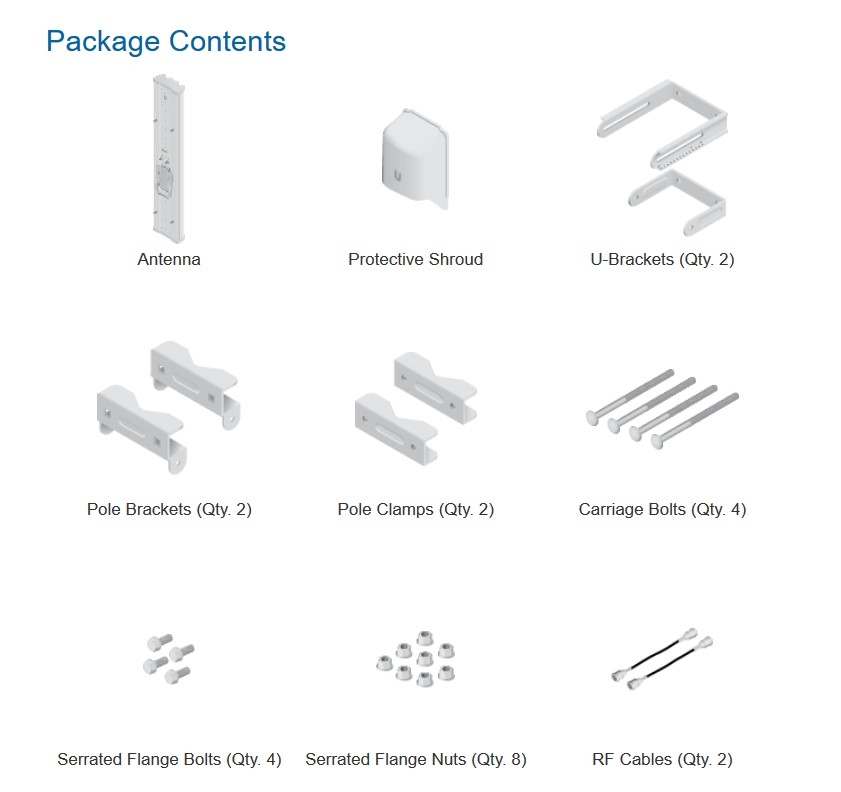

Universal Pole Mount, Rocket Bracket, and Weatherproof RF Jumpers Included
