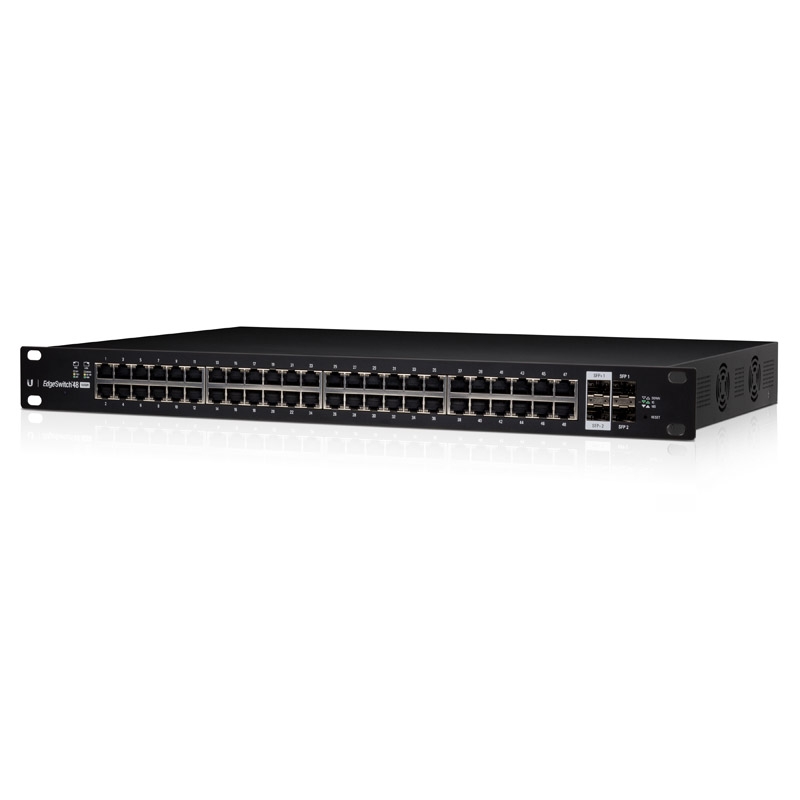

UBIQUITI EdgeSwitch 48 500W

Kodas: ES-48-500W
ID: #765

UBIQUITI EdgeSwitch 48 500W, ES-48-500W , 2 x SFP ports, 2x SFP+ ports, 48 x Gigabit POE LAN ports, Supports POE+ IEEE 802.3at/af and 24V Passive PoE

809.94€ su PVM

Kaina be PVM: 669.37€

Kiekis:


Produkto savybės:

Ubiquiti Networks ES-48-500W EDGE SWITCH 48PORT 500W EdgeSwitch 48 (500W Model) Model: ES-48-500W • (48) Gigabit RJ45 ports • (2) SFP+ ports • (2) SFP ports • Non-blocking throughput: 70 Gbps • Switching capacity: 140 Gbps • Forwarding rate: 104.16 Mpps • Maximum power consumption: 500W • Supports POE+ IEEE 802.3at/af and 24V Passive PoE • Rackmountable

Produkto specifikacijos:

Dimensions    485.04 × 44.45 × 285.6 mm
Weight    5.3kg
Total Non-Blocking Throughput    70Gbps
Max. Power Consumption    500W
Power Method    100-240VAC/50-60Hz, Universal Input
Power Supply    AC/DC, Internal, 250W DC
Networking Interfaces    48x 10/100/1000Mbps RJ45 Ethernet Ports
2x 1Gbps SFP Ethernet Ports
2x 1/10Gbps SFP+ Ethernet Ports
Management Interface    Ethernet In/Out of Band
Certifications    CE, FCC, IC
Rackmount    yes, 1U
ESD/EMP Protection    Air: ±24kV, Contact: ±24kV
Operating Temperature    -5 to 40°C
Operating Humidity    5 to 95% Noncondensing
Shock and Vibration    ETSI300-019-1.4 Standard
PoE Interfaces    POE+ IEEE 802.3af/at (Pins 1,2+, 3, 6-)
24VDC Passive PoE (Pins 4,5+,7,8-)
Max. PoE+ Wattage per Port by PSE    34.2W
Voltage Range 802.3at Mode    50-57V
Max. Passive PoE Wattage per Port    17W
24V Passive PoE Voltage Range    20-27V
