Ubiquiti Powerbeam PBE-5AC-500

Kodas: PBE-5AC-500
ID: #727

UBIQUITI PowerBeam PBE-5AC-500, AC, 802.11ac 27 dbi, 500 mm, 450 Mb/s, didelio našumo „MIMO Bridging“ įrenginys CPE, pridėtas „Radome“

138.63€ su PVM

Kaina be PVM: 114.57€

Kiekis:


Produkto savybės:

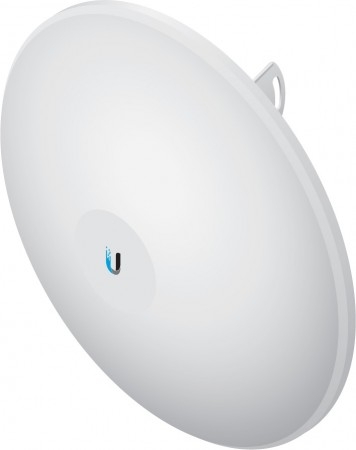

Ubiquit PowerBeam PBE-5AC-500

Ubiquiti Point to Point link using the lastest ac airMAX technology, the PBE-5AC-500 supports up to 450+ Mbps real TCP/IP throughput. It launches with PtP functionality, and a client mode feature will be added with a future firmware upgrade. The Ubiquiti PBE-5AC-500 also includes a protective radome to shield the radio from the elements. 2 units are required for a link.
Ubiquit PowerBeam PBE-5AC-500 Key Features

    802.11ac Wireless AC: Built on the 5GHz ac standards for improved performance in wireless speeds up to 450mbps
    Plug and Play Installation: The PowerBeam PBE-5AC-500 requires no tools for assembly; only a single wrench is required for pole-mounting
    Incredible Antenna Beam Performance: The form factor of the PowerBeam features the highest gain for its size. The PowerBeams excellent beam directivity provides the best performance in high-noise environments.
    Advanced Software Technology: Ubiquitis airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments.
    TDMA airMAX protocol: enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
    Protective Radome: Includes a protective radome to shield the radio from the elements.

Main features

    High capacity Point-to-Point bridge
    802.11ac support - up to 450Mbps of real throughput
    Protective radome included
    Innerfeed™ integrated feeder

Produkto specifikacijos:

Processor Specs     Atheros MIPS 74Kc, 560 MHz
Memory     128 MB DDR2, 8 MB Flash
Networking Interface     10/100/1000 Ethernet Port
Wireless Approvals     FCC, IC, CE
RoHS Compliance     Yes

Dimensions
Radome Excluded     520 x 520 x 308 mm (20.47 x 20.47 x 12.13 in)
Radome Included     525 x 525 x 315 mm (20.67 x 20.67 x 12.40 in)
Weight
Radome Excluded     2.35 kg (5.18 lb)
Radome Included     3.15 kg (6.95 lb)
Power Supply     24V, 0.5A Gigabit PoE
Power Method     Passive PoE (Pairs 4, 5+; 7, 8 Return)
Max. Power Consumption     8.5W
Gain     27 dBi
Operating Frequency
Worldwide     5150 - 5875 MHz
USA     5725 - 5850 MHz
Wind Loading     419.6 N @ 200 km/h (94.33 lbf @ 125 mph)
Wind Survivability     200 km/h (125 mph)
LEDs     Power, (1) LAN, (4) WLAN Signal Strength LEDs
Software-Adjustable to Correspond to Custom RSSI Levels
Channel Sizes     5/8/10/20/30/40 MHz
Polarization     Dual Linear
Enclosure     Outdoor UV Stabilized Plastic
Mounting     Pole-Mount Kit Included
ESD/EMP Protection     Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature     -40 to 70° C (-40 to 158° F)
Operating Humidity     5 to 95% Non-Condensing
Salt Fog Test     IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test     IEC 68-2-6
Temperature Shock Test     IEC 68-2-14
UV Test     IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test     ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
