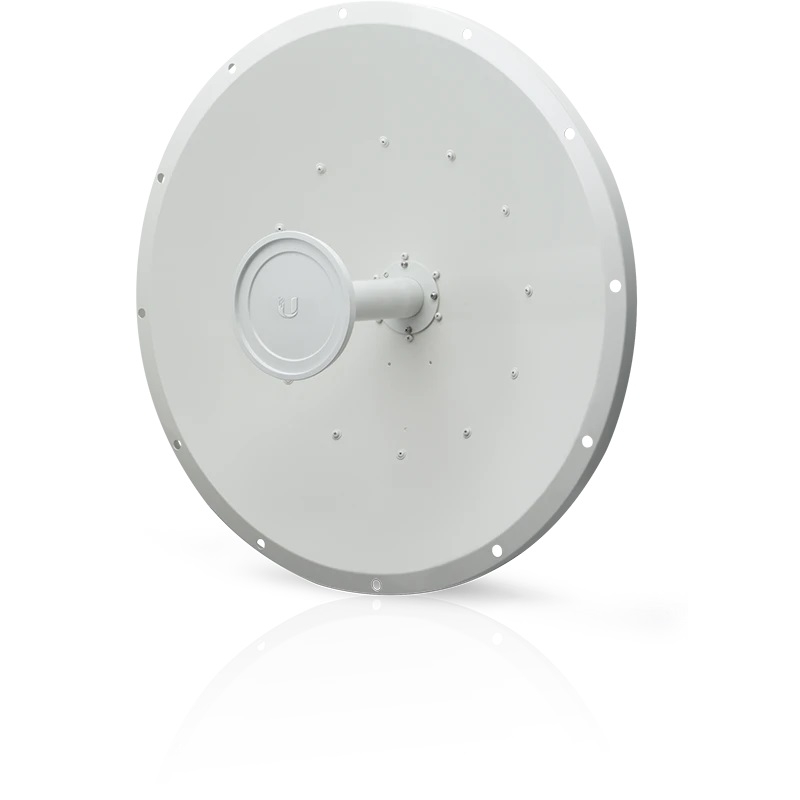

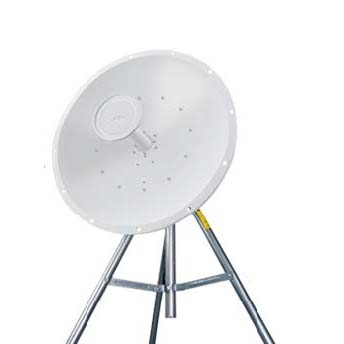

Ubiquiti RocketDish 30dbi (RD-5G30)

OEM kodas: RD-5G30
Kodas: RocketDish 5G-30
ID: #251

Ubiquiti Air Max 5GHz Dish Antenna, Dual Polarization, MIMO, 30dBi, recommended for Ubiquiti Rocket M Platform

134.36€ su PVM

Kaina be PVM: 111.04€

Kiekis:


Produkto savybės:

Carrier Class Performance. Breakthrough Price Points. Instantly pair with Rocket M5 to create powerful 2x2 MIMO PtP Bridging applications. Rocket mount and weatherproof RF jumpers included.

Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

Produkto specifikacijos:

Dimensions 650 x 650 x 304 mm (25.6 x 25.6 x 11.97")
Weight 9.8 kg (21.61 lb)
Frequency Range 4.9 - 5.8 GHz
Gain 4.9 GHz: 26 dBi
5 - 5.9 GHz: 30 dBi
HPOL Beamwidth 5° (3 dB)
VPOL Beamwidth 5° (3 dB)
F/B Ratio 34 dB
Max. VSWR 1.4:1
Wind Loading 787 N @ 200 km/h (177 lbf @125 mph)
Wind Survivability 200 km/h (125 mph)
Polarization Dual-Linear
Cross-pol Isolation 35 dB Min.
ETSI Specification EN 302 326 DN2
Mounting Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
