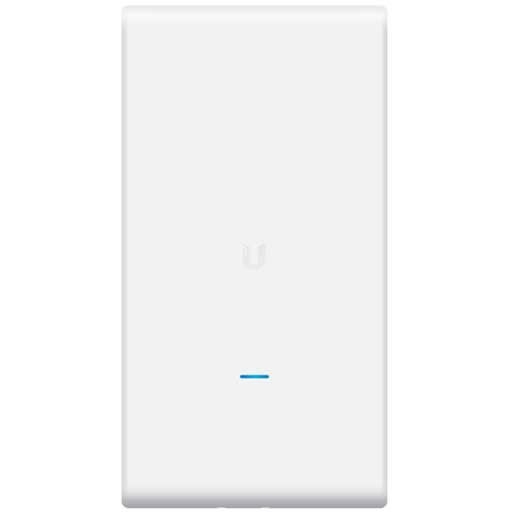

UBIQUITI UniFi AC Mesh Pro (UAP-AC-M-PRO)
UBIQUITI UniFi AC Mesh Pro (UAP-AC-M-PRO), 2x Gbit LAN, 1300 Mbps, 2,4/5ghz, 802.11 a/b/g/n/ac Wi-Fi Standards, 3x 8dbi Integrated Internal Omni Antennas, Indoor-Outdoor, 3x3 MIMO
Produkto savybės:Weather-Resistant Form Factor
The enclosure of the UniFi AC Mesh Pro AP is designed to withstand the elements, making it ideal for outdoor deployment.
Unique provisioning LED provides administrator location tracking and alerts for each device.
Built-in dual-band omni-directional antennas deliver expanded range coverage outdoors.
The UniFi AC Mesh Pro AP can be mounted on a wall or pole. (All accessories are included.)
Dual Gigabit Ethernet Ports
The primary port is for data and PoE; the secondary port is for bridging.
Multiple Power Options
You can power the UniFi AC Mesh Pro AP with an 802.3af compatible switch, UniFi PoE Switch, or the included Gigabit PoE adapter.
Packed with Features
Use the UniFi Controller to provision thousands of UniFi APs, map out networks, quickly manage system traffic, and provision additional UniFi APs.
Use the RF map to monitor and analyze radio frequencies for optimal AP placement, configuration, and troubleshooting.
Powerful RF Performance Features
Advanced RF performance and configuration features include spectral analysis, airtime fairness, and band steering.
Use the configurable reporting and analytics to manage large user populations and expedite troubleshooting.
Wireless Uplink functionality enables wireless connectivity between APs for extended range. One wired UniFi AP uplink supports up to four wireless downlinks on a single operating band, allowing wireless adoption of devices in their default state and real-time changes to network topology.
For devices that support Plug & Play Mesh, this functionality is extended to allow multi-hop wireless uplink - so wirelessly uplinked APs can support uplink to other wirelessly uplinked APs.
Guest Portal/Hotspot Support
Easy customization options for Guest Portals include authentication, Hotspot setup, and the ability to use your own external portal server. Use UniFi's rate limiting for your Guest Portal/Hotspot package offerings. Apply different bandwidth rates (download/upload), limit total data usage, and limit duration of use.
All UniFi APs include Hotspot functionality:
• Built-in support for billing integration using major credit cards.
• Built-in support for voucher-based authentication.
• Built-in Hotspot Manager for voucher creation, guest management, and payment refund.
• Full customization and branding of Hotspot portal pages.
A single cloud-based UniFi Controller can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and admin read/write and read-only accounts.
Manage flexible configurations of large deployments. Create multiple WLAN groups and assign them to an AP's radio.
Dimensions: 343.2 x 181.2 x 60.2 mm (13.51 x 7.13 x 2.37")
Weight: 633 g (1.40 lb)
Networking Interface: (2) 10/100/1000 Ethernet Ports
Power Method: 802.3af PoE (Supported Voltage Range: 44 to 57VDC)
Power Supply: 48V, 0.5A PoE Gigabit Adapter (PoE adapter included)
Power Save: Supported
Maximum Power Consumption: 9W
Maximum TX Power:
2.4 GHz - 22 dBm
5 GHz - 22 dBm
Antennas: (3) Internal Dual-Band Antennas - 8 dBi
Wi-Fi Standards: 802.11 a/b/g/n/ac
Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID: Up to Four per Radio
Mounting: Wall/Pole (Pole Kit Included)
Operating Temperature: -40 to 70° C (-40 to 158° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC
Advanced Traffic Management
Advanced QoS: Per-User Rate Limiting
Guest Traffic Isolation: Supported
WMM: Voice, Video, Best Effort, and Background
Concurrent Clients: 250+
Supported Data Rates (Mbps)
802.11ac - 6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
802.11n - 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11a - 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11g - 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b - 1, 2, 5.5, 11 Mbps
