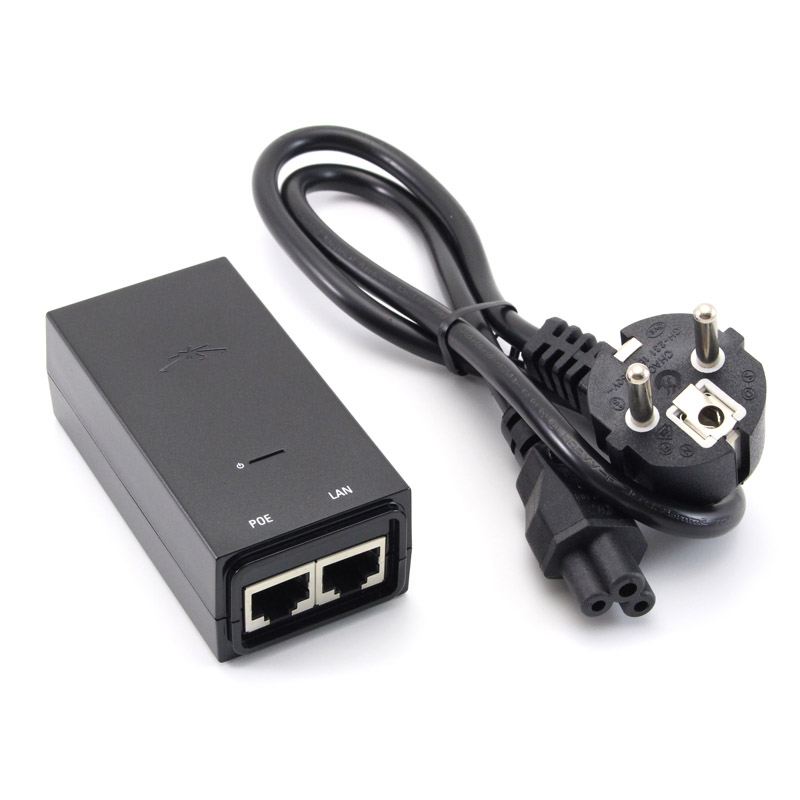

Ubiquiti POE 24V 0.5A (POE-24-12W)

Kodas: UBNT-POE-24-12W
ID: #1206

Ubiquiti POE, 24V, 0.5A, 12W POE-24-12W, earth grounding, ESD protection, power LED, no original packaging, for replacement

6.58€ su PVM

Kaina be PVM: 5.44€


Produkto savybės:

PoE Adapters are highly reliable, and when used with Ubiquiti TOUGHCable™, they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.

Produkto specifikacijos:

Dimensions: 87 x 44 x 29 mm (3.43 x 1.73 x 1.14")
Weight: 92 g (3.25 g)
Output Voltage: 24VDC @ 0.5A
Remote Reset Capability: Yes
Reset Button: Yes
Input Voltage: 90-260VAC @ 47-63 Hz
Input Current: 0.3A @ 120VAC, 0.2A @ 240VAC
Inrush Current: <30A Peak @ 120VAC, <60A Peak @ 230VAC
Efficiency: 75+%
Output Ripple: 1% Max.
Switching Frequency: 50 kHz
Line Regulation: ± 1%
Load Regulation: ± 3%
2-Pair Powering: Pins 4, 5 (+) and Pins 7, 8 (-)
Operating Temperature: 0 to 40° C (32 to 104° F)
Storage Temperature: -30 to 70°C (-22 to 158° F)
Operating Humidity: 35 to 95% Noncondensing
AC Connector: IEC-320 C6
Data IN / POE: RJ45 Shielded Socket
Surge Protection: Difference and Common Mode
Clamping Protection: 11V Data, 60V Power
Max. Surge Discharge: 1500A (8/20 µs) Power
Peak Pulse Current: 36A (10/1000 µs) Data
Shunt Capacitance: <5 pF data
Response Time: <1 ns
Compliance: IEC 60950-1:2005+A1, UL60950-1, EN55022:2010, EN55024:2010, FCC Class B
AC Cable with Earth Ground: USA, EU, AR, BR, UL, CCC, Mexico
